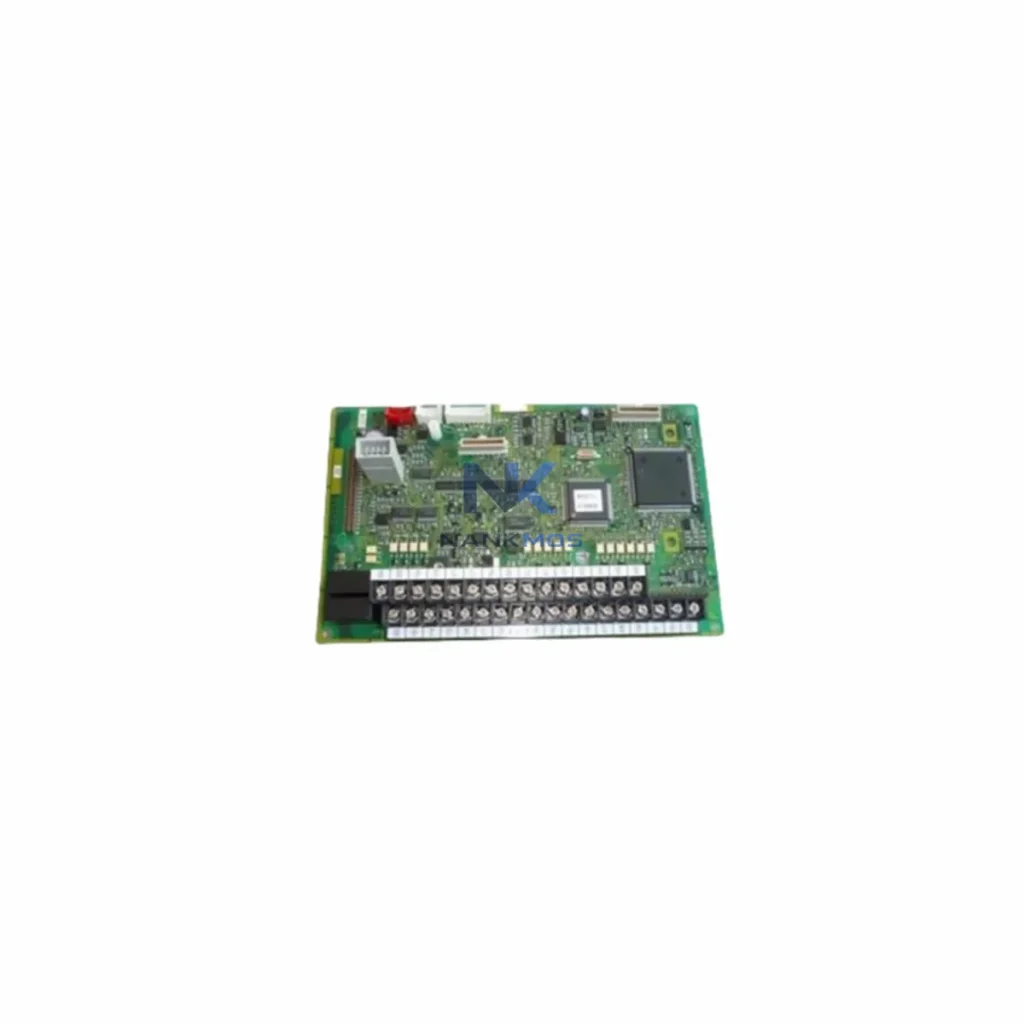

Fuji Electric EP-3364B-CA-Z2 Network Interface Card

Product Details

EP-3364B-CA-Z2 Product Description

The Fuji Electric EP-3364B-CA-Z2 is a dedicated network interface card engineered for FRENIC-series variable frequency drives (VFDs), delivering seamless RS-485 and Modbus RTU connectivity across multi-node industrial networks. In modern smart factory environments where every millisecond of data latency matters, this interface card serves as the critical bridge between field-level drive hardware and upper-layer control systems — including PLCs, SCADA platforms, HMI panels, and edge computing gateways.

Designed for demanding process industries such as manufacturing, water treatment, HVAC, and energy management, the EP-3364B-CA-Z2 enables real-time parameter monitoring, remote fault diagnostics, and closed-loop control feedback without requiring physical access to the drive cabinet. Its compact form factor and plug-in installation make it a preferred choice for system integrators upgrading legacy FRENIC installations to Industry 4.0-ready architectures.

In a fully integrated smart factory data chain, the EP-3364B-CA-Z2 occupies a pivotal position between the physical drive layer and the supervisory control layer. The data flow begins at the sensor and actuator level — where current transducers, temperature probes, and pressure transmitters feed real-time process values into the FRENIC VFD. The EP-3364B-CA-Z2 then encapsulates this drive-level data into Modbus RTU frames and transmits them upstream over an RS-485 multi-drop bus.

At the PLC layer, a Fuji Electric MICREX-SX or compatible third-party controller — such as a Siemens S7-1200 or Mitsubishi FX5U — polls the drive registers at configurable scan intervals, reading output frequency, motor current, fault codes, and energy consumption counters. This data is then forwarded via Industrial Ethernet (PROFINET or EtherNet/IP) to an industrial managed switch — for example, a MOXA EDS-510A or Hirschmann RS20 — which segments the network into control and monitoring VLANs for traffic prioritization and cybersecurity isolation.

On the SCADA and HMI layer, platforms such as Fuji Electric V9 series HMI panels or Wonderware InTouch receive live drive telemetry, displaying motor speed trends, energy KPIs, and alarm histories on operator dashboards. The EP-3364B-CA-Z2 supports remote parameter write operations, allowing SCADA operators to adjust drive setpoints — such as acceleration ramp time or frequency reference — without interrupting production. This bidirectional data capability is essential for adaptive process control in continuous manufacturing lines.

For facilities deploying edge intelligence, an edge gateway — such as a Moxa UC-8112 or Advantech WISE-5000 — aggregates Modbus RTU data from multiple FRENIC drives equipped with EP-3364B-CA-Z2 cards, converts the data to MQTT or OPC-UA, and publishes it to cloud-based MES or ERP platforms. This architecture supports predictive maintenance algorithms that analyze motor load signatures and thermal trends to forecast bearing wear or winding degradation before failure occurs.

In multi-drive installations, the EP-3364B-CA-Z2 works alongside Fuji Electric OPC-G1-RY relay output option cards and OPC-G1-DI digital input expansion cards to create a comprehensive I/O and communication ecosystem within the FRENIC drive chassis. Remote I/O modules — such as Wago 750-series or Phoenix Contact Axioline — extend the field device network, feeding additional process signals into the same Modbus RTU bus managed by the EP-3364B-CA-Z2.

Power quality monitoring is maintained through Fuji Electric clamp-type power meters or third-party energy analyzers connected to the same RS-485 segment, enabling unified energy dashboards that correlate drive operating points with facility power consumption. This holistic data architecture — from sensor to cloud — is what defines a truly connected smart factory, and the EP-3364B-CA-Z2 is the enabling link at the drive communication layer.

Protocol Fragmentation: Many brownfield automation sites operate a mix of legacy serial devices alongside modern Ethernet-based controllers. The EP-3364B-CA-Z2 standardizes FRENIC drive communication on Modbus RTU — the most widely supported industrial serial protocol — ensuring compatibility with virtually any PLC, SCADA, or gateway platform without requiring proprietary drivers or middleware.

Data Silos: Without a network interface card, FRENIC drives operate as isolated islands of process data. The EP-3364B-CA-Z2 breaks down these silos by exposing all drive parameters — speed reference, output current, DC bus voltage, fault history, and energy counters — as addressable Modbus registers accessible to any authorized master device on the network.

Remote Monitoring Gaps: In facilities where drive cabinets are located in hazardous or hard-to-access areas, the EP-3364B-CA-Z2 enables full remote diagnostics from the control room or even from off-site engineering workstations via VPN-connected SCADA systems. Fault codes, trip histories, and real-time operating parameters are available without opening the cabinet door.

Production Line Transparency: By integrating FRENIC drive data into MES dashboards via the EP-3364B-CA-Z2, production managers gain real-time visibility into motor utilization rates, energy consumption per production batch, and drive health scores — enabling data-driven decisions on maintenance scheduling and energy optimization.

Alarm Tracking and Escalation: The EP-3364B-CA-Z2 enables SCADA systems to receive drive fault events in real time, triggering automated alarm escalation workflows — SMS notifications, email alerts, or work order generation in CMMS platforms — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System Scalability: The RS-485 multi-drop topology supported by the EP-3364B-CA-Z2 allows up to 31 FRENIC drives to share a single communication segment, making it straightforward to expand the network as production capacity grows — without rewiring or replacing existing infrastructure.

Q1: What communication protocols does the EP-3364B-CA-Z2 support, and is it compatible with third-party PLCs? The EP-3364B-CA-Z2 supports Modbus RTU over RS-485, which is an open, vendor-neutral protocol. It is fully compatible with any PLC or controller that supports Modbus RTU master functionality — including Siemens, Mitsubishi, Omron, Schneider Electric, and Allen-Bradley platforms — making it an ideal choice for mixed-vendor automation environments.

Q2: How does the EP-3364B-CA-Z2 perform in high-noise industrial environments, and what is the maximum cable length? RS-485 differential signaling provides excellent noise immunity in electrically noisy environments such as motor control centers and switchgear rooms. The maximum recommended cable length is 1,200 meters (approximately 4,000 feet) at lower baud rates, with proper termination resistors at both ends of the bus. Shielded twisted-pair (STP) cable is recommended for installations near high-power equipment.

Q3: Can the EP-3364B-CA-Z2 be used for remote parameter changes and drive control, or is it read-only? The EP-3364B-CA-Z2 supports full bidirectional Modbus RTU communication, enabling both read and write operations. SCADA or PLC masters can remotely modify drive parameters such as frequency reference, acceleration/deceleration times, and control mode — subject to the drive's parameter protection settings. This makes it suitable for adaptive process control and remote commissioning applications.

Q4: What warranty and pre-shipment testing does the EP-3364B-CA-Z2 come with? Every EP-3364B-CA-Z2 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Each unit undergoes functional communication testing prior to dispatch to verify Modbus RTU register access, RS-485 signal integrity, and physical connector condition. Units are shipped in anti-static packaging with inspection documentation. For technical support or warranty claims, contact [email protected] or call +86 18359268345.
