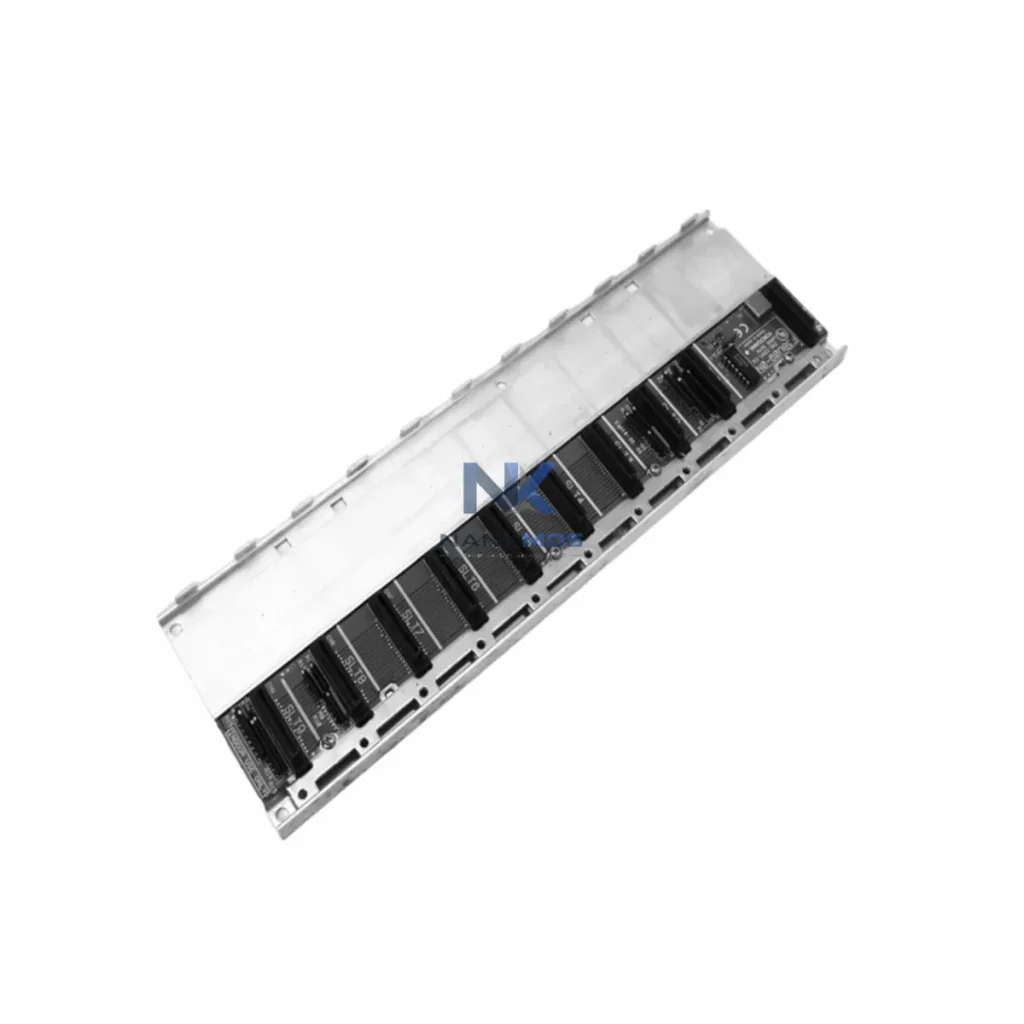

YOKOGAWA F3BU09-0N Network Interface Module

Product Details

F3BU09-0N Product Description

The Yokogawa F3BU09-0N is a high-performance network interface and base unit module designed for the STARDOM FCN/FCJ autonomous controller platform. In modern smart factory environments where seamless data flow between field devices, PLCs, remote I/O, HMIs, SCADA systems, and enterprise-level MES platforms is non-negotiable, the F3BU09-0N serves as the critical communication backbone that bridges the operational technology (OT) layer with information technology (IT) infrastructure. Its robust design, multi-protocol support, and proven reliability in demanding industrial environments make it a preferred choice for system integrators and automation engineers seeking to build transparent, scalable, and remotely manageable production networks.

From signal acquisition at the field level to real-time data visualization at the supervisory layer, the F3BU09-0N enables a complete and uninterrupted data chain. Whether deployed in oil and gas processing, chemical plants, water treatment facilities, or discrete manufacturing lines, this module ensures that every data point — from analog sensor readings to digital actuator states — is accurately captured, protocol-converted, and transmitted across the network with minimal latency and maximum integrity.

The F3BU09-0N sits at the heart of a layered industrial communication architecture. At the field level, sensors — including pressure transmitters, flow meters, and temperature probes — feed analog and digital signals into Yokogawa remote I/O modules such as the F3AD08-6N (analog input) and F3DI32-3N (digital input), which are mounted directly on the STARDOM FCN base unit. The F3BU09-0N base unit aggregates these I/O signals through its high-speed backplane bus and makes them available to the FCN controller's CPU module, such as the F3SP71-4N, for real-time logic execution and PID control.

Once processed at the controller level, data is transmitted upstream via the F3BU09-0N's Ethernet port to the plant's industrial network infrastructure. Managed industrial Ethernet switches — such as those from the Yokogawa network portfolio or compatible third-party switches supporting IEEE 802.3 — route this data to SCADA servers running Yokogawa's FAST/TOOLS or compatible platforms like Wonderware, Ignition, or Inductive Automation. At the SCADA layer, operators gain real-time visibility into process variables, alarm states, and equipment health across the entire production line.

For facilities requiring protocol bridging between legacy fieldbus networks and modern Ethernet-based systems, the F3BU09-0N works in conjunction with protocol gateways such as the Yokogawa F3LE01-5T Ethernet communication module or third-party Modbus-to-PROFIBUS gateways, enabling seamless integration of older PROFIBUS DP or FOUNDATION Fieldbus devices into the STARDOM network without requiring full system replacement. This protocol conversion capability is essential for brownfield automation projects where capital investment in existing field instrumentation must be preserved.

HMI panels — including Yokogawa's own touch-screen operator interfaces or third-party HMIs communicating via Modbus TCP or OPC-UA — connect directly to the STARDOM FCN network through the F3BU09-0N's Ethernet interface, providing operators with intuitive, real-time process visualization at the machine level. Simultaneously, edge computing gateways installed at the network boundary collect time-series data from the FCN controller and forward it to cloud-based analytics platforms or on-premise data historians, enabling predictive maintenance algorithms and energy consumption analysis across multiple production cells.

Variable frequency drives (VFDs) controlling pump motors, compressors, and conveyor systems are integrated into the data chain through Modbus RTU-to-TCP converters or directly via Ethernet-capable drive models, with their speed references, current draw, and fault codes all visible within the SCADA dashboard. Power supply modules such as the Yokogawa F3PU20-0S provide stable 24VDC rail power to the entire FCN base unit assembly, ensuring that the F3BU09-0N and all associated I/O modules operate within their specified voltage tolerances even during grid fluctuations — a critical requirement for continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

Protocol Fragmentation: Many industrial sites operate a mix of legacy PROFIBUS, Modbus RTU, and modern Ethernet-based devices. The F3BU09-0N, combined with appropriate gateway modules, resolves protocol incompatibilities by providing a unified Ethernet backbone through which all device data — regardless of native protocol — can be normalized and forwarded to SCADA or MES systems in a consistent format.

Data Silos and Production Transparency: Without a reliable network interface at the controller level, process data remains trapped within individual PLCs or standalone controllers, invisible to plant-wide monitoring systems. The F3BU09-0N eliminates these data silos by ensuring that every variable processed by the STARDOM FCN controller is continuously published to the network, making production KPIs, batch records, and equipment states available to authorized users across the enterprise in real time.

Remote Monitoring and Diagnostics: Maintenance engineers no longer need to be physically present at the control panel to diagnose faults. Through the F3BU09-0N's network connectivity, remote diagnostic tools can poll controller status, I/O module health, and communication error counters from any authorized workstation on the plant network — or even via secure VPN from off-site locations — dramatically reducing mean time to repair (MTTR) and enabling proactive maintenance scheduling.

Alarm Management and Traceability: The F3BU09-0N supports time-stamped alarm and event data transmission to SCADA alarm management systems, providing a complete audit trail of process deviations, operator interventions, and equipment faults. This traceability is essential for regulatory compliance in pharmaceutical, food and beverage, and chemical manufacturing environments.

System Scalability: As production capacity grows, additional STARDOM FCN base units with F3BU09-0N modules can be added to the network without disrupting existing operations. The modular architecture of the STARDOM platform, anchored by the F3BU09-0N's network interface capability, allows engineers to scale I/O capacity, add new control loops, and integrate additional field devices incrementally — protecting the initial automation investment while accommodating future expansion.

Q1: What communication protocols does the Yokogawa F3BU09-0N support, and is it compatible with third-party SCADA systems? The F3BU09-0N supports Ethernet (100BASE-TX) with Modbus TCP/IP and OPC-UA connectivity, making it compatible with a wide range of third-party SCADA platforms including Wonderware, Ignition, and iFIX. For legacy fieldbus protocols such as PROFIBUS DP or FOUNDATION Fieldbus, protocol gateway modules are required to bridge communication between the STARDOM FCN network and existing field devices.

Q2: How does the F3BU09-0N ensure network stability and minimize communication latency in real-time control applications? The F3BU09-0N uses a deterministic backplane bus architecture to ensure that I/O data is scanned and updated at consistent cycle times, independent of Ethernet network load. The Ethernet port supports standard QoS (Quality of Service) configurations at the switch level, allowing time-critical control traffic to be prioritized over non-critical data transfers. This design ensures that real-time control performance is maintained even in high-traffic network environments.

Q3: Can the F3BU09-0N be used for remote diagnostics, and what tools are available for monitoring module health? Yes. The F3BU09-0N exposes controller and I/O module diagnostic data via its Ethernet interface, which can be accessed using Yokogawa's STARDOM engineering tools or standard OPC-UA clients. Remote diagnostic sessions can be conducted over the plant LAN or via secure VPN, allowing maintenance teams to check module status, communication error counts, and I/O channel health without on-site access. All units supplied by NANKMOS are pre-shipment tested and covered by a 12-Month Warranty.

Q4: What is the warranty coverage for the F3BU09-0N, and does NANKMOS provide stock availability for urgent orders? All Yokogawa F3BU09-0N units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains ready stock of STARDOM FCN series modules to support urgent project timelines and emergency replacement requirements. For availability confirmation and lead time inquiries, contact [email protected] or call +86 18359268345.
