Fuji Electric FMC-3 Magnetic Contactor

Product Details

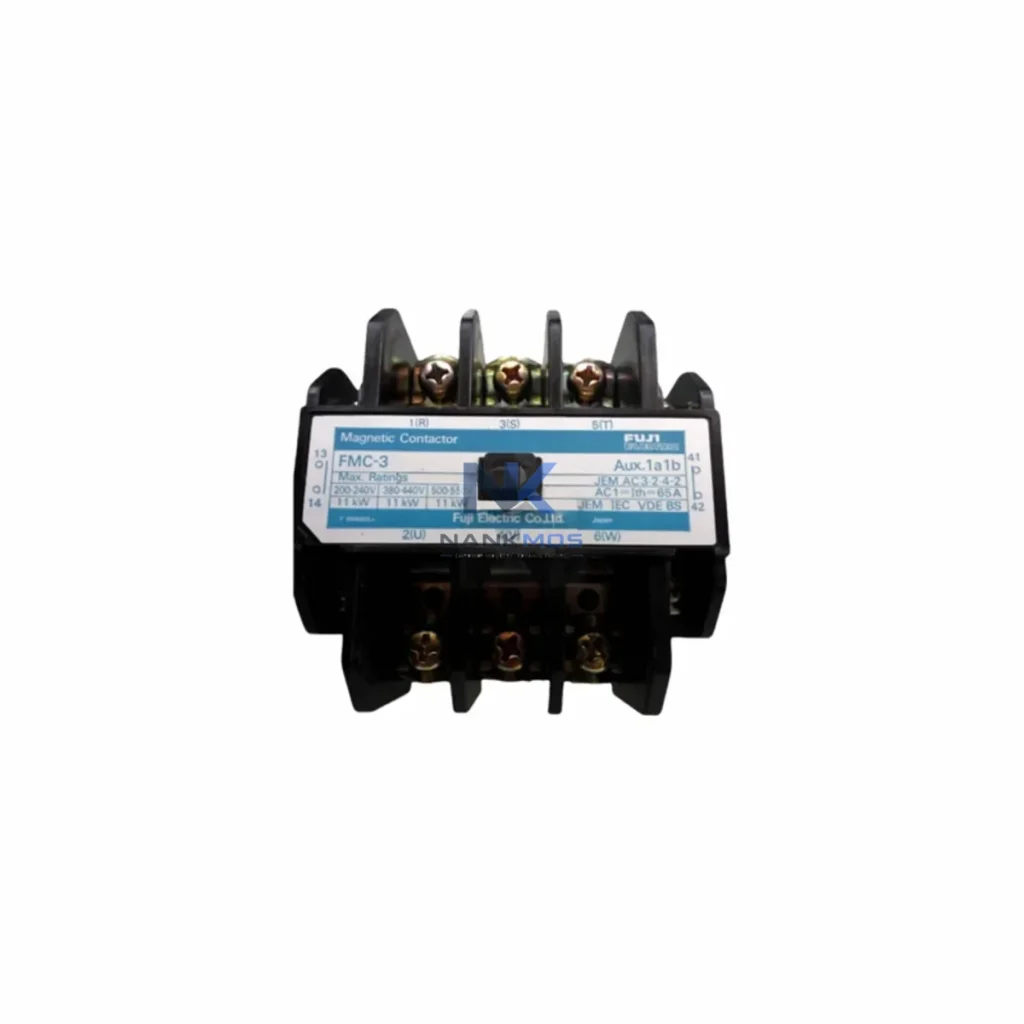

FMC-3 Product Description

The Fuji Electric FMC-3 is a compact, energy-control magnetic contactor engineered for high-cycle industrial motor switching, load management, and power-aware automation on modern smart production lines. Designed within Fuji Electric's proven FMC Series contactor platform, the FMC-3 delivers reliable switching performance across a wide range of AC motor loads while minimising coil power consumption and thermal output — two critical factors in any energy optimisation strategy for manufacturing environments.

In facilities where energy costs are a primary operational concern, every switching device in the control panel contributes to the overall energy profile of the line. The FMC-3 addresses this directly through its low-power holding coil design, which reduces continuous coil dissipation during sustained motor-on states. When deployed across multiple motor circuits — conveyor drives, pump stations, compressor starters, and fan arrays — the cumulative reduction in panel heat load translates into lower cooling requirements and improved cabinet thermal stability. This directly supports reduced HVAC energy draw in electrical rooms and MCC enclosures.

The FMC-3 is rated for use with three-phase AC induction motors and is compatible with standard IEC motor control architectures. It integrates cleanly into control systems built around Fuji Electric FRENIC-Mini and FRENIC-Ace variable frequency drives, where the contactor serves as the upstream line-side isolation and switching element. In VFD-driven motor circuits, the FMC-3 handles pre-run isolation and emergency stop switching without introducing voltage spikes that could compromise drive input rectifiers — a common failure mode when poorly rated contactors are used in VFD applications.

The FMC-3 operates most effectively when integrated into a layered, power-aware automation architecture. In a typical smart factory motor control centre, the FMC-3 sits between the upstream Fuji Electric BW-series moulded case circuit breaker and the motor terminal block, with its coil driven by a discrete output from a Fuji Electric MICREX-SX NS series PLC or a compatible third-party controller such as a Mitsubishi MELSEC Q-series or Siemens S7-1200 digital output module.

For energy monitoring integration, the FMC-3's auxiliary contacts feed status signals back to the PLC's digital input module, confirming contactor state — energised or de-energised — without relying solely on command echo. This closed-loop feedback is essential when the PLC is also communicating motor runtime data to a Schneider Electric PowerLogic PM5000 series power monitoring module or an equivalent Carlo Gavazzi EM24 energy meter installed on the same MCC bus. Real-time current draw data from these power monitors, combined with the FMC-3's switching state, allows the SCADA layer to calculate per-motor energy consumption with high accuracy.

In variable-speed drive applications, the FMC-3 is typically wired on the line side of a Fuji Electric FRENIC-Ace FRN-E2 series VFD, providing isolation during maintenance and emergency stop functions. The drive's own internal braking and deceleration logic handles the motor-side energy recovery, while the FMC-3 ensures clean upstream disconnection. For servo-driven axes on assembly lines, the FMC-3 may also appear as a safety contactor in the power stage of a Fuji Electric ALPHA5 Smart servo drive system, where it is controlled via a safety relay module to meet PLd or SIL2 requirements.

HMI visibility of contactor state is achieved by mapping the FMC-3 auxiliary contact status to a Fuji Electric V9 series HMI or a Weintek cMT series panel running on the same Ethernet/IP or Modbus TCP network as the PLC. Operators can monitor motor run/stop status, accumulated runtime hours, and switching cycle counts directly from the HMI, enabling predictive maintenance scheduling based on actual contactor wear data rather than fixed calendar intervals.

For facilities using IO-Link or PROFIBUS DP fieldbus architectures, the FMC-3 can be paired with a compatible smart motor starter or IO-Link master module to transmit diagnostic data upstream to the SCADA system. This integration supports condition-based maintenance strategies, where contactor replacement is triggered by cycle count thresholds rather than time-based schedules — reducing unnecessary downtime and spare parts consumption.

On high-throughput production lines, the FMC-3 contributes to energy optimisation at multiple levels. At the device level, its low-power holding coil reduces the continuous electrical load on the control power supply — typically a 24VDC SITOP or Fuji Electric PSR-series DIN rail power supply — which in turn reduces the total VA demand on the control transformer. Across a panel with 20 or more contactors, this aggregated coil power saving is measurable and contributes to the facility's overall power factor improvement programme.

At the system level, the FMC-3's reliable switching performance reduces the risk of welded contacts or contact bounce events that can cause unplanned motor starts or stops. Unplanned motor events are a significant source of energy waste on production lines: a motor that starts unexpectedly under full load draws 5–7× its rated current for several seconds, creating a demand spike that affects the facility's peak demand billing. By maintaining clean, bounce-free switching, the FMC-3 helps keep motor start events predictable and manageable within the energy management system's demand response strategy.

For lines running continuous processes — extrusion, mixing, conveying, or pumping — the FMC-3 supports energy-efficient motor management by enabling rapid, reliable switching in star-delta or soft-start configurations. In star-delta starters, the FMC-3 is used as one of the three contactors in the switching sequence, and its consistent operating time ensures that the transition from star to delta occurs within the designed timing window, avoiding the current transients that occur when contactors operate outside their specified switching time.

Predictive maintenance integration further enhances the FMC-3's contribution to line efficiency. By logging switching cycles through the PLC and comparing against the manufacturer's rated mechanical and electrical endurance figures, maintenance teams can schedule contactor replacement during planned downtime windows rather than reacting to unexpected failures. This approach, when combined with real-time power monitoring from energy meters on the MCC bus, gives production managers a complete picture of motor circuit health and energy consumption — the foundation of a data-driven energy management programme.

All FMC-3 units supplied by NANKMOS are sourced from authorised distribution channels, individually inspected prior to dispatch, and covered by a 12-Month Warranty against manufacturing defects. Stock is maintained for immediate shipment, with lead times confirmed at the time of order.

Q1: How does the FMC-3 contribute to energy savings compared to a standard contactor?The FMC-3 uses a low-power holding coil that draws significantly less current during the sustained energised state compared to older contactor designs. In panels with multiple contactors running continuously, this reduces the aggregate control power load, lowers panel heat generation, and decreases the cooling energy required to maintain safe operating temperatures inside the MCC enclosure.

Q2: Is the FMC-3 compatible with Fuji Electric FRENIC series variable frequency drives?Yes. The FMC-3 is designed for use in Fuji Electric motor control architectures and is compatible with FRENIC-Mini, FRENIC-Ace, and FRENIC-MEGA series VFDs when wired on the line side of the drive. It should not be used for frequent switching on the output (motor) side of a VFD, as this can damage the drive's output stage. For line-side isolation and emergency stop functions, the FMC-3 is the recommended switching device within the FMC Series range.

Q3: What is the recommended replacement interval, and how is it determined?Replacement interval is determined by switching cycle count rather than calendar time. The FMC-3's rated mechanical and electrical endurance figures (available in the Fuji Electric FMC Series technical datasheet) define the maximum number of operations under specified load conditions. NANKMOS recommends logging contactor switching cycles via the PLC and scheduling replacement when the cycle count reaches 80% of the rated electrical endurance at the actual operating current. This approach minimises unplanned downtime while avoiding premature replacement.

Q4: Does NANKMOS provide pre-shipment testing, and what warranty terms apply?All FMC-3 units are inspected and functionally verified before dispatch. NANKMOS provides a 12-Month Warranty covering manufacturing defects from the date of shipment. Units found to be defective within the warranty period are replaced or credited at NANKMOS's discretion. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
