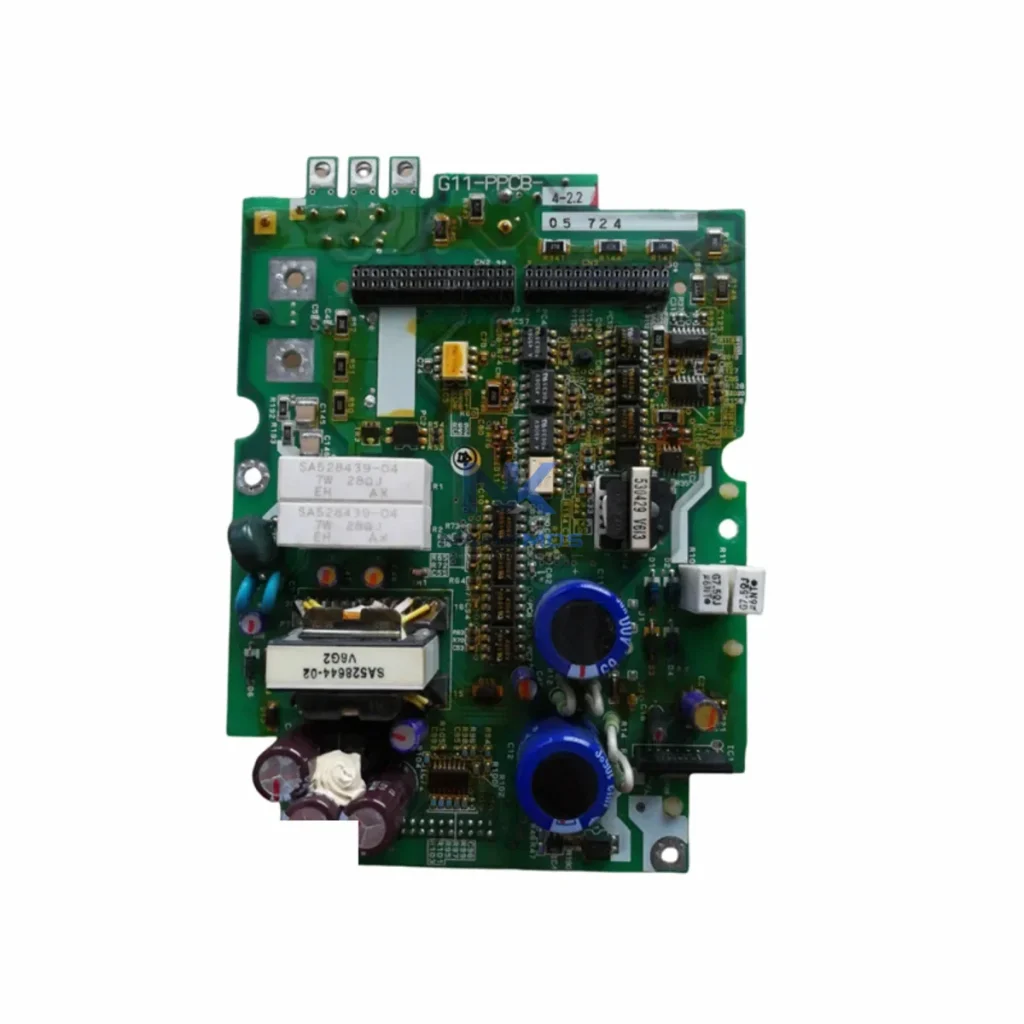

G11-PPCB-4-2.2 SA528530-06 Product Description

The Fuji G11-PPCB-4-2-2 SA528530-06 is a dedicated communication and protocol gateway PCB engineered for the Fuji Electric G11 series variable frequency drive platform. Designed to serve as the nerve center of industrial data exchange, this board enables seamless integration between G11 VFDs and the broader smart factory ecosystem — spanning field-level sensors, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and edge computing gateways. In an era where production transparency and real-time diagnostics define competitive advantage, the SA528530-06 delivers the communication backbone that modern automation sites demand.

From the moment a signal is captured at a field device — whether a pressure transmitter, a proximity sensor, or a temperature probe — the data journey begins. The G11-PPCB-4-2-2 SA528530-06 acts as the protocol translation layer within the G11 drive, converting drive-level operational data (output frequency, motor current, fault codes, run/stop status) into standardized industrial communication formats. This enables upstream systems such as Siemens S7-series PLCs, Mitsubishi MELSEC controllers, or Allen-Bradley ControlLogix platforms to poll drive parameters in real time without proprietary middleware or custom wiring workarounds.

In a typical smart factory deployment, the G11-PPCB-4-2-2 SA528530-06 sits at the intersection of the drive layer and the control network. Consider a conveyor or pump system where a Fuji Electric G11 VFD governs motor speed. Without a communication board, the drive operates as an isolated island — its operational data invisible to the plant's control infrastructure. With the SA528530-06 installed, the drive becomes a fully networked node.

At the field level, sensors such as flow meters, vibration monitors, and encoder feedback devices feed analog or digital signals into remote I/O modules — for example, a Fuji Electric Alpha 5 Smart I/O or a third-party distributed I/O rack connected via PROFIBUS-DP. These signals are aggregated and passed upward through the network. The SA528530-06 ensures the G11 drive's own data — speed reference, actual output frequency, DC bus voltage, thermal load percentage — is simultaneously available on the same PROFIBUS or Modbus segment.

At the control layer, a Siemens S7-1500 PLC or equivalent master controller reads all networked device data cyclically. The PLC executes closed-loop logic: if a pump's output current exceeds a threshold, the controller issues a speed-reduction command back to the G11 drive via the SA528530-06 — all within a single scan cycle. Parallel to this, an HMI panel (such as a Fuji Electric V9 series or a Weintek cMT series touchscreen) displays live drive status, alarm history, and trend graphs, pulling data directly from the PLC's data blocks populated by the communication board.

At the supervisory layer, a SCADA platform — whether Ignition by Inductive Automation, Wonderware, or WinCC — subscribes to OPC-UA or Modbus TCP tags exposed by an industrial edge gateway (such as a Moxa MGate or a Hilscher netTAP gateway). The edge gateway bridges the plant-floor Modbus RTU segment — where the G11 drive with SA528530-06 resides — to the plant's Industrial Ethernet backbone. This architecture eliminates data silos: every drive parameter is visible, loggable, and actionable from the SCADA historian.

For multi-drive installations, an industrial managed Ethernet switch (such as a Moxa EDS-408A or a Hirschmann RS20 series) provides the network backbone, ensuring deterministic packet delivery and VLAN segmentation between the drive network and the enterprise IT layer. Power to the communication infrastructure is supplied by industrial DIN-rail power supplies — for instance, a Phoenix Contact QUINT series or a MEAN WELL DR series unit — ensuring stable 24 VDC across all network nodes even during grid fluctuations.

Where frequency inverters from the broader Fuji Electric portfolio — such as the Fuji Electric FRENIC-Ace or FRENIC-MEGA series — are deployed alongside G11 drives, the SA528530-06 ensures protocol consistency across the drive network, allowing a single PLC master to address all drives on a unified Modbus or PROFIBUS segment. This dramatically simplifies commissioning and reduces the engineering overhead of multi-drive automation projects.

Many industrial sites operate with legacy drives that lack native communication capability, creating protocol fragmentation and data blind spots. The G11-PPCB-4-2-2 SA528530-06 directly addresses these challenges:

Protocol Unification: Sites running mixed networks — Modbus RTU on the drive floor and PROFIBUS-DP at the PLC level — no longer require external protocol converters. The SA528530-06 bridges these layers natively within the G11 drive chassis, reducing panel space and eliminating additional failure points.

Eliminating Data Islands: Without a communication board, drive fault history, energy consumption data, and runtime hours are trapped inside the drive's local memory. The SA528530-06 exposes all of this data to the SCADA historian, enabling predictive maintenance models and energy auditing across the production line.

Remote Monitoring and Diagnostics: Maintenance engineers can interrogate drive parameters — thermal status, fault codes, output waveform data — remotely via the SCADA or HMI system, without requiring physical access to the drive cabinet. This is particularly valuable for unmanned substations, remote pump stations, and multi-site manufacturing operations.

Production Line Transparency: By integrating G11 drive data into the plant's MES or ERP data pipeline, production managers gain real-time OEE (Overall Equipment Effectiveness) visibility. Downtime events trigger automatic alarm notifications through the SCADA alarm management module, with fault codes mapped directly from the SA528530-06 data stream.

Scalable Network Expansion: The Modbus RTU multi-drop topology supported by the SA528530-06 allows up to 247 devices on a single RS-485 segment, making it straightforward to add additional G11 drives or other Modbus-compatible devices — such as power meters, soft starters, or motor protection relays — to an existing network without rewiring.

Q1: What communication protocols does the Fuji G11-PPCB-4-2-2 SA528530-06 support, and is it compatible with my existing PLC network? The SA528530-06 supports Modbus RTU (RS-485) and PROFIBUS-DP as primary industrial protocols, making it compatible with the vast majority of PLC platforms including Siemens, Mitsubishi, Omron, and Rockwell Automation controllers. For Modbus TCP or OPC-UA integration, an edge gateway or protocol converter is recommended as an intermediate layer between the drive network and the plant Ethernet backbone.

Q2: How does this board perform in terms of communication latency and network stability in high-cycle automation environments? The G11-PPCB-4-2-2 SA528530-06 is designed for deterministic, low-latency communication typical of PROFIBUS-DP (cycle times as low as 1–2 ms at 12 Mbps) and Modbus RTU (configurable baud rates up to 115.2 kbps). For high-cycle applications such as servo-coordinated conveyor systems or synchronized multi-drive winding lines, PROFIBUS-DP mode is recommended for its guaranteed cycle time and master-slave arbitration.

Q3: Can the SA528530-06 support remote diagnostics and fault retrieval without on-site intervention? Yes. Once integrated into a SCADA or HMI system via the supported protocols, all G11 drive fault codes, warning states, and operational parameters are accessible remotely. Maintenance teams can retrieve fault history, reset non-critical alarms, and adjust speed references or PID setpoints from a central control room or via a VPN-connected remote desktop — eliminating unnecessary site visits and reducing mean time to repair (MTTR).

Q4: What does the 12-Month Warranty cover, and has this unit been tested before shipment? Every Fuji G11-PPCB-4-2-2 SA528530-06 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing to verify communication interface integrity and protocol handshake performance. In-stock units are available for immediate dispatch, with full traceability documentation provided upon request.
