Fuji Electric NP1BS-08S Communication Gateway

Product Details

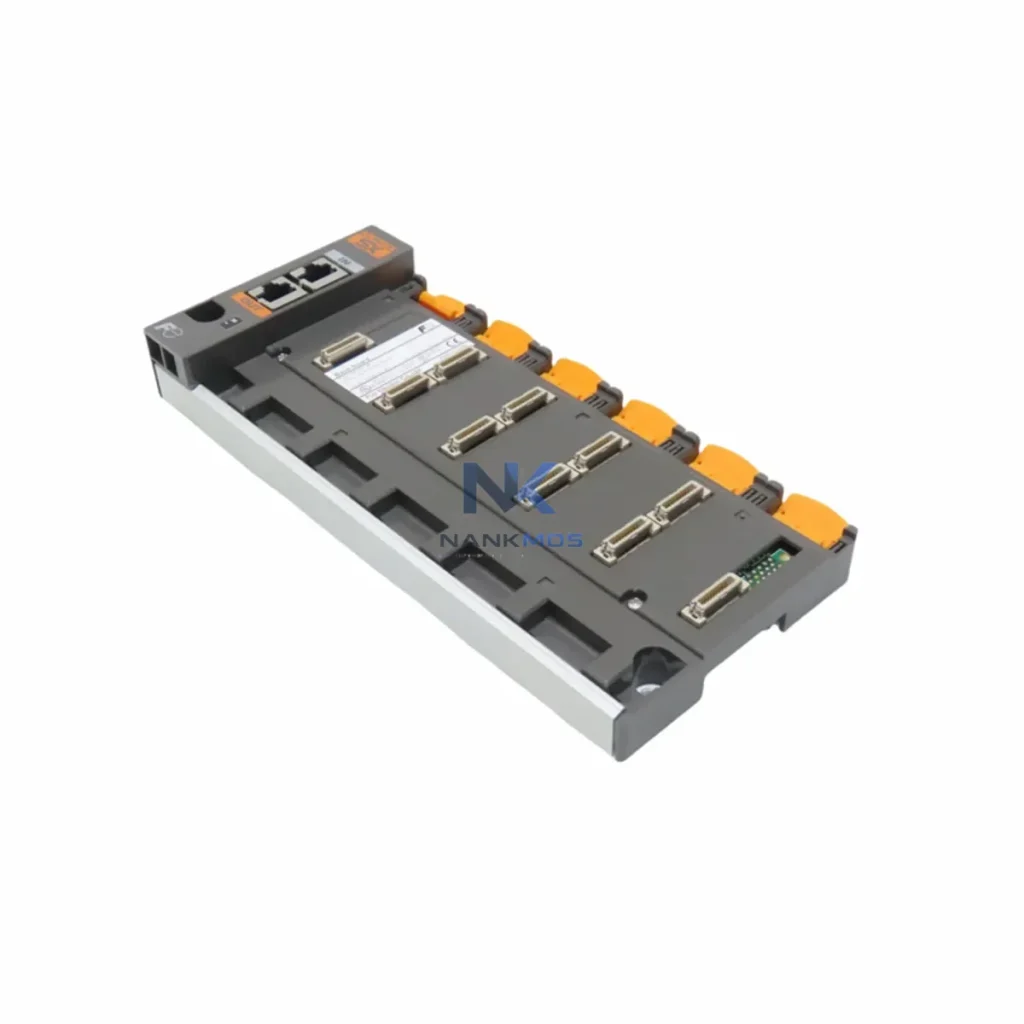

NP1BS-08S Product Description

The Fuji Electric NP1BS-08S is a dedicated PROFIBUS communication gateway engineered for the MICREX-SX programmable controller platform. Designed to bridge field-level devices and upper-level control systems, the NP1BS-08S enables seamless, high-integrity data exchange across the full automation hierarchy — from sensor-level signal acquisition through PLC logic processing, remote I/O expansion, HMI visualization, SCADA supervision, and enterprise-level data analytics. In smart factory environments where production transparency, real-time diagnostics, and system interoperability are non-negotiable, the NP1BS-08S delivers the network backbone that connects every layer of the control architecture.

In a fully connected smart factory, the NP1BS-08S functions as the critical PROFIBUS data bridge within the MICREX-SX control platform. The data flow begins at the field level, where distributed sensors — including pressure transmitters, flow meters, temperature probes, and proximity switches — transmit process values over the PROFIBUS-DP bus. The NP1BS-08S collects these signals and routes them directly into the MICREX-SX NP1L-RS1 CPU module, where ladder logic and function block programs execute real-time control decisions.

Downstream from the CPU, the NP1BS-08S coordinates with MICREX-SX remote I/O modules such as the NP1X16 digital input and NP1Y16T digital output units, enabling distributed I/O expansion across large production floors without additional wiring infrastructure. Variable frequency drives — including Fuji Electric FRENIC series inverters — are integrated as PROFIBUS slave devices, allowing the NP1BS-08S to deliver speed references, torque commands, and fault status data in real time, eliminating the need for analog signal wiring and reducing noise susceptibility.

At the HMI layer, operator panels such as the Fuji Electric V9 series HMI connect to the MICREX-SX platform via the NP1BS-08S data path, providing operators with live process visualization, alarm acknowledgment, and parameter adjustment capabilities directly from the production floor. SCADA systems — including Fuji Electric's own MONITOUCH SCADA platform or third-party systems such as Wonderware and Ignition — receive structured process data from the NP1BS-08S gateway, enabling supervisory monitoring, trend logging, and production KPI dashboards across multiple production lines simultaneously.

For edge computing and IIoT integration, the NP1BS-08S data stream can be aggregated by industrial edge gateways — such as the Fuji Electric MICREX-SX NP1L-ET1 Ethernet communication module — which forward PROFIBUS process data to cloud analytics platforms or MES systems via OPC-UA or MQTT protocols. This architecture supports full data visibility from field sensor to enterprise dashboard, enabling predictive maintenance, energy monitoring, and production scheduling optimization without disrupting the real-time control loop.

Power supply integrity for the NP1BS-08S and associated MICREX-SX modules is maintained by Fuji Electric industrial DIN-rail power supplies, ensuring stable 24 VDC bus voltage even under high-load switching conditions. The complete system — from PROFIBUS field devices through the NP1BS-08S gateway, MICREX-SX CPU, remote I/O, drives, HMI, and SCADA — forms a fully auditable, network-transparent automation architecture ready for Industry 4.0 deployment.

Many industrial sites operate with fragmented control architectures where legacy field devices communicate over proprietary or incompatible protocols, creating data silos that prevent real-time visibility and centralized diagnostics. The Fuji NP1BS-08S directly addresses these challenges by providing standardized PROFIBUS-DP connectivity that unifies diverse field devices — sensors, actuators, drives, and remote I/O — under a single, deterministic network managed by the MICREX-SX PLC platform.

Protocol inconsistency is eliminated: the NP1BS-08S translates device-level PROFIBUS signals into structured data objects accessible by the MICREX-SX CPU, SCADA, and HMI systems without custom middleware or proprietary drivers. Remote monitoring becomes reliable — maintenance engineers can access live device status, fault codes, and diagnostic counters from the SCADA workstation or mobile HMI without physical access to the control panel, reducing mean time to repair (MTTR) and unplanned downtime.

Production line transparency is achieved through cyclic data exchange: every connected PROFIBUS slave — whether a Fuji FRENIC drive, a remote I/O rack, or a third-party sensor block — reports its operational state to the MICREX-SX CPU via the NP1BS-08S on every scan cycle. Alarm tracking is deterministic: fault events are timestamped at the PROFIBUS bus level and propagated to the SCADA historian for root-cause analysis and compliance reporting. System expansion is straightforward — additional PROFIBUS slave devices can be added to the network segment without hardware redesign, supporting phased capacity growth and future-proofing the automation investment.

Q1: What is the maximum PROFIBUS-DP transmission speed supported by the NP1BS-08S? The NP1BS-08S supports standard PROFIBUS-DP baud rates up to 12 Mbps, with automatic baud rate detection. Actual achievable speed depends on cable length, number of slave nodes, and network topology. For installations with more than 32 nodes or cable runs exceeding 100 meters at 12 Mbps, repeaters are recommended to maintain signal integrity.

Q2: Is the NP1BS-08S compatible with third-party PROFIBUS masters and SCADA systems? Yes. The NP1BS-08S conforms to the PROFIBUS-DP V0/V1 standard and provides a standard GSD (General Station Description) file for integration with any compliant PROFIBUS master or SCADA/DCS platform, including Siemens TIA Portal, Wonderware System Platform, and Ignition by Inductive Automation. No proprietary configuration tools are required for third-party integration.

Q3: How does the NP1BS-08S support remote diagnostics and fault isolation? The NP1BS-08S supports PROFIBUS-DP V1 acyclic services, enabling the MICREX-SX CPU or a connected SCADA system to read extended diagnostic data from slave devices on demand. This includes device-level fault codes, communication error counters, and bus status registers — all accessible without interrupting the cyclic data exchange. Remote maintenance teams can isolate faults to the specific slave node and initiate corrective action without dispatching field personnel.

Q4: What warranty and pre-shipment testing does the NP1BS-08S include? Every NP1BS-08S unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and communication failures. Prior to shipment, each unit undergoes functional verification including PROFIBUS bus initialization, cyclic data exchange confirmation, and diagnostic register readback. Units are shipped with original Fuji Electric packaging and documentation. Global shipping is available with full export compliance support.
