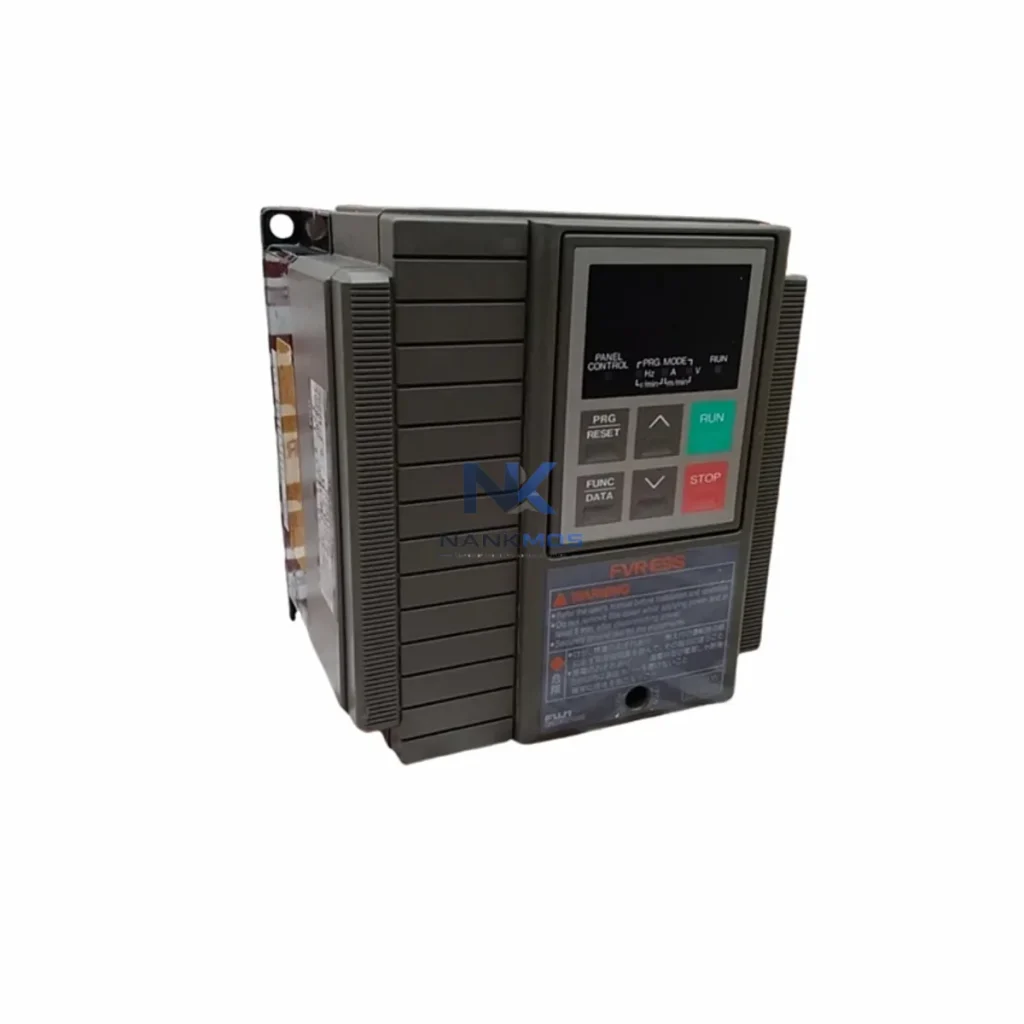

Fuji Electric FVR0.75E9S-4JE Variable Frequency Drive

Product Details

FVR0.75E9S-4JE Product Description

The Fuji Electric FVR0.75E9S-4JE is a 0.75 kW three-phase 400 V class variable frequency drive engineered for seamless integration within the FVR Series control architecture. Designed to deliver precise motor speed regulation, energy-efficient operation, and robust communication compatibility, this drive functions as a critical execution-layer component in layered industrial automation systems. Its compact form factor, wide ambient temperature tolerance, and built-in protective functions make it a reliable choice for demanding process environments where system consistency, long-term maintainability, and modular scalability are essential engineering priorities.

In modern industrial control architectures, the drive layer does not operate in isolation. The FVR0.75E9S-4JE is engineered to work in concert with upstream control layers — including PLCs, distributed I/O modules, communication gateways, and HMI panels — forming a coherent, diagnostics-capable automation platform. Its signal interface supports both analog and digital command inputs, enabling direct integration with controller output modules without additional signal conditioning hardware in most standard configurations.

The FVR0.75E9S-4JE achieves its full engineering value when deployed as part of a coordinated, multi-layer automation platform. At the control layer, a Fuji Electric MICREX-SX or MICREX-F series PLC issues speed reference commands and monitors drive status via RS-485 Modbus RTU, enabling closed-loop process control without additional protocol converters. The PLC's digital output modules — such as the NP1X16 or NP1Y16 — interface directly with the drive's multi-function digital input terminals for run/stop, forward/reverse, and fault reset commands, maintaining deterministic signal timing across the control bus.

At the I/O layer, analog output modules from the MICREX-SX I/O family provide 4–20 mA speed reference signals to the FVR0.75E9S-4JE's analog input terminal, supporting smooth acceleration ramp control in pump, fan, and conveyor applications. Where fieldbus integration is required, a Fuji Electric option communication card — supporting PROFIBUS-DP or DeviceNet — can be fitted to the drive, enabling it to participate in a distributed I/O network alongside remote I/O stations and intelligent field devices.

At the power layer, a Fuji Electric BU series braking unit or a shared DC bus configuration can be paired with the FVR0.75E9S-4JE in multi-drive panels to manage regenerative energy during deceleration cycles, improving overall panel energy balance and reducing thermal stress on individual drive components. Upstream, a Fuji Electric CP series molded case circuit breaker (MCCB) and an appropriate input reactor provide harmonic mitigation and short-circuit protection, ensuring the drive operates within its rated input current envelope.

At the HMI layer, a Fuji Electric V9 or V10 series GOT-compatible HMI panel connects to the control network, providing operators with real-time drive status visualization, fault history display, and parameter adjustment capability without requiring direct access to the drive keypad. This architecture supports remote diagnostics and parameter backup, reducing mean time to repair (MTTR) during unplanned maintenance events.

For redundancy-critical applications, the FVR0.75E9S-4JE can be deployed in a duty/standby drive configuration, with automatic switchover logic implemented in the upstream PLC program. A Fuji Electric SC series magnetic contactor handles the power switching between duty and standby drives, while the PLC monitors drive fault relay outputs to trigger switchover sequences without operator intervention. This architecture is particularly relevant in water treatment, HVAC, and process cooling applications where continuous motor operation is a process requirement.

Signal isolation between the drive's analog input circuit and the PLC analog output module is achieved through the use of Fuji Electric or third-party DIN-rail-mounted signal isolators, preventing ground loop interference in installations where the drive and controller share a common panel but are powered from separate transformer secondaries. This isolation practice is consistent with IEC 61800-3 EMC requirements for variable speed drive installations in industrial environments.

Manufacturing & Assembly Lines: The FVR0.75E9S-4JE is widely deployed in conveyor drive applications within automotive assembly, electronics manufacturing, and food processing lines. Its sensorless vector control mode provides stable low-speed torque for load-dependent conveyor systems, while its programmable acceleration/deceleration ramps minimize mechanical shock on belt drives and gearboxes. Integration with line PLC systems via Modbus RTU enables coordinated multi-axis speed synchronization across production zones.

Water Treatment & Pump Control: In municipal water treatment and industrial wastewater facilities, the FVR0.75E9S-4JE controls submersible pump and booster pump motors in pressure-regulated systems. Its PID control function — configurable via the drive's built-in parameter set — enables closed-loop pressure or flow control using a 4–20 mA pressure transmitter feedback signal, eliminating the need for an external PID controller in simple single-loop applications.

Power & Energy Infrastructure: In power generation auxiliary systems and substation HVAC applications, the drive manages cooling fan and ventilation motor speeds based on thermal load signals from the plant DCS. Its wide input voltage tolerance (380–480 V ±10%) accommodates the voltage fluctuations common in utility-connected industrial facilities, maintaining stable motor operation during grid disturbances.

Mining & Metallurgy: In ore processing and material handling applications, the FVR0.75E9S-4JE drives belt feeders, screw conveyors, and agitator motors in dusty, high-vibration environments. Its IP20 enclosure is typically installed within a sealed control cabinet rated IP54 or higher, with filtered ventilation to maintain drive cooling while excluding process contaminants.

Petrochemical & Process Industries: In chemical dosing, blending, and circulation pump applications, the drive's analog speed reference input accepts signals from DCS analog output cards, enabling the drive to function as a final control element in regulatory control loops. Its fault relay output provides process interlock signals to the safety PLC, supporting SIL-rated process shutdown sequences.

Q1: Is the FVR0.75E9S-4JE compatible with Fuji Electric MICREX-SX PLC systems for Modbus RTU communication? Yes. The FVR0.75E9S-4JE supports RS-485 Modbus RTU communication natively via its built-in RS-485 port. It can be configured as a Modbus slave device, with the MICREX-SX PLC acting as the Modbus master. Standard function codes for register read/write (FC03, FC06, FC16) are supported, enabling the PLC to read drive status registers (output frequency, output current, fault code) and write control registers (speed reference, run command, direction command) within a single scan cycle. Baud rate, parity, and station address are configurable via the drive's front keypad or parameter upload tool.

Q2: What installation and wiring practices are recommended for the FVR0.75E9S-4JE in a multi-drive control panel? For multi-drive panel installations, Fuji Electric recommends maintaining a minimum clearance of 50 mm above and below each drive for adequate airflow, with drives mounted vertically in a single column or in a staggered arrangement to prevent thermal stacking. Control wiring (analog and digital signal cables) should be routed in separate cable ducts from power wiring (input and output motor cables) to minimize EMI coupling. Shielded twisted-pair cable is recommended for analog speed reference wiring, with the shield grounded at the panel earth bar only. An input line reactor (3–5% impedance) is recommended when the drive is connected to a transformer with less than 6% impedance or when multiple drives share a common bus.

Q3: What does the 12-Month Warranty cover, and what is the stock and lead time availability? The FVR0.75E9S-4JE is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects in materials and workmanship under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, operation outside rated parameters, or unauthorized modification. Units are held in stock and undergo pre-shipment functional testing — including power-on verification, output voltage balance check, and communication port validation — prior to dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. For volume orders or project-specific delivery schedules, contact our technical sales team at [email protected] or +86 18359268345.
