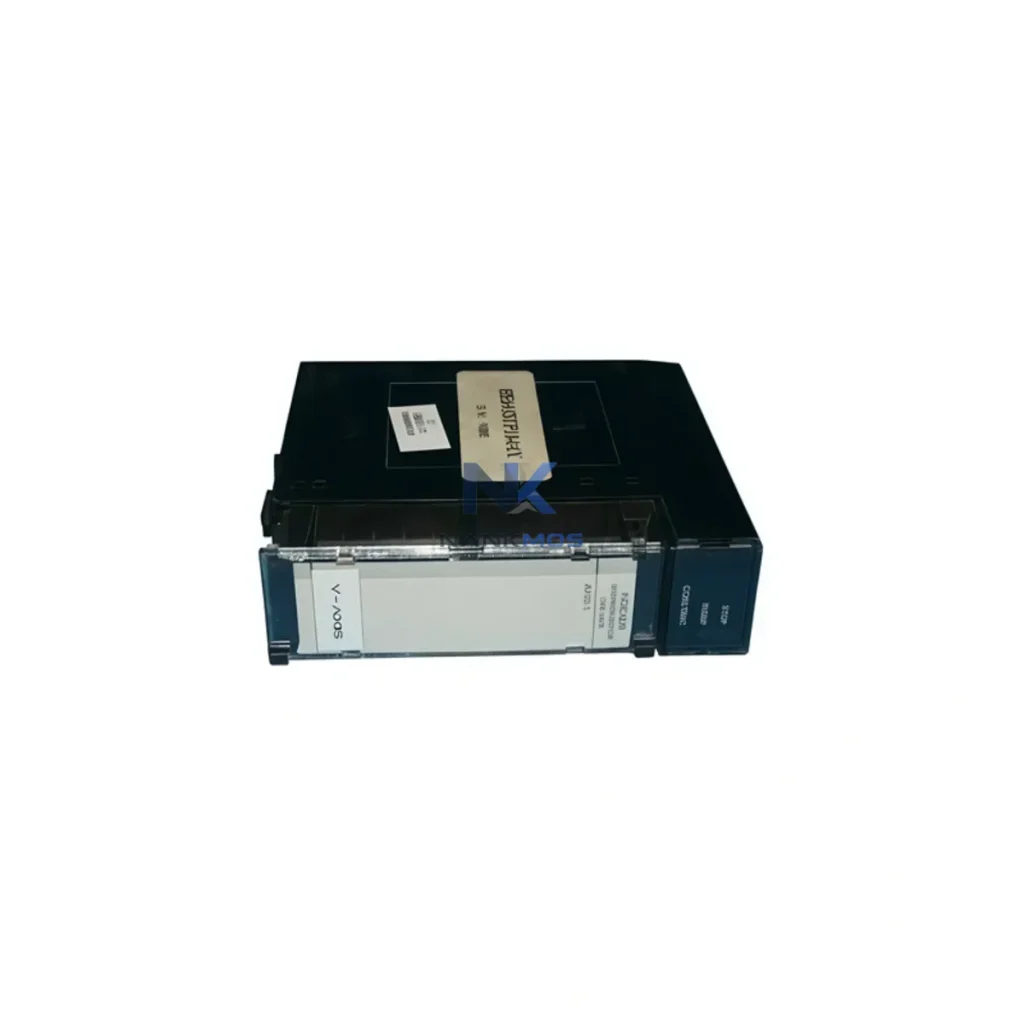

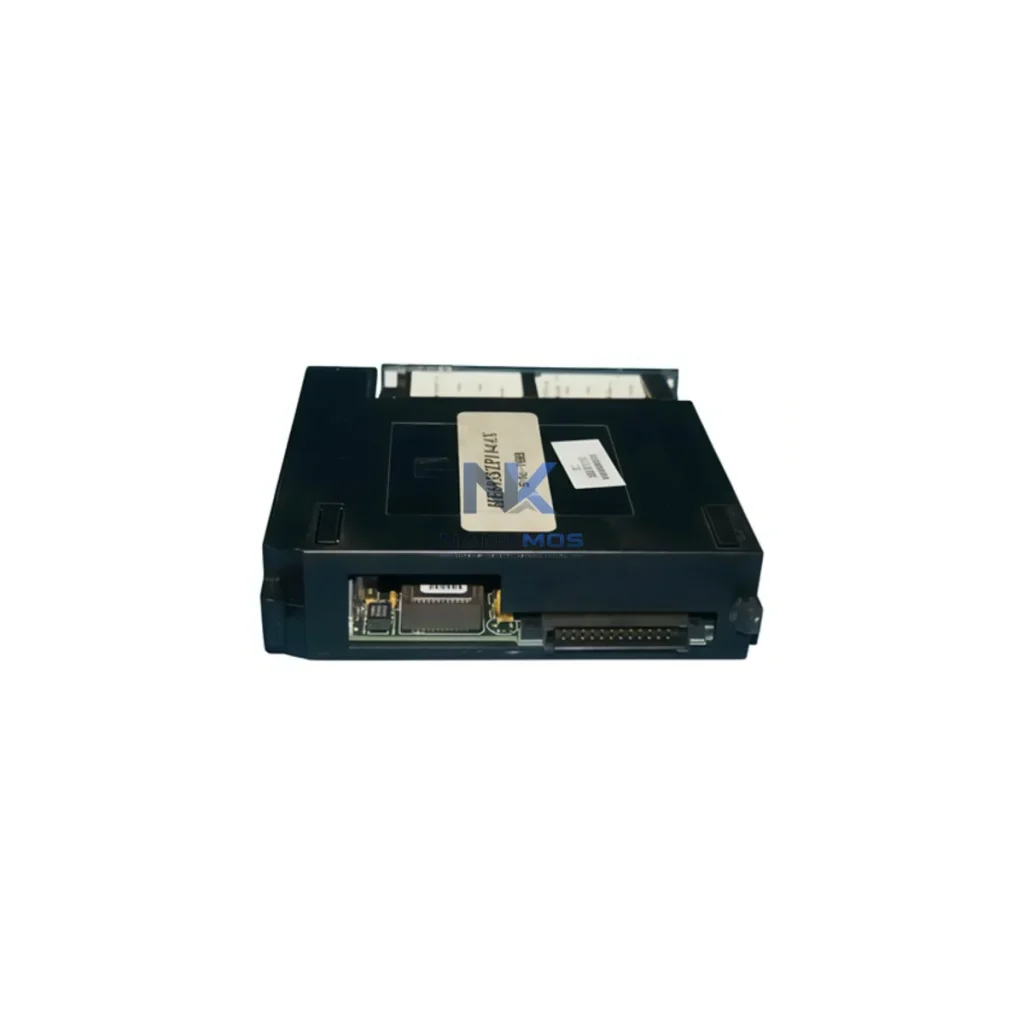

GE Automation HE693STP104 Stepper Motor Positioning Module

Product Details

HE693STP104 Product Description

The GE HE693STP104 is a high-precision stepper motor positioning module engineered for the GE Series 90-30 PLC platform. Designed to operate at the intersection of motion control and industrial data communication, the HE693STP104 delivers deterministic pulse-and-direction output while remaining fully integrated within the Series 90-30 backplane architecture. In modern smart factory environments, where every axis of motion must be traceable, reportable, and remotely diagnosable, this module serves as a critical node in the plant-wide data chain — connecting field-level actuators to supervisory control systems with precision and reliability.

From the moment a motion command is issued by the GE Series 90-30 CPU module — such as the IC693CPU374 or IC693CPU364 — the HE693STP104 translates ladder logic positioning instructions into precise stepper pulse sequences. These commands flow through the Series 90-30 backplane at high speed, ensuring that motion execution is synchronized with the broader PLC scan cycle. The module supports configurable acceleration and deceleration ramps, home position referencing, and programmable travel limits, all of which are accessible and modifiable through the GE Proficy Machine Edition programming environment without interrupting production.

In a fully connected smart factory, the HE693STP104 does not operate in isolation. Its motion data — including current position, fault status, and command acknowledgment — is continuously read by the Series 90-30 CPU and made available to the plant network through a GE IC693CMM321 Ethernet Communications Module or an IC693CMM311 SNP/SRTP communications module. This allows SCADA platforms such as GE Proficy iFIX or third-party systems like Ignition by Inductive Automation to poll real-time positioning data at configurable intervals, enabling operators to monitor axis status, track cycle counts, and detect positioning faults from a centralized control room or remote terminal.

Upstream from the HE693STP104, field-level sensors — including proximity switches, encoders, and photoelectric sensors wired into GE IC693MDL655 discrete input modules — feed homing signals and limit switch states back into the PLC. These inputs are processed within the same scan cycle that governs the positioning module's command output, ensuring tight closed-loop coordination between sensor feedback and motion execution. For applications requiring analog feedback integration, the GE IC693ALG222 analog input module can be used in the same rack to capture process variables such as load cell readings or pressure feedback, which can then be used to conditionally trigger or halt positioning sequences.

At the network layer, the Series 90-30 rack communicates with plant-level systems through industrial Ethernet infrastructure. Managed industrial Ethernet switches — such as those from the Hirschmann MICE or Phoenix Contact FL SWITCH series — provide the VLAN segmentation and ring redundancy needed to ensure that motion control data reaches the SCADA server without packet loss or latency spikes. For facilities operating mixed-protocol environments, a protocol gateway such as the Moxa MGate MB3270 or HMS Anybus X-gateway can bridge the Series 90-30 SNP/SRTP data stream to Modbus TCP or PROFINET, enabling integration with third-party HMI panels or MES platforms that do not natively support GE communication protocols.

At the edge, industrial edge computing gateways — such as the Advantech ECU-1251 or Siemens SINEMA Remote Connect — can aggregate positioning data from multiple Series 90-30 racks and push structured datasets to cloud-based analytics platforms or on-premise historians. This enables long-term trend analysis of stepper motor performance, predictive maintenance scheduling based on cycle count thresholds, and OEE (Overall Equipment Effectiveness) reporting at the machine level. The HE693STP104's integration into this data architecture transforms it from a simple motion output module into a traceable, auditable component of the plant's digital twin.

Many industrial facilities operating legacy GE Series 90-30 systems face a common challenge: motion control data generated by modules like the HE693STP104 remains trapped at the PLC level, invisible to plant managers, maintenance teams, and quality systems. Without a structured data pathway from the positioning module to the SCADA or MES layer, production teams rely on manual inspection to detect positioning drift, stepper faults, or mechanical wear — a reactive approach that increases downtime and reduces throughput.

The HE693STP104, when properly networked through the Series 90-30 Ethernet NIM and integrated with a SCADA platform, eliminates this data gap. Positioning fault codes, command completion signals, and axis status bits are mapped to SCADA tags and displayed on operator HMI screens in real time. Alarm thresholds can be configured so that any deviation from expected positioning behavior — such as a missed home cycle or an out-of-range pulse count — triggers an immediate alert to the maintenance team, reducing mean time to repair (MTTR) and preventing cascading failures on the production line.

For facilities managing multiple production lines or geographically distributed sites, the remote diagnostics capability enabled by the Series 90-30 SNP port or Ethernet gateway allows engineering teams to interrogate the HE693STP104's register map from a remote workstation, diagnose faults without dispatching a technician to the floor, and push updated positioning parameters to the PLC without interrupting the production schedule. This capability is particularly valuable in high-mix, low-volume manufacturing environments where positioning parameters change frequently between product runs.

System expansion is straightforward: additional HE693STP104 modules can be added to the Series 90-30 rack up to the backplane's slot capacity, and additional racks can be connected via the Series 90-30 expansion bus. This scalability ensures that the motion control architecture can grow with the facility's production requirements without requiring a platform migration or significant re-engineering effort.

Every HE693STP104 unit supplied by NANKMOS undergoes pre-shipment functional testing, including backplane communication verification, pulse output validation, and fault register inspection. Units are shipped with a 12-month warranty and are supported by NANKMOS's global inventory network, ensuring fast delivery to manufacturing sites in Asia, Europe, and the Americas. In-stock availability is maintained to support both planned maintenance replacements and emergency breakdown scenarios.

Q1: What communication protocols does the GE HE693STP104 support for SCADA integration?The HE693STP104 communicates natively through the GE Series 90-30 backplane bus. For SCADA integration, the Series 90-30 rack must be equipped with a network interface module such as the IC693CMM321 (Ethernet, SNP/SRTP) or IC693CMM311 (serial SNP). These modules expose the HE693STP104's data registers to SCADA platforms via GE's SRTP protocol or, through a protocol gateway, via Modbus TCP or OPC-UA, enabling full integration with systems such as GE Proficy iFIX, Wonderware, or Ignition.

Q2: How is network stability maintained when the HE693STP104 is part of a multi-rack Series 90-30 system?Network stability in multi-rack Series 90-30 deployments is maintained through the use of managed industrial Ethernet switches with ring redundancy (e.g., RSTP/MRP protocols) at the network layer, combined with the Series 90-30's deterministic backplane communication architecture. The PLC's scan cycle ensures that positioning commands and status updates are processed at consistent intervals regardless of network load, and the Ethernet NIM module provides buffered communication to prevent data loss during transient network events.

Q3: Can the HE693STP104 be remotely diagnosed and reconfigured without halting production?Yes. Through the Series 90-30 SNP port or Ethernet NIM, engineering teams can remotely connect to the PLC using GE Proficy Machine Edition, read the HE693STP104's status registers, modify positioning parameters in the ladder logic program, and download updated configurations to the CPU — all while the system remains in RUN mode, provided the changes do not affect safety-critical outputs. This capability significantly reduces the need for on-site intervention during routine parameter adjustments or fault investigations.

Q4: What warranty and supply assurance does NANKMOS provide for the HE693STP104?NANKMOS provides a 12-month warranty on all HE693STP104 units, covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested prior to shipment, including backplane communication and pulse output verification. NANKMOS maintains in-stock inventory of the HE693STP104 to support both planned procurement and emergency replacement requirements, with global shipping available to manufacturing sites worldwide. For pricing, availability, and lead time, contact NANKMOS directly.
