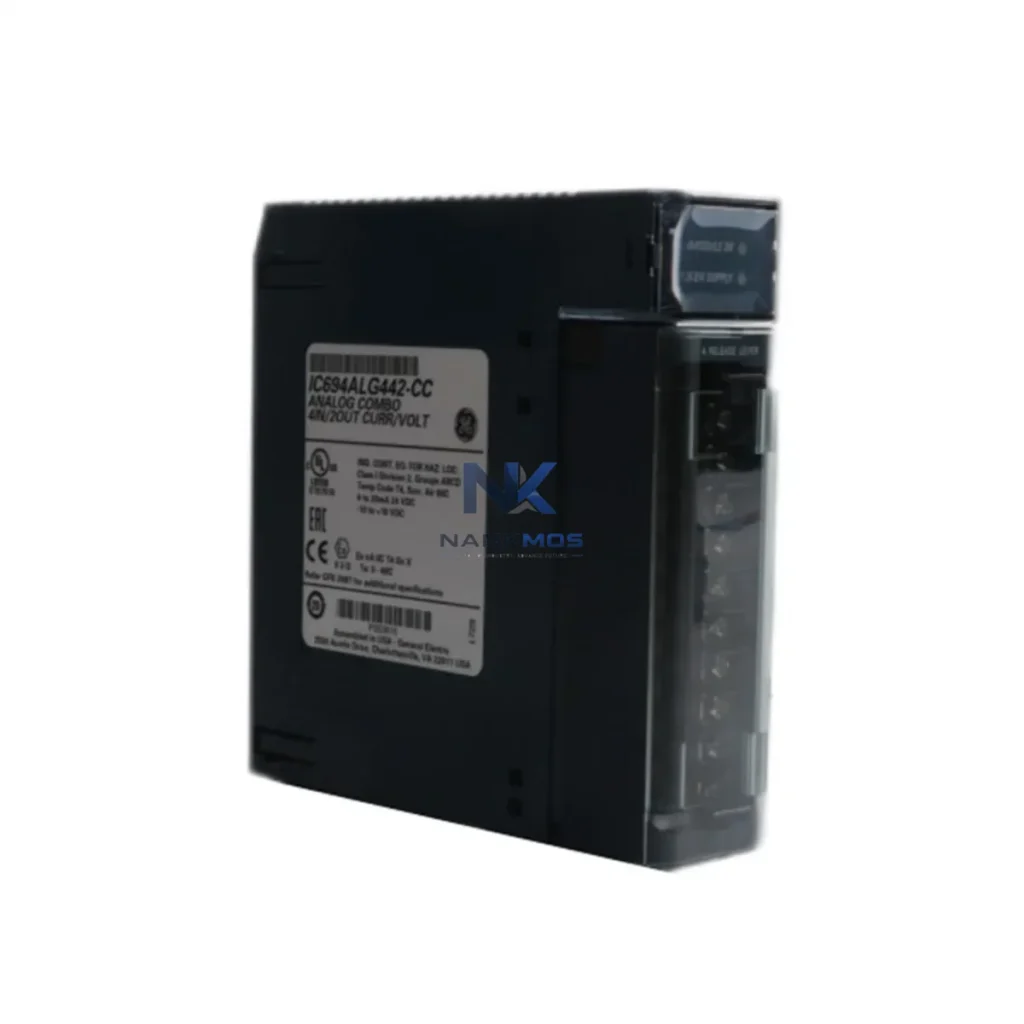

GE Automation IC694ALG442 PLC Analog I/O Module

Product Details

IC694ALG442 Product Description

The GE IC694ALG442 is a high-performance analog combination module engineered for the GE Series 90-30 PLC platform, delivering seamless integration across the full industrial data chain — from field-level signal acquisition to SCADA visualization and remote diagnostics. Designed for demanding process environments in manufacturing, energy, water treatment, and chemical industries, the IC694ALG442 provides multi-channel analog input and output capability that forms the backbone of real-time data flow in connected factory architectures.

In modern smart factory deployments, the IC694ALG442 serves as a critical node between physical process signals and digital control systems. Analog signals from pressure transmitters, temperature sensors, flow meters, and level transducers are captured with high resolution and fed directly into the Series 90-30 CPU rack, where the IC695CPU310 or IC695CPU315 processor executes control logic and forwards process data upstream via the rack backplane. This tight integration eliminates signal latency and ensures that real-time values are always available to the control layer without intermediate conversion delays.

The module's analog output channels drive field actuators — including control valves, variable frequency drives, and positioners — based on setpoints calculated by the PLC. When paired with a GE IC695ETM001 Ethernet communications module or an IC694CMM321 serial communications module, the IC694ALG442 participates in a fully networked control architecture where process data is continuously streamed to HMI panels, SCADA servers, and MES platforms. This enables operators to monitor analog trends, configure alarm thresholds, and respond to process deviations from centralized control rooms or remote workstations.

For facilities running mixed-protocol environments, the IC694ALG442 integrates naturally with protocol gateway devices that bridge Modbus RTU, Modbus TCP, PROFIBUS DP, and EtherNet/IP networks. Edge gateway modules installed at the panel level collect analog data from the Series 90-30 rack and publish it to cloud-based SCADA platforms or industrial IoT dashboards, enabling data visualization, KPI tracking, and predictive maintenance analytics without disrupting the existing control architecture. Remote I/O drops connected via the IC694BEM331 bus expansion module extend the reach of the analog network across large plant floors, ensuring that distributed measurement points are captured with the same precision as local rack-mounted signals.

Alarm management is a core strength of the IC694ALG442 in networked deployments. When an analog channel exceeds a configured high or low limit, the Series 90-30 CPU generates a fault record that is immediately propagated to the SCADA layer via the Ethernet communications module. Operators receive real-time alarm notifications on HMI screens — including GE iFIX or Wonderware InTouch panels — and can acknowledge, investigate, and resolve process deviations without dispatching field technicians. This remote diagnostic capability significantly reduces mean time to repair and supports continuous production uptime in critical process industries.

Every IC694ALG442 shipped by NANKMOS undergoes pre-shipment functional testing, including channel-by-channel analog accuracy verification, backplane communication checks, and firmware version confirmation. Units are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained for immediate dispatch, with lead times confirmed at the time of order. For large-volume procurement or project-based requirements, NANKMOS provides dedicated account support and competitive pricing on GE Series 90-30 analog I/O modules.

In a fully connected smart factory, the IC694ALG442 sits at the intersection of physical process measurement and digital data infrastructure. Field sensors — including 4–20 mA pressure transmitters, thermocouple-based temperature sensors, and ultrasonic flow meters — feed analog signals directly into the IC694ALG442 input channels. The module digitizes these signals at 12-bit resolution and places the values in the Series 90-30 CPU's data table, where the IC695CPU315 executes PID control loops, setpoint comparisons, and alarm logic in real time.

Upstream data flow is managed by the IC695ETM001 Ethernet TCP/IP communications module, which publishes process variables to the plant network via EtherNet/IP and Modbus TCP. SCADA servers running GE iFIX or Ignition collect these values at configurable scan rates and display them on operator HMI screens, trend historians, and alarm summary pages. For facilities with legacy serial networks, the IC694CMM321 serial communications module bridges Modbus RTU devices — including older variable frequency drives and smart transmitters — into the same data flow, ensuring that no measurement point is left isolated from the control and monitoring layer.

At the edge, industrial IoT gateways aggregate data from multiple Series 90-30 racks and forward it to cloud analytics platforms via MQTT or OPC-UA. This enables plant managers to access real-time dashboards, energy consumption reports, and predictive maintenance alerts from any location. Remote I/O expansion via the IC694BEM331 bus expansion module allows the IC694ALG442's analog network to extend across large production floors, connecting distributed measurement points — including tank level sensors, conveyor speed feedback, and motor current monitors — into a single unified data architecture.

Analog output channels on the IC694ALG442 close the control loop by driving field actuators based on SCADA setpoints or PLC-calculated outputs. Control valves, variable frequency drives managing pump and fan speeds, and electro-pneumatic positioners all receive 4–20 mA or 0–10 VDC command signals from the module, enabling precise, closed-loop process control across the entire production system.

Many industrial facilities operate with fragmented automation architectures — islands of control where PLCs, remote I/O, and field devices communicate using incompatible protocols, creating data silos that prevent plant-wide visibility. The IC694ALG442, deployed within a properly networked Series 90-30 system, directly addresses these challenges by providing a standardized analog I/O interface that integrates with both legacy serial networks and modern Ethernet-based SCADA platforms.

Protocol inconsistency is resolved by pairing the IC694ALG442 with gateway modules that translate between Modbus RTU, Modbus TCP, EtherNet/IP, and PROFIBUS DP. This allows analog data from GE Series 90-30 systems to be consumed by third-party SCADA platforms, MES systems, and cloud analytics tools without requiring hardware replacement or control system redesign. Data silos are eliminated as analog values from distributed measurement points are consolidated into a single historian database, enabling cross-system correlation and root cause analysis.

Remote monitoring challenges are addressed through the Ethernet communications layer, which allows SCADA operators to access live analog values, configure alarm limits, and review trend data from remote workstations or mobile devices. Production line transparency is achieved through real-time dashboards that display analog KPIs — including temperature profiles, pressure trends, and flow rates — alongside digital status signals, giving operations teams a complete picture of plant performance without requiring physical presence on the production floor.

System expansion is straightforward: additional IC694ALG442 modules can be added to existing Series 90-30 racks, or new remote I/O drops can be connected via the IC694BEM331 bus expansion module, scaling the analog network to accommodate new measurement points as production capacity grows. Alarm tracking is fully integrated into the SCADA layer, with timestamped alarm records providing the audit trail required for regulatory compliance and continuous improvement programs.

Q1: What communication protocols does the IC694ALG442 support in a networked Series 90-30 system? The IC694ALG442 communicates via the Series 90-30 backplane bus and supports Modbus RTU and Modbus TCP through serial and Ethernet communications modules such as the IC694CMM321 and IC695ETM001. EtherNet/IP connectivity is available via the IC695ETM001, and PROFIBUS DP integration is supported through the IC694BEM331 bus expansion architecture. This multi-protocol capability ensures compatibility with a wide range of SCADA, HMI, and MES platforms.

Q2: How does the IC694ALG442 support remote diagnostics and fault detection? When an analog channel detects an out-of-range signal or hardware fault, the Series 90-30 CPU generates a fault record that is immediately available to the SCADA layer via the Ethernet communications module. Operators can view fault details, acknowledge alarms, and initiate corrective actions from remote HMI workstations without dispatching field technicians. Pre-shipment functional testing by NANKMOS ensures that all channels are verified before dispatch, reducing the risk of field failures.

Q3: Can the IC694ALG442 be integrated into an existing SCADA or HMI system without replacing the PLC? Yes. The IC694ALG442 is designed as a rack-mounted module for the Series 90-30 platform and can be added to an existing rack without modifying the CPU or communications infrastructure. SCADA platforms including GE iFIX, Wonderware InTouch, and Ignition support native drivers for the Series 90-30 system, enabling seamless integration of new analog channels into existing operator displays and historian databases.

Q4: What warranty and stock availability does NANKMOS provide for the IC694ALG442? NANKMOS supplies the IC694ALG442 with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Units are maintained in stock for immediate dispatch, with lead times confirmed at order placement. Pre-shipment functional testing is performed on every unit, including analog channel accuracy verification and backplane communication checks. For project-based procurement or volume orders, contact NANKMOS for dedicated support and competitive pricing.
