GE Automation IC220MDL643 Discrete Output Module

Product Details

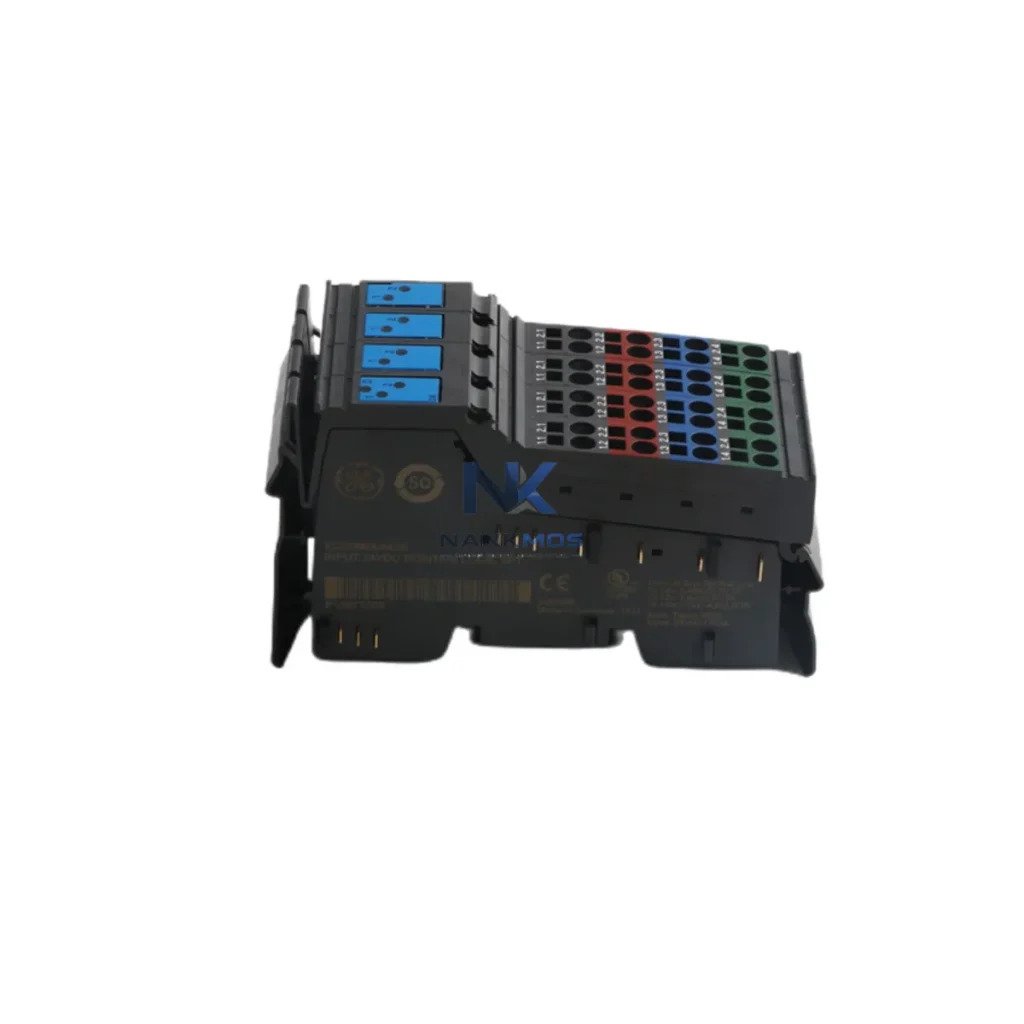

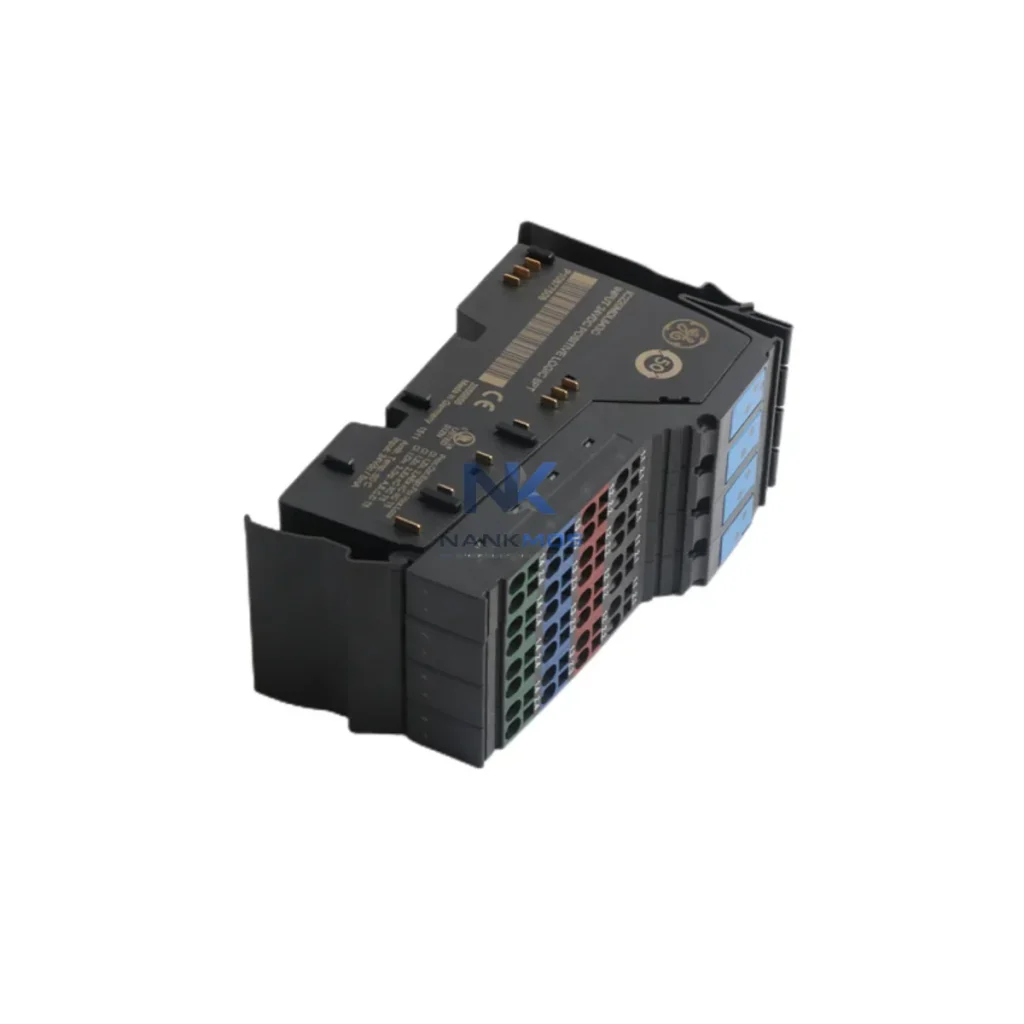

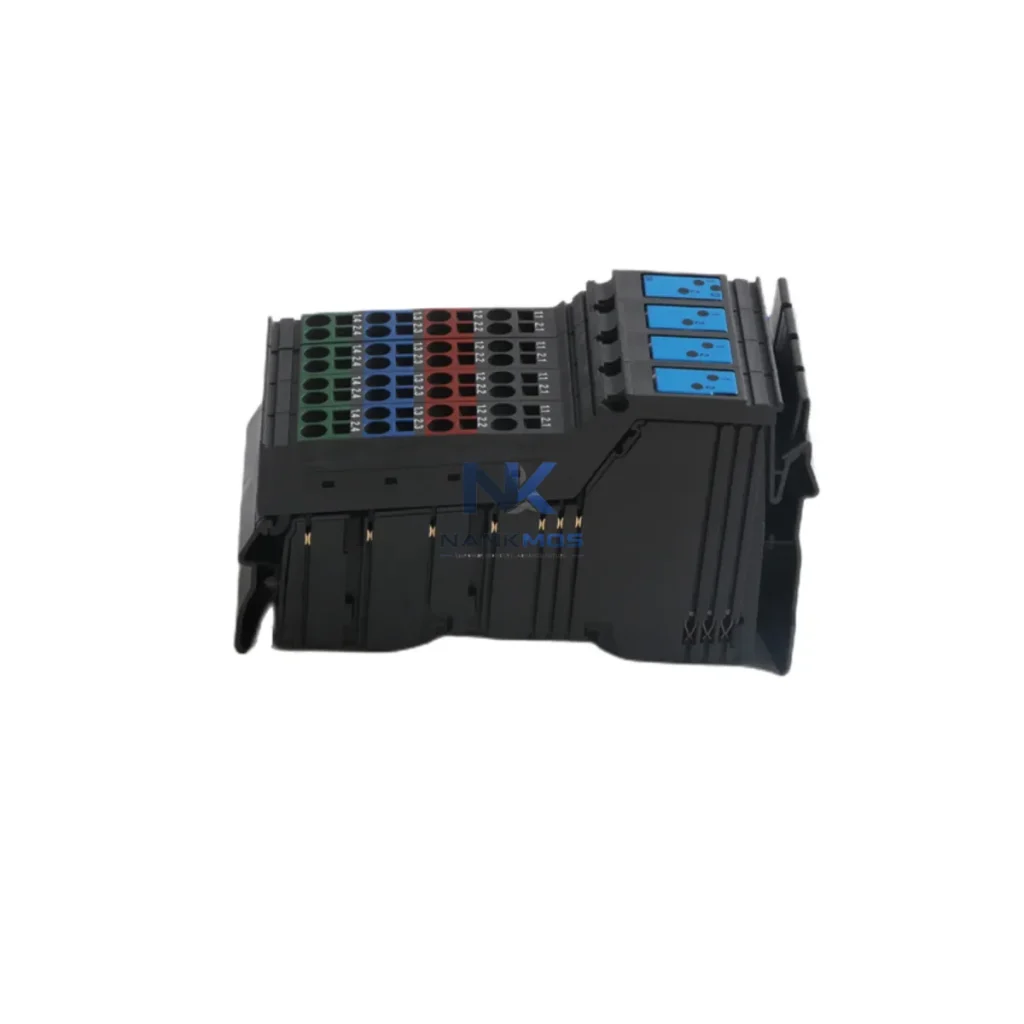

IC220MDL643 Product Description

The GE IC220MDL643 is a 16-point discrete output module engineered for seamless integration within the GE VersaMax Micro PLC platform. Designed to serve as a precision signal-switching node in distributed control architectures, this module delivers reliable digital output performance across demanding industrial environments including manufacturing automation, power distribution, water treatment, and process control systems. Its compact form factor and native compatibility with the VersaMax Micro backplane make it a preferred choice for engineers building scalable, maintainable, and redundancy-aware control systems.

Within a layered control architecture, the IC220MDL643 occupies the output execution layer, receiving command signals from the CPU module — such as the IC200CPUE05 or IC200CPUE05-AA — and translating them into discrete switching actions that drive field devices including solenoid valves, motor starters, indicator lamps, and relay coils. This direct coupling between the control layer and the execution layer ensures deterministic response times and minimizes signal latency across the I/O bus, which is critical in high-cycle applications such as packaging lines, conveyor systems, and batch processing units.

System coherence is further reinforced when the IC220MDL643 is deployed alongside complementary VersaMax Micro I/O modules. Pairing this output module with discrete input modules such as the IC220MDL240 or IC220MDL340 creates a balanced I/O architecture that supports bidirectional signal monitoring and closed-loop control. For analog process variables, integration with the IC220ALG320 analog input module or IC220ALG430 analog output module extends the system's capability to handle mixed-signal environments without requiring additional hardware platforms or protocol converters.

Power integrity is a foundational requirement for stable discrete output operation. The IC220MDL643 is designed to operate within the power budget managed by the VersaMax Micro power supply module, such as the IC200PWR002 or IC200PWR102, which provide regulated 24 VDC bus power to the backplane. Proper power segmentation — separating field-side load power from logic-side bus power — is essential when driving inductive loads, and the IC220MDL643's output circuit design accommodates standard suppression practices to protect both the module and connected field devices.

Communication stability across the control network is maintained through the VersaMax Micro's integrated serial and Ethernet communication capabilities. When the system is extended using a communications gateway such as the IC200ETM001 Ethernet module or connected to a GE PACSystems RX3i controller via the IC695ETM001, the IC220MDL643 participates in a unified control fabric that supports SRTP, Modbus TCP, and EGD protocols. This enables centralized supervisory control from a SCADA platform or HMI terminal — such as the GE QuickPanel+ or Proficy HMI/SCADA iFIX — while maintaining local execution autonomy at the field level.

For applications requiring redundancy, the IC220MDL643 can be deployed in architectures where output states are mirrored across redundant CPU configurations, ensuring that a single module or communication failure does not interrupt critical process outputs. This is particularly relevant in power generation, oil and gas, and water infrastructure applications where output continuity is a safety and regulatory requirement.

Diagnostic efficiency is enhanced through the VersaMax Micro's built-in fault detection and status reporting capabilities. Output module faults — including overcurrent conditions, open-load detection, and thermal events — are surfaced through the CPU's diagnostic buffer and can be accessed via the Proficy Machine Edition programming environment. This allows maintenance engineers to isolate faults at the module level without requiring physical inspection of the control cabinet, reducing mean time to repair and minimizing unplanned downtime.

Modular deployment is a key advantage of the VersaMax Micro platform. The IC220MDL643 can be added to an existing system without reconfiguring the base hardware, making it suitable for phased expansion projects where output capacity must grow in line with process requirements. Terminal block wiring follows standard IEC practices, and the module's labeling and mechanical keying features reduce the risk of mis-installation during field replacement or system commissioning.

Long-term maintenance efficiency is supported by NANKMOS's inventory management practices. The IC220MDL643 is held in verified stock, subjected to pre-shipment functional testing, and shipped with full documentation. Each unit is covered by a 12-Month Warranty, providing assurance of operational reliability from the date of delivery. Contextual Integration support is available to assist engineers in confirming module compatibility, verifying firmware revision requirements, and aligning the IC220MDL643 with the specific revision level of the target VersaMax Micro system.

The IC220MDL643 achieves its full operational value when positioned within a coherent VersaMax Micro automation platform. A typical system architecture integrating this module includes the following components working in coordinated layers:

At the control layer, the IC200CPUE05 CPU module executes the ladder logic or function block program that governs output switching decisions. The CPU communicates with the IC220MDL643 through the backplane bus at deterministic scan cycle intervals, ensuring that output state changes are applied within the program scan window. For systems requiring expanded I/O capacity, the IC200CHS022 expansion chassis provides additional module slots without requiring a second CPU, preserving system coherence and simplifying program management.

The I/O layer is completed by pairing the IC220MDL643 with discrete input modules such as the IC220MDL240 (24 VDC input, 16 points) for field signal acquisition, and analog modules such as the IC220ALG320 for process variable monitoring. This combination supports both digital command execution and analog feedback within a single backplane assembly, reducing cabinet footprint and wiring complexity.

At the communication layer, the IC200ETM001 Ethernet TCP/IP module extends the VersaMax Micro system to plant-level networks, enabling integration with Proficy Historian, SCADA platforms, and remote HMI terminals. For serial communication requirements, the IC200CMM020 communications module supports Modbus RTU and SNP protocols, allowing the VersaMax Micro system to interface with legacy field devices and third-party controllers.

Power distribution is managed by the IC200PWR002 power supply, which provides stable 24 VDC bus power to all modules in the chassis. For high-availability applications, a redundant power feed arrangement using dual IC200PWR102 units ensures that a single power supply failure does not interrupt system operation.

HMI integration is achieved through GE QuickPanel+ operator terminals or Proficy HMI/SCADA iFIX, which provide real-time visualization of output states, alarm management, and trend logging. The IC220MDL643's output status is surfaced through the CPU's I/O image table and is accessible to the HMI via the Ethernet communication module without additional configuration overhead.

The IC220MDL643 is deployed across a broad range of industrial sectors where reliable discrete output switching is a core control requirement. In manufacturing automation, this module drives conveyor motor starters, pneumatic valve solenoids, and machine cycle indicators in assembly line and packaging applications. Its 16-point output density allows a single module to control multiple actuators within a compact machine cell, reducing the number of modules required and simplifying cabinet layout.

In power distribution and electrical substation automation, the IC220MDL643 is used to switch protection relay trip coils, breaker control circuits, and alarm annunciator outputs. The module's relay output variant provides the galvanic isolation required for high-voltage switching applications, ensuring that control-side logic is fully isolated from field-side power circuits.

In water and wastewater treatment facilities, the IC220MDL643 controls pump motor starters, valve actuators, and chemical dosing system outputs. Its compatibility with the VersaMax Micro platform's remote I/O expansion capability allows output modules to be distributed across geographically separated pump stations while maintaining centralized control from a single CPU.

In oil, gas, and petrochemical process control, the IC220MDL643 is integrated into emergency shutdown (ESD) and safety instrumented system (SIS) architectures where output reliability and diagnostic transparency are mandatory. The module's fault reporting capability supports compliance with IEC 61511 functional safety requirements when deployed within a validated control system architecture.

In mining and metallurgical applications, the IC220MDL643 controls crusher motor contactors, conveyor drive starters, and ore processing equipment outputs in environments characterized by high vibration, dust, and temperature variation. The module's industrial-grade construction and DIN rail mounting ensure reliable operation under these demanding conditions.

Q1: Is the IC220MDL643 compatible with all VersaMax Micro CPU revisions, and are there firmware requirements to consider?The IC220MDL643 is compatible with the full range of VersaMax Micro CPU modules, including the IC200CPUE05, IC200CPUE05-AA, and IC200CPU001. Compatibility is determined by the CPU firmware revision and the hardware revision of the output module. NANKMOS provides Contextual Integration support to verify that the specific hardware and firmware revisions of the IC220MDL643 unit in stock are aligned with the target CPU revision in your system. This verification step is recommended before installation in production environments to avoid configuration mismatches.

Q2: Can the IC220MDL643 be used in a redundant output architecture, and what additional components are required?The IC220MDL643 can participate in redundant output architectures when deployed in conjunction with a redundant CPU configuration or an external output relay panel. In a simplex VersaMax Micro system, output redundancy is typically achieved at the field device level using dual-coil actuators or redundant relay panels driven by separate output modules. For full CPU-level redundancy, the GE PACSystems RX3i platform with IC695CHS016 chassis and IC695CPU320 redundancy CPU provides a higher-availability architecture. NANKMOS can advise on the appropriate redundancy strategy based on your application's availability requirements and existing system architecture.

Q3: What is the lead time and warranty coverage for the IC220MDL643, and what pre-shipment testing is performed?The IC220MDL643 is maintained in verified stock at NANKMOS and is available for immediate shipment. Each unit undergoes functional output testing prior to dispatch to confirm that all 16 output points operate within specification. The module is covered by a 12-Month Warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent project requirements. For volume orders or long-term supply agreements, contact NANKMOS at [email protected] or +86 18359268345 to discuss pricing and availability.
