IC694APU300 Product Description

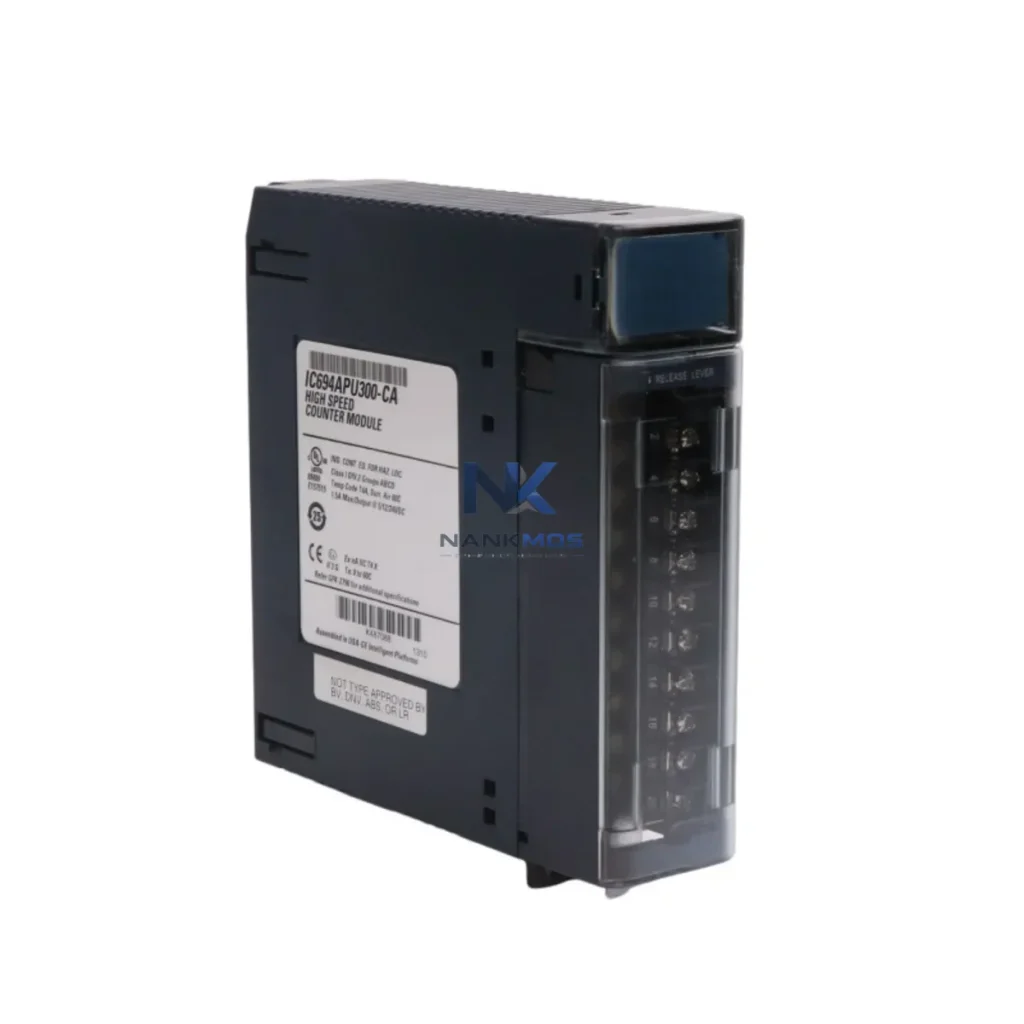

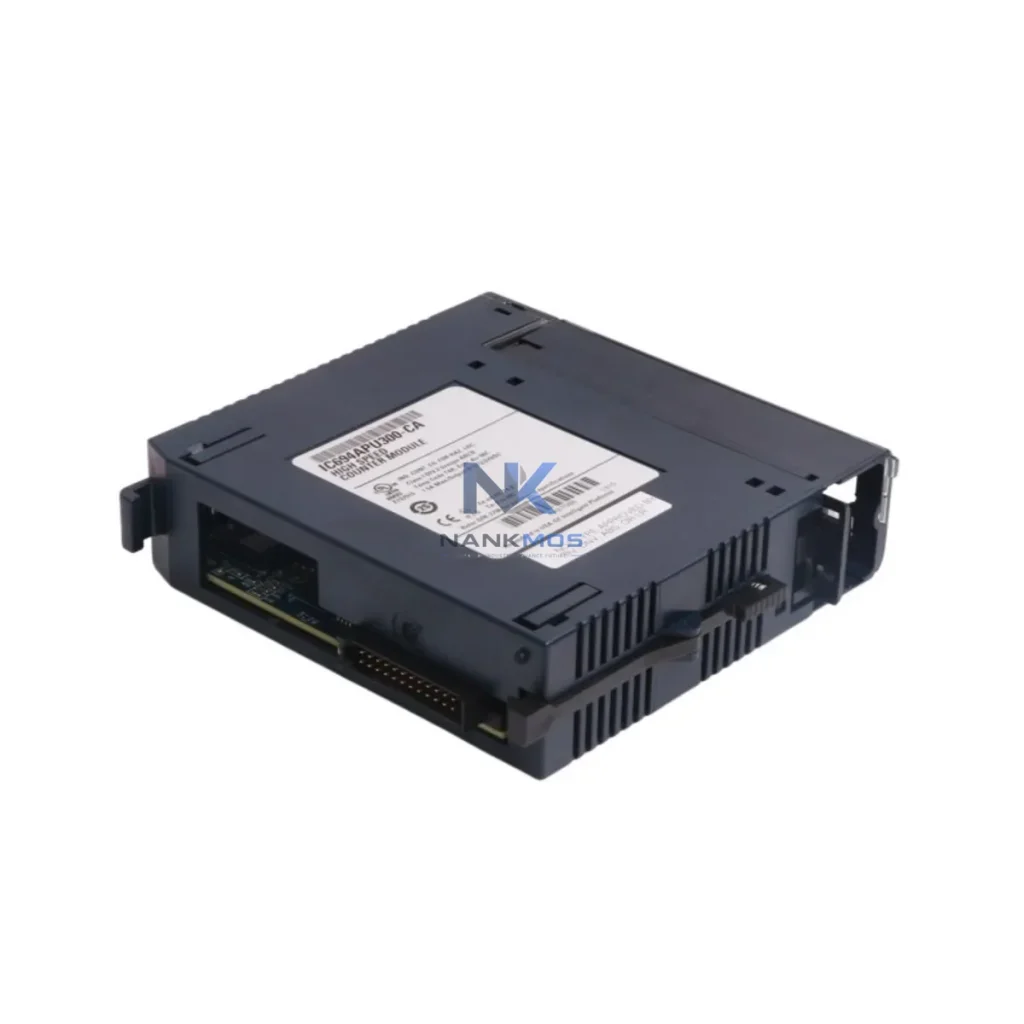

The GE IC694APU300 is a dedicated High Speed Counter (HSC) module engineered for the GE Series 90-30 PLC platform, delivering precision pulse counting, frequency measurement, and position tracking within demanding industrial control architectures. Designed as a drop-in expansion module for the IC694 rack system, the IC694APU300 integrates seamlessly into multi-slot backplanes alongside CPUs, power supplies, and I/O modules — enabling engineers to extend counting capability without disrupting the existing control topology. With a 12-Month Warranty and full pre-shipment functional testing, this module is a reliable, field-proven solution for high-throughput production environments.

The IC694APU300 is not a standalone device — it is an architectural component within the GE Series 90-30 integrated control platform. Its value is fully realized when deployed alongside the broader rack ecosystem. In a typical control cabinet, the IC694APU300 occupies a dedicated slot in a IC694CHS392 10-slot baseplate or a IC694CHS397 5-slot baseplate, sharing the backplane bus with the system CPU and I/O modules.

The IC694CPU350 or IC694CPU360 CPU module serves as the program execution engine, reading counter accumulator values and setpoint status from the IC694APU300 via the backplane at each scan cycle. This tight coupling eliminates the latency associated with external counter hardware and ensures deterministic response to high-speed pulse events — critical in packaging lines, bottling plants, and precision cut-to-length systems.

Power integrity is maintained by the IC694PWR321 or IC694PWR330 power supply module, which delivers regulated 5 VDC and 24 VDC rails across the backplane. Stable power delivery is essential for the IC694APU300's high-frequency input circuitry, where voltage ripple can introduce false counts or missed pulses in encoder-based positioning applications.

On the I/O layer, the IC694APU300 works in parallel with discrete I/O modules such as the IC694MDL340 (24 VDC input, 32-point) and IC694MDL654 (relay output, 16-point), which handle conventional on/off signals while the APU300 manages the high-frequency pulse streams from encoders, proximity sensors, or flow meters. Analog signals from process transmitters are handled by the IC694ALG220 analog input module, completing the signal acquisition layer.

For distributed architectures, the IC694CMM321 communications coprocessor or IC694CMM302 Ethernet module extends the Series 90-30 platform to Modbus TCP, SRTP, or GE's proprietary GENIUS bus — enabling the IC694APU300's counter data to be aggregated at a supervisory SCADA layer or shared with upstream MES systems. In redundant configurations, a secondary CPU rack with a mirrored IC694APU300 can be synchronized via the IC694BEM320 bus expansion module, ensuring no loss of count data during CPU switchover events.

HMI integration is typically achieved through a QuickPanel+ or Cimplicity HMI station connected via Ethernet, displaying real-time counter values, setpoint thresholds, and alarm states derived from the IC694APU300's output registers. This end-to-end architecture — from encoder input through the APU300, across the backplane to the CPU, and up to the HMI — represents a fully coherent, single-vendor control stack with minimized integration risk.

Packaging & Bottling Lines: The IC694APU300 is widely deployed in high-speed packaging machinery where encoder-based position feedback and product counting are fundamental. Its 80 kHz counting rate accommodates servo-driven conveyors and rotary encoders on filling heads, enabling precise fill-count verification and reject-gate control via the module's preset output relays.

Power Generation & Utilities: In power plant auxiliary systems, the IC694APU300 monitors turbine shaft rotation via magnetic pickup sensors, providing speed feedback to the Series 90-30 CPU for overspeed protection logic. Its quadrature input mode supports bidirectional shaft monitoring in pump and compressor applications.

Petrochemical & Refinery Process Control: Flow totalizing in pipeline and tank-farm applications relies on pulse-output flow meters feeding the IC694APU300. The module accumulates pulse counts representing volumetric flow, with the CPU converting counts to engineering units for batch control and custody transfer reporting.

Water & Wastewater Treatment: Municipal water treatment facilities use the IC694APU300 to monitor pump rotation counts and flow meter pulses, enabling accurate dosing calculations and pump runtime tracking for predictive maintenance scheduling.

Mining & Minerals Processing: Conveyor belt speed monitoring and material throughput counting in ore processing plants benefit from the IC694APU300's robust input filtering, which rejects electrical noise common in high-voltage mining environments while maintaining accurate pulse counts from belt encoders.

Metallurgy & Steel Mills: In rolling mill applications, the IC694APU300 tracks material length via encoder feedback on pinch rolls, triggering flying shear cut commands through the CPU's output logic when the preset count is reached — enabling precise cut-to-length control at production speeds.

Q1: Is the IC694APU300 compatible with all Series 90-30 CPU variants, and does it require special configuration in the hardware configuration tool? The IC694APU300 is compatible with all IC694-series CPUs, including the IC694CPU310, IC694CPU350, and IC694CPU360. It must be declared in the GE Proficy Machine Edition (PME) hardware configuration as an APU module in its assigned slot. The CPU automatically allocates a block of %AI and %AQ registers for counter accumulator values and control words. No special firmware is required on the CPU side, but the PME project must be re-downloaded after adding the module to the hardware configuration.

Q2: Can the IC694APU300 be used in a redundant CPU architecture, and how is counter data preserved during a CPU failover? In a Series 90-30 Hot Standby (HSB) redundancy configuration using the IC694BEM320 bus expansion module, the IC694APU300 resides in the primary rack and its counter data is mirrored to the secondary CPU via the redundancy link at each scan. During a failover event, the secondary CPU assumes control with the last-known counter values intact, minimizing process disruption. Engineers should verify that the scan-to-scan mirror latency is acceptable for their specific counting application, particularly in very high-speed positioning systems.

Q3: What is the warranty coverage for the IC694APU300, and what pre-shipment testing is performed? Every IC694APU300 unit supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a full functional test including backplane communication verification, counter channel input response testing, and preset output relay actuation. Units that do not pass all test criteria are quarantined and not shipped. Replacement or repair is provided at no charge within the warranty period for confirmed defective units. Contact [email protected] or +86 18359268345 for warranty claims and technical support.
