GE IC694PWR321 PLC Power Supply Module

Product Details

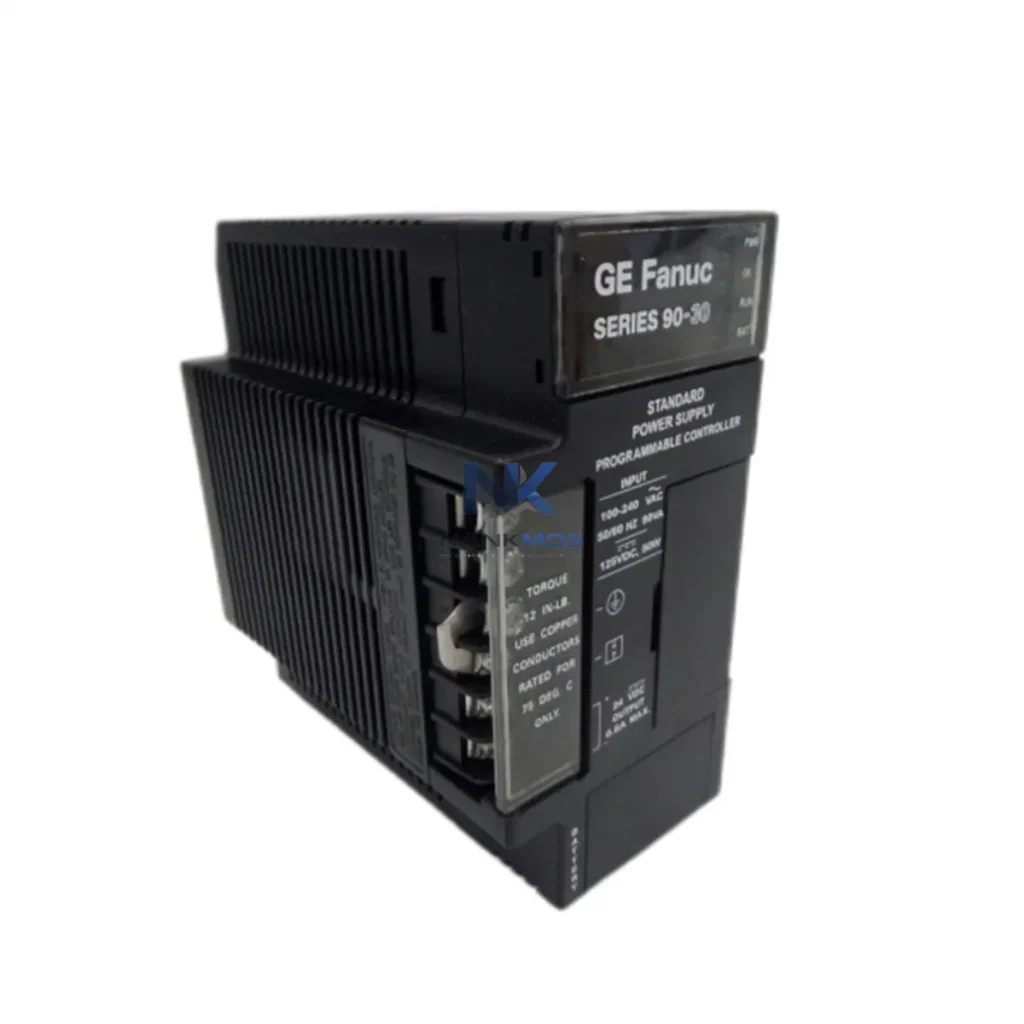

IC694PWR321 Product Description

The GE IC694PWR321 is a high-reliability power supply module engineered for the GE Series 90-30 PLC platform, delivering stable, energy-optimized DC power to control backplanes in demanding industrial environments. Designed to support continuous production line operation, the IC694PWR321 provides regulated 5 VDC and 24 VDC outputs with built-in overload protection, thermal management, and low-ripple output characteristics that directly reduce heat dissipation across the control cabinet. As factories transition toward smart manufacturing and energy-aware automation, this module serves as the foundational power infrastructure that enables every downstream control component to operate within its optimal efficiency envelope.

In modern energy management architectures, the quality and stability of the power supply directly determines the efficiency of the entire control system. The IC694PWR321 is rated for wide-range AC input (120/240 VAC selectable), allowing it to adapt to varying grid conditions without introducing voltage instability into the PLC backplane. This characteristic is critical in facilities where variable-frequency drives (VFDs) and servo drive systems generate harmonic disturbances on the supply rail. By maintaining clean, regulated DC output under these conditions, the IC694PWR321 protects sensitive I/O modules, communication modules, and CPU cards from power-quality-induced faults that would otherwise trigger unplanned downtime and energy waste from restart cycles.

The IC694PWR321 is fully compatible with the GE Series 90-30 CPU modules including the IC693CPU374 and IC693CPU364, and supports mixed-rack configurations where analog I/O modules such as the IC694ALG221 and IC694ALG442 operate alongside discrete I/O modules. This flexibility allows system integrators to build energy-monitoring subsystems that aggregate real-time power consumption data from field devices, feeding structured load data into SCADA platforms such as GE iFIX or Wonderware for centralized energy dashboards. When paired with power monitoring modules and smart metering I/O, the IC694PWR321-powered rack becomes a node in a plant-wide energy management system (EMS) capable of tracking kilowatt-hour consumption per production zone.

Deploying the GE IC694PWR321 within a power-aware automation strategy means treating the power supply not as a passive component but as an active participant in energy load management. In a typical Series 90-30 control rack, the IC694PWR321 supplies regulated power to the IC693CPU374 CPU module, which executes ladder logic programs governing motor start/stop sequences, conveyor speed ramps, and production cycle timing. By ensuring that the CPU and its associated IC694MDL654 discrete output modules receive clean, stable power, the IC694PWR321 eliminates the micro-interruptions that cause false fault trips in motor control circuits — a common source of energy waste through unnecessary motor restarts.

In drive-intensive production lines, the IC694PWR321-powered PLC rack interfaces with GE AF-650GP or compatible variable-frequency drives (VFDs) via Modbus RTU or Ethernet/IP communication modules such as the IC694CMM321. The PLC issues speed reference commands and torque limit parameters to the VFDs, enabling soft-start and energy-recovery braking profiles that reduce peak demand charges. Simultaneously, analog input modules like the IC694ALG221 collect 4–20 mA signals from current transformers and power transducers installed on motor feeders, giving the PLC real-time visibility into per-motor energy consumption. This data loop — from field sensor through I/O module to CPU to drive — forms the backbone of a closed-loop energy optimization strategy.

For facilities using GE Proficy HMI/SCADA or third-party HMI panels connected via the IC694CMM321 Ethernet module, the IC694PWR321-powered rack serves as the data aggregation hub for energy KPIs. Operators can monitor live power factor, load percentage, and cumulative energy consumption per production zone directly from the HMI touchscreen. When integrated with predictive maintenance algorithms running on the IC693CPU374, the system can flag abnormal power draw patterns — such as a motor drawing 15% above baseline — as early indicators of bearing wear or mechanical misalignment, enabling condition-based maintenance scheduling that prevents both catastrophic failures and the energy waste associated with degraded equipment running at reduced efficiency.

The IC694PWR321 contributes to production line energy optimization through several interconnected mechanisms. First, its stable regulated output ensures that all modules in the Series 90-30 rack — including high-speed counter modules, thermocouple input modules, and communication adapters — operate within their specified power envelopes. Modules operating outside their rated supply voltage consume more current, generate excess heat, and degrade faster, all of which increase total cost of ownership and energy expenditure. The IC694PWR321's tight output regulation eliminates this source of systemic inefficiency.

Second, the module's built-in overload and short-circuit protection prevents fault conditions from cascading into broader system shutdowns. In a production environment where a single PLC rack controls multiple machine cells, an unprotected power fault can halt an entire line, requiring a full cold-start sequence that consumes significantly more energy than a controlled restart. The IC694PWR321's protection circuitry isolates faults at the rack level, allowing the rest of the production line to continue operating while maintenance personnel address the isolated fault — minimizing both downtime and the energy cost of full-line restarts.

Third, when the IC694PWR321 is deployed in conjunction with GE Series 90-30 energy monitoring configurations, it enables granular load profiling across production shifts. By logging power consumption data through the PLC's data logging functions and transmitting records to a SCADA historian, plant energy managers can identify peak demand windows, optimize production scheduling to flatten load curves, and negotiate better electricity tariffs based on demonstrated demand management capability. Over a 12-month operational period, these optimizations typically yield measurable reductions in energy cost per unit produced — a direct contribution to manufacturing competitiveness.

All IC694PWR321 units supplied by NANKMOS are sourced from verified supply channels, undergo pre-shipment functional testing including output voltage verification, load regulation testing, and protection circuit validation, and are backed by a 12-Month Warranty. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and urgent replacement requirements in critical production environments.

Q1: What energy efficiency benefits does the IC694PWR321 provide in a Series 90-30 system? The IC694PWR321 delivers tightly regulated 5 VDC and 24 VDC outputs that minimize power dissipation across the control rack. Stable supply voltage reduces thermal stress on CPU and I/O modules, lowers heat load in the control cabinet, and eliminates fault-induced restart cycles — all of which contribute to measurable reductions in system-level energy consumption over continuous production shifts.

Q2: Is the IC694PWR321 compatible with existing Series 90-30 racks and CPU modules? Yes. The IC694PWR321 is a direct-fit replacement for compatible Series 90-30 power supply slots and is fully interoperable with IC693 and IC694 series CPU modules, discrete and analog I/O modules, and communication modules including Ethernet and serial adapters. No firmware changes or rack modifications are required for standard replacement installations.

Q3: What is the recommended replacement and testing procedure for the IC694PWR321? For planned replacement, power down the rack, remove the existing power supply, install the IC694PWR321, and restore power. Verify 5 VDC and 24 VDC output levels at the backplane test points before bringing the CPU online. NANKMOS recommends confirming output voltage stability under full rack load for a minimum of 15 minutes prior to returning the system to production. All units supplied by NANKMOS have been pre-tested prior to shipment.

Q4: What warranty and supply terms apply to the IC694PWR321? All IC694PWR321 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units are held in stock for immediate dispatch. For volume orders or scheduled maintenance contracts, contact NANKMOS to discuss supply agreements and lead time commitments.
