IC695ALG608 Product Description

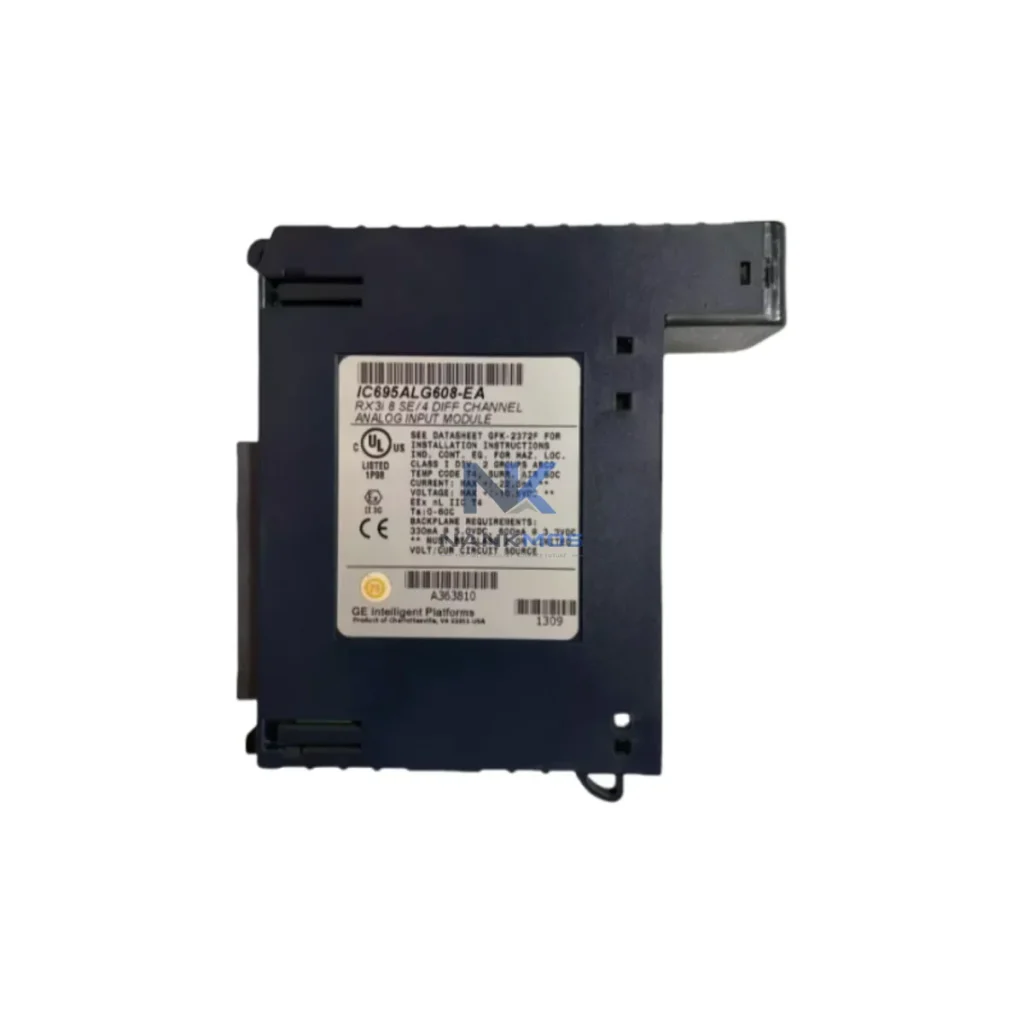

The GE IC695ALG608 is an 8-channel analog input module engineered for the PACSystems RX3i platform, delivering precision signal acquisition and seamless integration into modern industrial data networks. Designed for environments where real-time data fidelity and network transparency are non-negotiable, the IC695ALG608 bridges the gap between field-level instrumentation and upper-layer control and monitoring systems. Whether deployed in power generation, petrochemical processing, water treatment, or advanced manufacturing, this module serves as a critical node in the smart factory data chain — converting analog field signals into structured digital data streams that feed PLCs, SCADA platforms, HMI terminals, and edge analytics engines.

At its core, the IC695ALG608 accepts voltage and current inputs across multiple configurable ranges, enabling direct connection to pressure transmitters, temperature sensors, flow meters, and level transducers without additional signal conditioning hardware. Each channel operates with high-resolution A/D conversion, ensuring that subtle process variations are captured accurately and transmitted upstream without distortion. This level of signal integrity is essential when the data is consumed by advanced process control algorithms or fed into digital twin models running on industrial IoT platforms.

Within the PACSystems RX3i backplane architecture, the IC695ALG608 communicates over the high-speed RX3i bus, exchanging data with the CPU module — such as the IC695CPE330 or IC695CPE400 — at deterministic scan rates. This tight integration ensures that analog process values are available to the PLC logic engine with minimal latency, supporting closed-loop control strategies that demand fast and reliable feedback. The CPU then propagates this data upstream via the PROFINET or Ethernet/IP network interface modules installed in the same rack, making the analog values visible to SCADA systems, MES platforms, and cloud-based analytics dashboards in real time.

In a fully connected smart factory deployment, the IC695ALG608 sits at the foundation of the data acquisition layer. Field instruments — including 4–20mA pressure transmitters, RTD temperature sensors, and ultrasonic flow meters — wire directly into the module's input terminals. The module digitizes these signals and places the engineering-unit values into the RX3i CPU's data table, where the IC695CPE330 processor executes control logic and alarm evaluation at every scan cycle.

The CPU communicates with the plant network via an IC695ETM001 Ethernet module or an IC695PNC001 PROFINET Controller module, both of which can reside in the same IC695CHS016 universal backplane. Through PROFINET IO, the RX3i rack exchanges data with remote I/O stations — such as the VersaMax Remote I/O drops equipped with IC200ALG264 analog input modules — extending the data acquisition footprint across large process areas without running dedicated home-run cables back to the control room.

At the HMI layer, operator workstations running GE CIMPLICITY or third-party platforms such as Ignition by Inductive Automation subscribe to the analog process values via OPC-UA or Modbus TCP, rendering real-time trend displays, alarm banners, and process overview graphics. When process values breach configured thresholds, the SCADA system triggers alarm notifications and logs the event to a historian database, creating a traceable audit trail for regulatory compliance and root-cause analysis.

For facilities integrating variable frequency drives — such as those controlling pump motors or compressor units — the analog output values from the IC695ALG608 can serve as feedback signals to drive speed reference calculations within the PLC, closing the loop between process measurement and actuator response. Edge gateway devices, such as those running on industrial Linux platforms with Modbus TCP polling capability, can simultaneously read the same process data and forward it to cloud analytics platforms via MQTT or REST APIs, enabling predictive maintenance models to monitor equipment health trends without interrupting the real-time control layer.

Industrial Ethernet switches — managed Layer 2 devices with PROFINET-aware LLDP support — form the network backbone connecting the RX3i rack, remote I/O drops, HMI stations, and edge gateways into a unified plant LAN. Proper VLAN segmentation and QoS configuration on these switches ensures that time-critical PROFINET IO traffic receives priority over bulk data transfers, maintaining deterministic communication even under high network load conditions.

Many industrial facilities operate with fragmented data architectures — legacy analog instruments that were never connected to digital networks, PLC racks that lack modern Ethernet interfaces, and SCADA systems that cannot access real-time field data without manual operator entry. The IC695ALG608, deployed within a PACSystems RX3i upgrade project, directly addresses these data gaps by providing a standards-compliant, network-ready analog acquisition layer that integrates with both legacy and modern control infrastructure.

Protocol fragmentation is one of the most common barriers to plant-wide data visibility. Sites that operate a mix of Modbus RTU legacy devices, PROFINET IO controllers, and OPC-UA-capable edge systems often struggle to consolidate data into a single operational view. The RX3i platform's support for multiple communication protocols — accessible through the IC695ALG608's host CPU and its associated network interface modules — allows engineers to bridge these protocol boundaries without replacing existing field devices. A Modbus TCP gateway can translate legacy RTU device data into Ethernet-compatible frames, while the PROFINET controller module handles real-time IO with remote stations, all within the same rack.

Remote diagnostics capability is another critical value delivered by this architecture. Maintenance engineers can access the RX3i CPU's diagnostic data — including channel-level fault status from the IC695ALG608, such as open-wire detection and over-range alarms — through the SCADA system or a dedicated remote access terminal, without requiring a physical site visit. This capability reduces mean time to repair, lowers maintenance travel costs, and enables proactive intervention before process upsets escalate into unplanned downtime events.

For production lines requiring transparency and traceability, the continuous data stream from the IC695ALG608 feeds manufacturing execution systems with real-time process parameters, enabling OEE calculations, batch record generation, and quality control correlation analysis. System expansion is straightforward: additional analog input modules can be added to spare slots in the IC695CHS016 backplane, or new remote I/O drops can be commissioned on the PROFINET network, scaling the data acquisition infrastructure in line with plant growth without redesigning the control architecture.

Q1: What communication protocols does the IC695ALG608 support for SCADA integration? The IC695ALG608 itself communicates over the RX3i high-speed backplane bus. SCADA and HMI connectivity is achieved through the PACSystems RX3i CPU and its associated network interface modules, which support PROFINET IO, Modbus TCP/IP, Ethernet/IP, and OPC-UA (via protocol gateway). This allows the module's analog data to be consumed by platforms such as iFIX, CIMPLICITY, Wonderware, and Ignition without additional middleware.

Q2: How does the system maintain network stability and deterministic communication? The RX3i backplane architecture provides a dedicated, high-bandwidth internal bus that isolates analog I/O communication from the plant Ethernet network. PROFINET IO traffic on the external network is managed through QoS-enabled industrial Ethernet switches, ensuring that time-critical control data receives transmission priority. The IC695ALG608 supports channel-level diagnostics, allowing the CPU to detect and report communication faults without disrupting the overall control scan.

Q3: Can the IC695ALG608 be integrated into an existing Modbus TCP network alongside legacy devices? Yes. The PACSystems RX3i CPU can simultaneously manage PROFINET IO communication with modern devices and Modbus TCP communication with legacy instruments or third-party systems. A Modbus TCP gateway module can also be used to bridge older Modbus RTU field devices onto the Ethernet network, making their data available alongside the IC695ALG608's analog inputs within the same SCADA data model.

Q4: What pre-shipment testing and warranty coverage is provided? Every IC695ALG608 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify channel accuracy, input range configuration, and backplane communication integrity. All units are covered by a 12-month warranty from the date of shipment. In-stock inventory ensures fast order fulfillment for both single-unit replacement and multi-unit project procurement. Contact [email protected] or +86 18359268345 for availability confirmation and technical pre-sales support.
