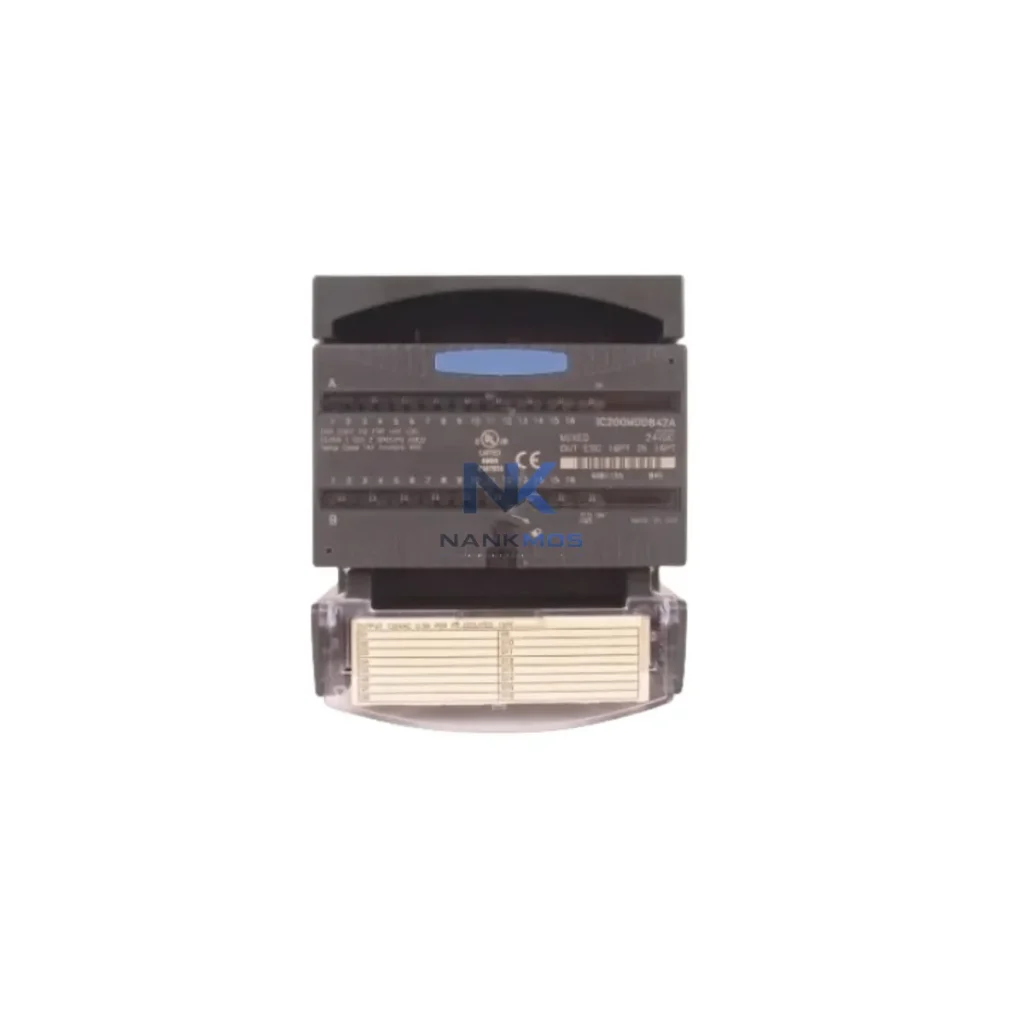

GE Fanuc / Emerson IC200MDD842 Discrete Mixed I/O Module

Product Details

IC200MDD842 Product Description

The GE IC200MDD842 is a VersaMax Discrete Mixed I/O Module engineered for high-density signal acquisition and deterministic output control across industrial automation networks. Featuring 12 DC inputs and 12 DC outputs on a single compact module, the IC200MDD842 serves as a critical node in the data chain that connects field-level sensors and actuators to PLC controllers, SCADA platforms, HMI terminals, and enterprise-level monitoring systems. Designed for seamless integration within GE's VersaMax distributed I/O architecture, this module enables real-time data flow from the production floor to the control room — forming the backbone of transparent, connected smart factory operations.

In a modern smart factory, the IC200MDD842 operates at the intersection of physical process signals and digital control logic. Field-mounted proximity sensors, limit switches, and photoelectric detectors feed 24 VDC discrete signals into the module's 12 input channels. These signals are scanned cyclically by the VersaMax backplane and forwarded to the host PLC — typically a GE PACSystems RX3i or a Series 90-30 CPU — where ladder logic or function block programs execute control decisions in real time.

The output side of the IC200MDD842 drives actuators, solenoid valves, motor starters, and indicator lamps directly from its 12 DC output channels. When paired with a VersaMax Network Interface Unit such as the IC200PBI001 (Profibus-DP NIM) or the IC200EBI001 (Ethernet/IP NIM), the entire I/O node becomes addressable over plant-wide industrial networks. This allows SCADA systems — including GE iFIX, Wonderware, or Ignition — to poll live I/O status, log historical data, and trigger alarm conditions without any additional protocol conversion hardware at the field level.

For installations requiring multi-drop remote I/O across large production floors, the IC200MDD842 can be deployed alongside other VersaMax modules such as the IC200MDL640 (16-point DC input) and IC200MDL740 (16-point DC output) to build scalable I/O racks that serve multiple machine cells from a single network segment. Edge gateway devices — such as those running OPC-UA or MQTT bridging — can subscribe to the PLC's I/O data table and forward structured payloads to cloud-based MES or ERP platforms, completing the data chain from sensor to enterprise dashboard.

HMI panels connected via Ethernet or serial links to the PACSystems controller can display real-time I/O status sourced directly from the IC200MDD842 channels, enabling operators to monitor conveyor states, valve positions, and safety interlock conditions from a single touchscreen. When combined with GE's VersaMax analog modules such as the IC200ALG260 (analog input) or IC200ALG320 (analog output), the mixed I/O module forms part of a unified I/O platform that handles both discrete and continuous process variables within the same backplane chassis — reducing wiring complexity and simplifying network topology.

Many legacy automation sites face persistent challenges: protocol fragmentation between older GE Series 90 PLCs and newer Ethernet-based SCADA systems, data islands where field I/O status is invisible to upper-level monitoring, and limited remote diagnostic capability that forces on-site maintenance visits for every fault condition. The IC200MDD842 directly addresses these gaps by providing a standardized, backplane-native I/O interface that integrates cleanly with VersaMax gateway modules supporting Profibus-DP, DeviceNet, and Ethernet/IP — the three most common industrial network protocols in GE-based automation environments.

By placing IC200MDD842 modules at distributed I/O nodes throughout a production line, engineers can eliminate signal wiring runs back to a central panel, reduce installation costs, and achieve full I/O transparency across the SCADA network. Alarm conditions — such as a failed actuator output or a missing sensor signal — are detected at the PLC scan level and propagated immediately to the SCADA alarm server, where they can be logged, escalated via email or SMS, and reviewed remotely by maintenance engineers without requiring physical access to the control cabinet.

System expansion is straightforward: additional IC200MDD842 modules or complementary VersaMax I/O cards can be inserted into available backplane slots without reconfiguring the network topology. This modularity supports phased production line upgrades, allowing new machine cells to be added to the existing SCADA and PLC infrastructure incrementally — protecting capital investment while enabling continuous improvement of factory data visibility.

All IC200MDD842 units supplied by NANKMOS are sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. In-stock inventory ensures rapid dispatch to minimize production downtime for urgent replacement or expansion projects.

Q1: What communication protocols does the IC200MDD842 support for SCADA integration?The IC200MDD842 communicates natively over the VersaMax backplane bus. When paired with a VersaMax Network Interface Module — such as the IC200PBI001 for Profibus-DP or the IC200EBI001 for Ethernet/IP — the module's I/O data becomes accessible to SCADA systems, HMI panels, and OPC servers over standard industrial network protocols. No additional protocol converters are required at the field level.

Q2: How does the IC200MDD842 support remote diagnostics and fault detection?The host PACSystems or Series 90 PLC continuously monitors the I/O status of all connected VersaMax modules, including the IC200MDD842. Fault conditions — such as output short circuits or input signal loss — are reported to the PLC fault table and can be forwarded to SCADA alarm servers in real time. Remote maintenance teams can review fault logs and I/O status via the SCADA HMI without on-site intervention, significantly reducing mean time to repair.

Q3: Can the IC200MDD842 be used in mixed analog and discrete I/O racks?Yes. The VersaMax backplane architecture supports mixed module configurations within the same chassis. The IC200MDD842 can be installed alongside analog input modules such as the IC200ALG260 and analog output modules such as the IC200ALG320, allowing a single I/O rack to handle both discrete and continuous process signals. The PLC manages all module types through a unified I/O configuration, simplifying programming and network addressing.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IC200MDD842?Every IC200MDD842 unit shipped by NANKMOS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional pre-shipment testing to verify input channel response, output switching integrity, and backplane communication. In-stock availability enables same-week shipment for urgent orders, minimizing production line downtime during replacement or system expansion projects.
