GE Fanuc / Emerson IC200CHS022K Network Interface Module

Product Details

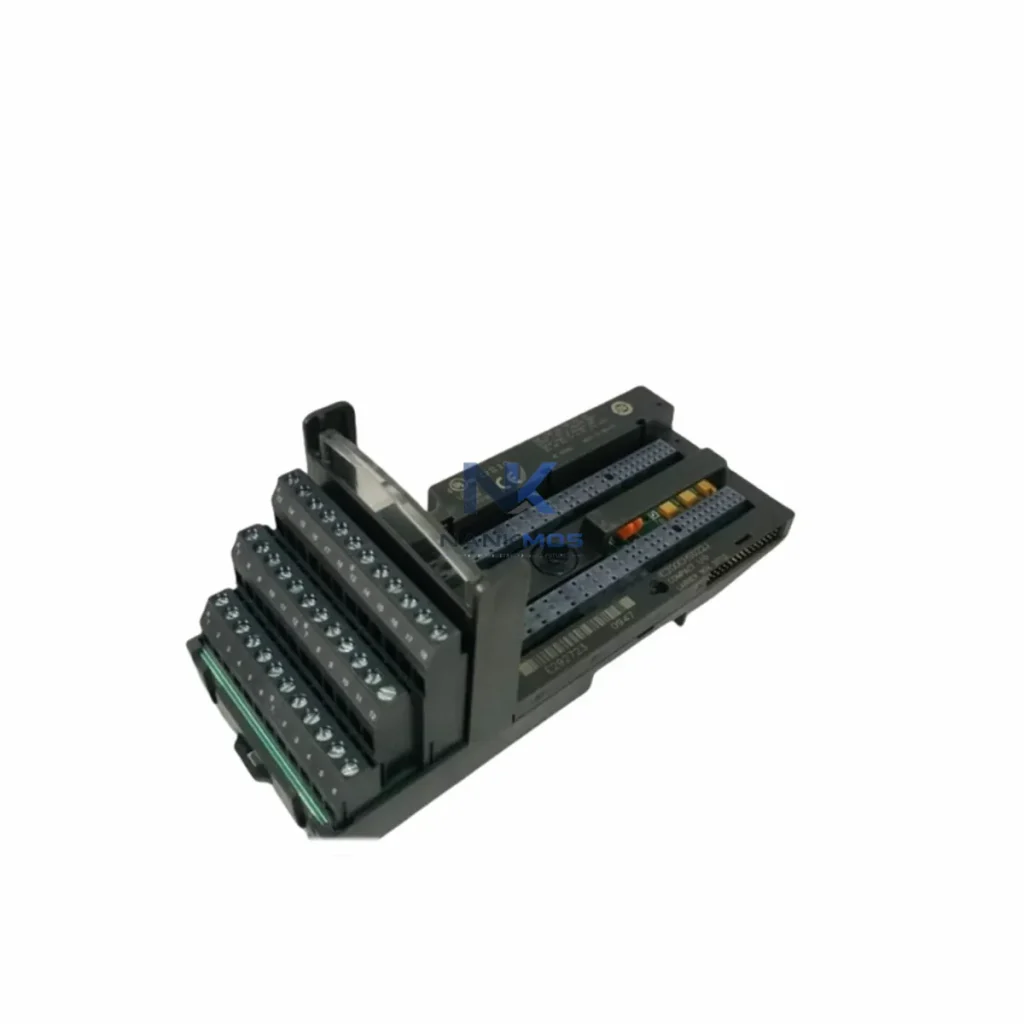

IC200CHS022K Product Description

The GE IC200CHS022K is a high-density carrier and expansion module engineered for the GE VersaMax Micro platform — a proven industrial automation architecture deployed across discrete manufacturing, process control, and smart factory environments worldwide. Designed by GE Fanuc / Emerson, this module serves as the physical and logical backbone for connecting field-level I/O, communication interfaces, and network-linked subsystems into a unified, real-time data fabric.

In modern industrial sites, the challenge is not simply collecting data — it is ensuring that data flows reliably, without latency, from every sensor and actuator on the plant floor to the supervisory systems that drive decisions. The IC200CHS022K addresses this challenge by providing a structured carrier architecture that supports Modbus RTU/TCP and Profibus DP protocol stacks, enabling seamless integration between legacy field devices and contemporary SCADA, HMI, and MES platforms.

The IC200CHS022K sits at the intersection of field instrumentation and supervisory control — a position that demands both protocol versatility and network resilience. In a typical smart factory deployment, the data journey begins at the sensor layer: pressure transmitters, flow meters, temperature probes, and proximity switches feed raw signals into GE VersaMax Micro I/O modules such as the IC200MDL640 (discrete input) and IC200ALG320 (analog input), which are mounted directly onto the IC200CHS022K carrier chassis.

From the carrier, digitised process values are passed upstream via Profibus DP to a GE PACSystems RX3i CPU or a VersaMax Network Interface Unit (NIU), where the PLC executes control logic and generates setpoints for downstream actuators — including variable frequency drives (VFDs), servo amplifiers, and pneumatic valve banks. Simultaneously, the Modbus TCP/IP channel on the IC200CHS022K enables direct polling by Wonderware InTouch HMI or GE iFIX SCADA stations, delivering real-time process visualisation without additional protocol converters.

For sites operating hybrid network architectures, the IC200CHS022K bridges legacy serial Modbus RTU devices — such as older GE Series 90-30 PLCs or third-party energy meters — with modern Ethernet-based supervisory layers. An industrial managed Ethernet switch (e.g., a 16-port DIN-rail unit with IGMP snooping) aggregates traffic from multiple VersaMax nodes and routes it to the plant historian or cloud-edge gateway. At the edge, an IIoT gateway module running OPC-UA or MQTT translates Modbus/Profibus data into formats consumable by MES dashboards and ERP systems, completing the digital thread from field device to enterprise.

Remote I/O expansion is equally well-served: by daisy-chaining additional IC200CHS014 or IC200CHS022 carrier modules on the Profibus segment, engineers can extend the I/O footprint across large production cells without re-engineering the control architecture. Each node on the Profibus ring is individually addressable, supports hot-swap diagnostics, and reports fault states back to the SCADA alarm management system in under 10 ms — a critical capability for high-availability lines where unplanned downtime carries significant cost.

Power integrity across the carrier backplane is maintained by a VersaMax 24 VDC power supply module, while network-level redundancy can be achieved by pairing the IC200CHS022K with a redundant Profibus DP coupler or a dual-ring industrial Ethernet topology. This layered approach to connectivity ensures that a single cable fault or node failure does not propagate into a system-wide outage.

Protocol Fragmentation: Many brownfield plants operate a patchwork of Modbus RTU, Profibus DP, and proprietary serial protocols across different generations of equipment. The IC200CHS022K consolidates these into a single carrier platform, eliminating the need for standalone protocol converters and reducing wiring complexity.

Data Silos: When field devices cannot communicate with SCADA or MES systems, production data remains trapped at the machine level. By providing native Modbus TCP and Profibus DP support, the IC200CHS022K ensures that every I/O point on the VersaMax carrier is visible to supervisory systems — enabling plant-wide data transparency and KPI tracking.

Remote Monitoring Gaps: Without reliable network connectivity at the I/O level, remote diagnostics are impossible. The IC200CHS022K's Ethernet interface allows maintenance engineers to query module status, read diagnostic registers, and push firmware updates from a central engineering workstation — reducing on-site intervention and mean time to repair (MTTR).

Production Line Transparency: Real-time data from the IC200CHS022K feeds directly into OEE dashboards and digital twin models, giving operations managers a live view of machine states, cycle times, and alarm histories. This transparency is foundational to lean manufacturing and continuous improvement programmes.

Alarm Tracking and Escalation: Integrated diagnostic reporting means that fault conditions — whether a broken wire on an analog input or a Profibus communication timeout — are immediately surfaced in the SCADA alarm log, with timestamps and node addresses that accelerate root-cause analysis.

System Scalability: As production capacity grows, additional VersaMax carrier modules can be added to the Profibus segment without disrupting existing nodes. This modular expansion model protects capital investment and shortens commissioning time for new production cells.

Q1: Does the IC200CHS022K support both Modbus RTU and Modbus TCP/IP simultaneously? Yes. The IC200CHS022K supports concurrent Modbus RTU (via RS-485 serial port) and Modbus TCP/IP (via Ethernet RJ45), allowing it to serve as a protocol bridge between legacy serial field devices and modern Ethernet-based SCADA or HMI systems without additional hardware.

Q2: What is the maximum Profibus DP communication speed, and how does it affect network stability? The module supports Profibus DP at speeds up to 12 Mbps. At this rate, cycle times for a 32-node segment are typically under 5 ms, ensuring deterministic data delivery. For longer cable runs or electrically noisy environments, reducing the baud rate to 1.5 Mbps or 500 kbps significantly improves network stability without meaningful impact on control performance.

Q3: Can the IC200CHS022K be integrated with third-party SCADA platforms such as Wonderware or Ignition? Yes. Via its Modbus TCP/IP interface, the IC200CHS022K is compatible with any SCADA or HMI platform that supports the Modbus TCP driver — including Wonderware InTouch, Ignition by Inductive Automation, GE iFIX, and Siemens WinCC. No custom driver development is required for standard register-mapped data exchange.

Q4: What does the 12-Month Warranty cover, and is pre-shipment testing performed? Every IC200CHS022K unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Pre-shipment functional testing is performed on all units to verify communication port integrity, backplane connectivity, and power rail stability. In the event of a confirmed hardware defect within the warranty period, NANKMOS provides replacement or repair at no additional cost.
