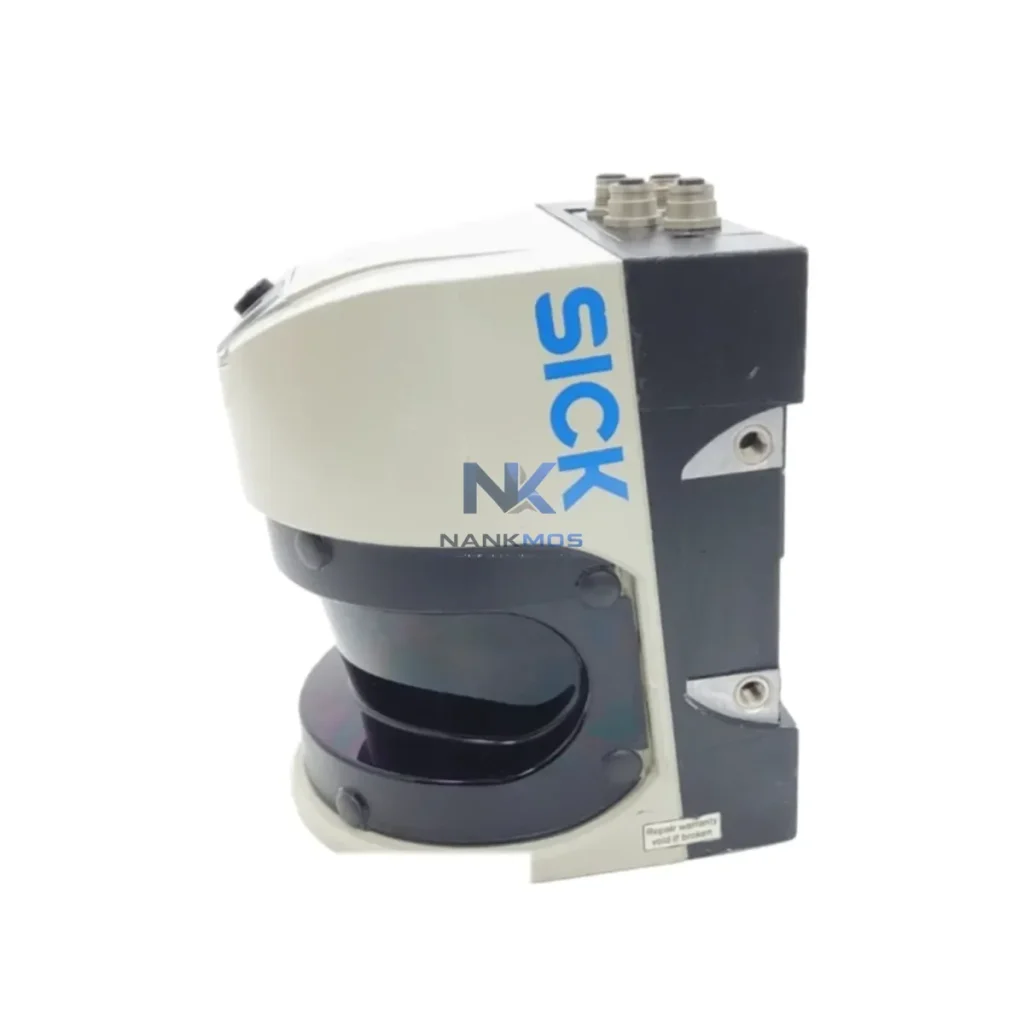

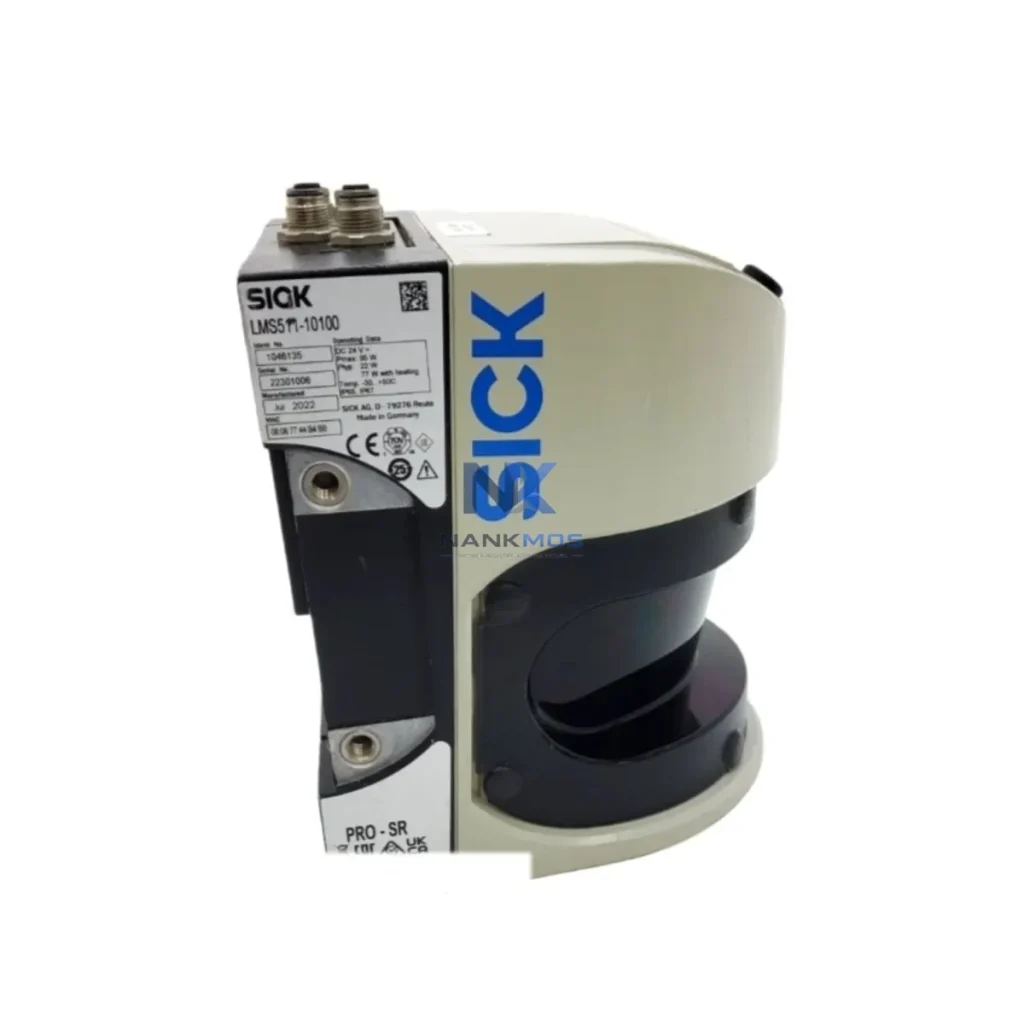

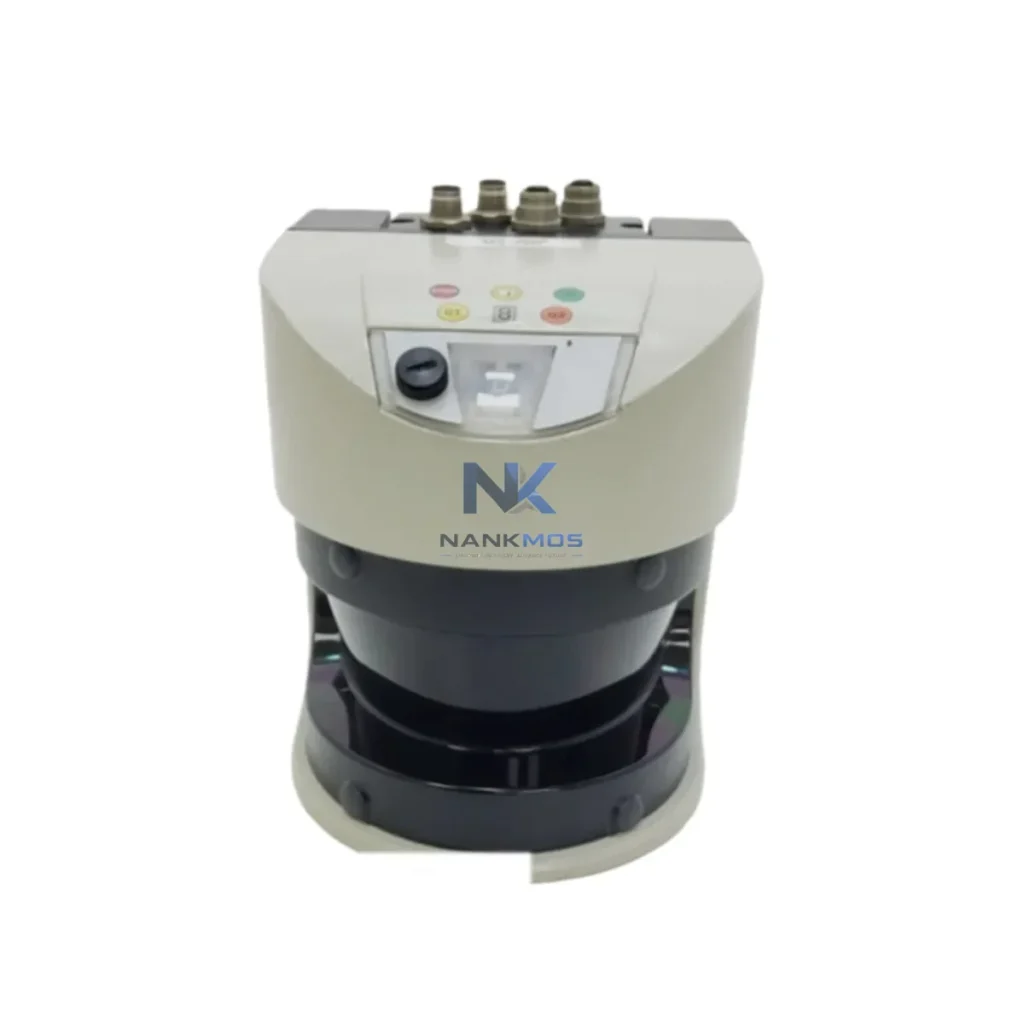

SICK LMS511-10100 ID. NUMBER 1046135 2D LiDAR Sensor

Product Details

LMS511-10100 ID. NUMBER 1046135 Product Description

The SICK LMS511-10100 (ID. NUMBER 1046135) is a high-performance 2D LiDAR sensor engineered for seamless deployment within the LMS5xx sensor family and broader industrial automation architectures. Designed to serve as a precision distance-measurement and area-monitoring node, the LMS511-10100 delivers reliable, real-time spatial data across demanding industrial environments — from automotive assembly lines and logistics warehouses to port terminals, mining operations, and process manufacturing facilities. Its role within a complete automation platform extends far beyond standalone sensing: it functions as a critical perception layer component that feeds structured data upward through the control hierarchy, enabling coordinated machine response, safety enforcement, and system-wide situational awareness.

In modern industrial control architectures, sensor integration is not merely a hardware concern — it is a systems engineering discipline. The LMS511-10100 is built with this philosophy at its core. Its Ethernet (TCP/IP) and RS-422 communication interfaces allow direct integration with SICK's own SOPAS-compatible controllers and third-party PLCs, including Siemens S7-1500 series CPUs and Rockwell Automation ControlLogix platforms. When deployed alongside SICK's Flexi Soft safety controller or the S3000 safety laser scanner, the LMS511-10100 contributes to a layered protection architecture that satisfies SIL 2 / PLd safety requirements without requiring redundant hardware duplication at the sensor level.

Signal flow within the LMS5xx architecture is deterministic and low-latency. The LMS511-10100 outputs scan data at up to 25 Hz with an angular resolution as fine as 0.1667°, covering a 190° field of view at ranges up to 80 meters. This data stream integrates cleanly with SICK's AppSpace development environment, enabling on-device logic execution that reduces upstream processing load on the main PLC or industrial PC. In distributed I/O configurations, the sensor's digital switching outputs (2× configurable) can be wired directly to SICK's CDF600 connection module or routed through a Wago 750-series I/O node, maintaining signal integrity across long cabinet runs without additional signal conditioning hardware.

Power architecture compatibility is a key consideration in any control cabinet design. The LMS511-10100 operates on a 10.8–30 VDC supply, making it compatible with standard 24 VDC rail-mount power supplies such as the SICK PAC50 or equivalent Phoenix Contact QUINT series units. Its low standby current draw and wide voltage tolerance simplify power budgeting in multi-sensor cabinets where supply headroom is constrained. The M12 connector interface (8-pin A-coded) ensures vibration-resistant mating in mobile or high-vibration installations such as AGV platforms, crane systems, and rail-guided vehicles.

From a communications layer perspective, the LMS511-10100 supports both binary and ASCII telegram formats over its Ethernet interface, enabling straightforward integration with SCADA systems, MES platforms, and OPC-UA gateways. When paired with a SICK SIM4000 sensor integration machine or a Moxa NPort industrial serial server, legacy RS-422 data can be bridged to modern Ethernet-based control networks without protocol conversion overhead. This flexibility makes the LMS511-10100 a practical choice for brownfield modernization projects where existing control infrastructure must be preserved while sensor capabilities are upgraded.

HMI and visualization integration is supported through SICK's SOPAS Engineering Tool, which provides live scan visualization, field configuration, and diagnostic readout without requiring custom software development. In systems where a Siemens TP1200 Comfort Panel or Weintek cMT series HMI is deployed, scan field status and alarm outputs from the LMS511-10100 can be mapped to PLC data blocks and displayed in real time, giving operators immediate visibility into sensor health and detection zone status. This reduces mean time to diagnose (MTTD) during fault conditions and supports predictive maintenance workflows.

Modular deployment is a defining strength of the LMS5xx platform. The LMS511-10100 can be mounted in standard 19" rack enclosures using SICK's BEF-WH-LMS5xx bracket kit, or surface-mounted to structural steel using the BEF-WH-LMS5xx-90 angled variant. In multi-sensor arrays — such as perimeter monitoring systems for large automated storage and retrieval systems (ASRS) — multiple LMS511-10100 units can be networked via a managed industrial Ethernet switch (e.g., Hirschmann SPIDER series) and polled sequentially by a central controller, enabling full-perimeter coverage with synchronized scan timing.

Long-term maintenance efficiency is addressed through the LMS511-10100's built-in contamination warning output, which alerts the control system when the optical window requires cleaning before measurement accuracy degrades. Combined with SICK's Lifetime Services program and the 12-Month Warranty provided with every unit supplied by NANKMOS, operators can plan preventive maintenance intervals with confidence, minimizing unplanned downtime in continuous-process environments. All units are pre-tested prior to shipment, with functional verification performed against SICK factory specifications to ensure out-of-box reliability.

The LMS511-10100 achieves its full potential when deployed as part of a cohesive automation platform rather than as an isolated sensor. At the control layer, it interfaces with Siemens S7-1500 CPUs or Rockwell ControlLogix L8x processors via standard Ethernet, delivering structured scan telegrams that can be parsed directly within the PLC's function block library. At the safety layer, it complements the SICK Flexi Soft safety controller and SICK S3000 safety laser scanner to form a redundant area-monitoring architecture capable of zone-based speed reduction and emergency stop triggering. For I/O expansion, the sensor's digital outputs connect to Wago 750-series or Phoenix Contact Axioline F I/O modules, enabling seamless signal routing to the main control backplane. Power distribution is handled by SICK PAC50 or Phoenix Contact QUINT 24 VDC power supplies, ensuring stable supply across multi-sensor cabinets. In communication-intensive deployments, a Hirschmann SPIDER or Moxa EDS-400 managed industrial Ethernet switch provides deterministic network segmentation between the sensor subnet and the PLC control network. Where legacy serial infrastructure exists, a Moxa NPort 5150 serial device server bridges RS-422 output to the Ethernet backbone. HMI visualization is delivered through Siemens TP1200 Comfort or Weintek cMT3151 panels, with scan field status mapped to PLC data blocks for real-time operator display. The SICK SIM4000 sensor integration machine further consolidates multi-sensor data streams into a single Ethernet output, simplifying controller-side data handling in large-scale perimeter monitoring systems.

The LMS511-10100 is deployed across a broad spectrum of industrial verticals where reliable area monitoring and distance measurement are critical to operational continuity. In automotive manufacturing, it monitors robotic work cell boundaries and AGV travel corridors, enforcing speed zones and collision avoidance without mechanical guarding. In logistics and e-commerce fulfillment centers, it provides pallet detection and conveyor gap measurement on high-speed sortation lines. In power generation and electrical substations, it monitors access zones around high-voltage equipment, triggering interlocks when personnel enter restricted areas. In water treatment and chemical processing plants, it tracks tank levels and pipe clearances in environments where contact measurement is impractical due to chemical exposure. In mining and bulk material handling, it profiles stockpile volumes and monitors conveyor loading profiles for belt alignment control. In port and terminal automation, it guides ship-to-shore crane positioning and container stack monitoring. In metal processing and steel mills, it measures strip width and edge position on rolling lines where thermal radiation and vibration preclude optical camera use. In pharmaceutical packaging lines, it verifies carton presence and spacing on high-speed blister pack conveyors. Across all these applications, the LMS511-10100's IP67 protection rating, wide operating temperature range, and contamination warning output ensure sustained measurement accuracy in harsh production environments.

Q1: Is the LMS511-10100 compatible with Siemens TIA Portal and can it be integrated into an S7-1500 control architecture without a dedicated gateway? Yes. The LMS511-10100 communicates via Ethernet TCP/IP using SICK's binary or ASCII telegram protocol. A standard function block (FB) can be developed within TIA Portal to establish a TCP client connection to the sensor and parse incoming scan telegrams directly into the PLC's data block structure. No dedicated gateway hardware is required for basic integration, though a SICK SIM4000 or Moxa NPort device server may be used to simplify multi-sensor aggregation or RS-422 bridging in more complex architectures.

Q2: What redundancy options are available when deploying the LMS511-10100 in a safety-critical perimeter monitoring application? For safety-critical applications, the LMS511-10100 is typically deployed in conjunction with the SICK Flexi Soft safety controller and one or more SICK S3000 safety laser scanners to form a layered protection architecture. The LMS511-10100 handles area monitoring and object detection at the standard control layer, while the S3000 provides certified safety zone enforcement at the safety layer. This separation of function allows the standard control system to remain operational during safety zone reconfiguration without interrupting the certified safety function. All units supplied by NANKMOS include a 12-Month Warranty and are pre-tested to SICK factory specifications prior to shipment.

Q3: What is the recommended maintenance interval for the LMS511-10100 in a dusty industrial environment, and how does NANKMOS support long-term inventory availability? SICK recommends inspecting and cleaning the optical window of the LMS511-10100 at intervals determined by the contamination warning output, which provides an early alert before measurement accuracy is affected. In high-dust environments such as cement plants, grain handling facilities, or mining operations, monthly inspection cycles are typical. NANKMOS maintains stock of the LMS511-10100 and compatible LMS5xx series accessories to support both planned maintenance replacements and unplanned spares requirements. All units are covered by a 12-Month Warranty from the date of shipment, with functional pre-shipment testing performed against SICK factory specifications to ensure reliability from first power-on.
