EPRO MMS6350/DP Overspeed Protection Module

Product Details

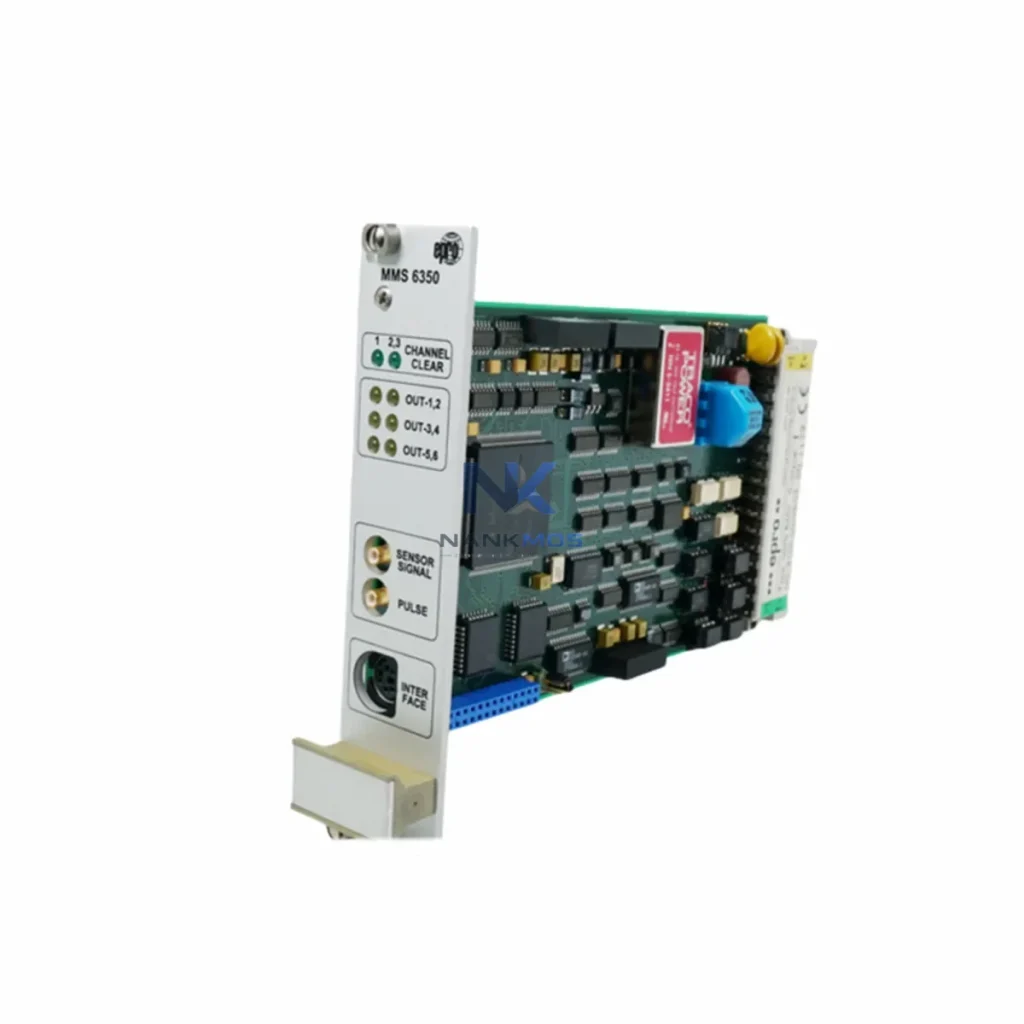

MMS6350/DP Product Description

The EPRO MMS6350/DP is a precision-engineered digital overspeed protection module purpose-built for integration within the MMS6000 modular machinery protection architecture. Designed to deliver deterministic, high-speed shaft speed monitoring and overspeed trip functionality, this module occupies a critical position in the protection layer of rotating machinery control systems — including steam turbines, gas turbines, compressors, pumps, and large-scale industrial drives. Its architecture-native design ensures seamless compatibility with the broader MMS6000 platform, enabling engineers to deploy, configure, and maintain overspeed protection without compromising system coherence or signal integrity.

In modern industrial automation environments, overspeed protection is not a standalone function — it is a deeply integrated element of a layered control and safety architecture. The MMS6350/DP is engineered with this philosophy at its core. It interfaces directly with the MMS6000 backplane, communicates via the platform's internal data bus, and synchronises trip logic with upstream safety controllers and downstream actuator systems. This level of integration eliminates the latency and signal ambiguity that arise when protection modules are sourced outside the native platform ecosystem, ensuring that overspeed events are detected, evaluated, and acted upon within the tightest possible response windows.

The module supports dual-channel speed input acquisition, enabling redundant sensor configurations that are essential in SIL-rated safety loops. Engineers deploying the MMS6350/DP within turbine governor control architectures can configure independent trip thresholds for overspeed, acceleration rate, and zero-speed detection — all managed through the MMS6000 system's centralised configuration interface. This eliminates the need for external relay logic or standalone trip amplifiers, reducing panel footprint and simplifying the overall protection architecture.

The MMS6350/DP achieves its full operational value when deployed as part of a coherent, multi-layer automation architecture. Within a typical turbine protection and control system, this module operates in close coordination with a range of complementary components across the MMS6000 platform and the broader control hierarchy.

At the rack and backplane level, the MMS6350/DP slots into the MMS6000 rack assembly, sharing power distribution and internal communication infrastructure with adjacent modules such as the MMS6110 Vibration Monitor, MMS6120 Dual-Channel Vibration Module, and MMS6210 Axial Position Monitor. This co-location within a unified rack eliminates inter-module wiring complexity and ensures that all protection signals are processed within a single, coherent data environment. The MMS6000 Rack Power Supply Module provides regulated 24 VDC to all installed modules, including the MMS6350/DP, ensuring stable operation even under transient load conditions.

At the control layer, the overspeed trip output from the MMS6350/DP is typically wired into a safety-rated PLC or turbine control system — such as a Woodward MicroNet or GE Mark VIe — where it participates in the overall emergency shutdown (ESD) logic. In architectures where the MMS6000 system is integrated with a DCS platform via PROFIBUS DP or Modbus RTU, the MMS6350/DP's diagnostic and status data can be surfaced to the operator HMI in real time, enabling condition-based maintenance decisions without requiring physical access to the protection rack.

At the communication layer, the MMS6000 system's gateway modules — including the MMS6823 PROFIBUS DP Gateway — bridge the protection rack to the plant-wide automation network. This allows the MMS6350/DP's speed measurement data, trip status, and self-diagnostic outputs to be transmitted to SCADA systems, historian platforms, and remote monitoring centres. In facilities operating OPC-UA or PROFINET-based architectures, protocol conversion modules ensure that the MMS6000 protection data remains accessible across heterogeneous network environments.

At the sensor and field instrument layer, the MMS6350/DP accepts inputs from passive magnetic pickup sensors (MPUs) or active proximity probes, both of which are standard in turbine speed measurement applications. Sensor signal conditioning is handled internally by the module, eliminating the need for external signal conditioners or isolators in most standard configurations. For high-availability applications, dual-redundant sensor inputs can be configured to ensure that a single sensor failure does not result in a spurious trip or a loss of overspeed protection coverage.

At the HMI and operator interface layer, the MMS6350/DP's operational data — including current shaft speed, trip setpoints, and module health status — is accessible via the MMS6000 system's local display interface and, where integrated, via plant-level SCADA or DCS operator stations. This multi-layer visibility supports both real-time operational monitoring and post-event forensic analysis, enabling engineering teams to reconstruct the sequence of events leading to an overspeed trip with precision.

Power Generation (Steam & Gas Turbines): In power plant environments, the MMS6350/DP is deployed as the primary overspeed protection element for steam turbines and gas turbines driving generators. Its deterministic trip response ensures that shaft overspeed events — which can cause catastrophic mechanical failure within milliseconds — are intercepted before damage thresholds are reached. The module's dual-channel input architecture supports the redundant speed sensor configurations mandated by IEC 61511 and API 670 standards for turbine protection systems.

Petrochemical & Refinery Compressor Trains: In compressor train applications — including centrifugal and axial compressors driven by steam or gas turbines — the MMS6350/DP provides overspeed protection that integrates with the compressor's anti-surge control system. By sharing speed data with the anti-surge controller via the MMS6000 communication gateway, the protection system can coordinate trip actions with recycle valve positioning, minimising process disruption during emergency shutdowns.

Water Treatment & Pumping Stations: Large-scale pumping installations — including those used in municipal water treatment, desalination, and irrigation infrastructure — deploy the MMS6350/DP to protect high-speed pump drivers from runaway conditions caused by sudden load rejection or control system faults. The module's zero-speed detection capability is particularly valuable in these applications, providing confirmation of complete shaft standstill before restart sequences are initiated.

Mining & Minerals Processing: In mining environments, where rotating equipment operates under variable load conditions and in remote locations with limited maintenance access, the MMS6350/DP's self-diagnostic capabilities and remote status reporting via PROFIBUS DP reduce the need for on-site inspection. Its robust operating temperature range and industrial-grade construction ensure reliable performance in the harsh environmental conditions typical of mining and minerals processing facilities.

Marine & Offshore Propulsion Systems: Offshore platforms and marine vessels deploying gas turbine or diesel-driven generators benefit from the MMS6350/DP's compact rack-mounted form factor and its compatibility with the MMS6000 system's vibration and position monitoring modules. Integrated protection across speed, vibration, and axial position parameters — all within a single MMS6000 rack — reduces panel space requirements and simplifies the protection system's maintenance and calibration procedures.

Q1: Is the MMS6350/DP compatible with existing MMS6000 rack assemblies, and can it be added to an operational system without a full rack replacement? Yes. The MMS6350/DP is designed as a slot-compatible module within the MMS6000 rack architecture. It can be installed into any available slot in an existing MMS6000 rack without requiring rack replacement or system-wide reconfiguration. Configuration of trip setpoints and input channel parameters is performed via the MMS6000 system's software interface, and the module's self-diagnostic routines confirm correct installation and signal integrity upon power-up. All units supplied by NANKMOS are pre-shipment tested against MMS6000 platform compatibility specifications, and are covered by a 12-Month Warranty from the date of shipment.

Q2: How does the MMS6350/DP support redundant overspeed protection architectures, and what sensor configurations are recommended for SIL-rated applications? The MMS6350/DP supports dual-channel speed input, enabling 1oo2 (one-out-of-two) or 2oo2 voting logic configurations when used in conjunction with a safety-rated logic solver. For SIL 2 or SIL 3 applications, it is recommended to deploy two MMS6350/DP modules in a redundant configuration, each receiving input from an independent speed sensor. This architecture ensures that a single module or sensor failure does not compromise overspeed protection coverage. NANKMOS can advise on redundant configuration options and supply matched module pairs with verified firmware versions to ensure consistent behaviour across both channels.

Q3: What is the lead time and warranty coverage for the MMS6350/DP, and how does NANKMOS support long-term maintenance and spare parts availability? NANKMOS maintains in-stock inventory of the MMS6350/DP to support urgent replacement and planned maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. All units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance against published specifications. For long-term maintenance planning, NANKMOS offers multi-unit procurement packages and can source matched spare modules to ensure architectural consistency across your protection system. Contact our engineering team at [email protected] or +86 18359268345 for availability confirmation and technical consultation.
