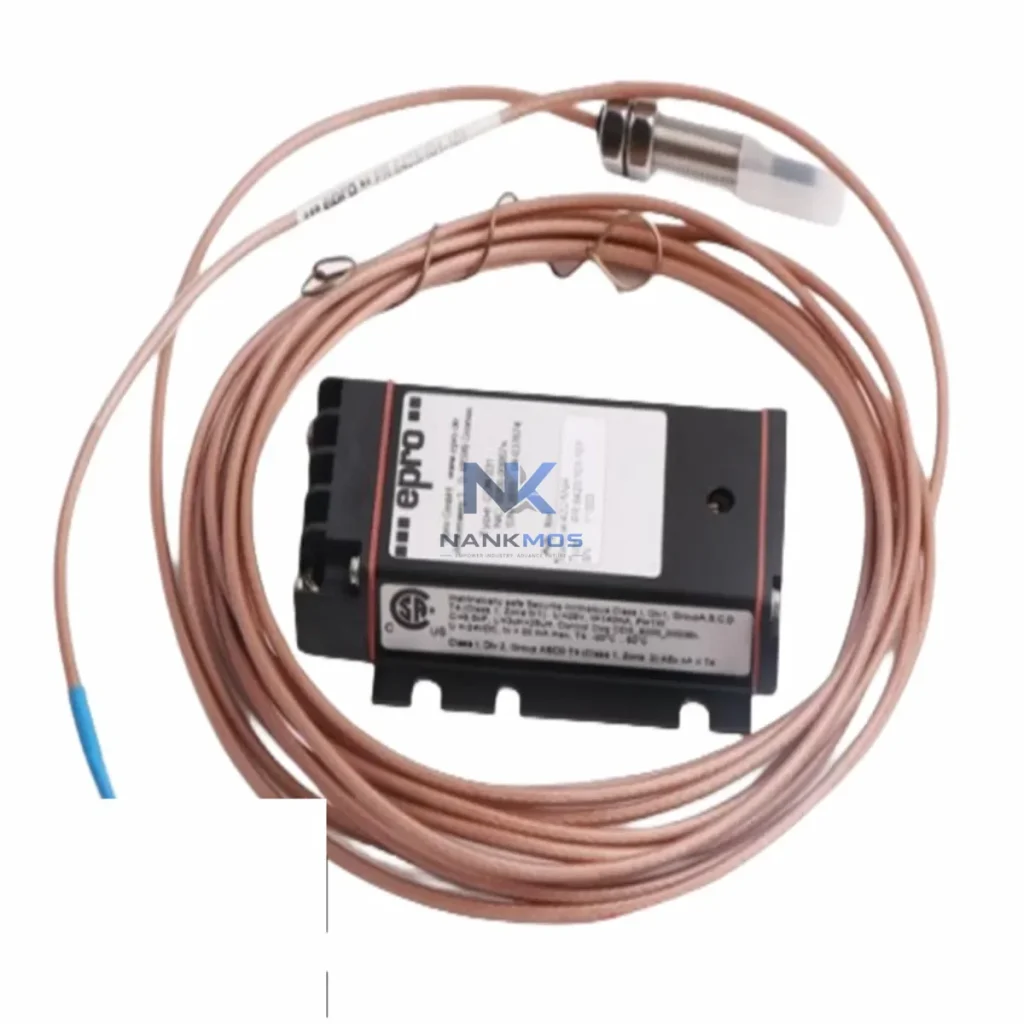

EPRO PR6423/010-130 CON021 Proximity Sensor

Product Details

PR6423/010-130 CON021 Product Description

The EPRO PR6423/010-130 CON021 is a precision eddy-current proximity sensor engineered for deployment within the EPRO PR6423 series vibration and position monitoring architecture. Designed to deliver continuous, high-resolution displacement and vibration signals, this sensor serves as the primary field-level transducer in rotating machinery protection systems, turbine monitoring platforms, and critical process control installations. Its system-matched design ensures seamless signal compatibility with EPRO CON021 signal conditioning modules, enabling accurate gap measurement, radial vibration acquisition, and axial position monitoring across demanding industrial environments.

Within a complete control architecture, the PR6423/010-130 CON021 operates as the sensing layer that feeds calibrated analog signals into the broader machinery protection and condition monitoring hierarchy. Its eddy-current operating principle provides non-contact, wear-free measurement with exceptional linearity and temperature stability, making it the preferred choice for high-speed shaft monitoring in power generation, petrochemical, and heavy industrial applications. The sensor's 10 mm probe diameter and 130 mm cable extension are optimized for standard bearing housing installations, ensuring consistent signal quality across turbine, compressor, pump, and motor platforms.

Contextual Integration of the PR6423/010-130 CON021 within a layered automation architecture requires careful coordination across the control layer, I/O layer, communication layer, power supply layer, HMI layer, and maintenance layer. The sensor's analog output interfaces directly with EPRO CON021 signal conditioners, which in turn feed 4–20 mA or voltage signals into machinery protection systems such as the EPRO MMS 6000 or Bently Nevada 3500 series. These protection systems communicate alarm and trip data upstream to DCS platforms, enabling integrated process response and operator visibility at the HMI level.

The PR6423/010-130 CON021 achieves its full operational value when deployed as part of a coherent, multi-layer automation architecture rather than as a standalone sensing element. At the signal conditioning layer, the EPRO CON021 signal conditioner provides the regulated excitation voltage required by the eddy-current probe and converts the raw impedance change into a calibrated analog output. This conditioned signal is then routed to machinery protection systems — such as the EPRO MMS 6000 series or compatible Bently Nevada 3500 rack modules — where configurable alarm and trip thresholds are applied to protect rotating equipment from vibration-induced damage.

At the control layer, the analog outputs from the protection system interface with DCS I/O modules or PLC analog input cards, enabling the process control system to incorporate machinery health data into broader process logic. In ABB System 800xA or Siemens PCS 7 environments, dedicated AI810 or SM331 analog input modules receive the 4–20 mA signals and make them available to the control strategy. Redundant I/O configurations using paired AI810 modules or S7-400H redundant CPUs ensure that a single module failure does not interrupt machinery monitoring continuity.

The communication layer aggregates machinery protection data through PROFIBUS DP, FOUNDATION Fieldbus, or Modbus RTU gateways — such as the HMS Anybus X-gateway or Moxa MGate series — enabling seamless data flow from the field sensor level to the SCADA or historian layer. At the HMI layer, operator stations running ABB Operate IT or Siemens WinCC display real-time vibration trends, gap measurements, and alarm states derived from the PR6423/010-130 CON021 signal chain, providing operators with actionable machinery health intelligence.

Power supply integrity is maintained through dedicated 24 VDC instrument power supplies — such as the Phoenix Contact QUINT series or Siemens SITOP PSU300S — which provide regulated, filtered power to both the CON021 conditioner and the protection system rack. Surge protection devices at the field junction box, such as the MTL 5000 series Zener barriers or galvanic isolators, protect the sensor signal path from transient overvoltages in electrically noisy industrial environments. Terminal blocks from the Weidmüller KLIPPON or Phoenix Contact COMBICON series provide reliable, vibration-resistant field wiring terminations within the control cabinet.

For maintenance and diagnostic efficiency, the PR6423/010-130 CON021 supports in-situ gap verification using portable eddy-current calibrators, allowing maintenance teams to confirm sensor-to-target gap settings without machine shutdown. Integration with asset management platforms such as ABB Asset Vision or Emerson AMS Suite enables predictive maintenance workflows, where trending vibration data from the PR6423 sensor chain is correlated with bearing wear models to schedule proactive interventions before trip events occur.

Power Generation: In gas turbine and steam turbine installations, the PR6423/010-130 CON021 monitors radial shaft vibration and axial position at journal bearings, providing the primary input to turbine protection systems. Paired with EPRO MMS 6000 rack modules and integrated into the plant DCS via PROFIBUS DP, the sensor enables continuous machinery health monitoring across baseload and peaking generation units. Its high-temperature probe rating supports installation in hot-section bearing housings where conventional sensors would degrade.

Petrochemical & Refining: Centrifugal compressors and process pumps in refinery and gas processing facilities rely on eddy-current proximity sensors for API 670-compliant machinery protection. The PR6423/010-130 CON021, combined with CON021 conditioners and a Bently Nevada 3500/42M proximitor monitor, delivers the radial vibration and position data required for API 670 compliance. Its non-contact measurement principle eliminates probe wear in continuous-duty compressor applications, reducing maintenance intervals and improving system availability.

Mining & Mineral Processing: Large grinding mills, crushers, and conveyor drive systems in mining operations benefit from continuous shaft monitoring to prevent catastrophic bearing failures. The PR6423/010-130 CON021 installed at pinion shaft bearings provides early warning of misalignment and imbalance conditions, enabling condition-based maintenance strategies that reduce unplanned downtime in high-value production equipment.

Marine & Offshore: Shipboard propulsion turbines, main engine crankshaft monitoring, and offshore platform compressor trains require vibration monitoring systems certified for marine environments. The PR6423/010-130 CON021's robust construction and wide operating temperature range support deployment in engine room and machinery space installations, where vibration, humidity, and temperature cycling present challenging measurement conditions.

Metallurgy & Steel: Rolling mill drives, continuous casting machines, and blast furnace blower trains in steel production facilities require reliable shaft monitoring to maintain production continuity. The PR6423/010-130 CON021 provides the displacement and vibration data needed to detect roll bearing degradation and drive shaft misalignment before they cause production interruptions or equipment damage.

Q1: Is the PR6423/010-130 CON021 compatible with third-party signal conditioners and protection systems beyond the EPRO CON021? The PR6423/010-130 is designed as a system-matched sensor for use with the EPRO CON021 signal conditioner, which provides the correct excitation voltage and impedance matching for the probe's eddy-current circuit. While the probe's physical output is an impedance change, the CON021 is required to convert this to a usable analog signal. For integration with third-party protection systems such as Bently Nevada 3500 or Metrix ST5484E, the CON021 conditioner output (typically -24 VDC proportional voltage) can be interfaced to compatible monitor input cards. Always verify input voltage range and sensitivity settings on the target protection system before commissioning.

Q2: What installation and commissioning steps are required to ensure accurate gap calibration and long-term signal stability? Proper installation of the PR6423/010-130 CON021 requires precise gap setting between the probe tip and the target shaft surface, typically in the range of 1.0–2.5 mm depending on the linear range required. Gap calibration should be performed using a calibrated gap voltage table provided in the EPRO PR6423 series documentation, with the CON021 conditioner powered and connected. After initial commissioning, gap verification should be included in the plant's periodic maintenance schedule — typically at major overhaul intervals — to account for any probe bracket settling or shaft journal wear. Cable routing should avoid proximity to high-voltage conductors to minimize electromagnetic interference on the signal path.

Q3: What warranty coverage and supply chain support does NANKMOS provide for the PR6423/010-130 CON021? All PR6423/010-130 CON021 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify probe impedance, cable continuity, and connector integrity before dispatch. NANKMOS maintains in-stock inventory of PR6423 series sensors and CON021 conditioners to support urgent replacement requirements, with expedited shipping available for critical machinery protection applications. For system-level procurement including matched sensor-conditioner pairs, extension cables, and mounting hardware, contact NANKMOS at [email protected] or +86 18359268345.
