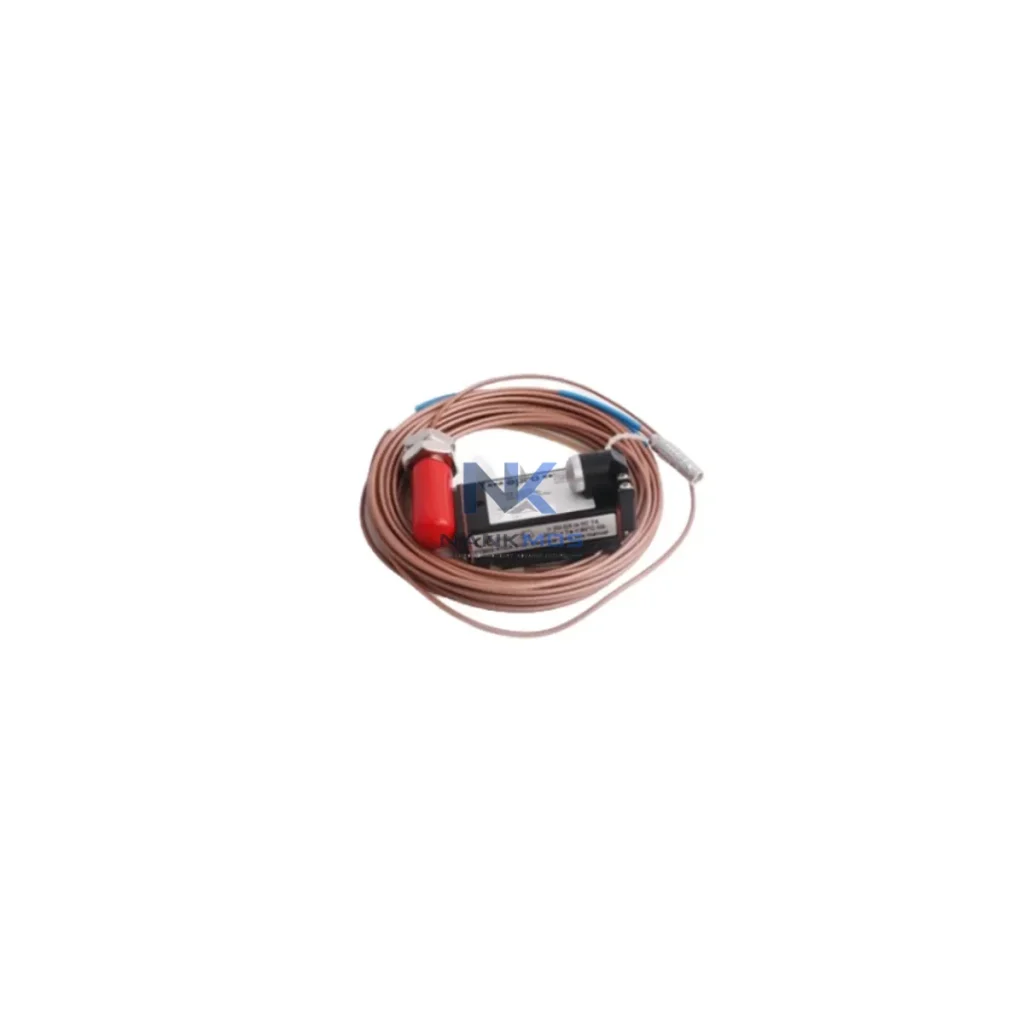

EPRO PR6424/010-000 CON021 Eddy Current Sensor

Product Details

PR6424/010-000 CON021 Product Description

The EPRO PR6424/010-000 CON021 is a precision eddy current proximity sensor engineered for seamless integration within industrial machinery protection and condition monitoring architectures. Designed to operate as a core sensing element in rotating machinery surveillance systems, this sensor delivers continuous, non-contact displacement and vibration measurements that feed directly into the signal conditioning and protection relay layers of a complete automation platform. Its role extends beyond simple proximity detection — it functions as a foundational data acquisition node within a layered control hierarchy, enabling real-time shaft position monitoring, radial vibration analysis, and axial thrust measurement across turbines, compressors, pumps, fans, and other critical rotating assets.

Within a fully integrated automation architecture, the PR6424/010-000 CON021 operates in conjunction with EPRO signal conditioning modules, protection relay systems, and plant-level DCS or PLC platforms. Its calibrated output signal is designed for direct compatibility with EPRO CON021 extension cables and associated driver electronics, ensuring signal integrity from the measurement point through to the control room. This system-matched design philosophy eliminates impedance mismatches, reduces signal noise, and guarantees measurement accuracy across the full operating range — a critical requirement in high-availability industrial environments where unplanned downtime carries significant operational and financial consequences.

The PR6424/010-000 CON021 is most effectively deployed as part of a structured, multi-layer machinery protection and process automation platform. At the sensing layer, this eddy current sensor pairs directly with the EPRO CON021 extension cable to maintain signal fidelity over the distance between the sensor mounting point and the driver electronics enclosure. The driver module — typically an EPRO PR6423 or PR6426 series driver — conditions the raw sensor signal into a calibrated voltage output suitable for downstream protection and monitoring systems.

At the protection and monitoring layer, the conditioned signal feeds into the EPRO MMS6000 series modular monitoring system, which provides channel-by-channel vibration, position, and speed monitoring with configurable alarm and trip relay outputs. The MMS6000 rack architecture supports multiple input cards, allowing simultaneous monitoring of radial vibration (X/Y planes), axial position, and shaft speed from a single integrated chassis — reducing panel space requirements and simplifying wiring infrastructure.

For plants operating Bently Nevada-compatible architectures, the PR6424 series sensors are frequently deployed alongside Bently Nevada 3300 XL series proximity transducers and 3500 series rack monitoring systems, where EPRO sensors serve as cost-effective, specification-matched alternatives or supplementary sensing nodes on secondary machinery trains. In such hybrid architectures, signal conditioning compatibility and cable system matching are paramount, making the CON021 system designation critical for correct driver pairing.

At the control and communication layer, relay outputs from the MMS6000 or equivalent protection rack interface with plant-level Siemens S7-300/S7-400 PLCs or ABB AC800M DCS controllers via hardwired digital I/O or PROFIBUS DP communication modules. This integration enables the PLC or DCS to incorporate machinery health data into process control logic — for example, initiating controlled shutdowns, activating standby pump sequences, or triggering maintenance alerts based on vibration amplitude thresholds.

At the HMI and SCADA layer, vibration and position trend data from the protection system is typically forwarded to Wonderware InTouch or Siemens WinCC SCADA platforms via OPC-DA or OPC-UA data bridges, enabling operators to visualize shaft centerline plots, vibration spectra, and alarm histories in real time. Long-term trend data supports predictive maintenance scheduling and root cause analysis following machinery events.

Power supply integrity for the sensor and driver system is maintained through dedicated 24 VDC instrument power supplies — typically Phoenix Contact QUINT series or Siemens SITOP series units — with redundant supply configurations ensuring continuous sensor excitation even during primary supply failures. Proper power supply selection and grounding discipline are essential to minimizing common-mode noise on the sensor signal chain.

For installations requiring signal isolation between the sensor driver output and the PLC analog input card, signal isolators such as the Phoenix Contact MCR series or Pepperl+Fuchs KFD series galvanic isolators are recommended. These devices eliminate ground loop interference and protect PLC input modules from transient overvoltages originating in the machine environment.

Power Generation — Steam and Gas Turbines: The PR6424/010-000 CON021 is widely deployed in steam turbine and gas turbine bearing monitoring applications, where continuous shaft radial vibration and axial position measurement are mandatory for API 670-compliant machinery protection. Sensors are installed at each bearing location, with the complete sensor-cable-driver system calibrated as a matched set to ensure measurement traceability and alarm setpoint accuracy.

Oil, Gas, and Petrochemical — Compressor Trains: In centrifugal and reciprocating compressor applications, eddy current sensors monitor shaft displacement to detect rotor instability, oil whirl, and bearing wear before catastrophic failure occurs. The PR6424 series, with its robust IP67 construction and wide operating temperature range, is suited to the harsh environments typical of offshore platforms, LNG terminals, and refinery compressor houses.

Water and Wastewater — Large Pump Stations: Vertical and horizontal centrifugal pumps in water treatment and distribution infrastructure benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing degradation. The non-contact measurement principle of the PR6424 sensor eliminates wear-related drift, ensuring long-term measurement stability without periodic recalibration.

Metals and Mining — Mill Drive Systems: In ball mill, SAG mill, and crusher drive applications, eddy current sensors monitor pinion shaft and girth gear alignment, providing early warning of gear mesh anomalies and bearing failures that could result in extended production outages. The sensor's compatibility with high-vibration, high-temperature environments makes it suitable for these demanding applications.

Marine and Offshore — Propulsion and Auxiliary Machinery: Shipboard propulsion turbines, reduction gearboxes, and auxiliary generators require continuous shaft monitoring to comply with classification society requirements. The PR6424/010-000 CON021, with its compact form factor and robust construction, integrates into marine machinery protection panels alongside dedicated marine-grade monitoring systems.

Q1: Is the PR6424/010-000 CON021 directly interchangeable with Bently Nevada 3300 XL series proximity probes in existing installations? The PR6424/010-000 CON021 is an EPRO-system sensor designed for use with EPRO CON021 extension cables and EPRO PR6423/PR6426 driver electronics. While the physical thread size and general measurement principle are similar to Bently Nevada 3300 XL probes, the sensor-cable-driver system must be used as a matched set. Substituting EPRO sensors into a Bently Nevada driver system — or vice versa — without verified calibration data and system compatibility confirmation is not recommended. For cross-platform integration, consult NANKMOS technical support for application-specific guidance.

Q2: What extension cable length options are available for the CON021 system, and how does cable length affect measurement accuracy? The CON021 extension cable system is available in standard lengths to achieve total system cable lengths (sensor integral cable + extension cable) of 5 m, 9 m, and other configurations as required by the installation geometry. The driver electronics are calibrated for a specific total cable length, and the calibration data is typically supplied with the system. Using a non-standard cable length without recalibration will introduce a static offset error in the output signal. NANKMOS supplies PR6424 sensor systems with matched extension cables and calibration documentation to ensure measurement accuracy from installation.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the PR6424/010-000 CON021? All PR6424/010-000 CON021 sensors supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification including output signal check, insulation resistance test, and physical inspection to confirm connector integrity and cable condition. Units are shipped with protective packaging to prevent transit damage. Warranty claims are supported by NANKMOS technical staff, and replacement units are dispatched from stock to minimize customer downtime. Contact [email protected] for warranty registration and technical support.
