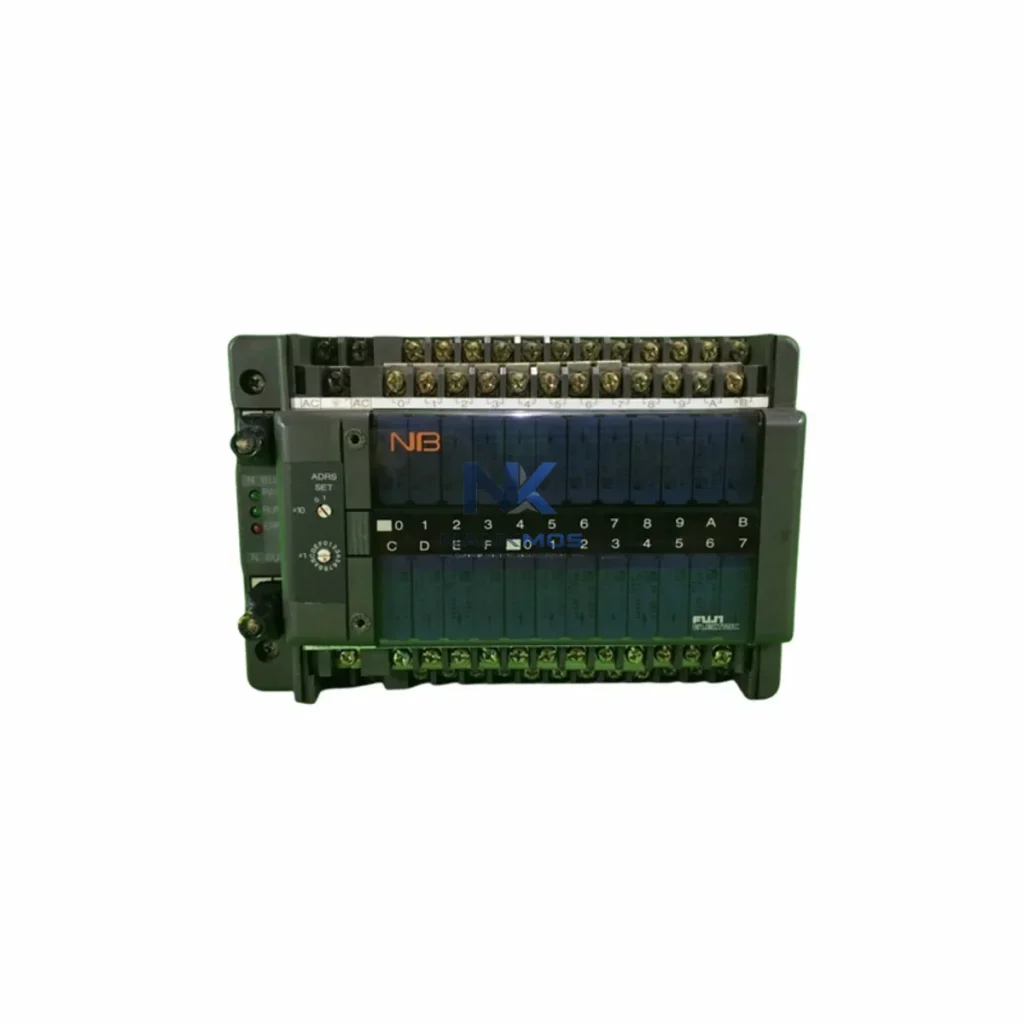

Fuji Electric NB1-E24X-AC Digital Input Module

Product Details

NB1-E24X-AC Product Description

The Fuji Electric NB1-E24X-AC is engineered as a high-density AC digital input expansion module within the NB1 Series programmable logic controller platform. Its role in a complete control architecture extends well beyond simple signal acquisition — it serves as a critical node in the I/O layer that directly supports the deterministic scan cycle of the NB1 CPU module, such as the NB1-CPU32 or NB1-CPU64, ensuring that field-level AC signals from contactors, limit switches, proximity sensors, and pushbutton stations are captured with consistent timing and minimal latency.

In a fully integrated NB1 rack system, the NB1-E24X-AC occupies an expansion slot alongside complementary modules including the NB1-E16YT transistor output module and the NB1-E16YR relay output module, forming a balanced I/O architecture that handles both input acquisition and output actuation within the same backplane bus. The backplane communication ensures that all modules share a unified scan cycle managed by the CPU, eliminating the latency and synchronization issues common in distributed I/O topologies.

Power integrity across the NB1 rack is maintained by the NB1-PA3 power supply module, which provides regulated DC power to the backplane while the NB1-E24X-AC handles its own AC input isolation internally. This separation of power domains — AC field signals isolated from the DC logic bus — is a fundamental design principle that enhances noise immunity in environments with heavy motor loads, variable frequency drives such as the Fuji Electric FRENIC-Multi series, and high-inrush switching equipment.

For applications requiring communication transparency between the NB1 controller and supervisory systems, the NB1-RS4 serial communication module or an Ethernet-capable gateway such as the NB1-ETH module can be integrated into the same rack. This enables the NB1-E24X-AC's input states to be polled in real time by SCADA platforms, DCS historians, or HMI terminals such as the Fuji Electric V9 Series HMI, providing operators with live field status without additional signal conditioning hardware.

In redundant control architectures, the NB1-E24X-AC supports mirrored I/O configurations where dual CPU modules — primary and standby — share access to the same I/O expansion rack. This design pattern is particularly relevant in power generation, water treatment, and petrochemical applications where unplanned downtime carries significant operational and safety consequences. The module's isolated AC input design ensures that a field-side fault does not propagate to the logic bus, preserving CPU integrity during fault conditions.

Signal conditioning upstream of the NB1-E24X-AC may include Fuji Electric signal isolators or terminal block assemblies with integrated surge protection, particularly in outdoor substations or mining environments where cable runs exceed 50 meters and induced voltages from adjacent power conductors are a concern. Downstream, the processed input data feeds into ladder logic or function block programs that govern interlocking, sequencing, and alarm management across the full automation layer.

Manufacturing & Assembly Lines: The NB1-E24X-AC is widely deployed in automotive body shop lines, packaging machinery, and conveyor control panels where AC-powered sensors and safety interlocks must be read reliably across multiple machine zones. Its 24-point density reduces panel wiring complexity and cabinet footprint compared to relay-based input marshalling.

Power Distribution & Electrical Substations: In medium-voltage switchgear panels and transformer protection circuits, the module acquires status signals from circuit breakers, isolators, and protection relays operating at AC voltage levels. Integration with the NB1 CPU enables automated fault logging, breaker state monitoring, and remote trip command sequencing via the communication layer.

Petrochemical & Process Industries: In continuous process plants — refineries, chemical reactors, and LNG terminals — the NB1-E24X-AC handles field inputs from motor control centers, valve position feedback switches, and level switches. Its isolation architecture meets the signal integrity requirements of SIL-rated safety loops when used in conjunction with certified safety relays and barriers.

Water & Wastewater Treatment: Pump station control panels and WWTP automation systems rely on the NB1-E24X-AC to monitor float switches, flow switches, and motor run-feedback contacts. The module's operating temperature range and IP20 protection class are compatible with climate-controlled pump house environments across tropical and temperate regions.

Mining & Metallurgy: In ore processing plants and smelting facilities, the module acquires signals from conveyor belt safety switches, crusher interlock contacts, and dust suppression system feedback. Its robust isolation prevents ground loop interference common in high-current DC traction environments from corrupting PLC input data.

Q1: Is the NB1-E24X-AC compatible with both NB1 base units and expansion racks, and how many modules can be added per system? The NB1-E24X-AC is designed for installation in NB1 Series expansion racks connected to the NB1 base unit via the dedicated expansion cable. The total number of expansion modules per CPU is governed by the maximum I/O point count of the selected CPU variant (NB1-CPU32 supports up to 256 I/O points; NB1-CPU64 supports up to 512 I/O points). Each NB1-E24X-AC contributes 24 input points toward this total. Consult the NB1 Series hardware manual for rack slot assignments and power budget calculations before finalizing the system configuration.

Q2: What are the installation and commissioning requirements for the NB1-E24X-AC in a mixed AC/DC I/O architecture? The NB1-E24X-AC must be installed in a dedicated expansion slot with the backplane bus connector fully seated. AC field wiring should be routed in separate cable trays from DC signal and communication cables to prevent inductive coupling. During commissioning, each input channel should be verified using the NB1 programming software's I/O monitor function before enabling interlocking logic. Grounding of the expansion rack chassis to the panel earth bus is mandatory for EMC compliance and personnel safety.

Q3: What does the 12-Month Warranty cover, and what is the long-term supply and maintenance strategy for NB1-E24X-AC? The NB1-E24X-AC is supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Units are pre-tested and verified prior to shipment. For long-term maintenance, we recommend holding one spare module per rack in critical applications to minimize mean time to repair (MTTR). Our inventory is maintained to support ongoing supply for installed NB1 systems, and replacement units can be shipped globally with short lead times. For end-of-life planning or migration to successor platforms, our engineering team can provide system-level transition guidance.
