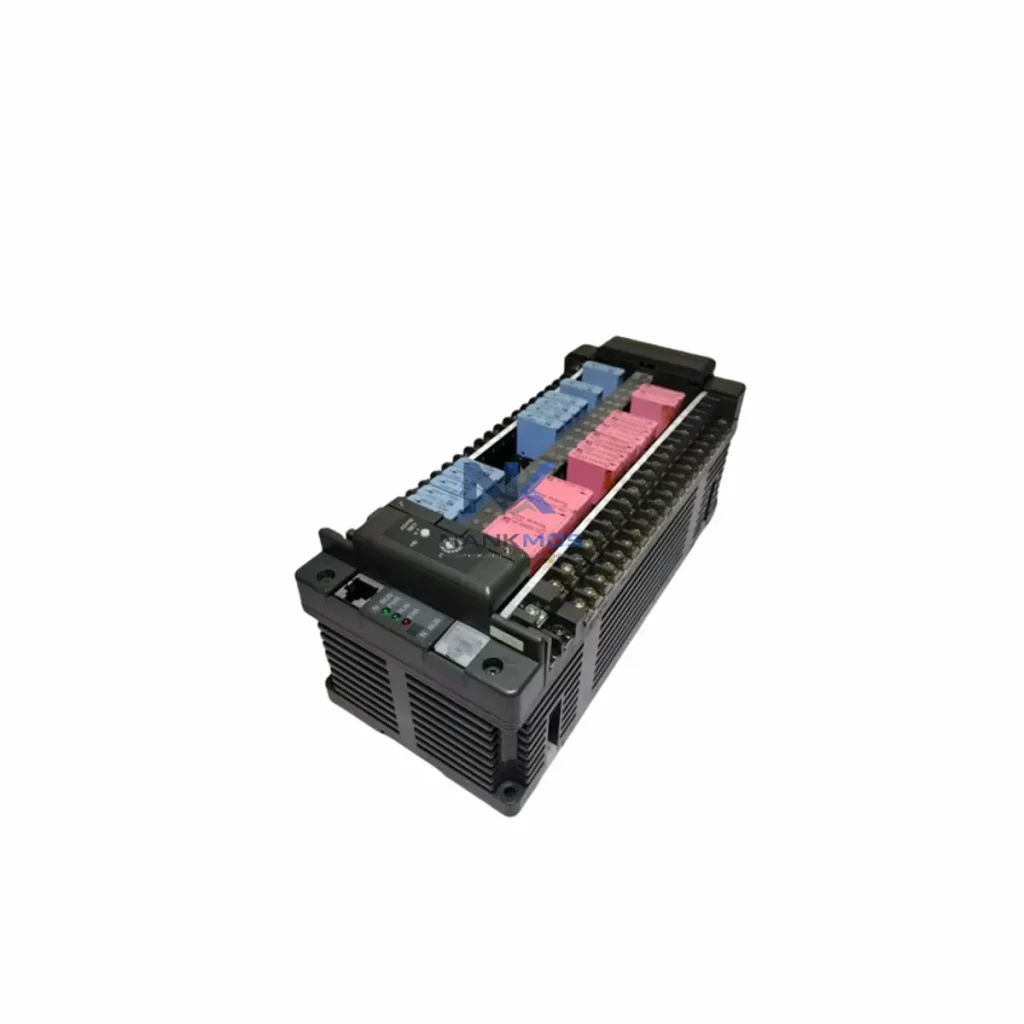

Fuji Electric NB1-P40X-AC Programmable Logic Controller

Product Details

NB1-P40X-AC Product Description

The Fuji NB1-P40X-AC is a compact, high-efficiency Programmable Logic Controller from Fuji Electric's NB Series, engineered to deliver precise energy control across demanding industrial production environments. With 40 I/O points and AC power input, this PLC is purpose-built for manufacturers seeking to reduce unnecessary energy consumption, stabilize production line throughput, and extend equipment service life — all while maintaining the reliability standards required in modern smart factories.

Designed for integration into energy-aware automation architectures, the NB1-P40X-AC serves as the central decision-making node for load management, motor sequencing, drive coordination, and real-time device status feedback. Its deterministic scan cycle and robust instruction set make it an ideal controller for applications where energy efficiency and production rhythm must be simultaneously optimized.

In a fully integrated energy management architecture, the Fuji NB1-P40X-AC acts as the orchestration layer between field devices and supervisory systems. When paired with a Fuji FRENIC-Multi VFD, the PLC issues speed reference commands that match actual load demand rather than running motors at fixed full speed — a primary source of wasted energy in conventional systems. The NB1-P40X-AC monitors feedback signals from the drive and adjusts output in real time, preventing over-torque conditions and reducing heat generation in motor windings.

For servo-driven axes, the NB1-P40X-AC coordinates motion profiles with a Fuji Alpha5 Smart Servo Driver, synchronizing acceleration and deceleration ramps to minimize reactive power spikes on the supply bus. This coordination is especially valuable in multi-axis packaging and assembly lines where simultaneous motor starts would otherwise cause significant demand peaks.

The PLC's digital I/O expansion capability allows connection to Fuji FRENIC-Eco power monitoring modules and third-party power quality analyzers, enabling the controller to log kWh consumption per production cycle. This data feeds directly into SCADA platforms — such as those built on Fuji V-SFT HMI panels — where energy KPIs are visualized alongside OEE metrics. Operators can identify energy-intensive process steps and implement targeted optimizations without halting production.

On the field device side, the NB1-P40X-AC interfaces with proximity sensors, photoelectric sensors, and temperature transmitters via its onboard digital inputs, collecting real-time equipment status data. This allows the controller to implement predictive load shedding — powering down idle conveyors, cooling fans, or auxiliary pumps during low-demand windows — without operator intervention. Integration with Fuji NB-series communication modules supporting Modbus RTU or RS-485 extends this capability to remote I/O racks and distributed sensor nodes across large plant floors.

When connected to an industrial UPS or regulated DC power supply for the control circuit, the NB1-P40X-AC ensures that energy control logic remains active even during brief supply interruptions, protecting in-progress production sequences and preventing costly restarts. The combination of the NB1-P40X-AC with a Fuji NB-series analog I/O module further enables closed-loop control of process variables such as pressure, flow, and temperature — reducing the energy overhead of manual correction cycles.

Factory energy waste most commonly originates from three sources: motors running at unnecessary speeds, equipment left energized during idle periods, and uncoordinated startup sequences that create demand spikes. The Fuji NB1-P40X-AC addresses all three through its programmable logic, high-speed I/O scanning, and drive communication capabilities.

By implementing time-based and event-driven control programs, the NB1-P40X-AC can automatically transition production equipment between active, standby, and sleep states based on upstream and downstream line conditions. A conveyor system, for example, can be programmed to decelerate when a buffer zone reaches capacity and accelerate only when downstream demand resumes — eliminating the continuous full-speed operation that accounts for a disproportionate share of facility energy bills.

The PLC's ability to coordinate multiple drive systems simultaneously means that motor startup sequences can be staggered, preventing the simultaneous inrush currents that trigger demand charges on industrial electricity tariffs. Over a full production shift, this staggered sequencing can produce measurable reductions in peak demand billing, directly improving the facility's energy cost per unit produced.

Thermal load management is another key benefit. By reducing unnecessary motor run time and optimizing drive speed profiles, the NB1-P40X-AC lowers the heat generated by motors, drives, and switchgear — reducing the cooling load on control panels and extending the service intervals of thermal protection components. This translates directly into lower maintenance costs and fewer unplanned downtime events.

For predictive maintenance integration, the NB1-P40X-AC can monitor runtime hours, cycle counts, and fault registers from connected drives and sensors, flagging equipment that is approaching service thresholds before failure occurs. This proactive approach keeps production lines running at their designed throughput rate while avoiding the energy inefficiency that accompanies degraded or partially failed equipment.

All units are available from stock and undergo full functional testing prior to shipment, ensuring that the NB1-P40X-AC arrives ready for immediate panel installation and commissioning. A 12-Month Warranty covers all units against manufacturing defects, providing procurement teams with the confidence needed for both project builds and MRO replacement sourcing.

Q1: What energy savings can I realistically expect by deploying the Fuji NB1-P40X-AC in a motor control application? Actual savings depend on your baseline operating profile, but facilities that replace fixed-speed motor control with PLC-coordinated VFD management typically report 15–35% reductions in motor-related energy consumption. The NB1-P40X-AC enables precise speed matching to load demand, eliminating the throttling losses inherent in mechanical flow control methods such as dampers or throttle valves.

Q2: Is the NB1-P40X-AC compatible with third-party VFDs, servo drives, and SCADA systems, or is it limited to Fuji Electric products? The NB1-P40X-AC supports standard industrial communication protocols including Modbus RTU over RS-485, making it compatible with a wide range of third-party variable frequency drives, servo controllers, power monitoring devices, and SCADA platforms. Native integration is optimized for Fuji FRENIC Series drives and Fuji Alpha5 servo systems, but the open protocol support ensures flexibility in mixed-brand automation environments.

Q3: What is the recommended replacement or upgrade path if I am currently using an older Fuji NB Series PLC model? The NB1-P40X-AC is designed as a direct form-fit replacement within the NB Series platform. Existing I/O wiring, communication cabling, and panel cutouts are typically compatible, minimizing retrofit labor. Program migration from earlier NB Series models can be performed using Fuji's standard programming software with minimal modification to existing ladder logic or function block diagrams.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment? Every NB1-P40X-AC unit undergoes a full functional test prior to dispatch, verifying I/O operation, communication port integrity, power supply performance, and program execution. The 12-Month Warranty covers all manufacturing defects identified during normal industrial operation. Replacement or repair is arranged promptly upon confirmed fault diagnosis, and our inventory is maintained to support fast turnaround for both project and emergency MRO requirements. Contact [email protected] or +86 18359268345 for warranty claims and stock availability inquiries.
