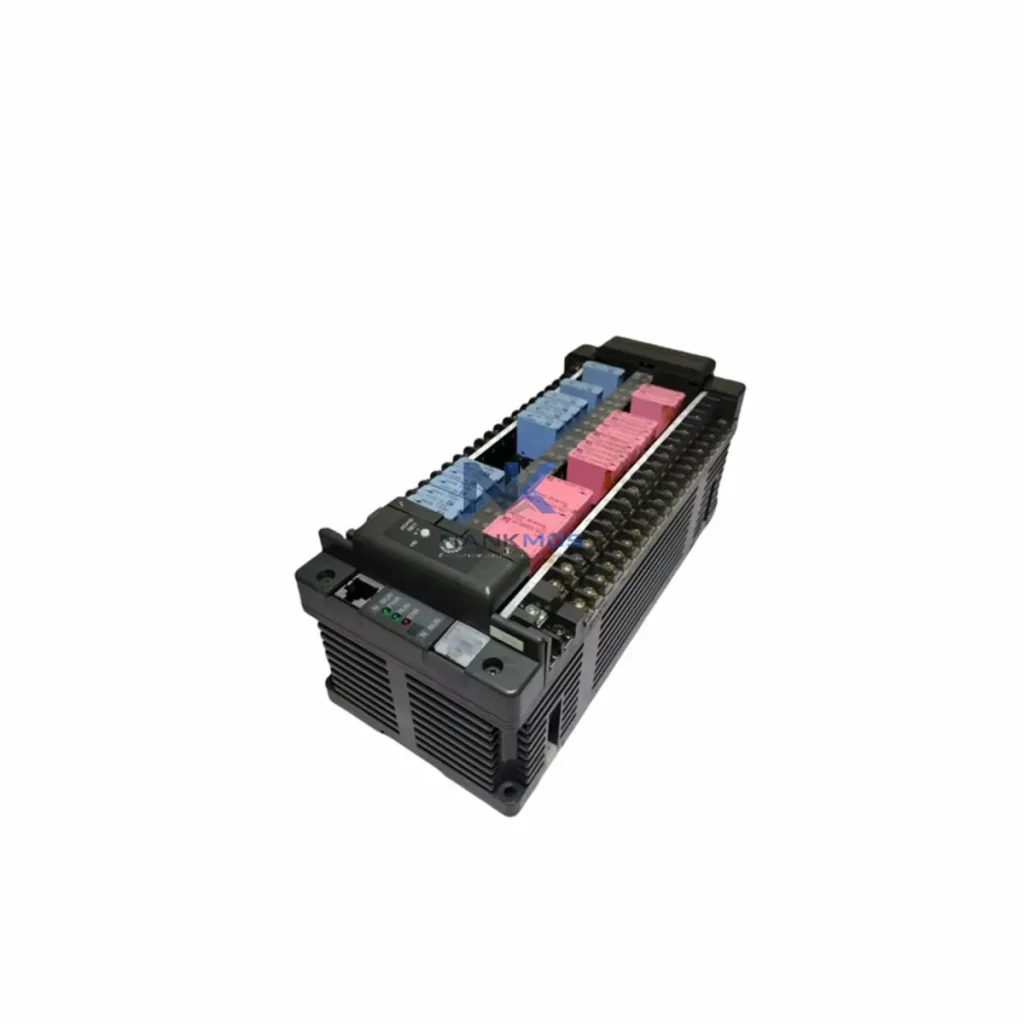

NB1W40X-01 Product Description

The Fuji Electric NB1W40X-01 is a high-density I/O expansion module engineered for the Micrex-F programmable logic controller platform. Designed for demanding industrial environments, this module delivers precise signal acquisition and output control that directly supports energy-efficient automation strategies. By enabling granular, real-time monitoring of field device states, the NB1W40X-01 reduces unnecessary actuator cycling, minimizes idle-state energy draw, and supports tighter production line synchronization — all critical factors in reducing total facility energy consumption.

In modern smart manufacturing, every I/O point represents a potential energy optimization node. The NB1W40X-01 expands the Micrex-F control architecture's reach across the production floor, allowing engineers to connect sensors, contactors, solenoid valves, and motor starters with high signal integrity. This translates directly into faster fault detection, reduced thermal load on control panels, and more responsive load management across multi-zone production lines.

The NB1W40X-01 is most effective when deployed as part of a fully integrated Fuji Electric Micrex-F control system. In a typical energy-optimized production cell, the module interfaces directly with the Micrex-F CPU unit, sharing the system bus to deliver deterministic I/O scan cycles that eliminate unnecessary polling overhead. This tight integration with the Micrex-F backplane reduces inter-module communication latency and supports faster response to field-level energy events.

On the drive side, the NB1W40X-01 provides discrete control signals to Fuji Electric FRENIC series variable frequency drives, enabling demand-based motor speed regulation. Rather than running motors at fixed speed regardless of load, the I/O module relays real-time process feedback — from flow sensors, pressure transmitters, and proximity switches — to the PLC, which then adjusts VFD output frequency accordingly. This closed-loop approach can significantly reduce motor energy consumption during partial-load production phases.

For servo-driven axes, the module's output channels interface with Fuji Electric servo amplifier units, providing enable signals, fault resets, and position trigger outputs that coordinate multi-axis motion with minimal energy waste between cycles. Paired with a Fuji Electric HMI panel, operators gain real-time visibility into I/O states, drive status, and energy consumption trends — enabling proactive load balancing decisions without requiring SCADA-level intervention for routine adjustments.

The NB1W40X-01 also integrates with power monitoring modules installed on the Micrex-F rack, allowing the PLC program to correlate I/O activity with instantaneous power draw. When combined with industrial power supply units that support load-shedding signals, the system can automatically reduce non-critical output loads during peak demand windows, directly lowering energy costs and reducing thermal stress on panel components. Communication modules supporting MODBUS RTU or PROFIBUS DP extend this energy data upstream to plant-level SCADA and energy management systems, enabling facility-wide demand response strategies.

In high-throughput manufacturing environments, uncoordinated I/O activity is a hidden source of energy waste. Actuators that remain energized between production cycles, sensors polled at unnecessarily high frequencies, and output modules that lack proper state management all contribute to elevated baseline power consumption. The NB1W40X-01 addresses these inefficiencies by providing the Micrex-F PLC with the I/O density needed to implement fine-grained energy control logic across the entire production line.

By mapping each production station's energy-consuming devices — conveyors, pneumatic cylinders, heating elements, indicator lights — to dedicated I/O channels, engineers can implement station-level power sequencing. Stations power up only when upstream buffers are ready and power down automatically during line stoppages, reducing idle energy consumption without manual operator intervention. This approach also reduces thermal load on motor control centers and distribution panels, extending the service life of contactors, relays, and power supply units.

From a production rhythm perspective, the NB1W40X-01's fast I/O response time supports tighter cycle synchronization between upstream and downstream stations. Reduced inter-station wait times mean fewer extended motor run periods and less compressed air consumption from pneumatic actuators held in position unnecessarily. Over a full production shift, these micro-optimizations accumulate into measurable reductions in energy cost per unit produced.

For predictive maintenance integration, the module's input channels can monitor motor current feedback signals, vibration sensor outputs, and thermal switch states. When these signals are trended within the Micrex-F PLC or forwarded to a SCADA historian, maintenance teams gain early warning of developing faults — allowing planned interventions that avoid unplanned downtime and the associated energy spikes from emergency restarts and production catch-up cycles.

All NB1W40X-01 units supplied by NANKMOS are sourced from authorized distribution channels, subject to incoming inspection, and covered by a 12-Month Warranty. Each unit undergoes functional verification prior to shipment to ensure reliable field performance from day one.

Q1: How does the NB1W40X-01 contribute to measurable energy savings on a production line? By providing the Micrex-F PLC with high-density I/O expansion, the NB1W40X-01 enables engineers to implement demand-based actuation logic — powering field devices only when process conditions require it. This eliminates continuous energization of actuators and motors during idle periods, directly reducing baseline energy consumption. When integrated with FRENIC VFDs and power monitoring modules, the energy impact of each I/O-driven action can be quantified and optimized over time.

Q2: Is the NB1W40X-01 compatible with existing Micrex-F PLC installations, and can it replace older I/O modules? The NB1W40X-01 is designed for the Fuji Electric Micrex-F platform and is compatible with the Micrex-F system bus architecture. For replacement applications, engineers should verify the I/O point count, signal type (digital/analog), and backplane slot assignment against the existing configuration. NANKMOS recommends consulting the Micrex-F hardware manual or contacting our technical team to confirm compatibility before installation.

Q3: What is the pre-shipment testing process for the NB1W40X-01? Each NB1W40X-01 unit undergoes incoming inspection upon receipt at NANKMOS and functional verification prior to shipment. Testing confirms module identification, I/O channel continuity, and communication integrity with the Micrex-F bus. Units that do not meet specification are quarantined and not shipped. This process ensures that every module delivered to the customer is field-ready.

Q4: What does the 12-Month Warranty cover, and how is inventory availability managed? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains stock of the NB1W40X-01 and related Micrex-F I/O modules to support both immediate project requirements and ongoing maintenance needs. For large-quantity orders or time-sensitive projects, contact [email protected] or +86 18359268345 to confirm current availability and lead times.
