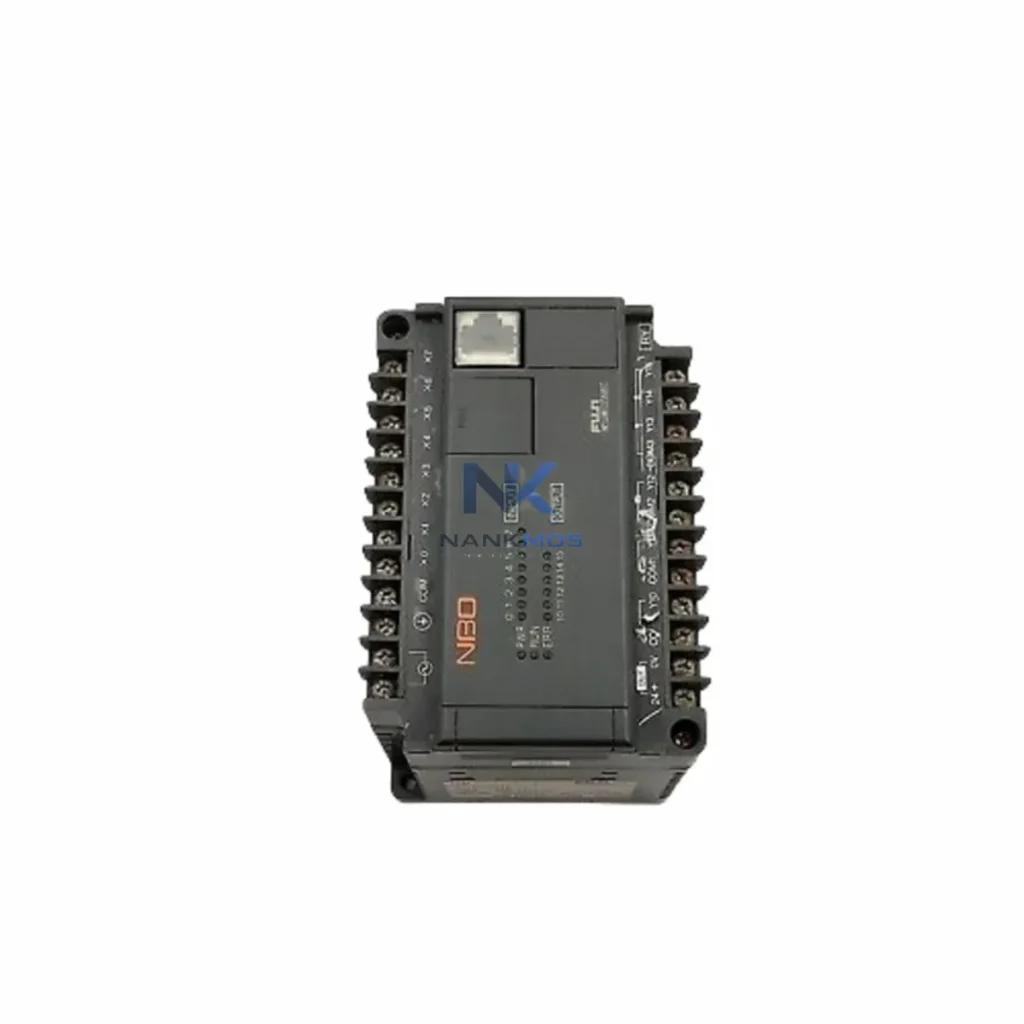

Fuji Electric NB3-P34-AC Process Controller

Product Details

NB3-P34-AC Product Description

The Fuji NB3-P34-AC is a high-performance energy-control process controller engineered for demanding industrial environments where power efficiency, load stability, and production line continuity are mission-critical. Designed within Fuji Electric's proven NB3 Series platform, this controller delivers precise thermal regulation, real-time energy monitoring, and seamless integration with modern automation architectures — making it an essential component for factories pursuing measurable reductions in energy consumption and unplanned downtime.

Built for smart production lines across industries including plastics processing, chemical manufacturing, food production, and metal forming, the NB3-P34-AC combines advanced PID control algorithms with energy-aware output management. Its compact DIN-rail form factor and universal AC power input make it straightforward to deploy in new panel builds or as a direct replacement in existing NB3-compatible control cabinets.

The NB3-P34-AC is designed to operate as a coordinated node within a broader energy-aware automation ecosystem. In a typical smart production line, the controller interfaces directly with a Fuji Electric MICREX-SX Series PLC via RS-485 Modbus RTU, enabling the PLC to read real-time process values and dynamically adjust setpoints based on production scheduling or energy demand signals. This closed-loop coordination eliminates the energy waste associated with static setpoint operation, where heaters or actuators continue drawing full power regardless of actual thermal load.

On the drive side, the NB3-P34-AC works in tandem with Fuji Electric FRENIC-Multi Series variable frequency drives (VFDs) to synchronize thermal control with motor speed regulation. When the process temperature stabilizes within the target band, the PLC can instruct the VFD to reduce pump or fan motor speed, cutting auxiliary energy consumption proportionally. This coordinated strategy — temperature controller governing the thermal loop, VFD governing the mechanical load — is a proven method for achieving 15–25% reductions in total process energy draw.

For power quality monitoring, the NB3-P34-AC is commonly deployed alongside Fuji Electric CW Series power monitoring modules, which track real-time kW, kWh, power factor, and harmonic distortion at the panel level. Data from both the NB3-P34-AC and the CW power monitor is aggregated by the SCADA system — such as a Fuji Electric V-SFT-configured GOT HMI or a third-party SCADA platform — giving energy managers a unified view of thermal efficiency and electrical consumption on a single dashboard.

The controller's RS-485 port also supports integration with Fuji Electric NW0P Series communication modules, enabling the NB3-P34-AC to participate in plant-wide Modbus RTU networks alongside other field devices including Fuji Electric FCX-AII Series pressure transmitters and Fuji Electric ZSP Series flow sensors. This multi-device network allows the PLC to correlate process variables — temperature, pressure, flow — and make energy-optimized control decisions that no single-loop controller could achieve independently.

For I/O expansion, the NB3-P34-AC pairs naturally with Fuji Electric NB3-series I/O expansion modules, allowing additional analog inputs from RTD or thermocouple sensors to be monitored within the same control loop. This is particularly valuable in multi-zone heating applications — such as extrusion barrel temperature control — where each zone's energy draw must be individually managed to prevent thermal imbalance and the associated energy penalties of reheating or overcooling.

In production environments where energy costs represent a significant share of operating expenses, the NB3-P34-AC delivers measurable efficiency gains through three primary mechanisms: precision setpoint control, adaptive output management, and predictive thermal stabilization.

Precision Setpoint Control: The NB3-P34-AC's auto-tuning PID algorithm continuously adjusts proportional, integral, and derivative parameters to match the actual thermal characteristics of the process load. Unlike fixed-parameter controllers that overshoot and oscillate — wasting energy in repeated heating and cooling cycles — the NB3-P34-AC stabilizes at setpoint with minimal overshoot, reducing heater duty cycle and extending heater element service life simultaneously.

Adaptive Output Management: The controller's configurable output type (relay or voltage pulse) allows engineers to match the output to the load characteristics of the heating element or actuator. Voltage pulse output, in particular, enables proportional control of solid-state relays (SSRs), which eliminates the mechanical wear and contact bounce associated with relay switching while providing finer energy modulation. This reduces thermal cycling stress on both the heater and the SSR, lowering maintenance frequency and unplanned downtime.

Predictive Thermal Stabilization: By logging process value trends over time — accessible via the Modbus RTU interface to the SCADA system — maintenance teams can identify gradual thermal drift that signals heater degradation, insulation breakdown, or sensor calibration error before these conditions cause a process fault. Early detection allows scheduled maintenance during planned downtime windows rather than emergency shutdowns, preserving production line throughput and avoiding the energy cost of cold-start reheating after an unplanned stop.

Across all three mechanisms, the NB3-P34-AC contributes directly to the factory's energy management system (EMS) objectives: lower peak demand, higher equipment utilization, reduced heat loss to the environment, and a more stable production rhythm that minimizes the energy cost of ramp-up and ramp-down cycles.

Every NB3-P34-AC unit shipped by NANKMOS undergoes a pre-shipment functional test covering setpoint accuracy, output response, communication integrity, and alarm function verification. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions, with in-stock availability supporting fast dispatch for both single-unit replacements and multi-unit production line builds.

Q1: How much energy can the NB3-P34-AC save compared to a basic ON/OFF temperature controller?In typical resistive heating applications, switching from ON/OFF control to the NB3-P34-AC's auto-tuning PID reduces heater overshoot energy waste by an estimated 20–30%. Actual savings depend on process thermal mass, setpoint stability requirements, and heater sizing. The reduction in overshoot also lowers peak current draw, which can reduce demand charges on time-of-use electricity tariffs.

Q2: Is the NB3-P34-AC compatible with existing Fuji Electric NB3 Series control panels and Modbus RTU networks?Yes. The NB3-P34-AC is designed as a direct form-fit-function replacement within the NB3 Series ecosystem. Its RS-485 Modbus RTU interface is compatible with Fuji Electric MICREX-SX PLCs, third-party Modbus masters, and SCADA systems. No gateway or protocol converter is required for standard NB3 panel integration.

Q3: What is the recommended replacement procedure when substituting a failed process controller on a live production line?Power down the affected zone, document the existing wiring configuration and parameter settings (retrievable via Modbus if the original controller is still partially functional), install the NB3-P34-AC, restore wiring, and perform an auto-tune cycle before returning the zone to production. NANKMOS recommends keeping one spare NB3-P34-AC per production line to minimize mean time to repair (MTTR). Contact [email protected] for bulk spare stock pricing.

Q4: What does the 12-Month Warranty cover, and what is the process for a warranty claim?The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage from incorrect wiring, overvoltage, physical impact, or operation outside specified environmental limits. To initiate a warranty claim, contact NANKMOS at [email protected] with the order reference, unit serial number, and a description of the fault. Replacement units are dispatched from in-stock inventory after fault verification.
