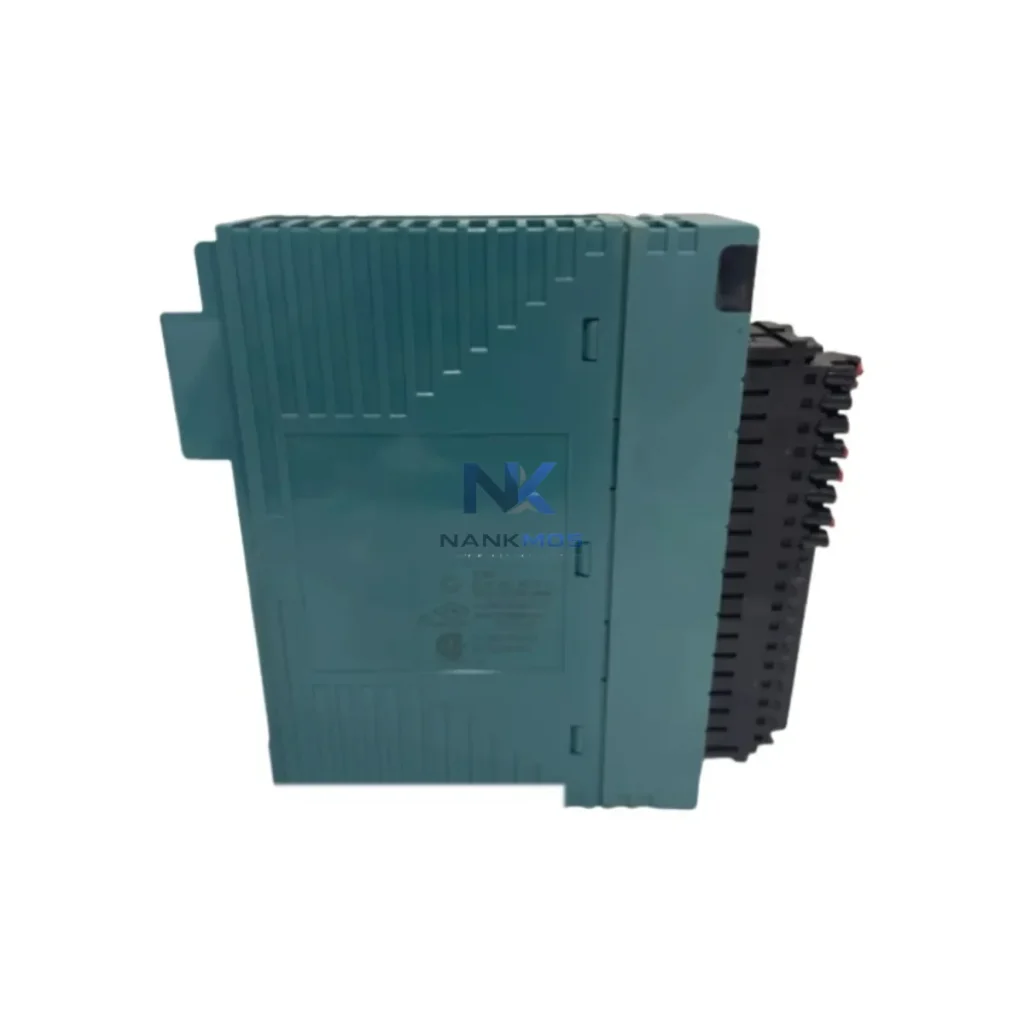

YOKOGAWA NFDA4S-00 Fieldbus Communication Gateway

Product Details

NFDA4S-00 Product Description

The Yokogawa NFDA4S-00 is a Foundation Fieldbus H1 (FF H1) communication gateway engineered for the STARDOM FCN/FCJ autonomous controller platform. Designed to bridge field-level instrumentation with plant-wide control and monitoring networks, the NFDA4S-00 delivers deterministic, high-integrity data transmission across up to four FF H1 bus segments simultaneously. In smart factory environments where real-time process visibility, protocol interoperability, and remote diagnostics are non-negotiable, this gateway serves as the critical data link between intelligent field devices and upper-level SCADA, DCS, and HMI systems.

Foundation Fieldbus H1 operates at 31.25 kbps and supports intrinsically safe installations in hazardous areas, making the NFDA4S-00 well-suited for petrochemical plants, oil and gas processing facilities, power generation stations, and water treatment infrastructure. Its multi-segment architecture allows a single module to manage dozens of FF-enabled field devices — including flow transmitters, pressure sensors, control valves, and temperature elements — while maintaining bus-level isolation and fault containment between segments.

In a fully integrated smart factory architecture, the NFDA4S-00 occupies the critical junction between field instrumentation and the plant control backbone. Field devices such as Yokogawa EJA-series differential pressure transmitters, YTA-series temperature transmitters, and HART-to-FF converters connect directly to the FF H1 bus segments managed by the NFDA4S-00. Each device publishes process variables, diagnostic status, and device health data onto the bus using the FF function block model — eliminating the need for point-to-point analog wiring and enabling bidirectional digital communication.

The NFDA4S-00 interfaces natively with the STARDOM FCN autonomous controller, which aggregates data from all four bus segments and executes control logic locally — even during upstream network interruptions. The FCN communicates upstream via Ethernet to Yokogawa FAST/TOOLS SCADA or Exaquantum plant historian, enabling operators to monitor real-time process trends, configure alarm thresholds, and generate compliance reports from a centralized HMI workstation. For facilities running Yokogawa ProSafe-RS safety instrumented systems, the NFDA4S-00 data stream can be cross-referenced against safety function outputs to validate process integrity.

At the network layer, the STARDOM FCN connects to plant-wide industrial Ethernet switches — such as managed Layer 2/3 switches supporting PROFINET or EtherNet/IP backbone topologies — enabling seamless data routing to MES and ERP platforms. Edge gateway modules installed alongside the FCN can perform local data preprocessing, buffering time-series process data before forwarding to cloud-based analytics platforms via OPC-UA or MQTT. This architecture supports the full Industry 4.0 data chain: from FF H1 field device signal acquisition, through protocol conversion and network transmission, to real-time visualization on SCADA dashboards and remote diagnostic portals.

For remote I/O expansion, the STARDOM FCN platform supports Yokogawa NFAI141 analog input modules and NFAO141 analog output modules, which can be co-located with the NFDA4S-00 in the same FCN rack. This modular design allows engineers to scale the I/O footprint without replacing the communication infrastructure, protecting capital investment as process requirements evolve. Variable frequency drives (VFDs) connected to FF-enabled motor control centers can also be integrated into the same bus segment, enabling speed reference commands and drive diagnostics to flow through the same NFDA4S-00 data path.

Many industrial facilities operate with fragmented communication architectures — legacy 4–20 mA analog loops alongside newer digital fieldbus segments, with no unified data layer connecting field devices to control systems. The result is data silos: operators cannot access real-time device diagnostics, alarm histories are incomplete, and remote troubleshooting requires physical site visits. The NFDA4S-00 directly addresses these challenges by providing a structured, standards-compliant FF H1 communication backbone that integrates with the STARDOM FCN's built-in data management capabilities.

Protocol unification is achieved through the FF H1 function block architecture, which standardizes how process variables, setpoints, and device parameters are exchanged — regardless of the field device manufacturer. This eliminates proprietary driver dependencies and simplifies system integration when adding new instruments from vendors such as Endress+Hauser, Emerson, or ABB alongside existing Yokogawa devices. The NFDA4S-00's four-segment design also provides physical bus isolation, so a fault on one segment does not propagate to others — maintaining production continuity and simplifying fault localization during maintenance windows.

For remote monitoring and diagnostics, the NFDA4S-00 enables device-level health data — including valve signature diagnostics, transmitter self-test results, and bus communication statistics — to be surfaced in SCADA and asset management systems such as Yokogawa PRM (Plant Resource Manager). Maintenance teams can identify degrading instruments, schedule predictive maintenance interventions, and document corrective actions without interrupting the process. This capability is particularly valuable in unmanned or remotely operated facilities where minimizing site visits is a key operational objective.

System expansion is straightforward: additional NFDA4S-00 modules can be installed in the FCN rack to increase the total number of FF H1 segments, and the STARDOM platform's modular architecture supports hot-swap of I/O modules without controller restart. Each NFDA4S-00 unit shipped by NANKMOS is pre-shipment tested against Yokogawa factory specifications and covered by a 12-Month Warranty, ensuring reliable commissioning and long-term operational confidence.

Q1: What is the maximum number of field devices supported per FF H1 segment on the NFDA4S-00?A: Foundation Fieldbus H1 supports up to 32 devices per segment, though practical installations typically use 8–16 devices per segment to maintain adequate bus cycle time and diagnostic bandwidth. With four segments, the NFDA4S-00 can manage up to 64–128 field devices from a single module.

Q2: Is the NFDA4S-00 compatible with third-party FF H1 field devices from vendors other than Yokogawa?A: Yes. The NFDA4S-00 complies with IEC 61158 and IEC 61784 Foundation Fieldbus standards, ensuring interoperability with certified FF H1 devices from any manufacturer. Device Description (DD) files for third-party instruments can be imported into the STARDOM FCN configuration environment to enable full parameter access.

Q3: How does the NFDA4S-00 support remote diagnostics and predictive maintenance?A: The NFDA4S-00 continuously collects device-level diagnostic data from all connected FF H1 instruments and makes this data available to Yokogawa PRM and FAST/TOOLS SCADA via the STARDOM FCN. Operators can monitor bus communication quality, device health indices, and alarm histories remotely — enabling condition-based maintenance scheduling without physical site access.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the NFDA4S-00?A: Every NFDA4S-00 unit supplied by NANKMOS is pre-shipment tested to verify communication functionality, bus segment integrity, and module identification against Yokogawa factory specifications. A 12-Month Warranty is included, covering manufacturing defects and communication failures under normal operating conditions. In-stock units are available for immediate dispatch.
