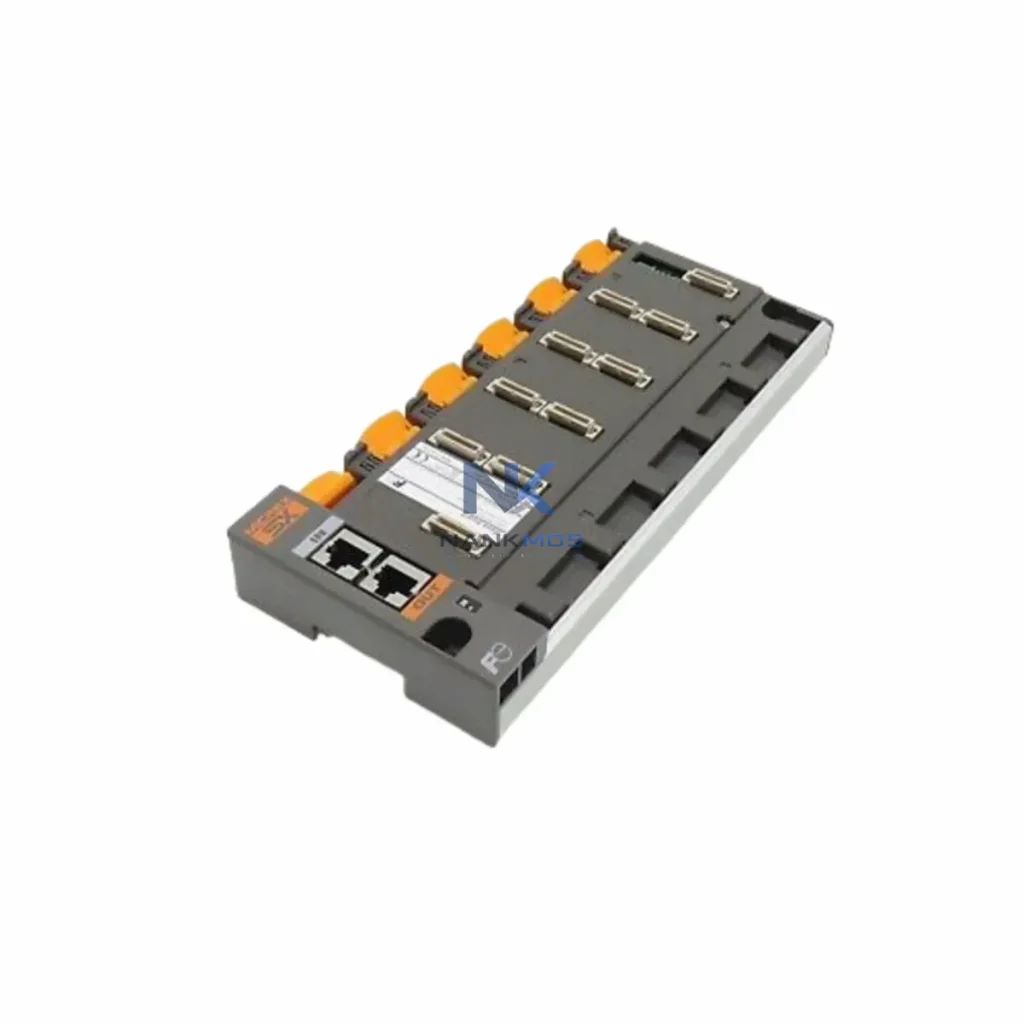

Fuji Electric NP1BS-06 PLC Base Board

Product Details

NP1BS-06 Product Description

The Fuji Electric NP1BS-06 is a six-slot base board engineered for the NP1B Series programmable logic controller platform, delivering a structurally sound and electrically stable foundation for modular control system deployment. Designed to support scalable I/O expansion, redundant communication integration, and long-term field reliability, the NP1BS-06 serves as the physical and electrical backbone of distributed and centralized automation architectures across demanding industrial environments.

In modern industrial control systems, the base board is not a passive component — it is the structural node that determines rack integrity, module interoperability, signal bus continuity, and power distribution efficiency. The NP1BS-06 fulfills this role within the NP1B ecosystem by providing a mechanically rigid, electrically shielded mounting platform that ensures consistent backplane communication between the CPU module, I/O modules, communication adapters, and power supply units installed within the same rack assembly.

System architects and control engineers specifying the NP1BS-06 benefit from its compatibility with the full NP1B Series module lineup, enabling seamless integration of digital input modules, analog output modules, high-speed counter modules, and fieldbus communication cards without requiring additional interface hardware or signal conditioning layers. This native compatibility reduces engineering overhead during panel design, simplifies commissioning workflows, and minimizes the risk of signal integrity issues arising from third-party rack substitutions.

The NP1BS-06 supports Contextual Integration across multi-rack and multi-zone control architectures. When deployed alongside the NP1B CPU module — such as the NP1B-08 or NP1B-16 — the base board enables the controller to address expanded I/O points through rack-to-rack communication links, supporting both local and remote I/O configurations. This architecture is particularly valuable in process industries where control panels are distributed across large plant footprints, requiring deterministic data exchange between the master rack and satellite I/O stations.

From a power distribution perspective, the NP1BS-06 interfaces directly with NP1B Series power supply modules, routing regulated DC power to each installed module slot through the internal backplane bus. This centralized power architecture eliminates the need for individual module-level power wiring, reduces panel wiring complexity, and ensures uniform voltage delivery across all installed modules — a critical requirement in high-density I/O configurations where voltage drop and noise immunity directly affect measurement accuracy and output reliability.

Signal integrity across the NP1BS-06 backplane is maintained through the board's internal bus architecture, which provides low-impedance signal paths between the CPU and peripheral modules. This design characteristic is especially important in applications involving high-speed analog signal acquisition, pulse-width modulation outputs, or time-critical interrupt handling, where backplane latency and signal crosstalk must be minimized to maintain control loop performance.

The NP1BS-06 is fully compatible with NP1B Series communication modules supporting PROFIBUS-DP, Modbus RTU, Modbus TCP/IP, and CC-Link protocols, enabling the base board to serve as the physical host for fieldbus gateway cards that bridge the NP1B controller to third-party field devices, variable frequency drives, intelligent motor control centers, and SCADA systems. This communication flexibility allows the NP1BS-06-based rack to function as both a standalone controller rack and as a remote I/O station within a larger distributed control system.

For HMI integration, the NP1BS-06 supports architectures where Fuji Electric GOT Series or compatible third-party HMI panels communicate with the NP1B CPU via RS-232C, RS-485, or Ethernet interfaces routed through communication modules installed in the base board slots. This integration path enables operators to monitor real-time process variables, acknowledge alarms, and execute manual control commands directly from the HMI without requiring additional communication hardware between the panel and the controller rack.

In redundancy-critical applications, the NP1BS-06 can be deployed in paired-rack configurations where a primary and standby NP1B CPU module operate in hot-standby mode, with the base board providing the physical slot allocation required to host redundancy management modules and cross-rack synchronization adapters. This redundant architecture is commonly specified in power generation, water treatment, and petrochemical process control systems where unplanned controller downtime carries significant operational and safety consequences.

Installation of the NP1BS-06 follows standard DIN rail or panel mounting procedures, with the base board's mechanical design accommodating both horizontal and vertical rack orientations to suit diverse control cabinet layouts. The board's module retention mechanism ensures secure module seating under vibration conditions, meeting the mechanical durability requirements of mobile plant equipment, marine automation systems, and heavy industrial machinery control panels.

Long-term maintenance efficiency is a core design consideration of the NP1BS-06. The base board's slot-based architecture allows individual modules to be replaced without disturbing adjacent modules or disconnecting field wiring, reducing mean time to repair in the event of module failure. Combined with Fuji Electric's established spare parts availability and the NP1B platform's documented service life, the NP1BS-06 provides a reliable foundation for control systems requiring 10+ year operational continuity.

Every NP1BS-06 unit supplied by NANKMOS undergoes pre-shipment functional verification, including backplane bus continuity testing, slot connector inspection, and mechanical integrity assessment. All units are covered by a 12-Month Warranty against manufacturing defects and electrical failures, with technical support available for installation guidance, system configuration assistance, and compatibility verification.

The NP1BS-06 base board achieves its full system value when deployed as part of a complete NP1B Series automation platform. A typical control architecture built around the NP1BS-06 rack integrates the following components across multiple system layers:

At the control layer, the NP1B-08 or NP1B-16 CPU module occupies the designated CPU slot of the NP1BS-06, providing the processing core for ladder logic execution, function block processing, and inter-rack communication management. The CPU module's scan cycle performance directly benefits from the low-latency backplane bus provided by the NP1BS-06, ensuring deterministic I/O response times across all installed modules.

At the power layer, the NP1B Series power supply module — such as the NP1PS-24 — is mounted in the power slot of the NP1BS-06, delivering regulated 5 VDC and 24 VDC to the backplane bus and connected modules. Proper power module selection based on total module current consumption is a critical engineering step during rack configuration.

At the I/O layer, digital input modules (e.g. NP1X16, NP1X32), digital output modules (e.g. NP1Y16T, NP1Y32T), and analog I/O modules (e.g. NP1AD4, NP1DA2) are installed in the remaining slots of the NP1BS-06, providing the field signal interface for sensors, actuators, transmitters, and control valves connected to the process.

At the communication layer, fieldbus communication modules supporting PROFIBUS-DP or CC-Link are installed in available slots to extend the NP1B controller's network reach to remote I/O stations, variable frequency drives such as the Fuji Electric FRENIC series, and intelligent field devices. Ethernet communication modules enable Modbus TCP/IP connectivity to SCADA systems and MES platforms.

At the HMI layer, Fuji Electric GOT Series HMI panels or compatible third-party operator interfaces connect to the NP1B CPU via communication ports, providing real-time process visualization, alarm management, and operator control functions integrated with the NP1BS-06-based controller rack.

At the protection layer, circuit breakers, surge protection devices, and isolation transformers installed in the control cabinet protect the NP1BS-06 rack and its modules from power quality disturbances, ensuring long-term reliability in electrically noisy industrial environments.

The NP1BS-06 base board is deployed across a broad range of industrial sectors where modular PLC architecture, system scalability, and long-term maintainability are primary engineering requirements:

Manufacturing and Assembly Lines: In automotive body assembly, electronics manufacturing, and consumer goods packaging lines, the NP1BS-06 provides the rack foundation for NP1B controllers managing conveyor sequencing, robotic cell coordination, vision system integration, and production data logging. The six-slot configuration accommodates the mixed I/O and communication module requirements typical of machine-level control panels.

Power Generation and Distribution: In thermal power plants, hydroelectric stations, and industrial substations, the NP1BS-06 supports NP1B controllers deployed for generator excitation control, transformer protection relay integration, and switchgear automation. The base board's compatibility with redundant CPU configurations makes it suitable for protection-critical applications where controller availability directly affects grid stability.

Petrochemical and Refinery Process Control: In continuous process environments including crude distillation, catalytic cracking, and gas compression stations, the NP1BS-06 hosts NP1B controllers managing PID control loops, safety interlock sequences, and fieldbus communication to HART-enabled transmitters and smart valve positioners.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems deploy the NP1BS-06 in pump station control panels, chemical dosing systems, and filtration process controllers, where the base board's modular I/O expansion capability supports the diverse sensor and actuator mix required for multi-stage treatment process automation.

Mining and Mineral Processing: In ore crushing, conveyor drive control, and flotation cell automation, the NP1BS-06 provides a mechanically robust rack platform capable of operating in high-vibration, high-dust environments when installed in appropriately rated control enclosures.

Marine and Offshore Automation: Shipboard automation systems for engine room monitoring, ballast water management, and cargo handling deploy the NP1BS-06 in vibration-resistant panel configurations, leveraging the base board's secure module retention mechanism to maintain reliable operation under dynamic sea conditions.

Q1: Is the NP1BS-06 compatible with all NP1B Series modules, and can it be expanded with additional racks?The NP1BS-06 is designed for full compatibility with the NP1B Series module ecosystem, including CPU modules, power supply modules, digital I/O modules, analog I/O modules, and communication modules. For applications requiring more than six I/O slots, the NP1B architecture supports multi-rack expansion through rack-to-rack communication links, allowing additional NP1BS-06 base boards to be connected as expansion racks under the control of a single NP1B CPU module. System architects should consult the NP1B Series hardware manual for maximum rack count and total I/O point specifications applicable to their CPU model.

Q2: What installation and commissioning considerations apply to the NP1BS-06 in high-vibration or electrically noisy environments?The NP1BS-06 should be installed in a control enclosure with an IP54 or higher protection rating when deployed in environments with significant dust, moisture, or mechanical vibration. DIN rail mounting with end stops is recommended to prevent rack displacement under vibration. Proper grounding of the base board chassis to the control cabinet earth bus is essential for EMC compliance and signal integrity. During commissioning, all module connectors should be verified for full seating, and backplane bus continuity should be confirmed before applying field power. Cable routing should separate power wiring from signal wiring to minimize inductive coupling and noise interference.

Q3: What warranty coverage and long-term supply support does NANKMOS provide for the NP1BS-06?Every NP1BS-06 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and electrical failures from the date of shipment. Pre-shipment testing includes backplane bus verification, connector integrity inspection, and mechanical assessment. NANKMOS maintains inventory of NP1BS-06 units and compatible NP1B Series modules to support both new project deployments and ongoing maintenance requirements. Technical support for system configuration, module compatibility verification, and installation guidance is available through our engineering team. For long-term maintenance planning, NANKMOS can advise on recommended spare module holdings based on system criticality and planned service intervals.
