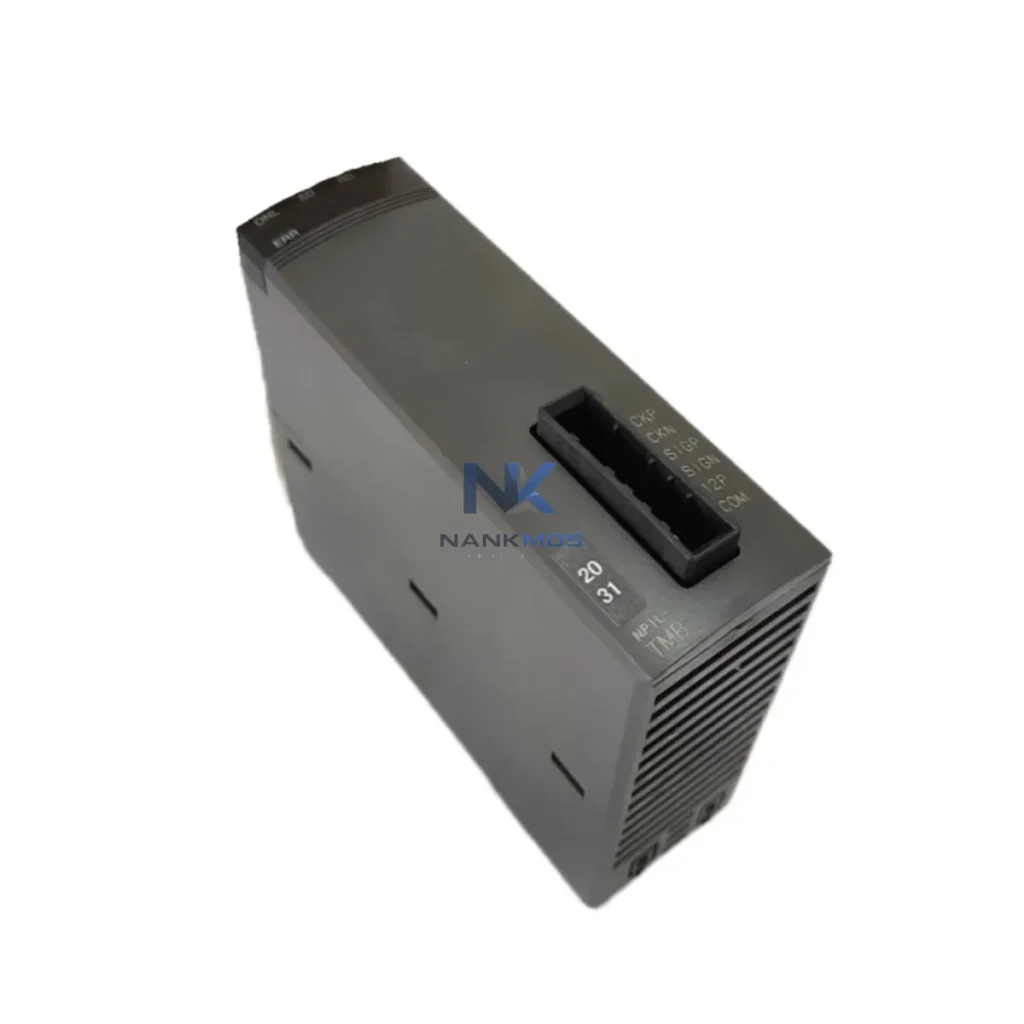

Fuji Electric NP1L-TMB Terminal Base

Product Details

NP1L-TMB Product Description

The Fuji Electric NP1L-TMB is a system-matched terminal base engineered for seamless integration within the MICREX-SX modular PLC platform. Designed to serve as the physical and electrical foundation of the I/O layer, the NP1L-TMB enables precise module mounting, signal routing, and backplane communication across distributed control architectures. Whether deployed in a centralized control cabinet or a remote I/O station, this terminal base ensures structural consistency, electrical integrity, and long-term maintainability across the full automation system lifecycle.

In modern industrial control environments, the terminal base is far more than a passive mounting component. It defines the signal flow path between field wiring and the PLC's I/O modules, directly influencing system reliability, diagnostic accessibility, and expansion flexibility. The NP1L-TMB is purpose-built for the MICREX-SX architecture, ensuring full mechanical and electrical compatibility with Fuji Electric's NP1L-series I/O modules, communication adapters, and power supply units.

The NP1L-TMB operates as the structural anchor of the MICREX-SX I/O subsystem, and its value is best understood within the context of a fully integrated automation platform. At the control layer, the NP1PS-CPU or NP1L-CPU CPU module serves as the central processing unit, executing ladder logic and managing system-wide data exchange. The NP1L-TMB provides the mounting interface through which I/O modules such as the NP1L-DI32 (32-point digital input) and NP1L-DO32 (32-point digital output) connect to the backplane, ensuring deterministic signal transmission between field devices and the controller.

At the power layer, the NP1L-PA1 power supply module integrates directly into the same rack system, delivering regulated DC power to all mounted modules through the backplane. This eliminates the need for external power distribution wiring within the rack, reducing installation complexity and improving power integrity across the I/O layer.

For communication and network integration, the NP1L-RS4 RS-485 communication module and NP1L-ET1 Ethernet communication module can be mounted on adjacent terminal bases within the same rack, enabling the MICREX-SX system to participate in MODBUS RTU, MODBUS TCP/IP, or proprietary Fuji Electric network topologies. This Contextual Integration capability allows the NP1L-TMB-based I/O station to exchange real-time process data with SCADA systems, HMI panels such as the Fuji Electric V9 series HMI, and upstream MES platforms without additional protocol converters.

In redundant architecture designs, paired NP1L-TMB bases can support hot-standby I/O configurations when combined with redundant CPU modules and communication adapters, ensuring continuous process control even during module replacement or communication path failure. This is particularly critical in power generation, petrochemical, and water treatment applications where unplanned downtime carries significant operational and safety consequences.

For analog signal processing, the NP1L-AD4 analog input module and NP1L-DA2 analog output module mount directly onto the NP1L-TMB, providing 4–20 mA and 0–10 V signal conditioning for process variables such as temperature, pressure, flow, and level. Signal isolation is maintained through the module's internal design, reducing ground loop interference and improving measurement accuracy in electrically noisy industrial environments.

From a maintenance and diagnostics perspective, the NP1L-TMB supports hot-swap module replacement in compatible MICREX-SX configurations, allowing field engineers to replace faulty I/O modules without powering down the entire rack. This modular serviceability, combined with the system's built-in self-diagnostic routines accessible via the Fuji Electric SX-Programmer Expert software, significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies across long-term plant operations.

The NP1L-TMB is deployed across a broad spectrum of industrial sectors where modular, scalable, and maintainable PLC architectures are required. In manufacturing and assembly automation, the terminal base supports high-density I/O configurations for conveyor control, robotic cell integration, and quality inspection systems, where rapid signal response and deterministic scan cycles are essential for production throughput.

In power generation and electrical substation applications, the NP1L-TMB provides the I/O mounting infrastructure for protection relay interfacing, circuit breaker status monitoring, and transformer tap changer control. Its compatibility with the MICREX-SX communication modules enables seamless integration with IEC 61850-compliant substation automation systems.

Within petrochemical and refinery process control environments, the terminal base supports analog I/O modules used for continuous monitoring of reactor temperatures, vessel pressures, and flow rates. The system's redundancy capabilities and hot-swap serviceability align with the stringent availability requirements of SIL-rated safety instrumented systems (SIS).

In water and wastewater treatment facilities, the NP1L-TMB enables distributed I/O architectures across pump stations, filtration systems, and chemical dosing units, with Ethernet communication modules providing remote monitoring and SCADA integration over long-distance fiber or copper networks.

For mining, metallurgy, and heavy industry applications, the terminal base's robust operating temperature range and DIN rail mounting flexibility support deployment in harsh environments including high-vibration, high-dust, and wide-temperature-range control cabinets. The system's modular expansion capability allows engineers to scale I/O capacity incrementally as process requirements evolve, without redesigning the control cabinet layout.

Q1: Is the NP1L-TMB compatible with all MICREX-SX series I/O and communication modules? The NP1L-TMB is designed for use within the Fuji Electric MICREX-SX modular PLC platform and is compatible with NP1L-series I/O modules including digital input, digital output, analog input, analog output, and communication modules. Engineers should verify specific module-to-base compatibility using the MICREX-SX system configuration manual, as certain high-density or specialty modules may require specific base variants. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: Can the NP1L-TMB be used in a redundant control architecture, and what additional components are required? Yes, the NP1L-TMB can be incorporated into redundant MICREX-SX architectures when paired with compatible redundant CPU modules, power supply units, and communication adapters. A typical redundant configuration requires dual NP1L-PA1 power supplies, a redundant NP1PS-CPU or equivalent CPU pair, and appropriate communication modules for synchronization. System integrators should consult the MICREX-SX redundancy configuration guide to ensure correct rack layout, module addressing, and failover timing parameters are properly configured during commissioning.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for NP1L-TMB shipment? All NP1L-TMB units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify backplane connectivity, mechanical integrity, and module seating performance. Standard lead time is 3–7 business days for in-stock units, with expedited shipping available for urgent project requirements. For volume orders or long-term supply agreements, please contact our team at [email protected] or +86 18359268345 to discuss inventory reservation and delivery scheduling.
