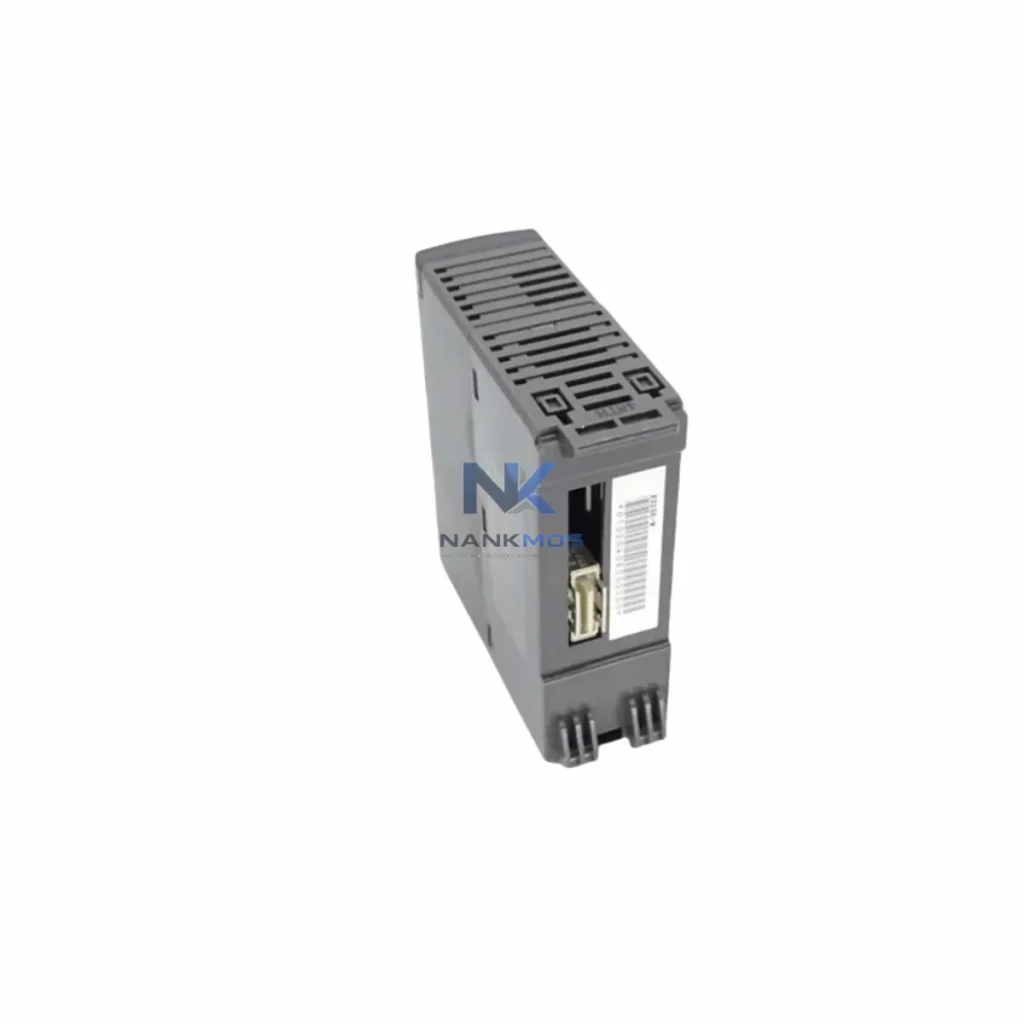

Fuji Electric NP1X3206-W Power Supply Module

Product Details

NP1X3206-W Product Description

The Fuji Electric NP1X3206-W is a dedicated energy-control power supply module engineered for the Micrex-F PLC platform — one of Fuji Electric's most established programmable logic controller series for industrial automation. Designed to deliver stable, regulated DC power to control system backplanes and I/O racks, the NP1X3206-W plays a foundational role in reducing unnecessary energy consumption, managing thermal load, and sustaining consistent production line throughput. Whether deployed in discrete manufacturing, process control, or mixed-mode automation environments, this power supply module ensures that every downstream component receives clean, conditioned power — a prerequisite for energy-efficient and reliable industrial operation.

In modern smart production lines, power quality directly affects both equipment longevity and energy efficiency. Voltage fluctuations, inrush current spikes, and unregulated DC rails are among the leading causes of premature component failure and elevated energy waste. The NP1X3206-W addresses these challenges by providing a tightly regulated output that minimizes ripple and maintains stable voltage under varying load conditions. This translates to lower thermal stress on connected modules, reduced cooling overhead, and a measurable improvement in overall system energy utilization.

The NP1X3206-W does not operate in isolation — its value is fully realized when integrated into a coordinated, power-aware automation architecture. Within a Micrex-F control system, the power supply module feeds regulated DC to the Fuji Micrex-F CPU module and associated NP1X I/O modules, ensuring that digital and analog signal processing occurs without voltage-induced errors. Stable power delivery is especially critical when the CPU is executing high-frequency scan cycles or communicating with field devices over Fuji's FL-net or Ethernet/IP communication modules.

On the drive side, the NP1X3206-W supports control-level power for systems that interface with Fuji FRENIC-Ace or FRENIC-Multi variable frequency drives (VFDs). These drives regulate motor speed and torque to match actual production demand, dramatically reducing energy waste during partial-load or idle conditions. When the PLC — powered by the NP1X3206-W — sends speed reference signals to the VFD, the entire control loop operates with greater precision and lower latency, enabling tighter energy management across motor-driven equipment such as conveyors, pumps, and compressors.

For servo-driven axes, the NP1X3206-W provides the stable control-bus power required by Fuji ALPHA5 servo drive systems and their associated servo amplifier modules. Servo systems are particularly sensitive to power quality; even minor voltage sags can cause position errors or trigger protective shutdowns. By maintaining a clean DC rail, the NP1X3206-W helps servo axes maintain positioning accuracy and reduces the frequency of fault-induced production stops.

Power monitoring is another critical layer in energy-optimized production. When paired with Fuji power monitoring modules or third-party power quality analyzers connected via Modbus RTU or Profibus, the Micrex-F system can log real-time energy consumption data, identify load anomalies, and trigger demand-response actions. The NP1X3206-W's stable output ensures that these monitoring modules receive consistent power, preventing false readings that could distort energy audits or trigger unnecessary alarms.

At the human-machine interface level, Fuji Hakko V9 or V10 series HMI panels connected to the Micrex-F network rely on stable backplane power to render real-time energy dashboards, production KPIs, and alarm histories. Operators can monitor power consumption trends, adjust setpoints, and respond to energy anomalies — all enabled by the reliable power foundation that the NP1X3206-W provides. Integration with SCADA platforms via OPC-UA or Modbus TCP further extends visibility to plant-level energy management systems, enabling centralized load balancing and shift-based energy scheduling.

Factory energy optimization is not achieved through a single component — it is the cumulative result of every module in the control architecture performing its function efficiently and reliably. The NP1X3206-W contributes to this goal at the most fundamental level: by ensuring that the Micrex-F PLC system always has access to clean, stable power, it eliminates a primary source of control-system inefficiency — power-related faults and unplanned restarts.

Unplanned downtime is one of the most significant sources of energy waste in industrial production. When a machine stops unexpectedly, the energy consumed during restart sequences, warm-up periods, and quality-check cycles represents pure waste. The NP1X3206-W's robust design and high mean time between failures (MTBF) directly reduces the frequency of power-related shutdowns, keeping production lines running at their designed throughput rate and minimizing the energy cost per unit produced.

Thermal load management is another area where the NP1X3206-W delivers measurable value. Inefficient power supplies generate excess heat, which must be removed by panel cooling systems — fans, heat exchangers, or air conditioners — all of which consume additional energy. The NP1X3206-W's switching topology is designed for high conversion efficiency, meaning less energy is dissipated as heat within the control cabinet. This reduces the duty cycle of cooling equipment and lowers the overall thermal footprint of the automation panel.

From a predictive maintenance perspective, the NP1X3206-W's stable output characteristics make it easier to detect early signs of system degradation. When power supply performance begins to degrade — evidenced by increased ripple, voltage drift, or thermal rise — these signals can be captured by connected monitoring modules and flagged for maintenance before a failure occurs. This proactive approach to maintenance scheduling reduces emergency repair costs, minimizes unplanned downtime, and supports a continuous improvement cycle for production line energy efficiency.

All NP1X3206-W units supplied by NANKMOS are sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Stock is maintained to support both immediate replacement needs and planned system upgrades, ensuring that production lines are never delayed by component availability constraints.

Q1: How does the NP1X3206-W contribute to energy savings in a Micrex-F system? The NP1X3206-W uses a high-efficiency switching power supply topology that minimizes energy dissipation during DC conversion. By delivering a stable, regulated output, it reduces the risk of power-related faults that cause unplanned restarts — one of the most energy-intensive events in production line operation. Stable power also reduces the thermal load on the control cabinet, lowering the energy demand of panel cooling systems.

Q2: Is the NP1X3206-W compatible with other Fuji Electric control system components? Yes. The NP1X3206-W is designed specifically for the Fuji Micrex-F PLC platform and is compatible with Micrex-F CPU modules, NP1X I/O expansion racks, communication modules, and HMI backplane connections. It is also suitable for use in systems that interface with Fuji FRENIC series VFDs and ALPHA5 servo drives at the control-bus level. For cross-series compatibility questions, consult the Micrex-F hardware configuration manual or contact NANKMOS technical support.

Q3: What is the recommended replacement process for an existing NP1X3206-W in service? Before replacement, power down the affected rack section and verify that backup power or redundant modules are in place if the application requires continuous operation. Remove the existing module, inspect the backplane connector for damage, and install the replacement NP1X3206-W. After installation, perform a power-on test and verify output voltage stability before resuming production. NANKMOS recommends keeping at least one spare unit in inventory for critical production lines to minimize replacement lead time.

Q4: What testing is performed on NP1X3206-W units before shipment, and what does the 12-month warranty cover? Every NP1X3206-W unit supplied by NANKMOS undergoes pre-shipment functional testing, including output voltage verification, load regulation testing, and visual inspection for physical integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Warranty claims are processed through NANKMOS customer support with proof of purchase.
