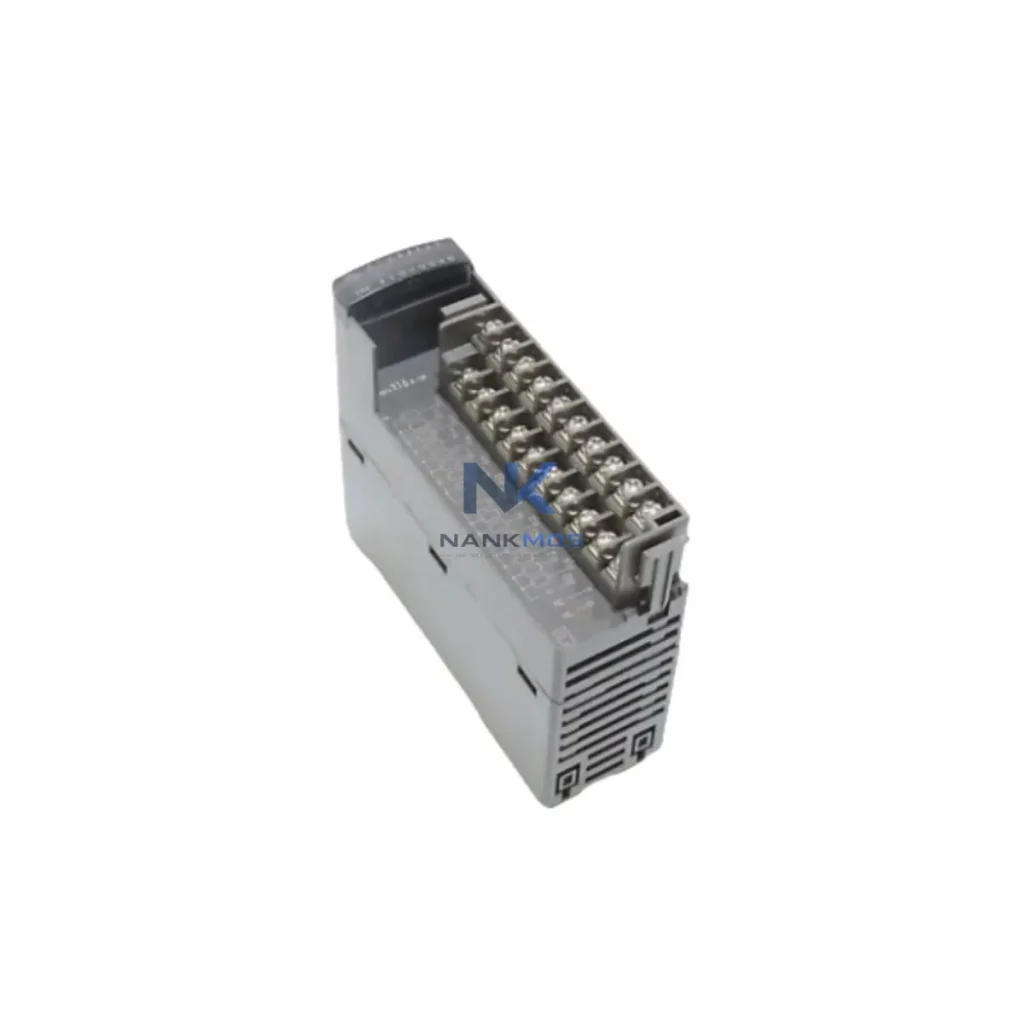

Fuji Electric NP1Y16R-08 Relay Output Module

Product Details

NP1Y16R-08 Product Description

The Fuji NP1Y16R-08 is a 16-point relay output module engineered for the Fuji Electric NP1 series programmable logic controller platform. Designed to bridge field-level actuator control with upper-layer automation networks, this module plays a critical role in the data chain that connects discrete output signals to SCADA supervisory layers, HMI visualization panels, and remote diagnostic systems. In modern smart factory deployments, every relay output point is not merely a switching contact — it is a data node that must be traceable, monitorable, and remotely verifiable in real time.

The NP1Y16R-08 integrates directly into the NP1 backplane, communicating with the NP1 CPU module via the internal high-speed bus. This tight coupling ensures deterministic scan-cycle synchronization, which is essential when relay output states must be logged, timestamped, and transmitted upstream to SCADA platforms such as Fuji Electric's V-SFT-based monitoring systems or third-party OPC-UA-compatible supervisory software. Output state data flows from the NP1 CPU through the communication module — typically a Fuji NP1L-RS4 RS-485 serial link module or an NP1L-ET1 Ethernet interface module — and into the plant network backbone, where it becomes part of the real-time process dataset available to operators and maintenance engineers.

In a fully integrated smart factory architecture, the Fuji NP1Y16R-08 sits at the output execution layer, receiving commands from the NP1 CPU and translating digital logic states into physical relay switching actions. The data flow begins at the sensor and field instrument layer — where devices such as Fuji Electric pressure transmitters, proximity switches, and temperature sensors feed analog and digital signals into NP1 input modules like the NP1X16-08 16-point DC input module. The NP1 CPU processes this input data against the control program and issues output commands to the NP1Y16R-08, which then energizes or de-energizes relay contacts to drive motors, solenoid valves, indicator lamps, and alarm horns.

This output execution data does not remain isolated at the field level. Through the NP1L-ET1 Ethernet communication module mounted on the same NP1 rack, all I/O states — including the 16 relay output points of the NP1Y16R-08 — are made available on the plant Ethernet network. Industrial managed switches, such as those from the Fuji Electric network infrastructure portfolio or compatible third-party industrial Ethernet switches with PROFINET or EtherNet/IP support, carry this data to the SCADA server. Operators monitoring the Fuji V-SFT HMI or a centralized SCADA dashboard can view real-time relay output states, track switching cycles, and receive alarm notifications when an output fails to respond within the expected time window.

For sites using RS-485 serial communication, the NP1L-RS4 RS-485 serial module enables Modbus RTU polling of NP1 output registers, allowing legacy SCADA systems and remote terminal units (RTUs) to read relay output states without requiring an Ethernet upgrade. This makes the NP1Y16R-08 equally valuable in brownfield automation environments where mixed-protocol architectures are common. Edge gateway devices — such as protocol converters supporting Modbus-to-MQTT or Modbus-to-OPC-UA translation — can further extend the data reach of the NP1Y16R-08 output states into cloud-based IoT platforms and enterprise MES systems.

In multi-rack NP1 configurations, the NP1Y16R-08 can be deployed across expansion racks connected via the NP1W-08EX expansion cable, allowing a single NP1 CPU to manage distributed relay output points across a production line. This distributed I/O topology is common in conveyor systems, packaging lines, and process skids where actuators are physically spread across a large footprint. The NP1 CPU aggregates all output state data and makes it available for upstream reporting, enabling production managers to analyze relay switching frequency, identify high-wear output points, and schedule predictive maintenance before contact failure causes unplanned downtime.

Variable frequency drives (VFDs) and soft starters connected to relay outputs from the NP1Y16R-08 can also feed back operational status signals — run/fault/ready — into NP1 input modules, creating a closed-loop data chain where drive status is continuously monitored and logged. This bidirectional data flow between the NP1Y16R-08 output layer and the drive feedback input layer is a foundational element of smart motor management in energy-intensive industries such as water treatment, HVAC, and discrete manufacturing.

Many industrial sites operate with fragmented automation architectures where relay output modules function as isolated switching devices with no visibility into upper-layer systems. The Fuji NP1Y16R-08, when deployed within a properly configured NP1 system, directly addresses these data gaps:

Q1: Can the Fuji NP1Y16R-08 relay output states be monitored in real time via SCADA? Yes. When paired with the NP1L-ET1 Ethernet module or NP1L-RS4 RS-485 module, all 16 relay output states of the NP1Y16R-08 are accessible as Modbus registers or Ethernet/IP tags, enabling real-time monitoring through any compatible SCADA or HMI platform.

Q2: Is the NP1Y16R-08 compatible with Modbus TCP and OPC-UA protocols? The NP1Y16R-08 communicates via the NP1 internal backplane bus. Modbus TCP and OPC-UA access is achieved through the NP1 communication modules (NP1L-ET1 for Ethernet) combined with appropriate SCADA middleware or OPC server software. This makes the module compatible with a wide range of industrial network architectures without hardware modification.

Q3: How does NANKMOS ensure the NP1Y16R-08 is functional before shipment? Every NP1Y16R-08 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify relay contact integrity, coil response, and backplane communication. Units are shipped with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q4: Can the NP1Y16R-08 be used in remote diagnostic architectures for unmanned substations or remote process skids? Yes. In combination with an NP1 CPU and Ethernet communication module, the NP1Y16R-08 supports remote I/O monitoring architectures where relay output states are polled by a central SCADA system over a WAN or VPN connection. This makes it suitable for unmanned pump stations, remote compressor skids, and distributed energy management systems where on-site personnel access is limited.
