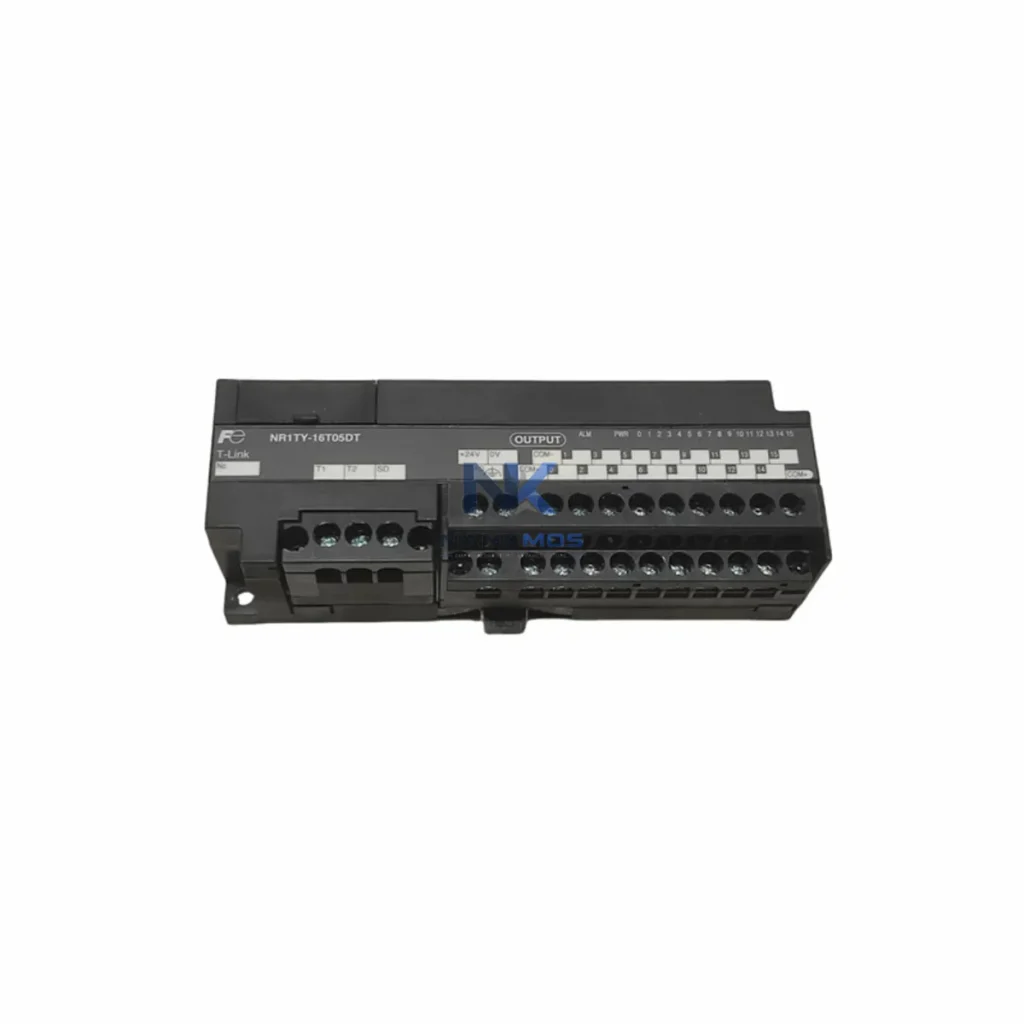

Fuji Electric NR1TY-16T05DT Transistor Output Module

Product Details

NR1TY-16T05DT Product Description

The Fuji Electric NR1TY-16T05DT is a 16-point transistor output module engineered for seamless deployment within the NR1 programmable controller platform. Its role in a complete automation architecture extends well beyond simple signal switching — it serves as a precision output interface that bridges the control layer and the execution layer, ensuring deterministic, low-latency command delivery to field devices across demanding industrial environments.

In a fully configured NR1 system, the NR1TY-16T05DT operates in direct coordination with the NR1CPU central processing unit, which governs scan cycle timing and program execution. The CPU communicates with all I/O modules through the NR1 backplane bus, enabling synchronized data exchange without the latency penalties associated with remote I/O networks. This tight coupling between the CPU and the NR1TY-16T05DT ensures that output state changes are reflected within a single scan cycle, a critical requirement in high-speed packaging lines, press control systems, and conveyor sequencing applications.

Power integrity across the NR1 rack is maintained by the NR1PA series power supply modules, which provide regulated 24 VDC to both the CPU and I/O modules. The NR1TY-16T05DT's transistor output stage draws stable operating power from this shared rail, and its photocoupler isolation architecture ensures that transient voltages on the field side — common in motor starter and solenoid valve circuits — do not propagate back into the control bus. This isolation characteristic is especially valuable in petrochemical and water treatment facilities where ground loops and electromagnetic interference are persistent concerns.

System expansion is handled through NR1 expansion base units and NR1 I/O expansion cables, allowing engineers to add additional NR1TY-16T05DT modules or complementary input modules such as the NR1X-16D DC input module to the same logical rack. This modular architecture supports incremental capacity growth without requiring a controller platform change, protecting capital investment across multi-phase plant expansions. Mixed I/O configurations — combining transistor outputs, relay outputs, analog inputs, and analog outputs — can be assembled on a single NR1 base unit, simplifying cabinet layout and reducing wiring complexity.

For applications requiring network connectivity, the NR1 platform supports NR1 communication modules compatible with PROFIBUS-DP, CC-Link, and Ethernet/IP protocols. These gateway modules allow the NR1TY-16T05DT's output states to be monitored and commanded from SCADA systems, DCS platforms, or MES layers without modifying the local PLC program. In distributed control architectures common in power generation and mining operations, this communication transparency enables centralized diagnostics and remote output forcing during commissioning and maintenance windows.

HMI integration is achieved through Fuji Electric V9 series or V10 series operator panels, which connect to the NR1 CPU via RS-232C, RS-485, or Ethernet. Operators can monitor the real-time status of each NR1TY-16T05DT output channel directly from the HMI touchscreen, enabling rapid fault identification without requiring a laptop or programming tool on the plant floor. This visibility is particularly valuable in continuous process industries such as pulp and paper, food and beverage, and chemical processing, where unplanned downtime carries significant production cost.

Terminal wiring for the NR1TY-16T05DT is managed through the module's front-mounted connector, compatible with standard NR1 terminal block assemblies. Pre-wired terminal blocks and connector kits reduce field installation time and minimize wiring errors during initial commissioning. For high-density cabinet designs, the compact form factor of the NR1TY-16T05DT allows multiple output modules to be installed side by side on a single base unit, maximizing I/O density per DIN rail segment.

Redundancy requirements in critical infrastructure applications can be addressed by pairing the NR1 system with NR1 redundant CPU configurations or by implementing output redundancy at the field device level using dual-coil solenoids and cross-wired output channels. The NR1TY-16T05DT's fast response time and deterministic output behavior make it a reliable building block in safety-adjacent control architectures, even in applications where full SIL-rated safety PLCs are not mandated.

The NR1TY-16T05DT is deployed across a broad spectrum of industrial sectors, each leveraging its transistor output characteristics for specific control requirements:

Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the NR1TY-16T05DT drives pneumatic valve banks, servo amplifier enable signals, and conveyor motor starters. Its 0.5 A per-point output capacity is well-matched to the coil currents of standard 24 VDC solenoid valves, eliminating the need for interposing relays in most configurations and reducing panel component count.

Power Generation & Electrical Utilities: Substation automation and generator control panels use the NR1TY-16T05DT to issue switching commands to circuit breaker auxiliary relays and protection relay reset circuits. The photocoupler isolation provides the necessary electrical separation between the PLC control circuit and high-voltage switchgear auxiliary circuits, meeting the isolation requirements of IEC 61850-compliant substation designs.

Petrochemical & Refinery Process Control: In hazardous area control rooms, the NR1TY-16T05DT is installed in purged and pressurized enclosures to control process shutdown valves, pump motor contactors, and flare ignition systems. Its low power dissipation and wide operating temperature range support reliable operation in high-ambient-temperature environments typical of refinery control buildings.

Water & Wastewater Treatment: Municipal water treatment SCADA systems use the NR1TY-16T05DT to control dosing pump enable signals, UV disinfection system triggers, and filter backwash valve sequences. The module's compatibility with NR1 communication gateways allows remote operation from centralized SCADA workstations, reducing the need for on-site operator intervention during routine process cycles.

Mining & Mineral Processing: Conveyor belt control systems in underground and surface mining operations rely on the NR1TY-16T05DT for belt start/stop sequencing, emergency stop relay control, and dust suppression system activation. The module's robust isolation and noise immunity characteristics ensure reliable operation in the high-EMI environments generated by large variable frequency drives and DC motor drives common in mining applications.

Metallurgy & Steel Production: Rolling mill and continuous casting control systems use the NR1TY-16T05DT to manage cooling water valve sequences, roll gap adjustment signals, and furnace burner management outputs. The deterministic scan-cycle response of the NR1 platform ensures that output commands are executed within the tight timing windows required by high-speed rolling processes.

Packaging & Material Handling: High-speed packaging lines in food, pharmaceutical, and consumer goods manufacturing use the NR1TY-16T05DT to control reject gate solenoids, label applicator triggers, and case erector pneumatic circuits. The module's fast ON/OFF response time supports the high-cycle-rate demands of modern packaging machinery operating at speeds exceeding 200 units per minute.

Q1: Is the NR1TY-16T05DT compatible with all NR1 series base units and CPU modules? The NR1TY-16T05DT is designed for installation in standard NR1 series base units and is compatible with all NR1 CPU modules that support the NR1 backplane bus architecture. It can be installed in any I/O slot on the base unit or expansion rack without requiring special configuration. When mixing output module types — for example, combining NR1TY-16T05DT transistor output modules with NR1 relay output modules — engineers should verify the total current draw against the base unit's internal power bus rating to ensure stable operation across all installed modules.

Q2: What are the long-term maintenance and spare parts considerations for the NR1TY-16T05DT in a production environment? The NR1TY-16T05DT's solid-state transistor output design eliminates the mechanical wear associated with relay output modules, resulting in a significantly longer service life in high-cycle applications. For long-term maintenance planning, it is recommended to maintain a minimum of one spare NR1TY-16T05DT module per production line to support rapid hot-swap replacement during unplanned failures. NANKMOS maintains stock of the NR1TY-16T05DT and can support expedited shipment for critical production environments. All units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, with pre-shipment functional testing performed on every unit.

Q3: How is the NR1TY-16T05DT commissioned and diagnosed within the NR1 system architecture? Commissioning the NR1TY-16T05DT requires the Fuji Electric MICREX-SX or equivalent NR1-compatible programming software, through which engineers can perform forced output tests on individual channels, monitor output status in real time, and configure output hold behavior during CPU stop mode. Diagnostic LEDs on the module front panel provide immediate visual indication of output ON/OFF states and module power status, enabling rapid fault isolation without requiring a connected programming terminal. For remote diagnostics, NR1 communication modules can relay module status data to SCADA or MES systems, supporting predictive maintenance workflows and minimizing unplanned downtime in continuous process applications.
