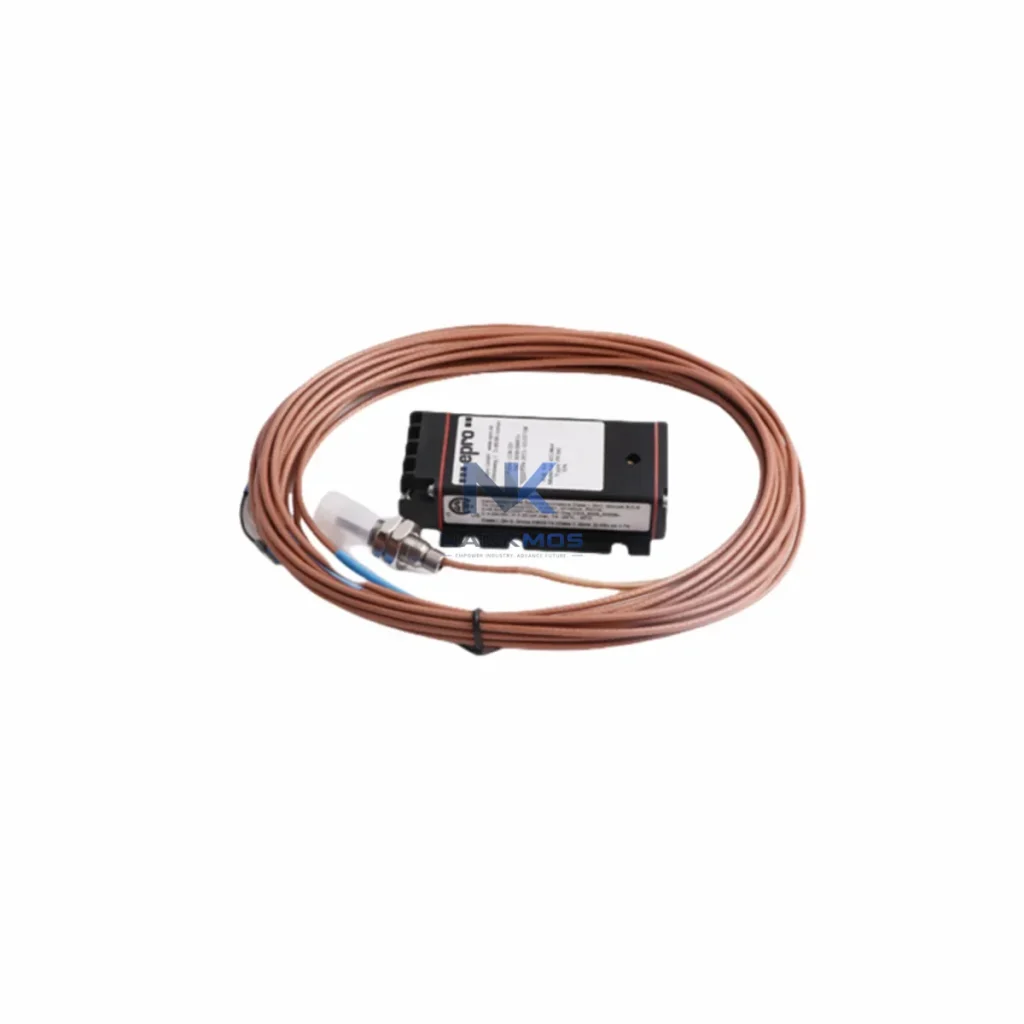

EPRO PR6423/015-000-CN CON021 Proximity Sensor

Product Details

PR6423/015-000-CN CON021 Product Description

The EPRO PR6423/015-000-CN CON021 is not a standalone sensor — it is a precision front-end element within a fully coordinated machinery protection and condition monitoring architecture. Its role begins at the physical measurement layer and propagates upward through every tier of the control hierarchy, from raw signal acquisition to plant-level SCADA decision-making.

At the signal acquisition layer, the PR6423/015-000-CN CON021 works in matched pairs or triplets with the EPRO PR6426 driver unit, which provides the regulated −24 VDC excitation and converts the raw eddy-current impedance change into a calibrated DC voltage output. This driver-sensor pairing is fundamental: the PR6423 and PR6426 are factory-matched to ensure linearity across the full measurement range, eliminating the calibration drift that can occur when mixing unmatched components from different production batches. The CON021 connector and CN-series integral cable ensure a sealed, low-impedance signal path that resists EMI ingress in high-frequency drive environments.

At the monitoring and protection layer, the conditioned analogue signal feeds directly into the EPRO MMS6110 dual-channel vibration monitor or the MMS6120 shaft displacement monitor, both of which are rack-mounted modules within the MMS6000 modular monitoring system. These monitors apply API 670 alarm and trip logic — alert, danger, and shutdown setpoints — that interface with the plant's safety instrumented system (SIS) or emergency shutdown (ESD) controller. The MMS6000 backplane supports hot-swap module replacement, meaning the PR6423 sensor signal path can be maintained without interrupting adjacent channel monitoring during planned maintenance windows.

At the communication and integration layer, the MMS6000 system connects to plant DCS platforms — including Emerson DeltaV, Honeywell Experion PKS, or ABB System 800xA — via PROFIBUS DP, Modbus RTU, or OPC-UA gateways. This allows the PR6423's displacement and vibration data to be trended, alarmed, and correlated with process variables such as bearing temperature (from EPRO PR9268 temperature sensors), lube oil pressure, and load current — enabling a holistic view of rotating machinery health within the plant historian and SCADA environment.

At the power supply layer, the PR6426 driver draws from a dedicated instrument power rail, typically supplied by a Phoenix Contact QUINT-PS or Siemens SITOP PSU300S redundant 24 VDC power supply. Redundant power architecture — with automatic changeover — ensures that a single PSU failure does not interrupt the continuous vibration monitoring required by API 670 for critical rotating machinery. The PR6423's low power consumption (typically under 50 mA per channel) makes it compatible with high-density, multi-channel power distribution within a standard 19-inch instrumentation cabinet.

At the HMI and operator interface layer, vibration and displacement trends from the PR6423 are visualised on EPRO OM-AGS online monitoring software or third-party SCADA HMI platforms. Operators can view real-time shaft orbit plots, trend historical displacement data, and configure alarm hysteresis — all without interrupting the live measurement chain. Integration with GE Bently Nevada System 1 or Emerson AMS Machinery Manager is also achievable via standard OPC-DA/UA bridging, enabling cross-platform condition monitoring in multi-vendor plant environments.

At the execution and protection layer, the trip output from the MMS6000 monitor connects to the machine's lube oil trip solenoid, anti-surge control valve, or turbine governor — ensuring that an over-limit displacement event detected by the PR6423 results in a deterministic, sub-100 ms protective shutdown. This closed-loop architecture — from sensor to actuator — is the foundation of API 670-compliant machinery protection and is the reason the PR6423/015-000-CN CON021 must be treated as a system component, not an interchangeable commodity part.

At the maintenance and diagnostics layer, the PR6423's integral cable and CON021 connector allow field replacement without special tooling. The PR6426 driver's built-in self-test output enables automated sensor-loop integrity checks from the MMS6000 system, flagging open-circuit or short-circuit faults before they result in spurious trips or missed alarms. Scheduled replacement intervals — typically aligned with major turbine overhaul cycles of 25,000 to 40,000 operating hours — can be tracked within the plant's CMMS (Computerised Maintenance Management System), with the 12-Month Warranty providing coverage from the date of commissioning for newly installed units.

Power Generation (Steam & Gas Turbines): The PR6423/015-000-CN CON021 is a standard component in API 670-compliant turbine protection systems. Installed at the journal bearings of HP, IP, and LP turbine stages, it provides continuous radial shaft displacement monitoring. In combined-cycle power plants, where gas turbine and steam turbine trains share a common control room, the PR6423's analogue output integrates seamlessly with both the turbine control system (TCS) and the plant DCS, enabling unified alarm management and coordinated load-shedding responses.

Petrochemical & Refinery Compressor Trains: In centrifugal and reciprocating compressor applications — ethylene crackers, LNG liquefaction trains, and hydrocracker recycle gas compressors — the PR6423 monitors shaft position relative to the bearing clearance envelope. Combined with axial position sensors from the same PR6400 series, it provides the complete radial-plus-axial displacement picture required for API 670 compliance. The ATEX-rated configuration supports installation in Zone 1 and Zone 2 hazardous areas without additional barriers in many configurations.

Water & Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in water treatment facilities benefit from the PR6423's non-contact measurement principle, which eliminates the wear-related drift associated with contact-type displacement sensors. The IP67-rated sensor body withstands the humid, chemically aggressive environments typical of pump stations, while the MMS6000 monitoring system provides the remote alarm outputs required for unmanned station operation.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject rotating machinery to high radial loads and frequent start-stop cycles. The PR6423's robust eddy-current sensing principle is unaffected by dust, moisture, or lubricant contamination on the shaft surface — conditions that would compromise optical or capacitive displacement sensors. Integration with the plant's PLC-based control system (via the MMS6000's relay outputs) enables automatic mill shutdown on bearing overload detection.

Marine & Offshore: Propulsion shaft monitoring, turbocharger protection, and auxiliary machinery surveillance on LNG carriers and FPSO vessels increasingly specify EPRO PR6400-series sensors due to their DNV-GL type approval and resistance to shipboard vibration and salt-air environments. The CON021 connector's bayonet locking mechanism prevents accidental disconnection in high-vibration marine machinery spaces.

Q1: Is the PR6423/015-000-CN CON021 compatible with non-EPRO monitoring systems, and what signal conditioning is required? The PR6423/015-000-CN CON021 produces a standard −2 VDC to −18 VDC analogue output when paired with the EPRO PR6426 driver. This voltage range is compatible with most third-party vibration monitors that accept a −24 VDC-powered eddy-current probe system, including Bently Nevada 3300 XL series monitors and Metrix ST5484E transmitters, provided the input impedance and supply voltage specifications are matched. However, for guaranteed linearity and API 670 compliance, EPRO strongly recommends using the PR6423 exclusively with the matched PR6426 driver within the MMS6000 system. If integration with a third-party monitor is required, a signal conditioner or loop-powered transmitter may be needed to convert the voltage output to a 4–20 mA current loop signal compatible with standard DCS analogue input cards.

Q2: What is the recommended installation procedure for the PR6423/015-000-CN CON021 in a turbine bearing housing, and how is the gap voltage set? Installation follows EPRO Application Note AN023. The sensor tip is threaded into a machined boss in the bearing housing, with the tip-to-shaft gap set to achieve the mid-range output voltage of the PR6426 driver — typically −10 VDC to −12 VDC at the nominal gap of 1.0 mm to 1.5 mm for the PR6423 8 mm tip. Gap setting is performed with the shaft stationary using a calibrated digital voltmeter at the driver output terminals. The CON021 connector is then secured and the cable routed to the junction box, avoiding proximity to high-voltage power cables to minimise EMI coupling. Final commissioning includes a slow-roll check to verify the gap voltage remains within the linear range across the full shaft rotation, confirming concentricity and absence of electrical runout.

Q3: What does the 12-Month Warranty cover for the PR6423/015-000-CN CON021, and what is the stock availability and lead time? The 12-Month Warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, operation outside specified environmental limits, or mechanical impact to the sensor tip or cable. Units are held in stock and subject to pre-shipment functional testing — including output voltage linearity verification and connector integrity checks — before dispatch. Standard lead time for in-stock units is 3–7 business days for international express shipment. For project quantities or long-term supply agreements, contact [email protected] to discuss scheduled delivery and extended warranty options. Replacement units supplied under warranty are tested to the same outgoing inspection standard as new stock.
