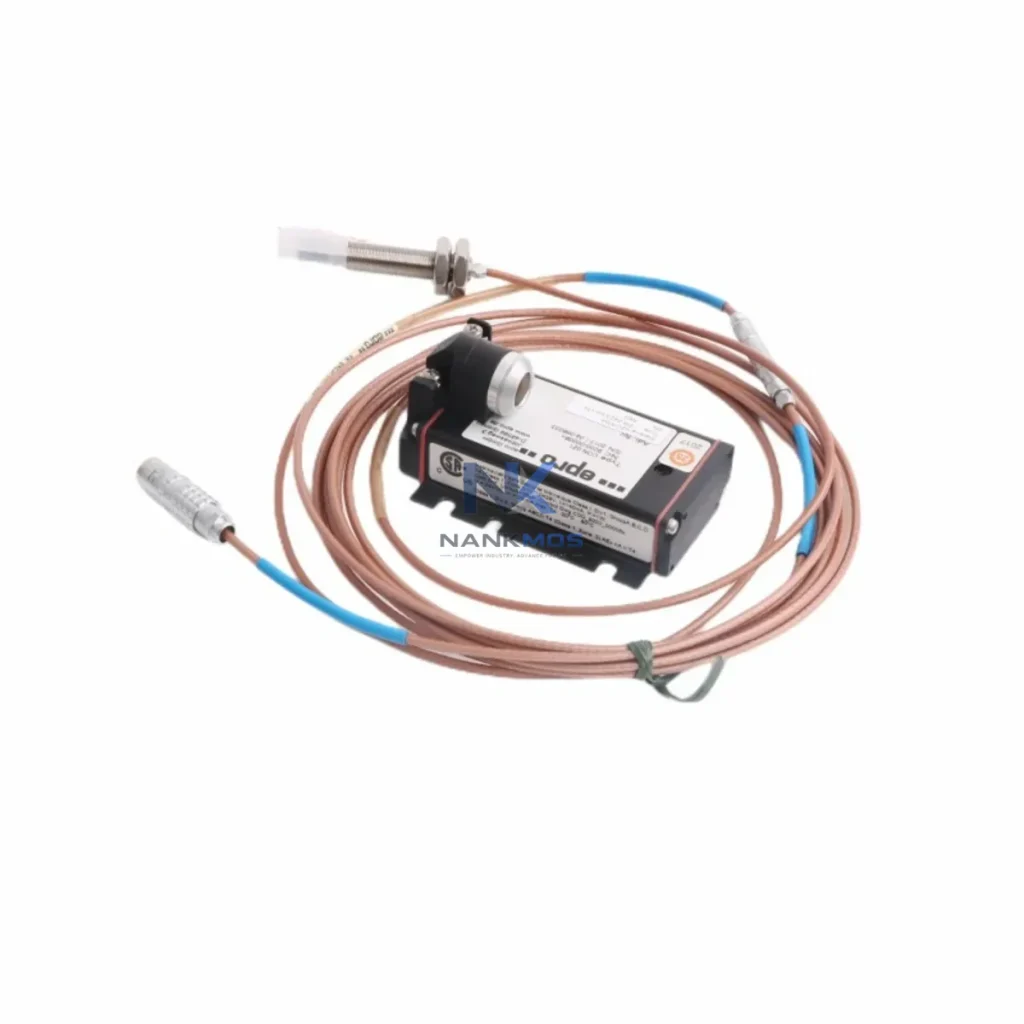

EPRO PR6423/014-040 CON021 Eddy Current Sensor

Product Details

PR6423/014-040 CON021 Product Description

The EPRO PR6423/014-040+CON021 is a precision eddy current displacement sensor engineered for continuous shaft vibration and position monitoring in rotating machinery environments. Designed to operate within the EPRO PR6400 monitoring system architecture, this sensor assembly delivers real-time analog signal output that feeds directly into the plant-wide industrial data network — forming a critical node in the smart factory data chain. From raw signal acquisition at the machine shaft to protocol-converted data streams reaching SCADA dashboards and HMI panels, the PR6423/014-040+CON021 ensures that every micron of shaft displacement is captured, transmitted, and acted upon without latency or data loss.

In modern industrial automation environments, the integrity of the data link between field-level sensors and upper-level control systems determines the reliability of predictive maintenance strategies. The PR6423/014-040+CON021 sensor, paired with the CON021 signal conditioner, outputs a calibrated voltage signal that integrates seamlessly with the EPRO PR6400 series rack-mounted monitoring modules. These modules then interface with plant DCS, PLC controllers, and SCADA gateways through standardized communication protocols — enabling real-time vibration data to flow from the machine floor to the control room and beyond.

The PR6423/014-040+CON021 sits at the very beginning of the smart factory data chain. Mounted on the bearing housing or shaft proximity probe bracket, the sensor continuously measures the gap between probe tip and rotating shaft surface. The CON021 signal conditioner converts this gap into a precise DC voltage signal, which is then routed to the EPRO PR6400 series monitoring rack — a modular platform housing input modules, power supplies, and communication interface cards that aggregate multi-channel vibration data from across the machine train.

Within the PR6400 rack, dedicated communication modules — such as the EPRO PR6426 or PR6428 series relay and communication cards — translate the conditioned analog signals into digital data packets. These packets are transmitted over PROFIBUS-DP or Modbus RTU networks to the plant's PLC controllers, such as Siemens S7-400 or ABB AC500 series, where vibration alarm logic is executed in real time. Simultaneously, OPC-UA server modules within the PR6400 architecture publish live vibration data to SCADA platforms — including GE iFIX, Wonderware System Platform, or Emerson DeltaV — enabling operators to visualize shaft orbit plots, trend curves, and alarm states on HMI panels distributed across the control room and field operator stations.

The data flow does not stop at the SCADA layer. Edge gateway devices — such as the Moxa MGate series or HMS Anybus gateways — can bridge the PR6400 Modbus data stream to Ethernet/IP or MQTT protocols, pushing vibration telemetry to cloud-based asset management platforms or MES systems for long-term trend analysis and predictive maintenance scheduling. Industrial managed switches, such as the Hirschmann MACH series or Phoenix Contact FL SWITCH range, provide the network backbone that ensures deterministic, low-latency data delivery between the field monitoring rack, the PLC control layer, and the SCADA server cluster.

For distributed plant layouts, remote I/O modules — such as the Siemens ET 200SP or Beckhoff EK1100 EtherCAT coupler — can extend the analog input network to satellite monitoring points, collecting PR6423 sensor signals from remote pump stations or compressor skids and feeding them back to the central PR6400 rack over fiber-optic industrial Ethernet. Variable frequency drives (VFDs) monitoring motor shaft vibration can also feed their own diagnostic data into the same SCADA network, creating a unified machine health dashboard that correlates vibration signatures with motor load, speed, and temperature data from the drive's onboard sensors.

One of the most persistent challenges in industrial automation is the fragmentation of machine health data across incompatible monitoring systems. Legacy vibration monitors using proprietary analog outputs cannot communicate directly with modern DCS or PLC platforms without signal conditioning and protocol conversion — creating data silos that prevent plant-wide visibility. The PR6423/014-040+CON021, integrated within the EPRO PR6400 architecture, resolves this by providing a standardized, protocol-agnostic analog output that any modern analog input card can accept, while the PR6400 communication modules handle the upstream protocol translation to Modbus, PROFIBUS, or OPC-UA.

Remote monitoring and diagnostics are equally critical. Without reliable real-time vibration data reaching the SCADA layer, maintenance teams cannot detect early-stage bearing wear, shaft misalignment, or rotor imbalance before they escalate to unplanned shutdowns. The PR6423/014-040+CON021 ensures continuous, uninterrupted signal flow from the machine to the monitoring system, supporting alarm setpoint management, trend logging, and remote diagnostic access through the SCADA historian. This enables condition-based maintenance strategies that reduce unplanned downtime and extend equipment service intervals.

Production line transparency is another key benefit. By integrating vibration data from multiple PR6423 sensor channels into a unified SCADA dashboard, plant engineers gain a real-time map of machine health across the entire production line — from raw material intake conveyors to final product packaging drives. Alarm tracking and event logging within the SCADA system provide a complete audit trail of vibration exceedances, enabling root cause analysis and regulatory compliance reporting. System expansion is straightforward: additional PR6423 sensor channels can be added to the PR6400 rack without disrupting existing monitoring loops, supporting phased plant upgrades and capacity expansions.

Q1: What communication protocols does the EPRO PR6423/014-040+CON021 support for SCADA integration? The PR6423/014-040+CON021 outputs a standard analog voltage signal via the CON021 conditioner. When connected to the EPRO PR6400 monitoring rack, the system supports upstream communication via Modbus RTU, PROFIBUS-DP, and OPC-UA through dedicated PR6400 communication interface modules — enabling direct integration with all major SCADA, DCS, and PLC platforms.

Q2: How does the system ensure network stability and low-latency data transmission in high-vibration environments? The PR6423 sensor uses a coaxial cable connection to the CON021 conditioner, which is designed for high electromagnetic interference (EMI) immunity in industrial environments. The PR6400 rack's communication modules support deterministic Modbus and PROFIBUS polling cycles, ensuring consistent data update rates regardless of plant network load. Industrial managed switches with QoS prioritization further guarantee low-latency delivery of vibration alarm data to the SCADA layer.

Q3: Can the PR6423/014-040+CON021 be used for remote diagnostics and predictive maintenance? Yes. When integrated with the PR6400 system and connected to a SCADA historian, the PR6423 sensor data supports continuous trend logging, alarm event recording, and remote access via OPC-UA or Modbus TCP over industrial Ethernet. This enables maintenance engineers to perform remote diagnostics, review vibration trend history, and schedule predictive maintenance interventions without requiring physical access to the machine.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the PR6423/014-040+CON021? All EPRO PR6423/014-040+CON021 units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional testing to verify sensor output linearity, conditioner calibration, and cable integrity before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance and replacement requirements.
