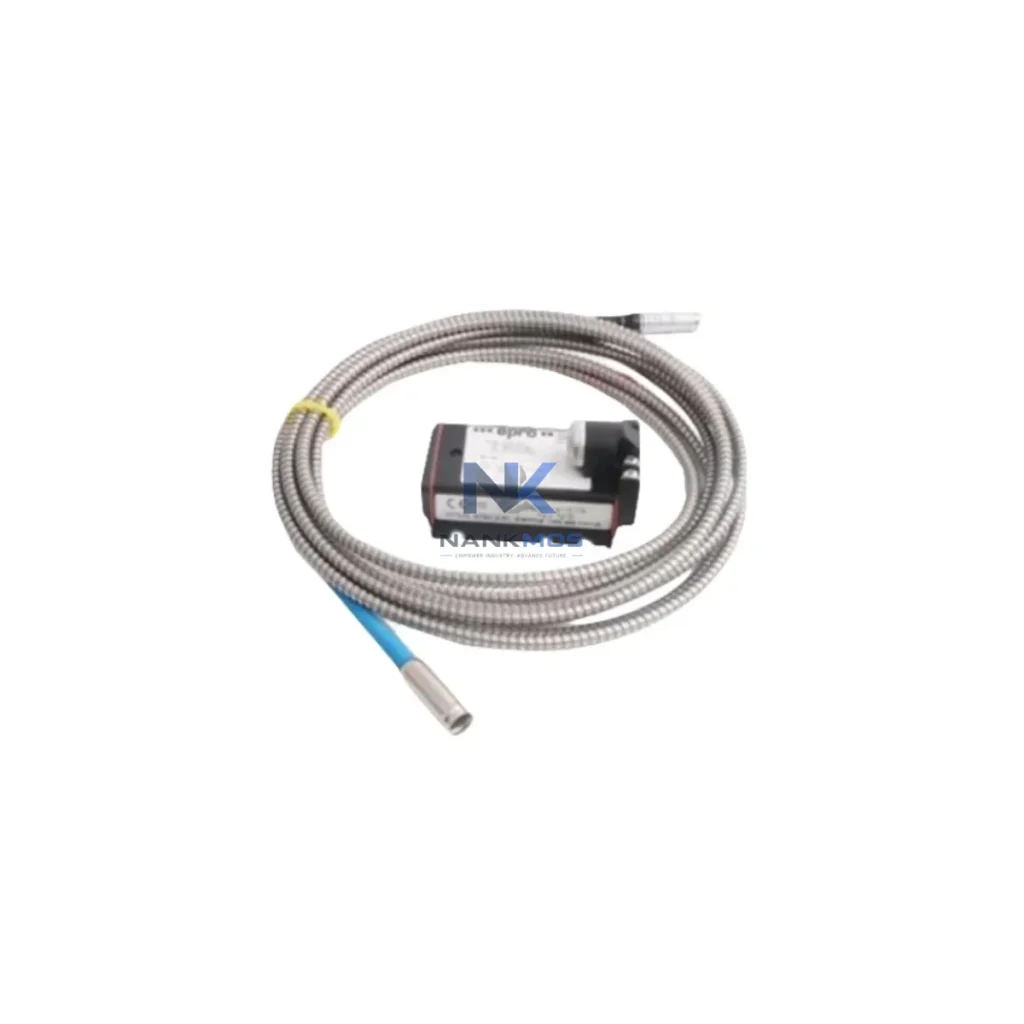

EPRO PR6424/010-040-CN Eddy Current Displacement Sensor

Product Details

PR6424/010-040-CN Product Description

The EPRO PR6424/010-040-CN is a precision eddy current displacement sensor engineered for seamless integration into machine protection and condition monitoring architectures. Designed to operate within the EPRO PR6424 series ecosystem, this sensor delivers high-resolution, non-contact shaft displacement measurement critical to turbine protection systems, compressor monitoring platforms, and rotating machinery control loops. Its role within a layered industrial control architecture extends far beyond simple signal acquisition — it serves as the foundational sensing element that enables real-time vibration analysis, axial position monitoring, and differential expansion measurement across the full control hierarchy.

In modern industrial automation environments, the reliability of a machine protection system depends on the coherence of every layer — from the sensing layer through the signal conditioning layer, the processing layer, and ultimately the control and HMI layers. The PR6424/010-040-CN is engineered to satisfy the demanding signal integrity requirements of each of these layers simultaneously, ensuring that displacement data is accurate, stable, and latency-free from the point of measurement to the point of decision.

The PR6424/010-040-CN achieves its full performance potential when deployed as part of a coherent, multi-layer automation architecture. At the signal conditioning layer, the sensor pairs directly with the EPRO PR6423/010-040-CN oscillator/driver or the EPRO PR6426/010-040-CN driver module, which supplies the excitation frequency and converts the raw impedance change into a calibrated voltage output. This voltage signal is then routed to the machine protection rack — typically an EPRO MMS 6000 series or MMS 3120 vibration monitor module — where it undergoes real-time threshold comparison, alarm logic, and trip relay actuation.

At the control layer, the processed displacement data is transmitted via hardwired relay outputs or fieldbus interfaces to the plant DCS or safety PLC. In Siemens-based architectures, this may involve integration with Siemens SIMATIC S7-400H redundant CPUs or S7-300 distributed I/O stations via PROFIBUS DP. In Emerson DeltaV environments, the signal is typically received through DeltaV SIS logic solvers or standard I/O cards, enabling the displacement measurement to participate in safety instrumented functions (SIF) at SIL 2 or SIL 3 levels.

At the power layer, the MMS rack housing the signal conditioning modules is supplied by a PR6428 power supply module or equivalent EPRO rack power unit, ensuring stable, isolated DC power to all sensor channels. Redundant power supply configurations are strongly recommended for critical machinery protection applications, and the PR6424/010-040-CN architecture supports dual-channel redundancy when paired with a second sensor probe on the same shaft journal.

At the communication layer, the MMS 6000 rack supports Modbus RTU, PROFIBUS DP, and OPC DA/UA gateway connectivity, enabling displacement trend data to be forwarded to plant historians such as OSIsoft PI or Aspentech IP.21 for long-term condition monitoring and predictive maintenance analytics. This communication architecture ensures that the PR6424/010-040-CN sensor data is not siloed at the protection layer but is fully visible across the enterprise asset management platform.

At the HMI and visualization layer, displacement waveforms and gap voltage trends are displayed on EPRO MMS 6000 display modules or forwarded to plant SCADA systems via OPC servers. Operators can monitor real-time shaft centerline plots, orbit diagrams, and Bode plots directly from the control room, enabling rapid diagnosis of rotor instability, bearing wear, or misalignment conditions before they escalate to unplanned shutdowns.

At the protection and safety layer, the PR6424/010-040-CN integrates with EPRO MMS 3120 or MMS 6823 relay output modules to provide hardwired trip signals to turbine control systems, emergency shutdown valves, and motor protection relays. This direct hardwired path ensures that machine trip actions are executed within milliseconds of a displacement threshold exceedance, independent of any fieldbus or network latency.

At the maintenance and diagnostics layer, the sensor's coaxial CN connector and standardized cable assembly allow for rapid field replacement without requiring re-calibration of the oscillator/driver module, provided the replacement sensor is from the same PR6424 series with identical sensitivity and gap range. This plug-and-replace compatibility significantly reduces mean time to repair (MTTR) and supports planned maintenance intervals aligned with turbine overhaul schedules.

Power Generation — Steam and Gas Turbines: The PR6424/010-040-CN is widely deployed in steam turbine shaft monitoring systems at thermal power plants, where radial vibration and axial position monitoring are mandatory per API 670 and ISO 7919 standards. The sensor monitors journal bearing clearances and rotor eccentricity in real time, providing the machine protection system with the data needed to initiate controlled shutdowns before catastrophic bearing failure occurs.

Oil and Gas — Centrifugal Compressors: In upstream and midstream compression trains, the PR6424/010-040-CN monitors shaft displacement at both drive-end and non-drive-end bearing positions. Combined with velocity sensors and process variable inputs, the displacement data feeds into surge detection algorithms and anti-surge control loops, protecting compressor trains from surge-induced mechanical damage.

Petrochemical — Reactor Agitator and Pump Monitoring: In reactor agitator drives and large process pump installations, the sensor provides continuous shaft orbit monitoring, enabling early detection of impeller imbalance, seal wear, and coupling misalignment. Integration with the plant DCS allows maintenance teams to schedule corrective actions during planned turnarounds rather than responding to emergency failures.

Metallurgy and Steel — Rolling Mill Drive Monitoring: In heavy rolling mill applications, the PR6424/010-040-CN monitors the radial displacement of main drive motor shafts and gearbox input shafts, where high radial loads and thermal expansion effects create challenging measurement environments. The sensor's IP67 protection and wide operating temperature range ensure reliable performance in the harsh mill environment.

Marine and Offshore — Propulsion System Monitoring: In marine propulsion systems and offshore platform power generation, the sensor is integrated into shaft monitoring systems for diesel generators and gas turbine generators, providing continuous displacement data to the vessel's integrated automation system (IAS) and enabling condition-based maintenance strategies that reduce dry-dock intervals.

Q1: Is the PR6424/010-040-CN compatible with Bently Nevada 3500 series racks and existing EPRO MMS installations? The PR6424/010-040-CN is designed for use within the EPRO PR6424 series ecosystem and is fully compatible with EPRO MMS 6000 and MMS 3000 series signal conditioning racks. For integration with Bently Nevada 3500 series systems, a signal conditioning adapter or dedicated Bently Nevada proximity probe driver (such as the 3300 XL series) is typically required, as the two platforms use different oscillator/driver specifications. We recommend verifying the gap voltage range and sensitivity (mV/µm) compatibility with your existing driver module before installation. Our technical team can provide application-specific compatibility guidance prior to shipment.

Q2: What are the installation and commissioning requirements for achieving accurate displacement measurement in a dual-channel redundant architecture? For dual-channel redundant configurations, two PR6424/010-040-CN sensors should be mounted 90° apart (X-Y configuration) on the same shaft journal, each connected to an independent oscillator/driver channel within the MMS rack. During commissioning, the gap voltage for each sensor must be set to the midpoint of the linear range (typically -10 VDC for a 1.0 mm gap) using a calibrated gap-setting tool or feeler gauge. Both channels should be verified against a reference displacement standard before the machine is brought online. Cable routing should ensure that the coaxial extension cables are shielded from high-voltage power cables and variable frequency drive (VFD) output conductors to prevent EMI-induced signal noise.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The PR6424/010-040-CN carries a 12-Month Warranty from the date of shipment, covering manufacturing defects, calibration drift beyond specification, and connector or cable assembly failures under normal operating conditions. The warranty does not cover damage resulting from installation errors, mechanical impact, chemical contamination, or operation outside the specified temperature and environmental ratings. For critical applications, we recommend maintaining at least one spare PR6424/010-040-CN sensor in your on-site inventory to eliminate lead time risk during unplanned maintenance events. Standard in-stock units are available for same-week dispatch; contact [email protected] or +86 18359268345 for current stock status and expedited shipping options.
