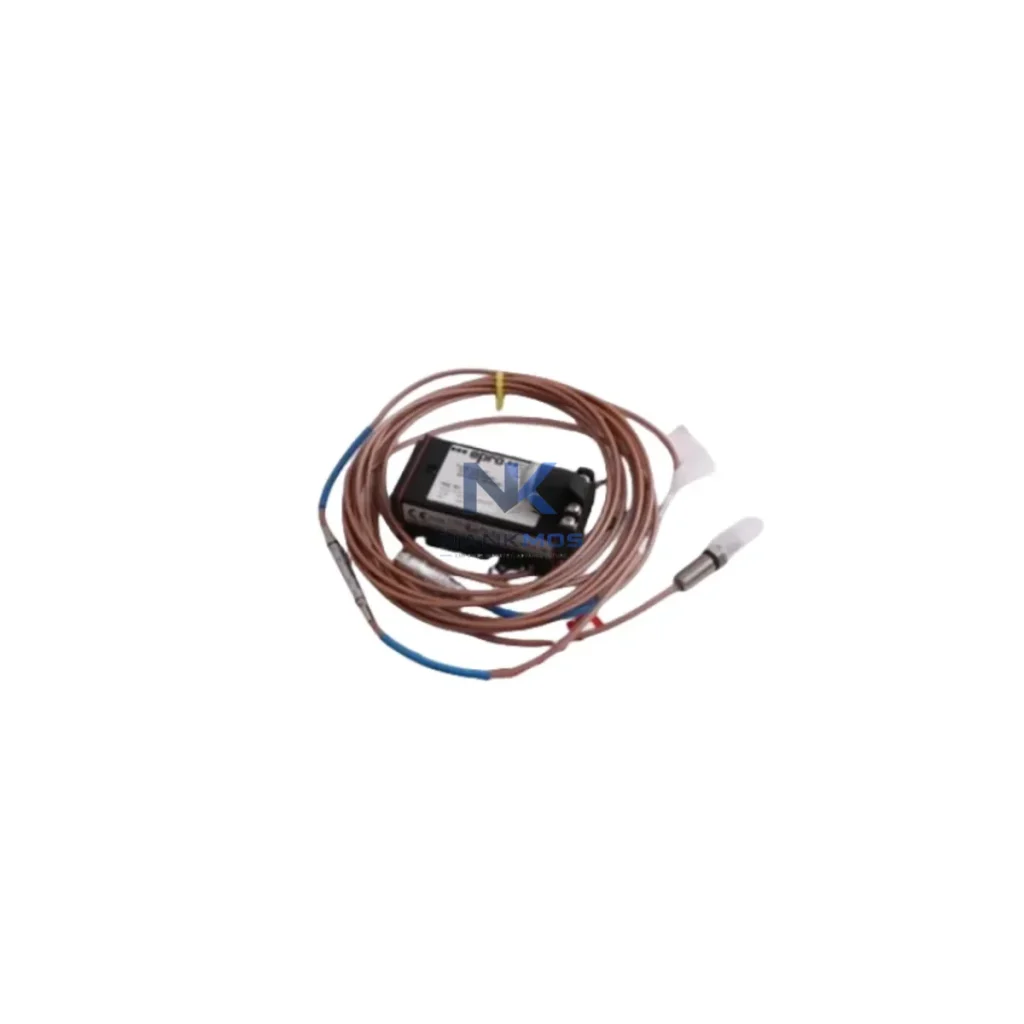

EPRO PR6425/010-100 CON021 Eddy-Current Proximity Sensor

Product Details

PR6425/010-100 CON021 Product Description

The EPRO PR6425/010-100 CON021 is a precision eddy-current proximity sensor engineered for seamless integration within the MMS6000 modular machine protection and monitoring architecture. Designed to deliver continuous, non-contact displacement and vibration measurement, this sensor serves as a foundational signal-acquisition component across the full control hierarchy — from field-level sensing through to supervisory control and data acquisition layers. Its system-matched design ensures signal integrity, architectural consistency, and long-term operational reliability in demanding industrial environments.

In modern industrial automation, no sensor operates in isolation. The PR6425/010-100 CON021 is conceived as an integral node within a layered control architecture, where its output feeds directly into the signal conditioning, protection logic, and diagnostic workflows of the broader MMS6000 platform. Whether deployed in rotating machinery protection, turbine shaft monitoring, compressor axial displacement measurement, or motor bearing surveillance, this sensor delivers the measurement precision and system compatibility required for continuous process integrity.

The PR6425/010-100 CON021 achieves its full operational value when deployed as part of a coherent, multi-layer automation architecture. At the I/O and signal conditioning layer, the sensor pairs with the EPRO PR9268/200 extension cable and PR9376 driver/conditioner module, which linearise the eddy-current output and deliver a calibrated analog voltage to the MMS6000 monitoring rack. This signal chain ensures measurement traceability and eliminates ground-loop interference common in high-noise industrial environments.

At the protection and monitoring layer, the conditioned signal feeds into MMS6000 series monitoring modules — such as the MMS6110 displacement monitor or MMS6120 vibration and speed monitor — which apply configurable alarm and trip thresholds. These modules communicate protection status to the control layer via hardwired relay outputs or digital fieldbus, interfacing with safety PLCs, DCS controllers, or dedicated machine protection systems.

For installations requiring redundant measurement architectures, dual PR6425/010-100 CON021 sensors can be deployed in opposing or orthogonal configurations, with their outputs processed by redundant MMS6000 monitoring channels. This approach satisfies SIL-rated protection requirements and eliminates single-point measurement failure in critical rotating equipment applications.

At the communication layer, MMS6000 gateway modules — including PROFIBUS DP and Modbus RTU/TCP communication interfaces — aggregate sensor data from multiple monitoring channels and transmit structured process variables to the plant DCS or SCADA platform. This enables centralised trending, alarm management, and predictive maintenance workflows without disrupting the hardwired protection logic.

The HMI and supervisory layer receives real-time displacement and vibration data from the MMS6000 system, enabling operators to monitor shaft centreline position, orbital plots, and trend data through compatible HMI panels or SCADA workstations. Integration with System 1 Evolution or equivalent condition monitoring software platforms allows long-term data archiving and machinery health analytics.

At the power supply layer, the MMS6000 rack is typically powered by redundant 24 VDC power supply modules with automatic changeover, ensuring uninterrupted sensor excitation and monitoring continuity during power source transitions. The PR6425/010-100 CON021 sensor draws its operating power from the driver module, which is in turn supplied by the rack power bus — maintaining a clean, regulated supply chain from panel to field.

For terminal and wiring layer integration, the CON021 connector system provides a secure, vibration-resistant field termination that mates directly with MMS6000-compatible junction boxes and marshalling panels. This connector standard simplifies field replacement, reduces installation errors, and supports hot-swap maintenance procedures without requiring system shutdown in non-safety-critical monitoring applications.

Power Generation and Turbomachinery: In gas turbine and steam turbine installations, the PR6425/010-100 CON021 monitors rotor axial position and radial shaft displacement, providing the MMS6000 protection system with the real-time data required to initiate controlled shutdowns before catastrophic bearing or seal failure. Its high-temperature tolerance and IP67 rating make it suitable for turbine bearing pedestals and hot-section proximity measurement.

Petrochemical and Refinery Process Plants: Compressor trains in ethylene, ammonia, and LNG facilities rely on continuous shaft monitoring to maintain process integrity and regulatory compliance. The PR6425/010-100 CON021, integrated within the MMS6000 architecture, provides the API 670-compliant measurement infrastructure required for these critical rotating assets.

Water and Wastewater Treatment: Large pump stations and blower installations benefit from continuous vibration monitoring to detect impeller imbalance, cavitation onset, and bearing degradation. The MMS6000 system with PR6425/010-100 CON021 sensors enables condition-based maintenance scheduling, reducing unplanned downtime in continuous-duty pumping applications.

Mining and Mineral Processing: Ball mills, SAG mills, and large conveyor drive systems present extreme vibration environments. The rugged construction and wide operating temperature range of the PR6425/010-100 CON021 support reliable measurement in these high-shock, high-contamination settings, feeding the MMS6000 protection system with accurate displacement data for mill bearing and drive shaft monitoring.

Marine and Offshore: Propulsion shaft monitoring, auxiliary machinery protection, and diesel generator surveillance on vessels and offshore platforms require sensors capable of withstanding salt-laden atmospheres and continuous mechanical vibration. The PR6425/010-100 CON021's IP67 rating and robust connector system address these environmental demands within the MMS6000 monitoring framework.

Q1: Is the PR6425/010-100 CON021 directly compatible with existing MMS6000 monitoring racks, and does it require recalibration when replacing an in-service unit? The PR6425/010-100 CON021 is designed as a system-matched replacement within the MMS6000 architecture. When paired with the correct PR9376 driver/conditioner module and PR9268 extension cable, the sensor delivers a calibrated output consistent with MMS6000 channel specifications. Field replacement typically requires verification of the gap voltage at the nominal measurement distance (per the MMS6000 commissioning procedure) rather than full system recalibration. Retain the original driver module where possible to preserve the calibrated sensitivity curve.

Q2: Can the PR6425/010-100 CON021 be used in a redundant dual-sensor configuration for SIL-rated protection applications? Yes. Dual PR6425/010-100 CON021 sensors deployed in a 1oo2 or 2oo2 voting architecture — processed by independent MMS6000 monitoring channels — satisfy the redundancy requirements for SIL 1 and SIL 2 machine protection applications. Each sensor channel must be independently powered, conditioned, and wired to separate monitoring modules to eliminate common-cause failure modes. Consult the MMS6000 system architecture guide and applicable IEC 61511 documentation for detailed safety integrity verification.

Q3: What is the warranty coverage and supply lead time for the PR6425/010-100 CON021, and is pre-shipment testing included? Every PR6425/010-100 CON021 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects, signal sensitivity drift beyond published specification, and CON021 connector integrity failure. Prior to dispatch, each unit undergoes full electrical continuity testing, sensitivity verification against a calibrated steel target, and connector mating force inspection. Stock units are available for rapid global dispatch, supporting maintenance schedules and emergency replacement requirements. Contact [email protected] or +86 18359268345 for current stock status and lead time confirmation.
