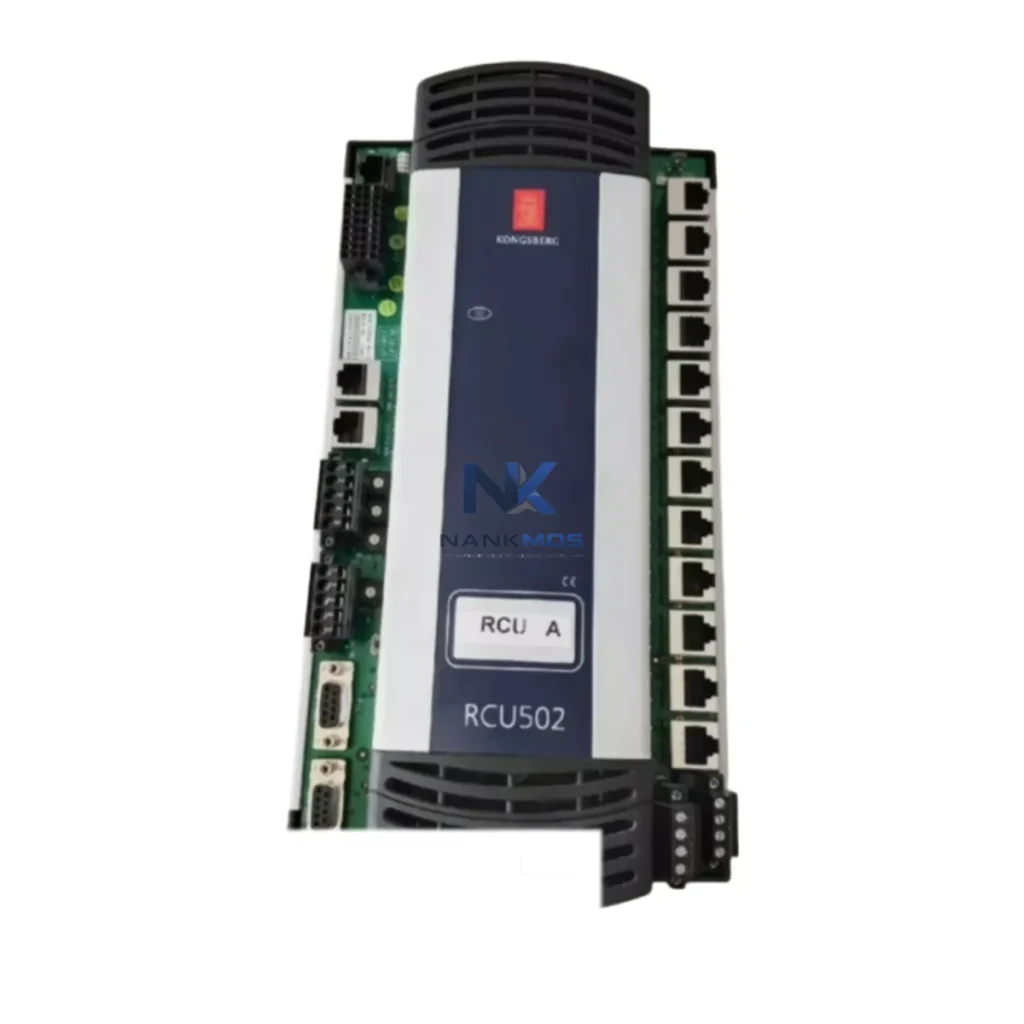

Kongsberg RCU502 Communication Gateway

Product Details

RCU502 Product Description

The Kongsberg RCU502 is a high-performance industrial communication gateway engineered for dynamic positioning (DP) systems and broader smart factory environments. Designed to bridge field-level devices with supervisory control networks, the RCU502 enables seamless data flow across the full automation stack — from sensors and actuators on the vessel or plant floor, through PLC controllers and remote I/O modules, up to HMI panels, SCADA platforms, and enterprise data systems. Its robust multi-protocol architecture makes it a critical node in any industrial data chain where reliability, real-time visibility, and remote diagnostics are non-negotiable.

In modern industrial facilities — whether offshore DP vessels, power generation plants, or process automation sites — data fragmentation remains one of the most persistent operational challenges. The RCU502 addresses this directly by acting as a protocol-aware communication hub, translating and routing signals between heterogeneous systems without data loss or latency spikes. Whether integrating legacy serial devices with modern Ethernet-based control networks, or feeding live operational data into a Kongsberg K-Pos or K-Chief SCADA/HMI system, the RCU502 delivers the connectivity backbone that smart automation demands.

The RCU502 sits at the intersection of field instrumentation and supervisory systems, making it indispensable in any layered automation architecture. At the field level, position reference sensors — including GPS/DGPS receivers, gyrocompasses, wind sensors, and draft sensors — feed raw NMEA 0183 or NMEA 2000 data streams into the RCU502's multi-port serial interfaces. The unit performs real-time protocol normalization, converting these signals into formats compatible with the Kongsberg K-Pos DP controller, which then executes thruster allocation and vessel positioning commands.

Upstream, the RCU502 interfaces with the Kongsberg K-Chief vessel management system, forwarding operational parameters — engine load, fuel consumption, alarm states — to the ship's integrated automation network. Simultaneously, Modbus TCP output channels connect to remote I/O modules and industrial Ethernet switches distributed across machinery spaces, enabling distributed sensor data aggregation without dedicated cabling runs to each endpoint. This architecture mirrors the distributed I/O strategies used in shore-based smart factories, where Profibus DP or EtherNet/IP remote I/O racks collect field signals and relay them to central PLCs over managed switch infrastructure.

For HMI integration, the RCU502 provides structured data feeds to Kongsberg K-Bridge navigation and control panels as well as third-party HMI terminals running on industrial PCs. Operators gain real-time visibility into positioning accuracy, thruster status, and environmental load — all rendered on graphical displays without manual data entry. When connected to a SCADA gateway or edge computing node, the RCU502 enables cloud-level data aggregation: time-series operational data is streamed to historian databases, where analytics platforms generate trend reports, predictive maintenance alerts, and KPI dashboards accessible from onshore operations centers.

In hybrid automation environments, the RCU502 also supports integration with variable frequency drives (VFDs) controlling thruster motors or pump systems, receiving speed reference commands from the DP controller and returning actual speed and fault status via Modbus RTU. Uninterruptible power supply (UPS) modules and industrial power conditioners protect the RCU502 and its connected network nodes from voltage transients, ensuring continuous data flow during power grid disturbances — a critical requirement in offshore and remote industrial sites.

Industrial automation sites — whether offshore vessels, petrochemical plants, or power generation facilities — routinely face data integration challenges that undermine operational efficiency and safety. The RCU502 is purpose-built to resolve the most common of these:

Protocol Fragmentation: Legacy serial devices running NMEA 0183 or Modbus RTU cannot natively communicate with modern Ethernet-based SCADA or HMI systems. The RCU502 performs transparent protocol conversion, eliminating the need for custom middleware or proprietary adapters. A single RCU502 unit can simultaneously serve multiple protocol domains, reducing hardware complexity and integration cost.

Data Silos: When field instruments, PLCs, and supervisory systems operate on isolated networks, operators lose the cross-system visibility needed for informed decision-making. The RCU502 bridges these silos by routing normalized data to all connected systems in real time, ensuring that the K-Pos DP controller, the K-Chief management system, and the onshore SCADA platform all operate from a single, consistent data source.

Remote Monitoring and Diagnostics: Offshore and remote industrial sites make physical inspection costly and time-consuming. The RCU502's network-connected architecture enables remote diagnostics via SCADA or dedicated network management tools. Alarm states, communication fault flags, and data quality indicators are transmitted upstream in real time, allowing engineering teams to identify and resolve issues without dispatching field personnel.

Production Line Transparency: In smart factory contexts, the RCU502 enables end-to-end production visibility by connecting sensors, actuators, and controllers into a unified data network. Alarm tracking, event logging, and historical data retrieval become straightforward, supporting both real-time response and post-incident analysis.

System Scalability: As automation networks grow — adding new sensors, expanding to additional machinery spaces, or integrating new SCADA modules — the RCU502's modular port architecture accommodates incremental expansion without requiring network redesign. This scalability is essential for facilities planning phased Industry 4.0 upgrades.

Q1: What communication protocols does the Kongsberg RCU502 support, and is it compatible with third-party SCADA systems? The RCU502 supports NMEA 0183, NMEA 2000, Modbus RTU/TCP, RS-232/RS-422/RS-485 serial, and Ethernet TCP/IP, making it compatible with a wide range of SCADA platforms, HMI systems, and PLC controllers beyond the Kongsberg ecosystem. Third-party integration is achievable via standard Modbus TCP or serial interfaces.

Q2: How does the RCU502 ensure network stability and minimize communication latency in real-time control applications? The RCU502 is designed for deterministic, low-latency data routing. Its hardware-level protocol conversion avoids software stack delays, and its isolated serial ports prevent ground loop interference that can cause intermittent communication faults. For DP applications where positioning data must be delivered within strict cycle times, the RCU502's architecture ensures consistent throughput under full load.

Q3: Can the RCU502 support remote diagnostics and alarm management without on-site access? Yes. When integrated into a networked SCADA or vessel management system, the RCU502 transmits communication status, fault flags, and data quality indicators in real time. Remote engineering teams can monitor gateway health, identify protocol errors, and initiate corrective actions through the supervisory system without requiring physical access to the unit.

Q4: What quality assurance and warranty coverage is provided with the RCU502? Every RCU502 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify all communication ports, protocol conversion paths, and network interfaces. The unit is covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch, supporting urgent maintenance and retrofit requirements.
