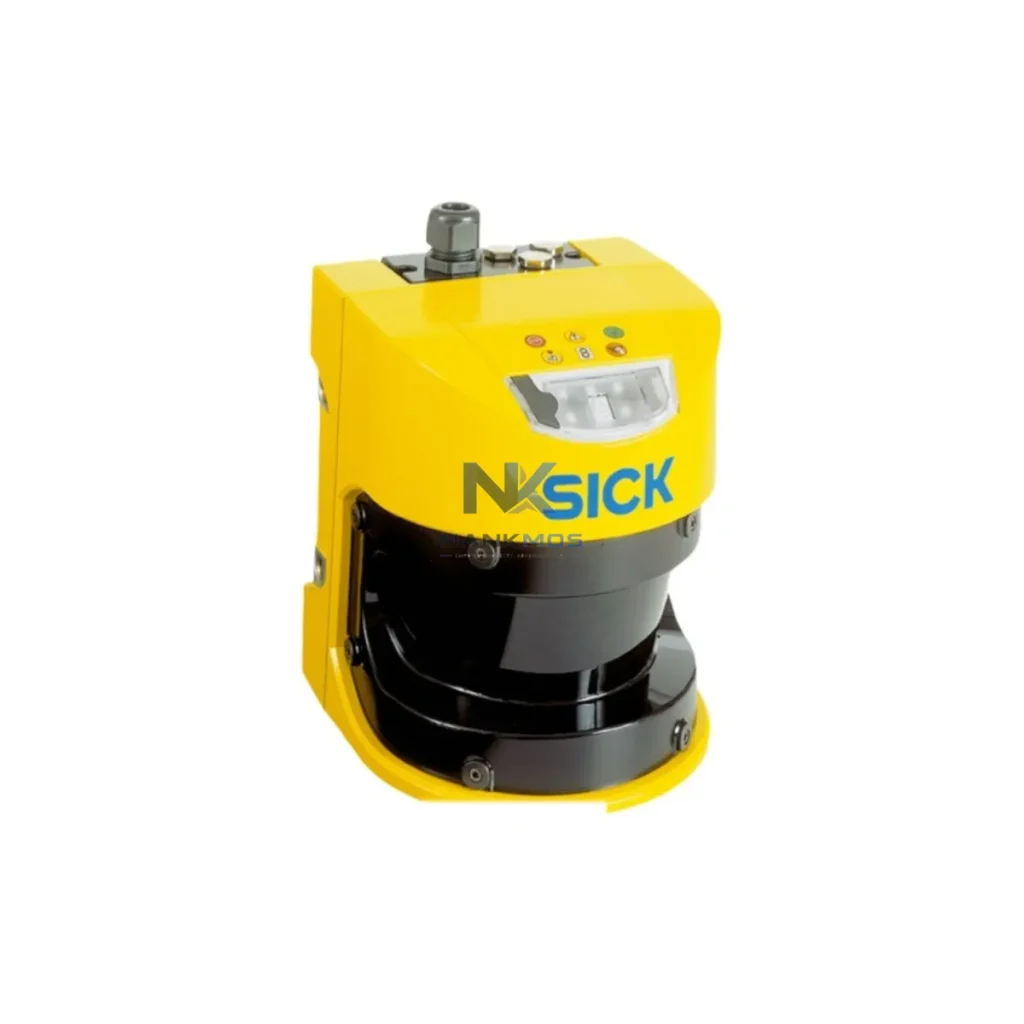

SICK S30A-6011BA Safety Laser Scanner

Product Details

S30A-6011BA Product Description

The SICK S30A-6011BA is a high-performance safety laser scanner engineered for energy-conscious industrial environments where zone monitoring precision, load management, and production line continuity are non-negotiable. Designed for integration into smart manufacturing cells, automated guided vehicle (AGV) systems, and collaborative robot perimeters, the S30A-6011BA delivers reliable protective field switching while actively contributing to a facility's energy optimization strategy. With a scanning range of up to 3 meters in safety mode and a wide 270° field of view, this scanner enables factories to reduce unnecessary machine stops, lower thermal load on control cabinets, and maintain consistent production rhythm without sacrificing personnel safety.

At its core, the S30A-6011BA operates on SICK's proven S30A platform — a series recognized across process industries, automotive assembly, and intralogistics for its robust detection capability and low standby power draw. Unlike conventional safety devices that remain in full-power polling mode regardless of zone activity, the S30A-6011BA supports configurable field sets that allow the host PLC to dynamically switch between protective zones based on machine state, reducing unnecessary sensor activation cycles and the associated energy overhead. This makes it an ideal component in any power-aware automation strategy targeting measurable reductions in kWh consumption per production shift.

Deploying the SICK S30A-6011BA within a power-aware automation architecture requires thoughtful integration with the broader control and monitoring ecosystem. In a typical smart production cell, the scanner interfaces directly with a Siemens S7-1200 or S7-1500 PLC via a SICK Flexi Soft safety controller, which manages field set switching commands based on machine operating mode signals. This eliminates the need for the scanner to maintain maximum-range polling during low-activity periods, directly reducing the sensor's contribution to the facility's aggregate electrical load.

For drive-level energy management, the S30A-6011BA works in concert with variable frequency drives (VFDs) such as the Siemens SINAMICS G120 or ABB ACS880. When the scanner detects a zone intrusion and triggers a protective stop, the safety output signal can be routed to the drive's STO (Safe Torque Off) input, cutting motor power without a full system shutdown. This coordinated response — scanner to safety controller to VFD — minimizes inrush current events during restart cycles and reduces thermal stress on motor windings, extending equipment service life and lowering maintenance-related downtime.

Power monitoring is handled upstream by modules such as the SICK PowerMonitor or third-party power measurement units integrated into the SCADA layer. Real-time consumption data from these modules, combined with the scanner's zone-activity logs, allows energy managers to correlate production throughput with actual kWh expenditure per shift. The SICK S30A-6011BA's diagnostic outputs — accessible via EtherNet/IP or PROFINET — feed directly into HMI panels such as the Siemens SIMATIC TP700 Comfort, giving operators a live view of scanner status, field set configuration, and any contamination warnings that could degrade detection performance and force unplanned stops.

On the I/O side, the scanner's OSSD (Output Signal Switching Device) outputs connect to the safety I/O modules of the host controller, while standard I/O channels carry field set selection signals from the PLC's digital output cards. For facilities running EtherNet/IP networks, the S30A-6011BA can be addressed alongside servo drives, remote I/O blocks, and communication gateways on a single industrial Ethernet backbone, simplifying network topology and reducing cabling overhead. Sensor-level data — including ambient light interference readings and internal temperature — can be forwarded to a SICK InspectorP or similar vision/sensor gateway for centralized diagnostics, supporting a predictive maintenance posture that prevents energy-wasting degraded-performance operation.

In high-throughput manufacturing environments, unplanned safety stops are among the most significant sources of energy waste. Each emergency stop followed by a full restart cycle consumes disproportionate power — motors draw peak inrush current, pneumatic systems repressurize, and heating elements in process equipment cycle back to operating temperature. The SICK S30A-6011BA addresses this at the source by providing highly reliable, low-false-positive zone detection that minimizes nuisance trips. Its multi-echo technology filters out dust, steam, and ambient particulates that would otherwise trigger spurious stops on less capable scanners, keeping the production line running at its designed takt time.

The scanner's configurable warning and protective fields allow production engineers to define graduated response zones: an outer warning field that triggers a speed reduction command to the VFD, and an inner protective field that initiates a controlled stop via the safety controller. This two-stage approach means that in many intrusion scenarios, the line slows rather than stops entirely — preserving production rhythm, reducing restart energy spikes, and extending the service intervals of mechanical components subjected to repeated stop-start stress.

From a thermal management perspective, the S30A-6011BA's low power consumption (≤ 4.5 W typical) contributes minimally to control cabinet heat load. In dense automation panels where multiple safety devices, I/O modules, and communication gateways are co-located, aggregate heat generation directly impacts cooling system energy demand. Specifying low-power safety sensors like the S30A-6011BA is a straightforward measure for reducing HVAC load in electrical rooms and control enclosures, with measurable impact on annual energy budgets in large-scale facilities.

For predictive maintenance integration, the scanner's internal diagnostic data — contamination level, temperature, operating hours — can be polled by the PLC on a scheduled basis and logged to a historian or MES system. Trending this data against production output metrics enables maintenance teams to schedule cleaning and calibration during planned downtime windows rather than reacting to failures, eliminating the energy and productivity cost of unscheduled stops. Combined with inventory readiness — the S30A-6011BA is maintained in stock at NANKMOS for rapid dispatch — facilities can execute replacement cycles without extended lead-time exposure. All units ship with a 12-Month Warranty, covering manufacturing defects and supporting the total cost of ownership calculations that energy and operations managers rely on for capital planning.

Q1: How does the SICK S30A-6011BA contribute to measurable energy savings on a production line? The S30A-6011BA reduces energy waste primarily by minimizing nuisance stops through reliable multi-echo detection. Fewer unplanned stops mean fewer high-inrush restart cycles for motors and drives. Its configurable dual-field (warning + protective) architecture allows speed reduction before a full stop, further smoothing power demand. At ≤ 4.5 W operating power, it also contributes negligibly to control cabinet thermal load, reducing cooling overhead in dense panel environments.

Q2: Which control systems and communication protocols is the S30A-6011BA compatible with? The S30A-6011BA is compatible with major industrial control platforms including Siemens S7-series PLCs (via PROFINET or standard I/O), Allen-Bradley systems (via EtherNet/IP), and safety controllers such as the SICK Flexi Soft. It supports CANopen for legacy installations. Field set switching is managed via digital I/O from the host PLC, making integration straightforward across most existing automation architectures without gateway hardware.

Q3: Can the S30A-6011BA replace an existing safety laser scanner from another brand, and what is the testing process? The S30A-6011BA can replace scanners of equivalent safety rating (Type 3, PLd, SIL 2) from other manufacturers, subject to a site-specific risk assessment and field validation. The replacement process involves remapping OSSD outputs to the existing safety I/O, reconfiguring field sets to match the original protective geometry, and performing a full functional test per IEC 62046. NANKMOS supplies units pre-tested for electrical integrity, and the 12-Month Warranty covers the replacement unit from the date of dispatch.

Q4: What is the stock availability and warranty coverage for the SICK S30A-6011BA at NANKMOS? The SICK S30A-6011BA is maintained in ready stock at NANKMOS for prompt order fulfillment, minimizing lead time for both planned replacements and urgent maintenance scenarios. Each unit is dispatch-tested for output signal integrity and communication function before shipment. The 12-Month Warranty covers manufacturing defects under normal operating conditions, providing procurement and maintenance teams with a reliable cost-of-ownership baseline for capital and maintenance budget planning.
