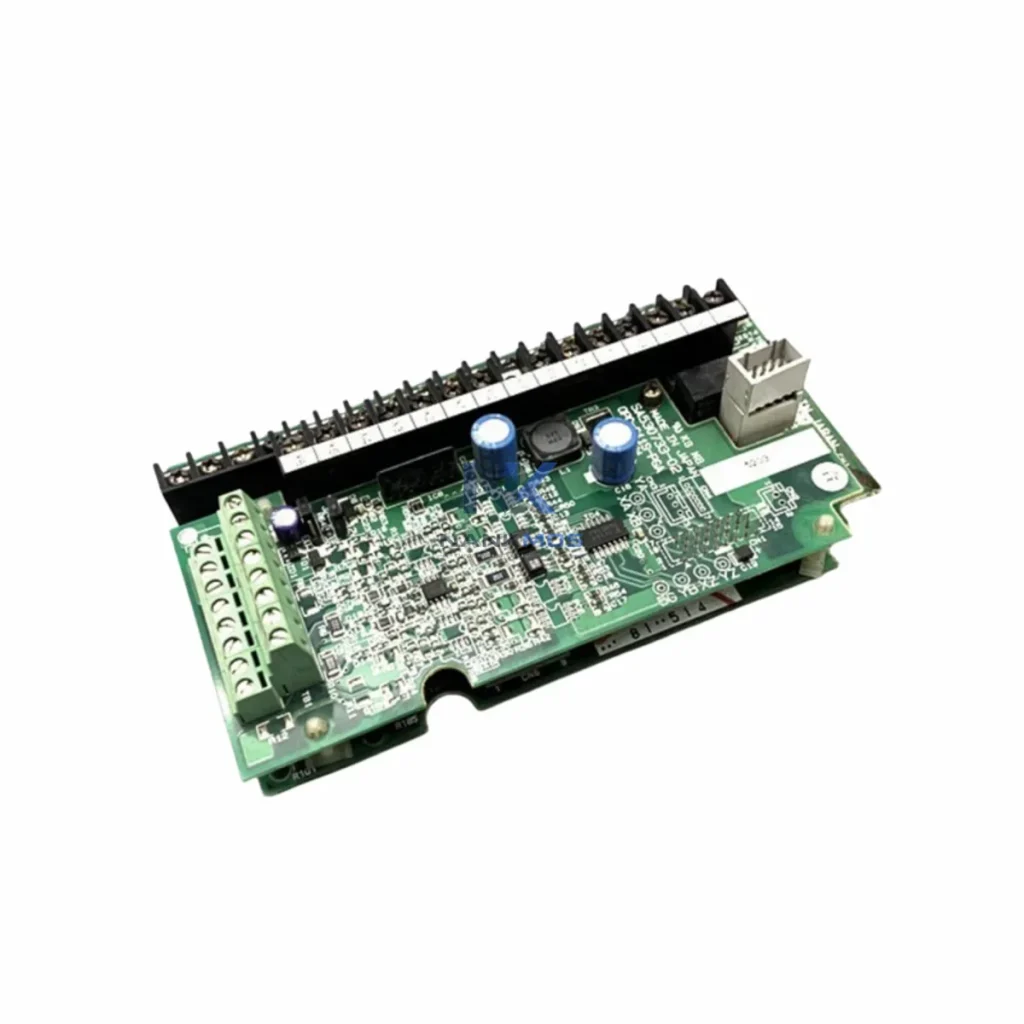

Fuji Electric SA530733-02 OPC-G11S-PGA

Product Details

SA530733-02 OPC-G11S-PGA Product Description

The Fuji Electric OPC-G11S-PGA (SA530733-02) is a PROFIBUS-DP communication option card engineered for seamless integration into the G11S variable frequency drive platform. Within a layered industrial control architecture, this card occupies the critical communication layer, bridging the drive's execution layer with the supervisory control and data acquisition (SCADA) or PLC control layer via a deterministic, high-speed fieldbus.

In a complete G11S-based automation cell, the OPC-G11S-PGA works in close coordination with the FRENIC-G11S main drive unit as the host platform, receiving cyclic process data (speed reference, torque command, run/stop) and returning real-time feedback (output frequency, current, fault status) to the PROFIBUS master. The drive's internal keypad panel TP-G11S or remote operator panel provides local parameter access and commissioning support without interrupting fieldbus communication, enabling parallel engineering workflows during system startup.

At the control layer, the OPC-G11S-PGA interfaces directly with PROFIBUS-DP masters such as the Siemens SIMATIC S7-300/S7-400 CPU or Schneider Modicon M340/M580 PLC, using standard GSD file configuration to define the drive's I/O data structure. This eliminates proprietary gateway dependencies and reduces integration engineering time significantly. For multi-drive architectures, multiple G11S drives — each equipped with an OPC-G11S-PGA — can be daisy-chained on a single PROFIBUS segment, supporting up to 126 nodes per segment with repeater extension.

The power layer of the control cabinet is typically supported by Fuji Electric PSR series power supplies or equivalent 24 VDC DIN-rail units, ensuring stable auxiliary power for the PLC, I/O modules, and communication infrastructure. The OPC-G11S-PGA itself draws power directly from the G11S option slot, eliminating the need for a dedicated external supply and simplifying cabinet wiring. For installations requiring enhanced signal integrity on long PROFIBUS cable runs, PROFIBUS-DP repeaters and bus terminators are recommended at segment endpoints to maintain signal quality at baud rates up to 12 Mbps.

In the I/O layer, the G11S drive's built-in analog and digital I/O terminals — including multi-function input terminals X1–X9 and analog input terminals 12/C1 — remain fully operational alongside the OPC-G11S-PGA, allowing hybrid control architectures where hardwired safety interlocks (via Fuji Electric SZ series safety relays or equivalent) coexist with fieldbus-based process control. This layered approach supports both functional safety requirements and operational flexibility.

For HMI integration, the OPC-G11S-PGA-equipped G11S drive can be monitored and controlled through Fuji Electric V9 series HMI panels or third-party SCADA systems connected to the PROFIBUS master PLC, providing operators with real-time drive status, energy consumption data, and fault diagnostics on a unified visualization platform. In distributed control architectures, PROFIBUS-DP/PA segment couplers extend fieldbus reach into hazardous or process-intensive zones, maintaining communication continuity across the full plant topology.

For redundancy-critical applications, the G11S platform supports bypass contactor schemes and dual-drive redundancy configurations where the OPC-G11S-PGA enables the standby drive to receive the same PROFIBUS process data as the active drive, facilitating bumpless transfer on fault detection. Combined with Fuji Electric SC series contactors and motor protection relays, this architecture delivers the fault tolerance required in continuous-process industries such as petrochemical, water treatment, and power generation.

Manufacturing & Assembly Lines: In automotive and general manufacturing environments, the OPC-G11S-PGA enables precise speed and torque control of conveyor drives, spindle motors, and positioning axes via PROFIBUS-DP, synchronized with PLC-controlled motion sequences. The card's auto baud-rate detection simplifies multi-vendor line integration where PROFIBUS segments span multiple machine cells with varying communication speeds.

Power Generation & Utilities: In power plant auxiliary systems — including cooling water pumps, induced draft fans, and boiler feed pumps — the OPC-G11S-PGA provides the fieldbus interface required for DCS integration. Operators can monitor drive output frequency, motor current, and thermal status in real time through the plant DCS, enabling predictive maintenance scheduling and reducing unplanned downtime.

Petrochemical & Process Industries: In refinery and chemical plant applications, the OPC-G11S-PGA supports integration of G11S-driven process pumps and compressors into PROFIBUS-based DCS architectures. The card's robust electrical isolation and compliance with EN 50170 ensure reliable communication in electrically noisy environments typical of heavy process industries.

Water & Wastewater Treatment: Municipal water treatment facilities use PROFIBUS-DP networks to centralize control of pump stations, aeration blowers, and sludge handling drives. The OPC-G11S-PGA enables G11S drives to participate fully in these networks, reporting flow rates, energy consumption, and fault conditions to SCADA systems for regulatory compliance reporting and remote operation.

Mining & Metallurgy: In ore processing and smelting operations, the OPC-G11S-PGA supports integration of high-power G11S drives controlling crushers, mills, and conveyor systems into plant-wide PROFIBUS networks. The card's wide operating temperature range and vibration tolerance make it suitable for the demanding environmental conditions of mining infrastructure.

Q1: Is the OPC-G11S-PGA compatible with all PROFIBUS-DP master controllers, and what configuration files are required? The OPC-G11S-PGA is compatible with any standard PROFIBUS-DP Class 1 master, including Siemens SIMATIC S7, Schneider Modicon, ABB AC500, and Rockwell ControlLogix with PROFIBUS scanner modules. Configuration requires the drive's GSD (General Station Description) file, which defines the cyclic I/O data structure (process data objects: speed reference, control word, status word, output frequency). The GSD file is available from Fuji Electric's technical documentation portal. No proprietary software is required beyond the master PLC's standard PROFIBUS configuration tool (e.g., Siemens STEP 7 / TIA Portal HW Config, Unity Pro for Schneider).

Q2: Can multiple OPC-G11S-PGA cards be used on the same PROFIBUS segment, and what are the architectural limits? Yes. Each G11S drive equipped with an OPC-G11S-PGA occupies one PROFIBUS node address (configurable via drive parameters). A single PROFIBUS-DP segment supports up to 32 nodes without repeaters and up to 126 nodes with repeaters, making it practical to control large arrays of G11S drives from a single PLC CPU. For installations with long cable runs or high node counts, PROFIBUS-DP repeaters and proper bus termination at segment endpoints are essential to maintain signal integrity at higher baud rates (1.5 Mbps and above). Node address conflicts must be avoided during commissioning — each drive must be assigned a unique PROFIBUS address before connecting to the live segment.

Q3: What does the 12-Month Warranty cover for the OPC-G11S-PGA, and how does NANKMOS support long-term inventory availability? All OPC-G11S-PGA units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify PROFIBUS communication initialization, parameter read/write via fieldbus, and option slot electrical integrity before dispatch. For long-term project support, NANKMOS maintains dedicated inventory of G11S communication option cards to support both new installations and maintenance replacements. Customers with multi-site or multi-year maintenance contracts are encouraged to contact NANKMOS to discuss reserved stock arrangements and extended supply agreements. For technical support, warranty claims, or inventory inquiries, contact: [email protected] | +86 18359268345.
