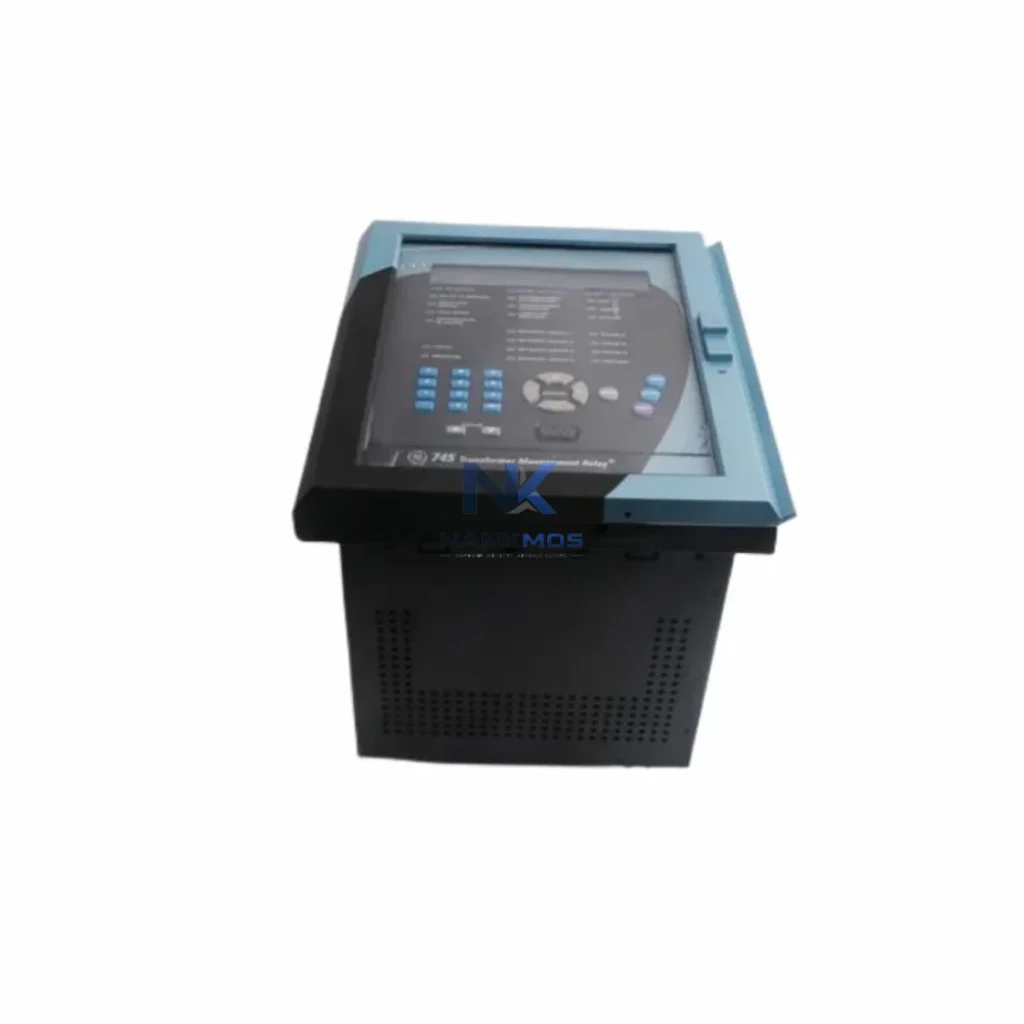

GE Multilin SR745-CASE 745-W2-P5-G5-HI-T

Product Details

SR745-CASE 745-W2-P5-G5-HI-T Product Description

The GE Multilin SR745-CASE is a high-performance transformer protection relay engineered for energy-conscious industrial environments. Built on the proven Multilin SR745 platform, this unit delivers comprehensive differential, overcurrent, and thermal protection for power transformers operating within smart production lines. By continuously monitoring transformer loading, fault conditions, and thermal stress, the SR745-CASE enables facilities to eliminate reactive energy waste, reduce unplanned downtime, and maintain stable production throughput — all while supporting a 12-Month Warranty and verified pre-shipment testing protocol.

Designed for integration within modern energy management architectures, the SR745-CASE interfaces seamlessly with upstream SCADA systems and downstream PLC controllers, providing real-time protection status and energy data that feeds directly into load management decisions. Its configurable I/O architecture supports hardwired interlocks with motor control centers, variable frequency drives (VFDs), and industrial power distribution panels, making it a cornerstone component in any power-aware automation strategy.

The SR745-CASE operates as a critical node within a layered power-aware automation architecture. In a typical smart production line deployment, the relay receives current and voltage signals from dedicated metering-class CTs and VTs installed on the transformer primary and secondary windings. These analog inputs feed the SR745's internal DSP engine, which continuously calculates differential currents, thermal replica states, and harmonic restraint values — all without adding measurable burden to the power monitoring infrastructure.

On the control side, the SR745-CASE communicates over Modbus RTU or DNP3 to a plant-level PLC — such as a GE PACSystems RX3i or equivalent Siemens S7-300 controller — enabling the PLC to read protection status registers, trip counters, and thermal capacity used (TCU) values in real time. This data stream integrates directly into energy management system (EMS) dashboards, where operators can correlate transformer loading trends with production schedules and adjust load shedding sequences accordingly.

When a downstream motor drive — for example, a GE AF-600 FP variable frequency drive or an ABB ACS880 series VFD — initiates a high-inrush start sequence, the SR745-CASE's inrush restraint algorithm suppresses nuisance tripping while still maintaining full differential protection sensitivity. This coordination eliminates the energy penalty associated with false trips and subsequent cold-start restarts, which can consume 3–7× rated current and generate significant thermal stress on transformer windings.

The relay's programmable output contacts interface with motor control center (MCC) bus tie breakers and automatic transfer switches (ATS), enabling fast load transfer sequences that maintain production continuity during transformer fault events. Paired with a GE Multilin 750/760 feeder protection relay on the incoming feeder, the SR745-CASE forms a coordinated protection zone that minimizes fault energy let-through and reduces arc flash incident energy at the transformer secondary bus.

For facilities running IEC 61850-compliant substations, the SR745-CASE supports GOOSE messaging integration with IEC 61850 logical nodes, enabling peer-to-peer protection interlocking with bay controllers, merging units, and intelligent electronic devices (IEDs) from the same protection tier. This eliminates hardwired interlock cabling, reduces panel wiring labor, and improves protection response times to sub-millisecond levels — a measurable contribution to overall system energy efficiency and equipment longevity.

Transformer protection is often overlooked as an energy optimization lever, yet unprotected or poorly protected transformers are among the largest sources of avoidable energy loss in industrial facilities. Overloaded transformers operate at elevated core temperatures, increasing resistive losses in windings (I²R losses) and accelerating insulation degradation. The SR745-CASE addresses this directly through its thermal model protection (ANSI 49), which tracks winding hot-spot temperature in real time and issues pre-alarm warnings before thermal limits are reached — giving operators time to redistribute loads rather than trip the transformer offline.

By integrating SR745-CASE trip and alarm data into a plant SCADA or MES platform, production schedulers can implement demand-response strategies that shift energy-intensive processes — such as large motor starts, resistance heating cycles, or compressor loading — away from peak transformer loading periods. This load-shaping approach reduces peak demand charges, lowers transformer aging rates, and extends mean time between failures (MTBF) for the entire power distribution tier.

The relay's event recorder and oscillography capture capabilities provide post-fault data that maintenance teams use to identify recurring overload patterns, poor power factor conditions, or harmonic distortion sources. When combined with a dedicated power quality analyzer or a GE Multilin EPM 9450 power monitoring module, this data enables root-cause analysis that drives targeted energy efficiency improvements — replacing reactive maintenance with a predictive maintenance model that reduces unplanned downtime by up to 40% in documented industrial deployments.

For production lines with variable throughput — such as automotive stamping, food processing, or chemical batch operations — the SR745-CASE's adaptive protection settings groups allow operators to switch between pre-configured protection profiles that match transformer loading to production mode. A light-load profile during shift changeover reduces protection sensitivity thresholds and enables tighter thermal monitoring, while a full-production profile activates high-speed differential protection to guard against fault escalation during peak energy draw. This dynamic protection strategy directly supports production line rhythm stability and equipment utilization targets.

All units are shipped from verified in-stock inventory, pre-tested against GE Multilin factory acceptance criteria, and covered by a 12-Month Warranty from date of shipment. Each SR745-CASE undergoes functional verification of protection element pickup, timing accuracy, and communication port integrity before dispatch — ensuring zero-delay commissioning on arrival at site.

Q1: What energy saving benefits does the SR745-CASE provide compared to a standard overcurrent relay? Unlike a basic overcurrent relay, the SR745-CASE includes a thermal replica model (ANSI 49) that continuously tracks transformer winding temperature and issues pre-alarm warnings before thermal limits are breached. This prevents the energy losses associated with transformer overloading — including elevated I²R winding losses and core saturation — and avoids the significant energy penalty of an unplanned trip and cold restart sequence. Facilities typically report measurable reductions in transformer-related energy waste within the first quarter of deployment.

Q2: Which PLC and SCADA systems is the SR745-CASE compatible with? The SR745-CASE supports Modbus RTU, Modbus TCP/IP, DNP3, and IEC 60870-5-103 communication protocols, making it compatible with the majority of industrial PLC platforms and SCADA systems in use today — including GE PACSystems, Siemens S7 series, Rockwell ControlLogix, Schneider Electric Modicon, and ABB AC500. For IEC 61850 environments, GOOSE messaging integration is supported, enabling direct peer-to-peer interlocking with bay controllers and merging units without additional protocol converters.

Q3: Can the SR745-CASE replace an existing GE Multilin SR745 unit already installed in the field? Yes. The SR745-CASE is a direct form-factor replacement for existing SR745 installations. The CASE suffix denotes the chassis/enclosure configuration, and the full model string 745-W2-P5-G5-HI-T defines the specific I/O, communication, and hardware options. Before ordering, verify that the installed unit's option codes match the replacement requirement. Our technical team can assist with cross-referencing existing nameplate data to confirm compatibility and minimize commissioning time.

Q4: What does the 12-Month Warranty cover, and what is the pre-shipment testing process? Every SR745-CASE unit is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a structured acceptance test that verifies protection element pickup accuracy, output relay operation, communication port functionality, and HMI display integrity. Units that do not pass all test criteria are quarantined and not shipped. In-stock units are available for same-week dispatch, and test records are available upon request for quality documentation purposes.
