TM0182-A50-B01-C00 Product Description

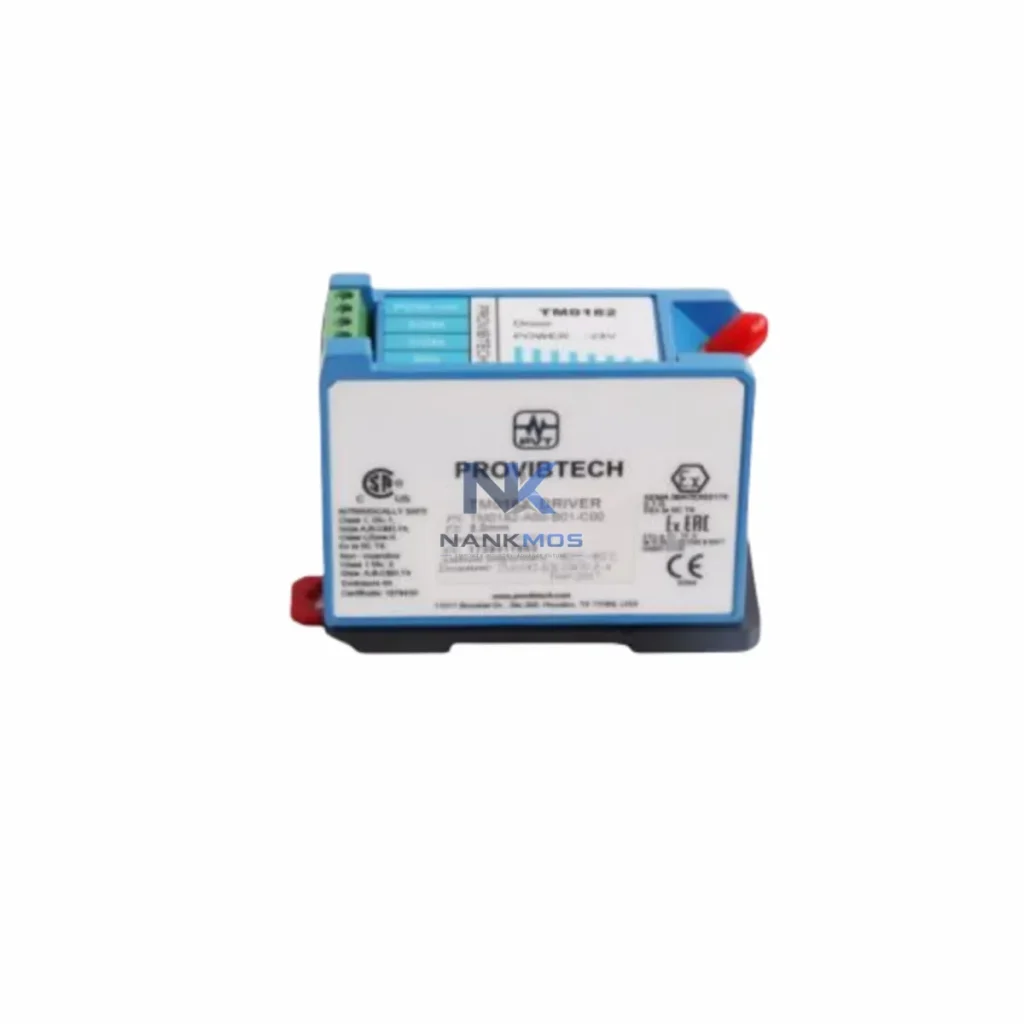

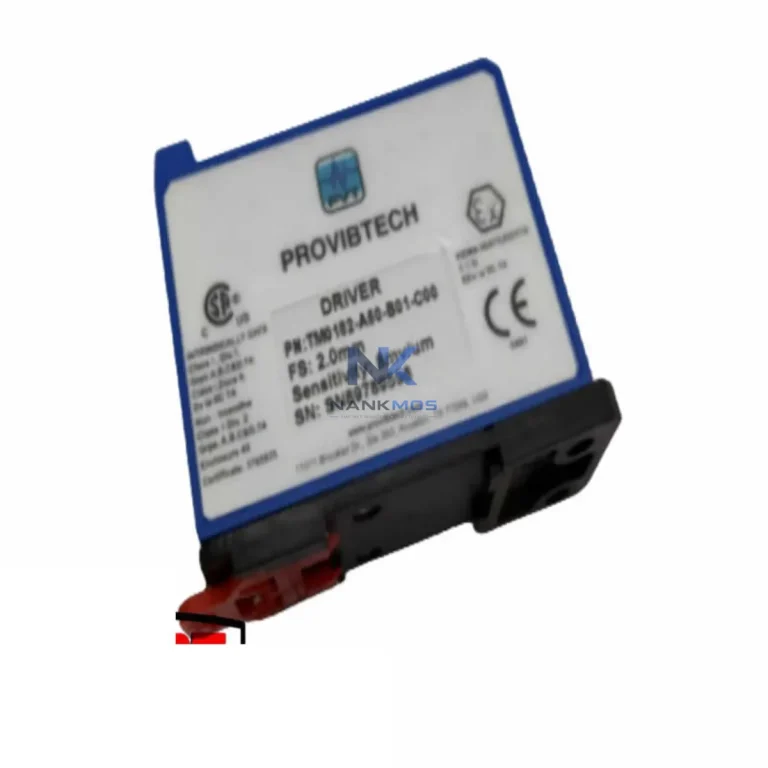

The Provibtech TM0182-A50-B01-C00 is a high-performance vibration communication gateway engineered for the TM Series platform, purpose-built to bridge field-level vibration sensors and rotating machinery monitors with upper-level control and supervisory systems. In modern smart factory environments, vibration data from critical rotating assets — motors, pumps, compressors, fans, and gearboxes — must be captured, converted, and transmitted in real time to enable predictive maintenance, condition monitoring, and production continuity. The TM0182-A50-B01-C00 sits at the heart of this data chain, delivering reliable protocol conversion, deterministic network communication, and seamless integration across the full automation stack.

From the moment a vibration transducer detects an anomaly on a rotating shaft, the TM0182-A50-B01-C00 captures the raw signal, processes it through its onboard communication engine, and transmits structured diagnostic data upstream — through PLCs, DCS controllers, SCADA platforms, and HMI terminals — without data loss or latency spikes. This end-to-end data flow is what separates reactive maintenance from intelligent, data-driven asset management.

The TM0182-A50-B01-C00 is designed to operate as a central communication node within a layered industrial network architecture. At the field level, vibration sensors and accelerometers mounted on rotating equipment feed raw analog or digital signals into the TM Series monitoring modules. The TM0182-A50-B01-C00 aggregates these signals and converts them into structured digital data packets using Modbus RTU over RS-485 — a protocol widely supported by Siemens S7-300/S7-400 PLCs, Schneider Electric Modicon M340 controllers, and ABB AC500 series PLCs deployed across process industries.

At the network layer, the gateway bridges the RS-485 serial bus to Industrial Ethernet via Modbus TCP/IP, enabling direct integration with Wonderware InTouch SCADA, Ignition by Inductive Automation, and GE iFIX supervisory platforms. Operators at the HMI level — using Siemens SIMATIC HMI panels or Weintek cMT Series touchscreens — can visualise real-time vibration trends, velocity RMS values, and bearing fault indicators without requiring additional protocol converters or middleware.

For facilities running PROFIBUS DP backbones, the TM0182-A50-B01-C00's protocol architecture supports transparent data forwarding to PROFIBUS master controllers, allowing vibration diagnostics to coexist on the same network segment as remote I/O modules, variable frequency drives (VFDs), and distributed control nodes. This eliminates the need for separate wiring runs and reduces panel footprint significantly.

In edge computing deployments, the gateway interfaces with industrial edge servers and IoT gateways — such as Moxa UC-8100 series or Advantech WISE-5000 edge controllers — enabling local data pre-processing, alarm filtering, and buffered transmission to cloud-based asset management platforms. This architecture ensures that even during WAN interruptions, critical vibration alarm data is retained locally and synchronised once connectivity is restored.

The TM0182-A50-B01-C00 also integrates naturally with Provibtech's own TM Series ecosystem, including TM0180 series vibration monitors, TM0100 series proximity probes, and TM0160 series keyphasor modules. Together, these components form a complete machinery protection and condition monitoring network — from raw signal acquisition through to SCADA-level data visualisation and historian archiving.

Power supply for the gateway is typically sourced from 24 VDC industrial DIN-rail power supplies, compatible with Phoenix Contact QUINT series or MEAN WELL DR series units, ensuring stable, noise-filtered power delivery in electrically demanding plant environments. Industrial Ethernet switches — such as Moxa EDS-308 or Hirschmann RS20 series — provide the managed switching infrastructure that connects the TM0182-A50-B01-C00 to the plant LAN backbone with VLAN segmentation and port mirroring for network diagnostics.

Many industrial facilities face a persistent challenge: vibration and condition monitoring data exists in isolated islands, disconnected from the broader automation and MES infrastructure. Maintenance teams rely on manual rounds and periodic data downloads, while production managers lack real-time visibility into equipment health. The TM0182-A50-B01-C00 directly addresses these data gaps.

Protocol Fragmentation: Legacy vibration monitoring systems often communicate over proprietary serial protocols incompatible with modern Ethernet-based SCADA platforms. The TM0182-A50-B01-C00 performs transparent protocol conversion — translating Modbus RTU serial data into Modbus TCP/IP Ethernet frames — without requiring custom software development or third-party middleware. This makes it immediately deployable in brownfield sites alongside existing PLCs and DCS infrastructure.

Data Silos and Production Transparency: When vibration data cannot reach the SCADA historian, maintenance engineers cannot correlate equipment health trends with production events. The TM0182-A50-B01-C00 ensures continuous, timestamped data delivery to OPC-UA servers and SCADA historians, enabling long-term trend analysis, ISO 10816 compliance reporting, and predictive maintenance scheduling based on actual machine behaviour rather than fixed time intervals.

Remote Monitoring and Alarm Tracking: In multi-site or geographically distributed facilities, remote diagnostics are essential. The TM0182-A50-B01-C00 supports alarm relay outputs and network-based alarm propagation, allowing SCADA operators to receive vibration fault alerts — high vibration, bearing defect frequencies, imbalance signatures — in real time, regardless of physical location. Alarm acknowledgement and event logging are handled at the SCADA level, creating a full audit trail for maintenance compliance.

System Scalability: As production lines expand, the TM0182-A50-B01-C00's network-based architecture allows additional TM Series monitoring nodes to be added to the Modbus network without rewiring or reconfiguring the SCADA integration layer. New monitoring points are simply addressed on the Modbus register map and immediately visible in the SCADA tag database — a scalable, future-proof approach to plant-wide condition monitoring.

Shipment Testing and Quality Assurance: Every TM0182-A50-B01-C00 unit undergoes functional communication testing prior to dispatch, verifying Modbus register mapping, network connectivity, and alarm relay operation. Units are shipped with configuration documentation and are covered by a 12-Month Warranty from the date of shipment, providing procurement teams with confidence in both product quality and post-sale support.

Q1: What communication protocols does the Provibtech TM0182-A50-B01-C00 support, and is it compatible with existing SCADA systems? The TM0182-A50-B01-C00 supports Modbus RTU (RS-485) and Modbus TCP/IP (Ethernet) as its primary communication protocols, making it directly compatible with the vast majority of industrial SCADA platforms including Wonderware, Ignition, GE iFIX, and Citect SCADA. For facilities using OPC-UA middleware, the gateway's Modbus TCP/IP output can be mapped through standard OPC-UA servers without additional hardware. PROFIBUS DP compatibility is supported within the broader TM Series architecture.

Q2: How does the TM0182-A50-B01-C00 ensure network stability and low-latency data transmission in high-noise industrial environments? The gateway is designed for industrial EMC environments, with RS-485 differential signalling providing inherent noise immunity over cable runs up to 1,200 metres. The Ethernet interface supports 10/100 Mbps auto-negotiation and is compatible with managed industrial switches featuring RSTP/STP redundancy protocols, ensuring network failover in ring or redundant star topologies. Modbus polling cycles are configurable to balance data refresh rates against network load, typically achieving sub-100ms update intervals for critical vibration parameters.

Q3: Can the TM0182-A50-B01-C00 support remote diagnostics and alarm management without on-site personnel? Yes. The TM0182-A50-B01-C00 transmits vibration alarm status, fault codes, and diagnostic register values over the network to SCADA and HMI systems, enabling remote operators to monitor equipment health, acknowledge alarms, and initiate maintenance work orders without physical access to the monitoring panel. Combined with VPN-secured remote access infrastructure, maintenance engineers can perform full diagnostic reviews from any location, reducing unplanned downtime and travel costs.

Q4: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? The 12-Month Warranty covers manufacturing defects, communication hardware failures, and component-level faults under normal operating conditions from the date of shipment. In-stock units are available for immediate dispatch with standard lead times of 3–7 business days depending on destination. Each unit is pre-tested for Modbus communication functionality and shipped with a configuration reference sheet. For volume procurement or project-specific lead time requirements, contact our technical sales team directly.
