Tokyo Electron (TEL) TVB3001-1/STI 3281-000035-19 1D86-00676

Product Details

TVB3001-1/STI 3281-000035-19 1D86-006761-41 HPM5F4F4F6S468 Product Description

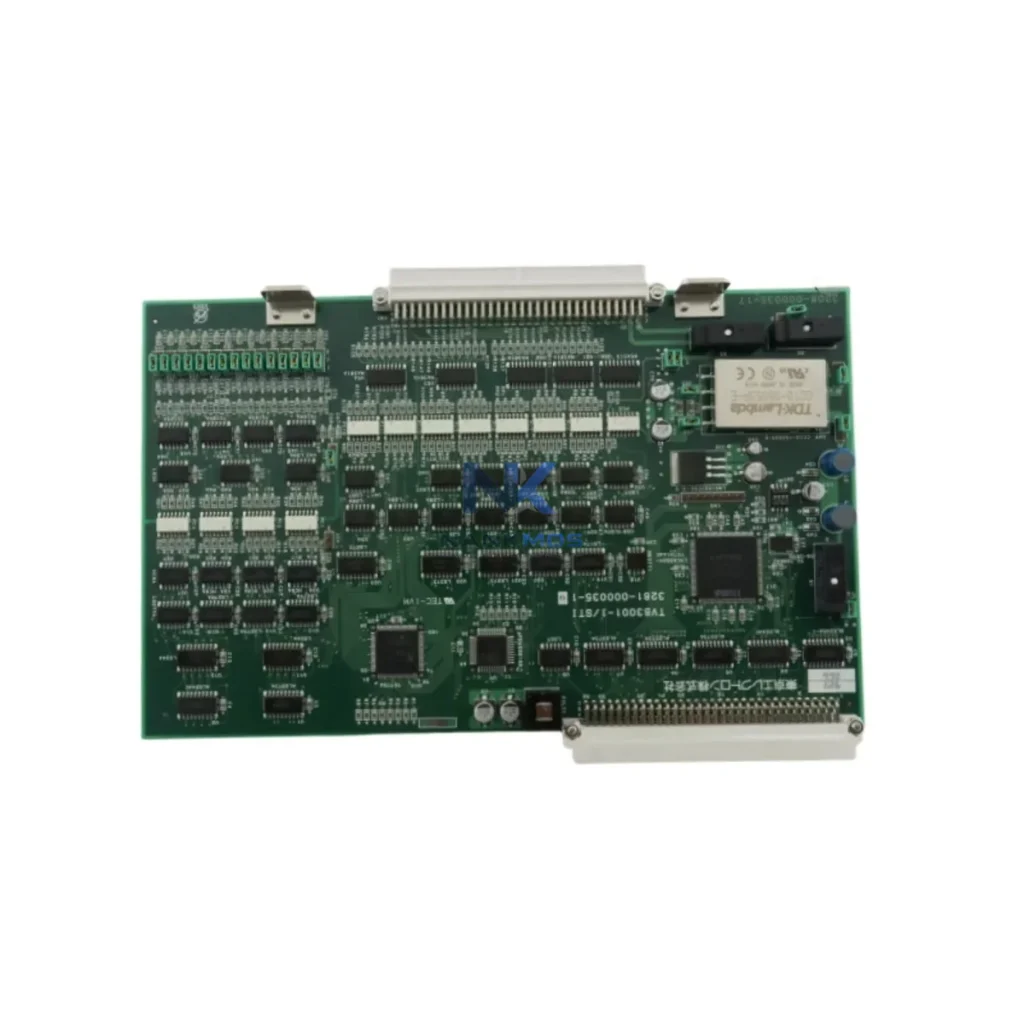

The TEL TVB3001-1 (also referenced as STI 3281-000035-19 / 1D86-006761-41 / HPM5F4F4F6S468) is a precision-engineered PCB assembly designed for Tokyo Electron HPM Series vertical furnace systems. Purpose-built for semiconductor diffusion and oxidation processes, this board delivers stable, energy-aware control logic that directly reduces idle power consumption, minimizes thermal cycling losses, and supports continuous high-throughput wafer processing. With verified in-stock availability, outgoing shipment testing, and a 12-month warranty, the TVB3001-1 is a reliable drop-in replacement for facilities focused on production uptime and energy cost reduction.

In a modern semiconductor furnace environment, energy efficiency is not a single-component achievement — it is a system-level outcome. The TEL TVB3001-1 PCB assembly sits at the intersection of process control and power management, coordinating with multiple subsystems to eliminate wasteful energy behavior across the production cycle.

At the control layer, the TVB3001-1 interfaces with the HPM furnace's main process controller — functionally equivalent to a dedicated PLC for thermal zone management — to execute precise ramp-up, soak, and cool-down sequences. By maintaining tight temperature tolerances across all heating zones, the board prevents the energy-intensive overshoot-and-correction cycles that inflate power consumption in poorly tuned systems. This is further supported by the zone heater driver boards within the HPM platform, which rely on accurate control signals from the TVB3001-1 to modulate heater output in real time.

On the sensing side, the board works in conjunction with thermocouple input modules and temperature sensor arrays distributed across the furnace tube. Accurate, low-latency feedback from these sensors allows the TVB3001-1 to make fine-grained power adjustments — reducing heat output during stable soak phases and preventing unnecessary energy draw during idle or standby states. This feedback loop is essential for achieving consistent kWh-per-wafer metrics that energy managers track in high-volume fabs.

The TVB3001-1 also plays a role in I/O coordination within the HPM system. Digital I/O modules relay equipment status signals — door interlocks, gas flow confirmations, wafer boat position — that the control board uses to gate heater activation. This prevents energy from being consumed during unsafe or unproductive machine states, a key principle in load management for capital-intensive equipment.

For facilities integrating furnace data into broader energy management systems or SCADA platforms, the operational data generated through the TVB3001-1's control cycles — zone temperatures, heater duty cycles, alarm states — can be aggregated via the HPM system's communication interface to support plant-level energy dashboards and predictive maintenance workflows. When paired with power monitoring modules installed at the furnace distribution panel, operators gain full visibility into per-zone energy consumption, enabling data-driven decisions about process scheduling and equipment utilization.

Furnace-based processes are among the most energy-intensive steps in semiconductor manufacturing. A single HPM vertical furnace can consume tens of kilowatts during active processing, making the efficiency of its control electronics a direct lever on facility operating costs. The TEL TVB3001-1 contributes to energy optimization across several dimensions.

Reduced Thermal Cycling Losses: Unstable or degraded control boards introduce temperature variance that forces the system to apply corrective heating — consuming additional energy and extending cycle times. The TVB3001-1, operating within its design specification, maintains zone stability that minimizes these corrective events, keeping energy consumption predictable and within process budget.

Minimized Idle Power Draw: During wafer loading, unloading, and recipe changeover intervals, the TVB3001-1 supports low-power standby states that reduce heater output without compromising thermal recovery speed when the next process batch begins. This directly reduces the energy consumed during non-productive machine time — a significant portion of total furnace energy use in multi-shift operations.

Improved Equipment Utilization: Unplanned downtime caused by PCB failures is one of the most costly disruptions in a fab environment — not only in lost throughput but in the energy required to re-ramp the furnace from cold or warm standby. By replacing a degraded or failed TVB3001-1 with a tested, warranty-backed unit, maintenance teams restore full process capability quickly, keeping the furnace operating at its designed utilization rate and avoiding the energy penalty of extended recovery cycles.

Predictive Maintenance Enablement: Facilities that monitor furnace control board performance over time — tracking alarm frequency, temperature deviation trends, and heater duty cycle data — can identify early signs of board degradation before failure occurs. Proactive replacement of the TVB3001-1 based on performance data, rather than reactive replacement after failure, supports a predictive maintenance strategy that reduces both unplanned downtime and the associated energy waste of emergency recovery operations.

Production Line Rhythm Stability: In high-volume semiconductor fabs, furnace throughput directly affects downstream process scheduling. A stable, energy-efficient TVB3001-1 ensures that batch cycle times remain consistent, supporting the production line rhythm that planners depend on for capacity forecasting and energy budget management.

Every unit shipped by NANKMOS undergoes outgoing functional testing to verify board performance before dispatch. Combined with a 12-month warranty and confirmed in-stock availability, the TVB3001-1 offers procurement teams a low-risk, high-reliability sourcing option for HPM furnace maintenance programs.

Q1: How does the TVB3001-1 contribute to energy savings in an HPM furnace?The TVB3001-1 provides stable, closed-loop zone temperature control that eliminates overshoot-driven energy waste, reduces idle heater draw during non-process intervals, and supports consistent batch cycle times — all of which lower the kWh consumed per wafer run compared to operation with a degraded or out-of-spec control board.

Q2: Is the TVB3001-1 compatible with all HPM Series furnace configurations?The TVB3001-1 is designed for TEL HPM Series vertical furnace platforms, including configurations referenced under HPM5F4F4F6S468. Compatibility with specific furnace generations or regional variants should be confirmed against your system's BOM or engineering documentation. NANKMOS technical support can assist with cross-reference verification prior to order.

Q3: What is the replacement and testing process for this PCB assembly?Each TVB3001-1 unit is functionally tested prior to shipment to verify operational integrity. Replacement follows standard HPM maintenance procedures — the board is a direct plug-in replacement for the original TEL assembly. NANKMOS recommends coordinating replacement during scheduled preventive maintenance windows to minimize production impact and avoid unplanned downtime energy penalties.

Q4: What warranty and supply terms apply to this product?The TEL TVB3001-1 supplied by NANKMOS carries a 12-month warranty covering functional defects under normal operating conditions. Units are available from in-stock inventory with prompt dispatch following outgoing test completion. For volume procurement, lead time and pricing inquiries, contact NANKMOS directly.
