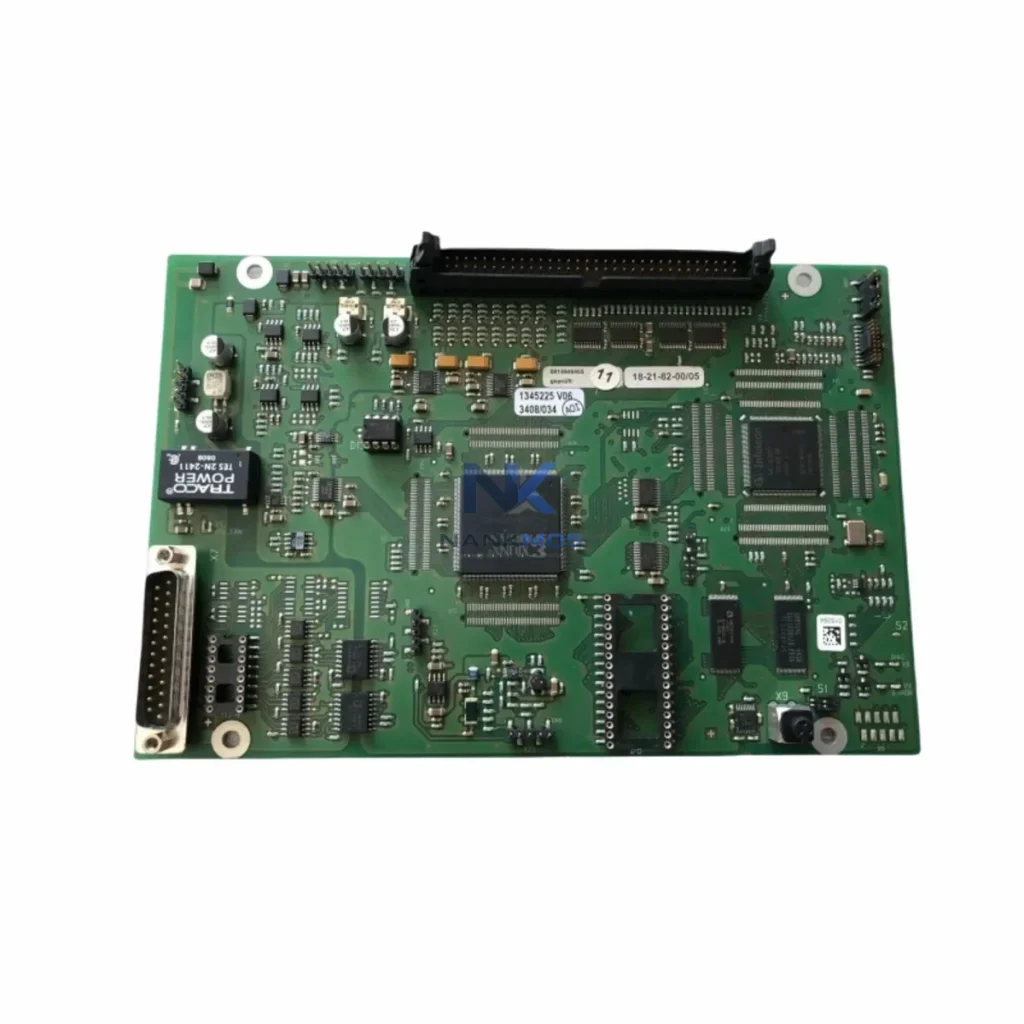

Makino UP-MF12-B Industrial Network Interface

Product Details

UP-MF12-B Product Description

The Makino UP-MF12-B is a precision-engineered industrial network interface module designed for the Makino UP Series wire EDM systems. In modern smart factory environments, where every machine must participate in a unified data ecosystem, the UP-MF12-B serves as the critical communication bridge between the EDM machining center and the broader plant-level network infrastructure. It enables seamless protocol translation, real-time data transmission, and remote diagnostic access — transforming a standalone precision machine into a fully connected node within your industrial IoT architecture.

From the moment a machining cycle begins, the UP-MF12-B captures operational signals — spindle status, axis position feedback, alarm codes, cycle time counters, and process parameters — and routes them through standardized industrial communication protocols to upstream control and monitoring systems. Whether your facility runs a Siemens SINUMERIK-based MES, a Rockwell FactoryTalk SCADA platform, or a custom OPC-UA data aggregation layer, the UP-MF12-B provides the protocol-level compatibility required to integrate Makino EDM data into your existing network without custom middleware development.

The UP-MF12-B sits at the intersection of machine-level signal generation and plant-level data consumption. In a typical smart factory deployment, the data flow begins at the Makino UP Series EDM controller, where the UP-MF12-B collects real-time process variables — wire tension, flushing pressure, discharge frequency, and servo axis coordinates. These signals are then formatted and transmitted over the facility's industrial Ethernet backbone to a plant-level SCADA gateway, such as an Advantech WISE-5000 series edge gateway or a Moxa NPort 5600 serial device server, which aggregates data streams from multiple machine tools simultaneously.

At the PLC layer, a Siemens S7-1500 or Allen-Bradley ControlLogix controller may receive structured data packets from the UP-MF12-B via Profibus-DP or Ethernet/IP, enabling automated production scheduling logic to respond dynamically to machine availability and alarm states. Simultaneously, a Weintek cMT Series HMI panel or a Siemens TP1200 Comfort HMI displays live EDM process data on the shop floor, giving operators immediate visibility into cycle progress, wire consumption rates, and fault conditions without requiring manual machine inspection.

Further upstream, the data stream feeds into a Wonderware System Platform or Ignition SCADA server, where historians log every process event with millisecond-level timestamps. This historical dataset powers predictive maintenance dashboards, OEE (Overall Equipment Effectiveness) calculations, and SPC (Statistical Process Control) charts — all derived from the raw signal data that the UP-MF12-B captures and transmits. For facilities operating distributed manufacturing sites, a Cisco IE-4000 industrial switch or a Hirschmann MACH 1000 managed switch provides the network infrastructure to route UP-MF12-B data across VLANs and WAN links to centralized MES servers.

Remote diagnostic capability is another core value delivered by the UP-MF12-B. Maintenance engineers can access live machine status, review alarm histories, and initiate parameter adjustments through a secure VPN tunnel without being physically present on the production floor. This capability is particularly valuable for multi-site manufacturers where a single engineering team supports EDM operations across geographically distributed facilities. Integration with a Kepware KEPServerEX OPC-DA/UA gateway further extends connectivity to legacy SCADA systems that do not natively support modern Ethernet-based protocols, ensuring that even older plant infrastructure can benefit from the UP-MF12-B's data output.

Many precision machining facilities face a persistent challenge: their EDM machines generate rich process data, but that data remains trapped within the machine controller, invisible to the broader manufacturing intelligence systems that drive operational decisions. The Makino UP-MF12-B directly addresses this data isolation problem by providing a standardized, protocol-compliant network exit point for EDM process information.

Protocol fragmentation is one of the most common barriers to machine connectivity in mixed-vendor environments. A facility running Makino EDMs alongside Fanuc CNC machining centers, Mitsubishi servo drives, and Omron safety PLCs may encounter incompatible communication standards at every integration point. The UP-MF12-B's multi-protocol support reduces the translation burden, allowing plant engineers to establish consistent data pipelines without deploying separate protocol converters for each machine type.

Data silos — where machine data exists in isolated controller memory with no upstream visibility — are eliminated when the UP-MF12-B is properly integrated into the plant network. Production managers gain real-time transparency into EDM cycle status, enabling accurate job scheduling, proactive maintenance planning, and rapid response to unplanned downtime events. Alarm tracking becomes systematic rather than reactive: every fault code generated by the UP Series controller is logged, timestamped, and forwarded to the SCADA alarm management system, creating a complete audit trail for quality and compliance reporting.

For facilities pursuing Industry 4.0 certification or implementing ISO 9001:2015 quality management systems, the UP-MF12-B provides the machine-level data capture infrastructure required to demonstrate process traceability and continuous improvement metrics. System expansion is straightforward — additional UP Series machines can be networked through the same industrial Ethernet infrastructure, with each UP-MF12-B module adding a new data node to the existing SCADA topology without requiring architectural redesign.

Q1: What communication protocols does the Makino UP-MF12-B support, and is it compatible with OPC-UA-based SCADA systems?The UP-MF12-B supports Ethernet-based industrial communication including TCP/IP and serial interfaces (RS-232C, RS-422), with compatibility for OPC-UA integration via middleware gateways such as Kepware KEPServerEX. For direct OPC-UA connectivity, verify the specific firmware version of your UP Series controller with Makino technical support.

Q2: How does the UP-MF12-B perform in high-EMI machining environments, and what is the expected network latency for real-time monitoring?The UP-MF12-B is designed for industrial environments with standard EMI shielding appropriate for wire EDM facilities. Network latency for status data transmission is typically within acceptable ranges for SCADA polling cycles (100–500ms), though actual performance depends on network topology, switch configuration, and SCADA polling intervals.

Q3: Can the UP-MF12-B be integrated into an existing Siemens or Rockwell automation network without replacing the current PLC infrastructure?Yes. The UP-MF12-B connects to existing industrial Ethernet networks and can coexist with Siemens S7 series PLCs, Allen-Bradley ControlLogix systems, and other standard automation controllers. Integration typically requires configuration of the SCADA or MES data collection layer rather than modification of the PLC program.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the UP-MF12-B?Every Makino UP-MF12-B unit supplied by NANKMOS carries a 12-month warranty and undergoes pre-shipment functional testing to verify communication interface integrity and module operability before dispatch. In-stock units are available for immediate shipment with full documentation support.
