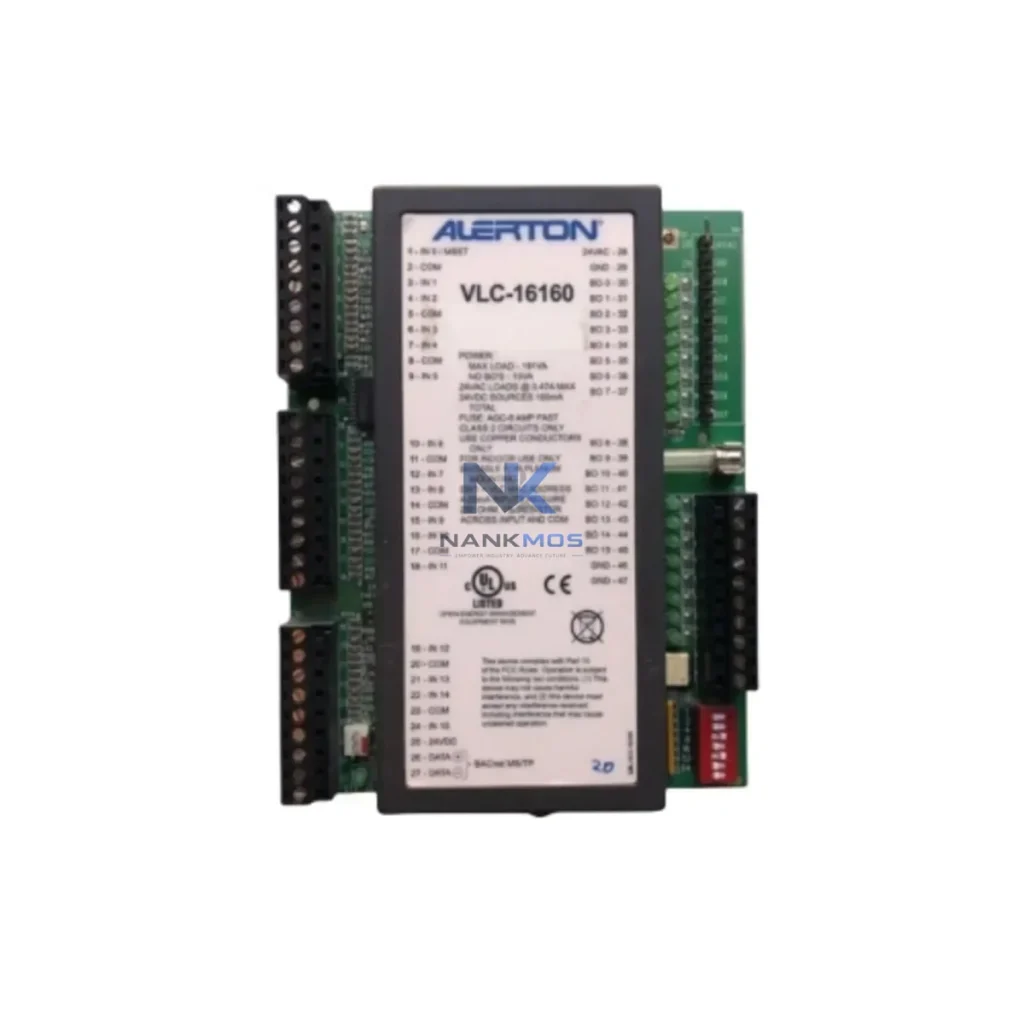

Alerton VLC-16160 DDC Variable Loop Controller

Product Details

VLC-16160 Product Description

The Alerton VLC-16160 is a BACnet-native DDC variable loop controller engineered for high-density HVAC and building automation environments where reliable data flow between field devices, control networks, and supervisory systems is non-negotiable. Designed within the Alerton VLC Series architecture, the VLC-16160 delivers 16 universal inputs and 16 outputs capable of handling analog, digital, and pulse signals — making it a versatile node in any smart factory or intelligent building data chain. Whether integrating with a Tridium JACE edge controller, a Siemens DESIGO CC SCADA platform, or a Johnson Controls Metasys supervisory layer, the VLC-16160 maintains deterministic BACnet/IP and BACnet MS/TP communication to ensure zero data gaps across the automation backbone.

In modern smart factory deployments, the VLC-16160 functions as a critical data origination point. Field sensors — including temperature transmitters, CO₂ sensors, differential pressure transducers, and occupancy detectors — feed real-time process values into the controller's universal input channels. These signals are conditioned, scaled, and mapped to BACnet objects, then transmitted upstream to SCADA dashboards, historian databases, and cloud-based analytics platforms. The controller's onboard PID loop execution ensures local closed-loop control remains active even during network interruptions, a key requirement for mission-critical environments such as pharmaceutical cleanrooms, data center cooling corridors, and precision manufacturing floors.

The VLC-16160 sits at the intersection of field instrumentation and supervisory control, making it a foundational element in any connected factory data flow architecture. At the field level, the controller aggregates signals from distributed sensors — such as Honeywell C7189U room temperature sensors, Dwyer MS-121 differential pressure transmitters, and Veris Industries H8035 power meters — converting raw analog and digital inputs into structured BACnet Present Value objects. These objects are then polled or subscribed to by upstream devices including the Alerton BACNET/IP Router, which bridges MS/TP field segments to the primary Ethernet backbone.

On the network layer, the VLC-16160 communicates with peer controllers such as the Alerton VLC-853 and VLC-454 to share setpoints, enable global scheduling, and coordinate alarm propagation across multi-zone HVAC systems. An Alerton Envision for BACtalk workstation or a third-party Tridium JACE 8000 edge controller can serve as the BACnet operator workstation, providing real-time trend logging, alarm acknowledgment, and remote override capability. For facilities requiring integration with enterprise MES or ERP platforms, an Anybus X-gateway or Moxa MGate MB3480 protocol gateway can bridge BACnet data to Modbus TCP or OPC-UA, enabling seamless data handoff to Ignition SCADA or Wonderware System Platform historian nodes.

At the visualization layer, BACnet data from the VLC-16160 feeds into HMI panels — such as Weintek cMT3151 or Siemens SIMATIC HMI TP1200 — where operators monitor zone temperatures, valve positions, fan speeds, and energy consumption in real time. Alarm conditions detected by the VLC-16160's onboard logic — such as supply air temperature deviation, chilled water valve failure, or sensor fault — are immediately propagated to the SCADA alarm server and, where configured, to mobile notification systems via the supervisory platform's email or SMS gateway. This closed-loop alarm-to-response chain is what transforms a conventional HVAC installation into a fully transparent, remotely diagnosable smart factory subsystem.

One of the most persistent challenges in industrial and commercial automation is the fragmentation of control data across incompatible protocols and isolated subsystems. The VLC-16160 directly addresses this by operating natively on BACnet — the dominant open protocol for building and HVAC automation — eliminating the need for proprietary gateways between the field controller and the supervisory network. Sites that previously operated with data silos between their HVAC DDC layer and their energy management or facility SCADA systems can use the VLC-16160 as a standardized data origination node, feeding structured, timestamped BACnet objects directly into unified dashboards.

For remote monitoring and diagnostics, the VLC-16160 supports BACnet change-of-value (COV) subscriptions, allowing supervisory systems to receive instant notifications when a monitored value crosses a defined threshold — without continuous polling overhead. This capability is critical for remote sites where bandwidth is limited and latency must be minimized. Maintenance teams can remotely inspect controller status, review trend logs, adjust setpoints, and acknowledge alarms without dispatching field technicians, reducing mean time to repair (MTTR) and operational downtime. For system expansion, the VLC-16160's MS/TP trunk supports up to 127 devices per segment, and multiple segments can be interconnected via BACnet routers, providing a scalable architecture that grows with the facility's automation requirements without requiring controller replacement.

Q1: What communication protocols does the Alerton VLC-16160 support, and is it compatible with third-party SCADA systems? The VLC-16160 supports BACnet/IP over Ethernet and BACnet MS/TP over RS-485. It is fully interoperable with any BACnet-compliant supervisory system, including Tridium Niagara, Siemens DESIGO CC, Johnson Controls Metasys, Ignition SCADA, and Wonderware. For non-BACnet platforms, a protocol gateway such as the Anybus X-gateway or Moxa MGate can bridge to Modbus TCP or OPC-UA.

Q2: How does the VLC-16160 handle network instability or communication interruptions? The VLC-16160 executes PID control loops locally, ensuring continuous closed-loop operation even when the BACnet network is temporarily unavailable. Setpoints, schedules, and alarm limits are stored in non-volatile memory, so the controller resumes normal operation automatically upon network restoration without requiring manual intervention.

Q3: Can the VLC-16160 be used for remote diagnostics and predictive maintenance in smart factory environments? Yes. The controller supports BACnet COV subscriptions and trend log objects, enabling supervisory platforms to capture historical data and detect anomalies indicative of equipment degradation — such as gradual valve response time increase or sensor drift. Remote access via the BACnet/IP interface allows engineering teams to review diagnostics, adjust parameters, and perform virtual commissioning without on-site presence.

Q4: What warranty and pre-shipment testing does the VLC-16160 include? Every Alerton VLC-16160 unit supplied by NANKMOS includes a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify I/O channel integrity, BACnet communication, and PID loop execution before dispatch. In-stock inventory ensures rapid fulfillment for both single-unit replacement and multi-unit project deployments.
