Alerton VLC-444 DDC Field Controller

Product Details

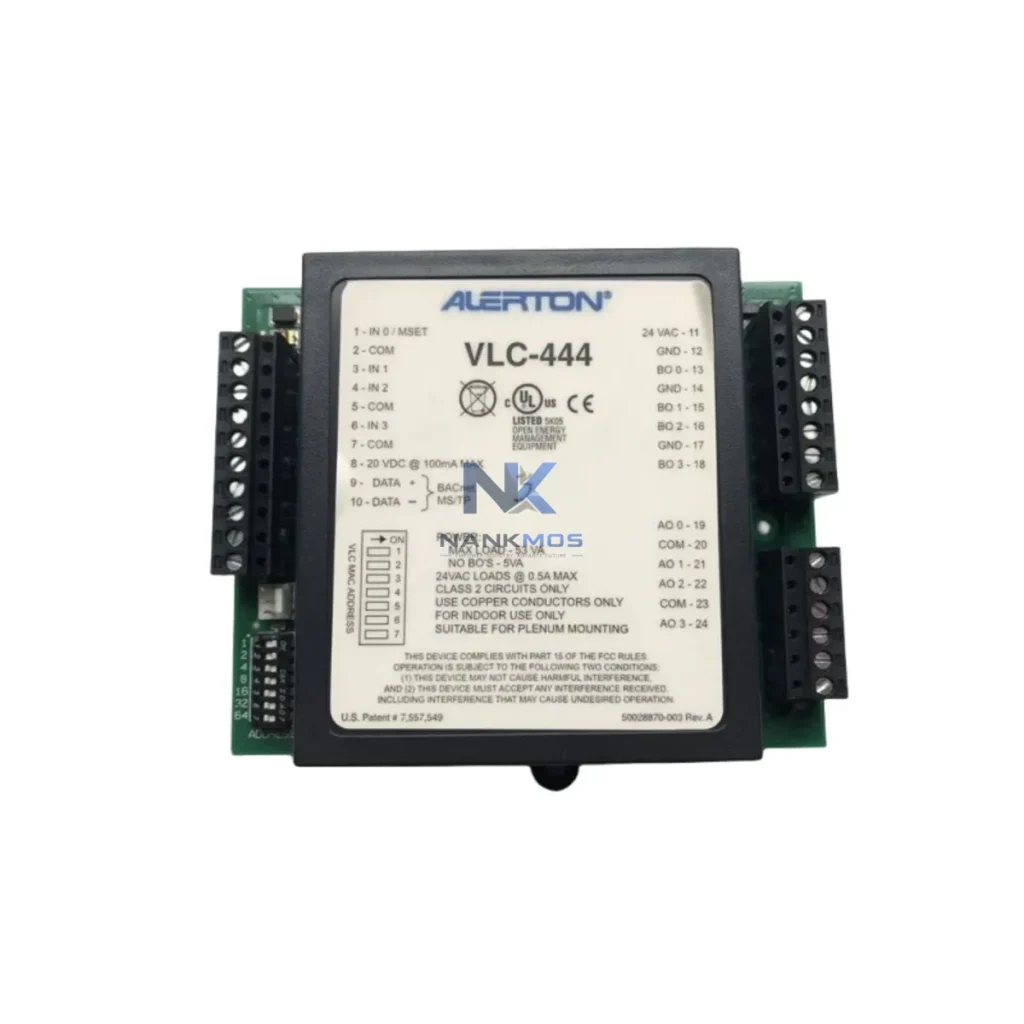

VLC-444 Product Description

The Alerton VLC-444 is a high-performance Direct Digital Control (DDC) field controller engineered for seamless integration within Alerton's BACtalk building automation architecture. Designed to operate as a fully autonomous control node, the VLC-444 executes local HVAC and building control sequences independently of supervisory communication, ensuring uninterrupted operation even during network disruptions. Its native BACnet compliance — supporting both BACnet MS/TP and BACnet IP — positions it as a cornerstone module in multi-tier control architectures spanning from field-level sensing to enterprise-level building management systems.

Within a complete BACtalk automation platform, the VLC-444 occupies the critical field controller layer, bridging the gap between physical I/O signals and the supervisory control layer managed by Alerton's ENVISION for BACtalk or VisualLogic workstations. Its 44-point I/O capacity — comprising universal inputs, binary outputs, and analog outputs — provides the flexibility required for complex air handling unit (AHU) control, variable air volume (VAV) sequencing, chiller plant optimization, and boiler staging applications. The controller's onboard programming environment supports fully customizable control logic, enabling engineers to implement PID loops, time schedules, alarm management, and trend logging without reliance on external processing resources.

System architects deploying the VLC-444 benefit from its architectural compatibility with the broader Alerton product ecosystem. In a typical BACtalk network segment, the VLC-444 operates alongside the Alerton BCM-ETH Ethernet communication module, which provides the BACnet/IP gateway function connecting MS/TP field bus segments to the enterprise backbone. Supervisory coordination is handled by the Alerton IBEX or BCM-WEB web-based building controller, which aggregates data from multiple VLC-444 nodes and presents unified dashboards for facility operators. For applications requiring expanded I/O beyond the VLC-444's native capacity, Alerton's VLC-454 or VLC-484 controllers can be deployed in parallel on the same MS/TP trunk, maintaining a consistent programming model and reducing commissioning complexity.

Power distribution within the control cabinet is typically managed through a dedicated 24VAC transformer feeding the VLC-444's power input, with surge protection devices installed at the panel level to safeguard sensitive controller electronics. Signal integrity on analog input channels is maintained through the controller's built-in input filtering, while binary output circuits are protected against inductive load transients via external snubber networks or relay modules such as the Alerton RLY-8 relay expansion board. For installations requiring signal isolation between field devices and the controller — particularly in electrically noisy industrial environments — DIN-rail mounted signal isolators from compatible third-party suppliers are recommended at the I/O termination level.

Communication architecture in BACtalk deployments typically follows a three-tier model: the field bus tier (BACnet MS/TP at 76.8 kbps), the building network tier (BACnet/IP over Ethernet), and the enterprise tier (OPC or web services integration). The VLC-444 natively participates in the MS/TP field bus tier, with up to 127 devices addressable per segment. Network segmentation using BACnet routers — such as the Alerton BCM-ETH or compatible third-party BACnet routers — allows large facilities to scale beyond single-segment limitations while maintaining unified object addressing across the entire building automation system. This architecture supports phased expansion strategies, where additional VLC-444 controllers can be commissioned and integrated into the existing network without disrupting live control sequences on already-operational nodes.

For redundancy-critical applications, the VLC-444's standalone execution capability provides an inherent level of fault tolerance: if the supervisory controller or network communication is interrupted, the VLC-444 continues executing its locally stored control program, maintaining HVAC sequences and protecting equipment from adverse operating conditions. This behavior is particularly valuable in mission-critical facilities such as data centers, hospitals, and pharmaceutical manufacturing environments, where HVAC system continuity directly impacts operational safety and regulatory compliance.

Commissioning and diagnostic workflows for the VLC-444 are supported through Alerton's VisualLogic programming tool, which provides graphical program editing, real-time point monitoring, trend data visualization, and alarm history review. Field technicians can connect directly to the controller via the onboard RS-232 service port for local diagnostics without requiring network access, streamlining troubleshooting in installations where network connectivity may be temporarily unavailable. Firmware updates can be applied over the MS/TP network or via direct serial connection, ensuring that deployed controllers can be maintained at current firmware revisions throughout their operational lifecycle.

Long-term maintenance efficiency is further supported by the VLC-444's modular terminal block wiring, which allows field wiring to remain connected during controller replacement, minimizing downtime during hardware servicing. Spare controller inventory management is simplified by the controller's ability to receive its full configuration — including control programs, point databases, and network parameters — via network download from the supervisory system, eliminating the need for manual reconfiguration of replacement units.

Every Alerton VLC-444 unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying power-up behavior, I/O channel integrity, communication port operation, and program execution prior to dispatch. Units are supplied with a 12-Month Warranty covering manufacturing defects and component failures under normal operating conditions, providing procurement teams and facility managers with the confidence required for long-term asset planning and maintenance budgeting.

The VLC-444 achieves its full architectural value when deployed as part of a coordinated BACtalk automation platform. At the supervisory layer, the Alerton IBEX Building Controller or BCM-WEB Web Controller aggregates data from multiple VLC-444 field nodes, providing centralized scheduling, alarm routing, and trend archiving. Communication between the supervisory layer and field controllers is routed through the Alerton BCM-ETH Ethernet Communication Module, which performs BACnet MS/TP to BACnet/IP routing, enabling integration with enterprise IT networks and third-party building management platforms.

For applications requiring expanded I/O capacity beyond the VLC-444's 44-point complement, the Alerton VLC-454 (54-point) and Alerton VLC-484 (84-point) controllers provide scalable alternatives within the same programming framework, allowing system architects to right-size controller selection for each mechanical system without retraining commissioning personnel. In VAV terminal unit applications, the Alerton VLC-50 or VLC-100 compact controllers handle individual zone control, reporting to the VLC-444 as a higher-tier plant controller managing central AHU sequences.

Relay output expansion for high-current switching applications is addressed by the Alerton RLY-8 Relay Module, which interfaces with the VLC-444's binary outputs to drive compressor contactors, pump starters, and damper actuators beyond the controller's native output current ratings. For operator interface at the field level, the Alerton LCD-8 Local Display provides point-level status indication and setpoint adjustment without requiring a networked workstation, supporting rapid commissioning and routine operator interaction in mechanical rooms. Network infrastructure for MS/TP segments is completed with BACnet-compliant RS-485 repeaters at segment boundaries, maintaining signal integrity across extended cable runs in large facilities.

Commercial HVAC & Building Automation: The VLC-444 is the preferred field controller for central AHU control in commercial office buildings, retail complexes, and educational facilities. Its 44-point I/O capacity accommodates the full complement of sensors, actuators, and status inputs required for supply air temperature control, economizer sequencing, static pressure regulation, and occupancy-based ventilation — all within a single controller enclosure.

Healthcare & Pharmaceutical Facilities: In environments where HVAC system continuity is a regulatory requirement, the VLC-444's standalone execution capability ensures that critical pressure relationships, temperature setpoints, and air change rates are maintained even during supervisory network outages. Its BACnet BTL listing supports integration with hospital-grade building management systems and facilitates compliance documentation for ASHRAE 170 and GMP-regulated environments.

Data Center Infrastructure Management: Precision cooling systems in data centers demand continuous, autonomous control of computer room air handlers (CRAHs) and precision air conditioning units. The VLC-444's local program execution and non-volatile memory ensure that cooling sequences persist through power cycling events, protecting IT infrastructure from thermal excursions during facility management system maintenance windows.

Industrial Process Buildings: In manufacturing facilities where process support utilities — compressed air, cooling water, and ventilation — are managed by building automation systems, the VLC-444 provides the control layer for utility HVAC systems, integrating with plant-level SCADA systems via BACnet/IP gateways to provide unified visibility of both process and facility systems.

Water & Wastewater Treatment Facilities: Pump station buildings, chemical storage areas, and treatment plant control rooms require robust HVAC control to protect sensitive instrumentation and maintain safe working environments. The VLC-444's wide operating temperature range and industrial-grade construction make it suitable for these demanding environments, where ambient conditions may challenge less robust controllers.

Q1: How many VLC-444 controllers can be connected on a single BACnet MS/TP network segment, and what are the recommended network topology guidelines?A: BACnet MS/TP supports up to 127 addressable devices per segment (addresses 0–127), though practical deployments typically limit segments to 32–64 devices to maintain acceptable token-passing latency. For larger installations, BACnet routers such as the Alerton BCM-ETH segment the MS/TP bus into multiple logical networks, each with its own address space, while maintaining unified object addressing at the BACnet/IP backbone level. RS-485 cable runs should not exceed 1,200 meters per segment without repeaters, and proper termination resistors (120Ω) must be installed at both physical ends of each MS/TP segment to prevent signal reflections.

Q2: Is the VLC-444 compatible with third-party BACnet supervisory systems, and what integration considerations apply?A: Yes. As a BACnet BTL-listed device, the VLC-444 exposes its full point database as standard BACnet objects (Analog Input, Binary Output, Schedule, Trend Log, etc.) accessible to any BACnet-compliant supervisory system. Integration with third-party platforms — including Siemens Desigo CC, Johnson Controls Metasys, or Schneider Electric EcoStruxure — requires a BACnet/IP or BACnet MS/TP connection to the supervisory system's BACnet router, followed by device discovery and object mapping within the third-party platform. Control programs resident in the VLC-444 continue executing independently of the supervisory system's polling cycle, ensuring field-level control continuity during integration commissioning.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on VLC-444 units supplied by NANKMOS?A: The 12-Month Warranty provided by NANKMOS covers manufacturing defects, component failures, and functional anomalies arising under normal operating conditions within 12 months of the shipment date. Each unit undergoes pre-shipment functional testing — including power-up verification, I/O channel integrity checks, and communication port validation — prior to dispatch. Warranty claims are initiated by contacting NANKMOS at [email protected] or +86 18359268345, providing the unit serial number, purchase documentation, and a description of the observed fault. NANKMOS will arrange return logistics and provide a replacement or repaired unit within the agreed service timeline, minimizing project downtime.
