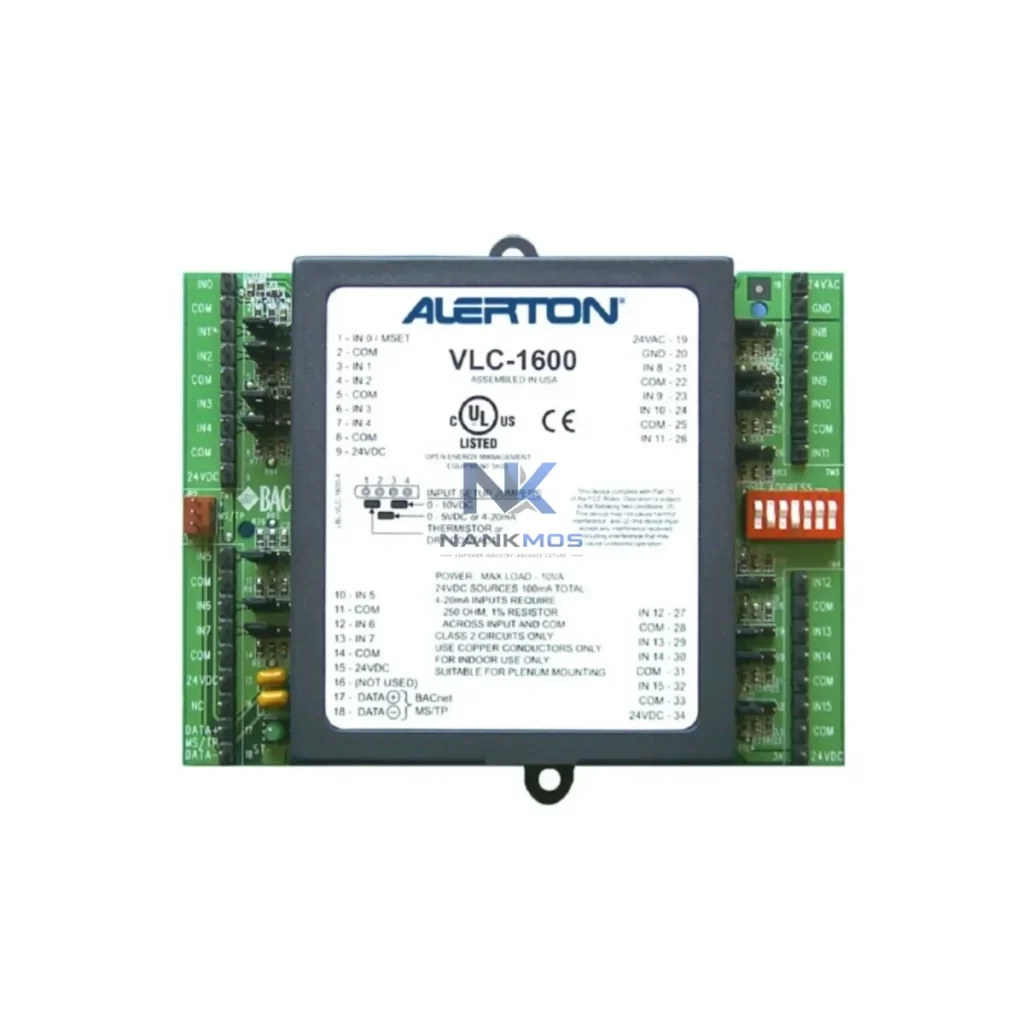

Alerton VLC1600 BACnet VAV Controller

Product Details

VLC1600 Product Description

The Alerton VLC1600 is a high-performance BACnet Variable Air Volume (VAV) controller engineered for intelligent building automation and smart factory HVAC environments. Designed to operate within the Alerton BACTalk ecosystem, the VLC1600 serves as a critical data node in the industrial network architecture — bridging field-level HVAC devices with supervisory control systems, SCADA platforms, and enterprise-level building management infrastructure. Whether deployed in semiconductor cleanrooms, pharmaceutical manufacturing facilities, petrochemical plants, or large-scale industrial campuses, the VLC1600 delivers reliable protocol communication, real-time data transparency, and remote diagnostic capability across the full automation data chain.

At the core of the VLC1600's value is its native BACnet MS/TP communication protocol, which enables seamless integration with BACnet-compliant controllers, network routers, and supervisory workstations. The controller connects directly to VAV terminal units, managing airflow damper positions, zone temperature setpoints, and occupancy-based ventilation schedules. Signal data from room temperature sensors, CO₂ sensors, and differential pressure transmitters is continuously acquired by the VLC1600, processed locally, and transmitted upstream through the BACnet network to the Alerton ENVISION for BACtalk supervisory software — providing operators with real-time zone-level visibility across the entire facility.

In a connected factory data flow, the VLC1600 acts as a field-level intelligence node. Sensor signals from zone temperature transmitters and airflow measurement devices feed into the VLC1600's analog and digital I/O points. The controller executes local PID control logic, then communicates zone status, alarm conditions, and energy consumption data upstream via BACnet MS/TP to a network trunk managed by an Alerton BCM (Building Control Module) or compatible BACnet router. From there, data flows to the ENVISION supervisory workstation or third-party SCADA systems via BACnet/IP, enabling plant-wide monitoring dashboards, trend logging, and alarm management. Integration with Modbus-to-BACnet gateways — such as those used alongside Schneider Electric PowerLogic meters or Siemens SIMATIC S7 PLCs — further extends the VLC1600's reach into multi-protocol industrial environments where energy, process, and HVAC data must converge on a single monitoring platform.

Remote diagnostics is a defining strength of the VLC1600 within the BACTalk network. Maintenance engineers can access real-time controller status, I/O point values, alarm histories, and control loop performance data from any networked workstation running ENVISION for BACtalk. This eliminates the need for on-site manual inspection of individual VAV boxes, dramatically reducing mean time to repair (MTTR) in large facilities. When integrated with edge gateway devices or IoT data concentrators, VLC1600 data can be pushed to cloud-based analytics platforms for predictive maintenance modeling and energy optimization — a key requirement in modern smart factory and intelligent building deployments.

The VLC1600 is fully compatible with the broader Alerton BACTalk controller family, including the VLC-Pro series for larger AHU and chiller plant applications, and the Alerton BCM-ETH Ethernet-enabled building control modules that serve as BACnet/IP backbone nodes. In multi-zone deployments, multiple VLC1600 units share a common MS/TP trunk, with each controller independently managing its assigned VAV zone while contributing to the network-wide data picture. This distributed intelligence architecture reduces network latency, improves fault tolerance, and supports system scalability from single-floor deployments to campus-wide smart building networks spanning hundreds of VAV zones.

For system integrators working across mixed-vendor environments, the VLC1600's BACnet compliance ensures interoperability with third-party BMS platforms including Johnson Controls Metasys, Honeywell EBI, and Siemens Desigo CC. Data from VLC1600 controllers can be mapped into these supervisory systems via standard BACnet object models, enabling unified alarm management, energy reporting, and remote setpoint adjustment without proprietary middleware. This open-protocol architecture is essential for industrial facilities pursuing ISO 50001 energy management certification or IEC 62443 cybersecurity compliance frameworks.

Every Alerton VLC1600 unit supplied by NANKMOS undergoes pre-shipment functional verification, including communication link testing, I/O point validation, and BACnet object configuration review. Units are shipped with full documentation and are backed by a 12-month warranty covering hardware defects and communication failures. NANKMOS maintains ready inventory of VLC1600 controllers to support urgent project timelines, replacement requirements, and system expansion needs across global industrial and commercial building automation markets.

In a typical smart factory or intelligent building deployment, the VLC1600 sits at the field device layer of a multi-tier automation network. Zone temperature sensors and airflow transmitters deliver analog signals (0–10 VDC or 4–20 mA) to the VLC1600's onboard I/O module. The controller processes these signals using embedded PID algorithms and drives the VAV damper actuator via its analog output channel. Simultaneously, the VLC1600 communicates zone data upstream via BACnet MS/TP to an Alerton BCM-ETH building control module, which aggregates data from multiple VLC1600 units across the MS/TP trunk and routes it to the BACnet/IP backbone.

At the supervisory layer, the Alerton ENVISION for BACtalk workstation receives real-time data from all networked VLC1600 controllers, displaying zone temperatures, airflow rates, alarm states, and energy consumption trends on operator dashboards. In facilities where process automation and HVAC data must be unified, a Modbus-to-BACnet protocol gateway bridges the VLC1600 network with Siemens SIMATIC S7 PLCs or Allen-Bradley ControlLogix systems managing adjacent production equipment. Yokogawa CENTUM VP DCS systems in petrochemical plants similarly leverage BACnet/IP gateways to incorporate HVAC zone data into plant-wide process monitoring screens.

For remote monitoring and predictive maintenance, edge gateway devices — such as those based on the Advantech WISE-5000 series or similar industrial IoT concentrators — collect BACnet object data from VLC1600 controllers and publish it to MQTT brokers or OPC-UA servers accessible by cloud analytics platforms. This data pipeline enables facility managers to monitor VAV zone performance, detect sensor drift, and schedule preventive maintenance interventions without dispatching field technicians. In semiconductor fab environments where cleanroom HVAC stability is critical to yield, the VLC1600's real-time data link and remote diagnostic capability directly support production quality objectives.

Industrial facilities frequently encounter data fragmentation challenges when HVAC systems operate in isolation from process automation and energy management networks. The VLC1600 addresses these gaps through its native BACnet protocol compliance, which eliminates proprietary communication barriers and enables direct data exchange with multi-vendor supervisory systems. Facilities that previously relied on manual temperature logging or standalone HVAC controllers can migrate to a fully networked architecture where every VAV zone contributes real-time data to the plant-wide monitoring platform.

Protocol inconsistency — a common challenge in brownfield industrial sites where legacy pneumatic or analog HVAC systems coexist with modern digital automation — is resolved through BACnet-to-Modbus gateway integration, allowing VLC1600 data to be mapped into existing Modbus-based SCADA systems without replacing upstream infrastructure. Data silos between HVAC, energy, and process systems are eliminated by routing VLC1600 BACnet objects into unified historian databases such as OSIsoft PI or Wonderware InTouch, enabling cross-system correlation analysis for energy optimization and production efficiency reporting.

Remote monitoring capability transforms alarm management from reactive to proactive. Rather than discovering HVAC faults through production quality deviations or occupant complaints, maintenance teams receive real-time alarm notifications from VLC1600 controllers via the ENVISION supervisory platform, with full alarm history and trend data available for root cause analysis. System expansion is straightforward: additional VLC1600 units are added to the existing MS/TP trunk without disrupting active controllers, supporting phased facility expansion and production line reconfiguration without network redesign.

Q: What is the communication latency of the VLC1600 on a BACnet MS/TP network?A: The VLC1600 operates on BACnet MS/TP at speeds up to 76,800 bps. In a typical deployment with 20–30 devices on a single MS/TP trunk, polling cycle times are under 1 second per device, providing near-real-time data updates for zone monitoring and alarm detection. Network latency can be further reduced by segmenting large installations across multiple MS/TP trunks connected via a BACnet router or BCM-ETH module.

Q: Is the VLC1600 compatible with third-party BMS platforms beyond Alerton ENVISION?A: Yes. As a BACnet B-ASC compliant device, the VLC1600 exposes standard BACnet objects (Analog Input, Analog Output, Binary Input, Binary Output, Schedule, Calendar) that are readable by any BACnet-compliant supervisory system, including Johnson Controls Metasys, Honeywell EBI, Siemens Desigo CC, and open-source platforms such as VOLTTRON. Integration requires only BACnet device discovery and object mapping — no proprietary drivers or middleware.

Q: How does the VLC1600 support remote diagnostics and fault isolation?A: The VLC1600 continuously reports I/O point status, control loop outputs, alarm conditions, and communication health to the supervisory network. Maintenance engineers can remotely read sensor values, override control outputs for testing, and review alarm histories from any networked workstation. In conjunction with edge gateway devices, VLC1600 diagnostic data can be forwarded to mobile maintenance platforms, enabling field technicians to receive fault alerts and access controller data via smartphone or tablet before arriving on site.

Q: What warranty and pre-shipment testing does NANKMOS provide for the VLC1600?A: Every VLC1600 unit supplied by NANKMOS is covered by a 12-month warranty against hardware defects and communication failures from the date of shipment. Pre-shipment testing includes BACnet MS/TP communication verification, I/O point functional check, and firmware version confirmation. Units are packaged with original documentation and shipped with tracking. NANKMOS maintains ready stock of VLC1600 controllers to support urgent replacement and project deployment requirements globally.
