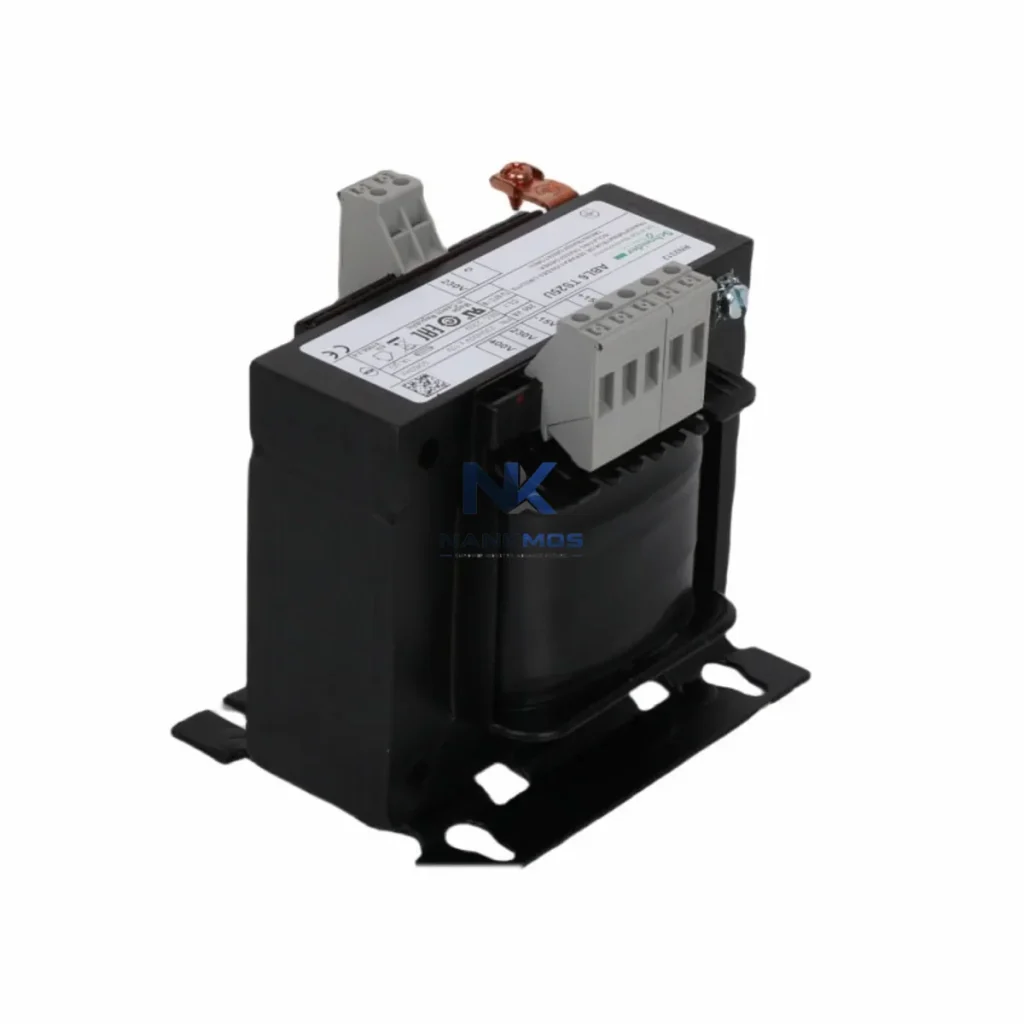

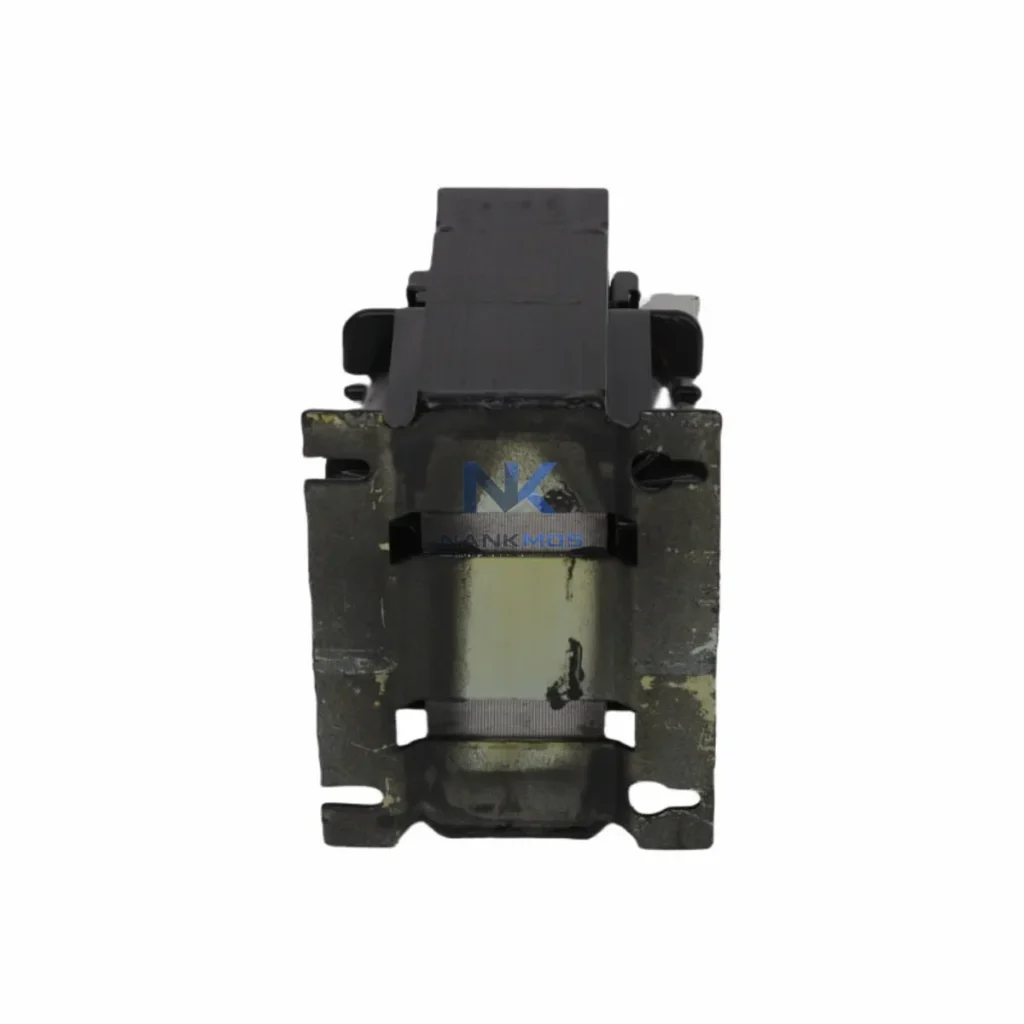

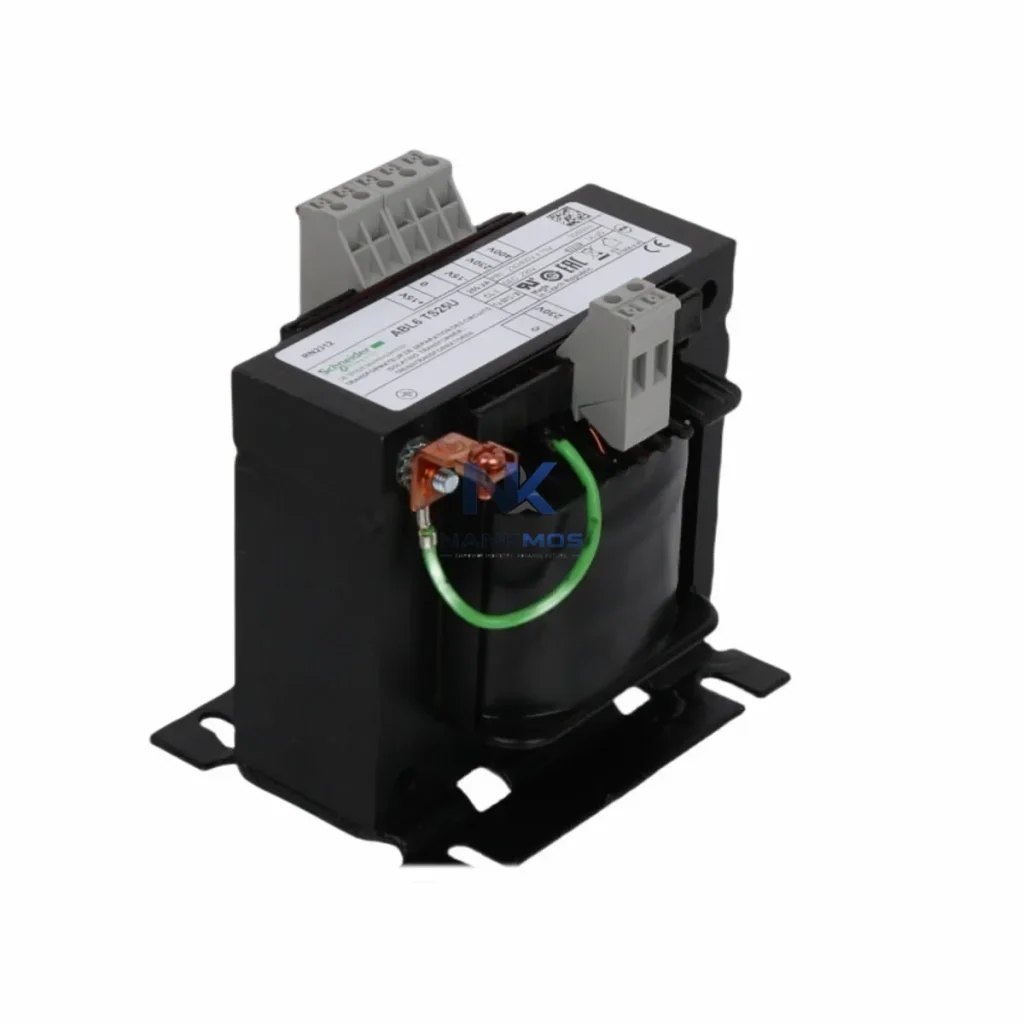

Schneider Electric ABL6TS25U Control Transformer

Product Details

ABL6TS25U Product Description

The Schneider Electric ABL6TS25U is a high-efficiency Phaseo series control transformer engineered to deliver stable, regulated control-circuit power across demanding industrial environments. Designed for smart production lines where energy discipline and load reliability are non-negotiable, the ABL6TS25U plays a central role in reducing unnecessary power draw, minimizing thermal stress on downstream components, and ensuring that every automation node operates within its optimal energy envelope. Whether deployed in a new installation or as a precision replacement in an existing control cabinet, this transformer delivers the consistent secondary voltage that modern industrial systems depend on.

In a well-architected industrial control system, the ABL6TS25U sits at the heart of the control power distribution layer, feeding stable 24 V AC to the components that govern machine behavior and energy consumption. When paired with a Schneider Electric Modicon M340 PLC or a Modicon M580 ePAC, the transformer ensures that the logic controller's I/O bus and communication backplane receive clean, isolated power — eliminating the risk of control faults caused by line-side voltage fluctuations or switching transients from variable frequency drives.

In drive-intensive applications, the ABL6TS25U commonly supplies the auxiliary control circuit of Schneider Altivar ATV320 or Altivar ATV630 variable frequency drives. These VFDs manage motor speed and torque to match actual production demand, and their control boards require a stable, low-noise supply voltage to execute energy-saving algorithms accurately. By isolating the control supply from the power circuit, the ABL6TS25U prevents drive control resets during motor start transients — a common source of unplanned downtime and wasted restart energy.

For servo-driven axes, the transformer supports the auxiliary supply of Schneider Lexium 32 or Lexium 62 servo drives, where precise control-circuit stability directly affects positioning accuracy and cycle repeatability. Unstable control power in servo systems leads to axis faults, increased cycle times, and elevated energy consumption from repeated homing sequences. The ABL6TS25U eliminates this risk by providing a dedicated, regulated control supply isolated from the servo power bus.

On the monitoring side, the ABL6TS25U integrates naturally into panels equipped with Schneider PowerLogic PM5000 series power monitoring modules, which track real-time energy consumption, power factor, and harmonic distortion across the production line. By powering the control circuits of these monitoring devices through a dedicated transformer, engineers ensure that energy data collection continues uninterrupted even during load-side switching events. This data feeds directly into SCADA platforms such as Schneider EcoStruxure Operator Advisor or third-party systems, enabling energy managers to identify inefficient operating windows and schedule load-shedding actions.

The transformer also supports Schneider Harmony XBTGT HMI terminals and operator panels installed at machine stations. These HMIs display real-time production metrics, energy consumption dashboards, and alarm states — all of which require a stable control supply to maintain screen integrity and communication with the PLC. Powering HMIs through the ABL6TS25U rather than directly from the main supply reduces the risk of display resets during motor starts, preserving operator visibility during the highest-energy moments of the production cycle.

In distributed I/O architectures using Schneider TM3 or TM2 expansion modules, the ABL6TS25U provides the 24 V AC source that feeds the I/O power supply modules, ensuring that digital inputs from proximity sensors, photoelectric sensors, and pressure transducers are read accurately without noise-induced false triggers. False I/O signals in energy-intensive processes can cause unnecessary machine stops, wasted material, and repeated startup energy spikes — all of which the ABL6TS25U helps prevent through clean power isolation.

Industrial production lines lose significant energy not through their primary drive systems, but through the accumulated inefficiencies of poorly powered control circuits: nuisance trips, repeated restarts, extended idle states caused by control faults, and thermal losses from undersized or overloaded auxiliary transformers. The Schneider ABL6TS25U addresses these losses directly by providing a correctly rated, thermally efficient 250 VA control transformer that matches the actual load profile of modern automation panels.

By isolating the control circuit from the main power supply, the ABL6TS25U prevents line-side disturbances — generated by large motor starts, VFD switching, or power factor correction equipment — from propagating into the control layer. This isolation reduces the frequency of PLC I/O errors, drive control faults, and communication dropouts on Modbus RTU, CANopen, or EtherNet/IP networks, all of which contribute to unplanned downtime and the associated energy waste of cold-start recovery sequences.

From a thermal management perspective, a correctly sized control transformer like the ABL6TS25U runs cooler than an overloaded unit, reducing the heat load inside the control enclosure. Lower enclosure temperatures extend the service life of PLCs, drives, and communication modules, reduce the duty cycle of enclosure cooling fans or air conditioners, and lower the overall energy footprint of the control cabinet. In facilities with large numbers of control panels, this thermal efficiency compounds into measurable reductions in HVAC energy consumption.

For production line managers focused on OEE (Overall Equipment Effectiveness), the ABL6TS25U contributes to all three OEE pillars: it improves availability by reducing control-circuit-related stoppages; it supports performance by ensuring drives and PLCs execute motion and energy-saving profiles without interruption; and it protects quality by maintaining stable sensor and I/O power that prevents false rejects and missed detection events. All units supplied by NANKMOS are tested prior to shipment and covered by a 12-month warranty, with in-stock availability for fast delivery to minimize line downtime.

Q1: How does the ABL6TS25U contribute to energy savings on a production line?The ABL6TS25U isolates the control circuit from the main power supply, preventing line-side transients from causing control faults, nuisance trips, and unplanned restarts. Each avoided restart eliminates the high inrush current associated with motor and drive cold starts, directly reducing peak energy demand and improving the line's overall power factor profile.

Q2: Is the ABL6TS25U compatible with Schneider Altivar drives and Modicon PLCs?Yes. The ABL6TS25U is a standard Phaseo series component within the Schneider Electric ecosystem and is fully compatible with Altivar ATV320, ATV630, and ATV930 drive auxiliary circuits, as well as Modicon M340, M580, and TM251 PLC control panels. It is also suitable for use with third-party PLCs and drives that require an isolated 24 V AC control supply.

Q3: What is the recommended replacement or equivalent if the ABL6TS25U is being upgraded?For applications requiring higher power capacity, the ABL6TS40U (400 VA) or ABL6TS63U (630 VA) within the same Phaseo ABL6 series are direct form-factor upgrades. For DC control supply applications, the Schneider ABL8 Phaseo regulated power supply range provides an alternative architecture. NANKMOS can advise on the correct replacement based on your panel load calculation.

Q4: What testing and warranty coverage is provided with NANKMOS supply?Every ABL6TS25U unit supplied by NANKMOS undergoes functional testing prior to shipment, verifying output voltage, insulation integrity, and thermal performance under load. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-week dispatch, and expedited sourcing is available for urgent production line requirements.
