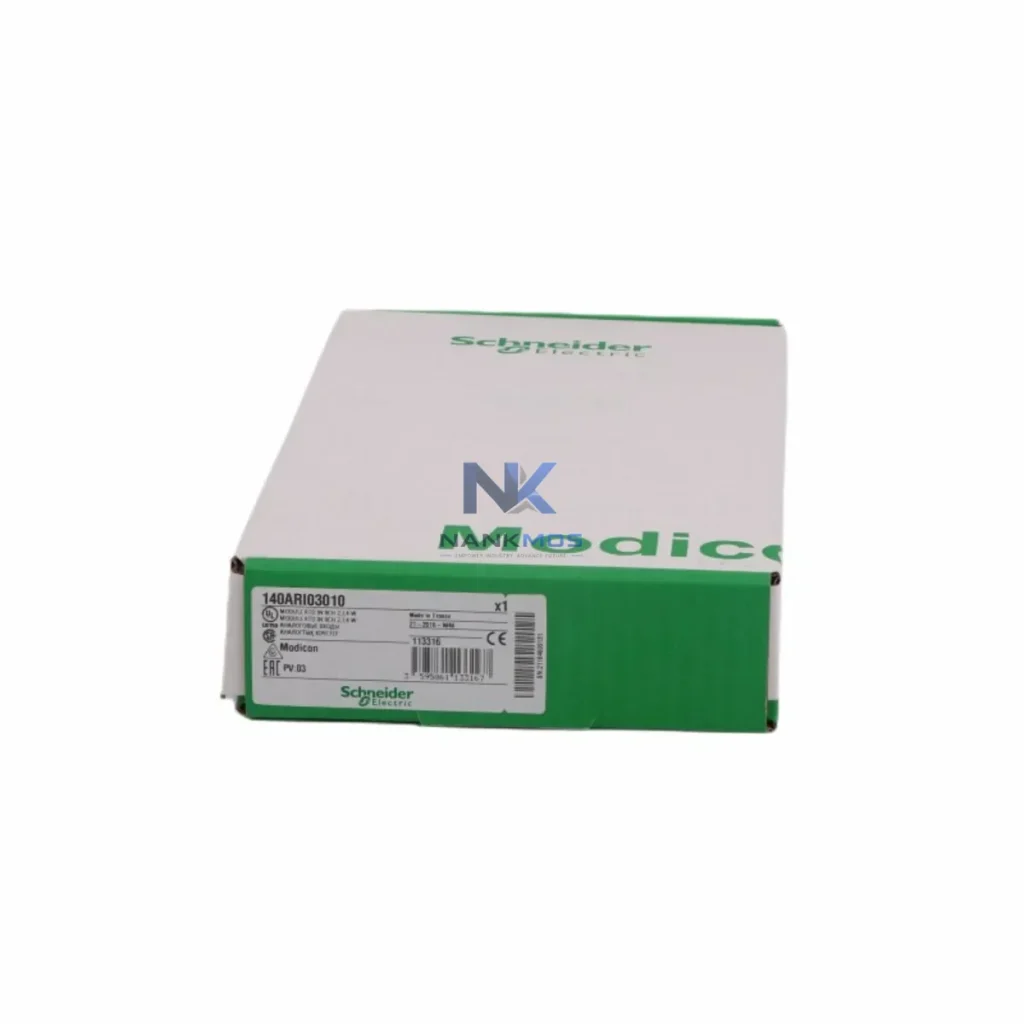

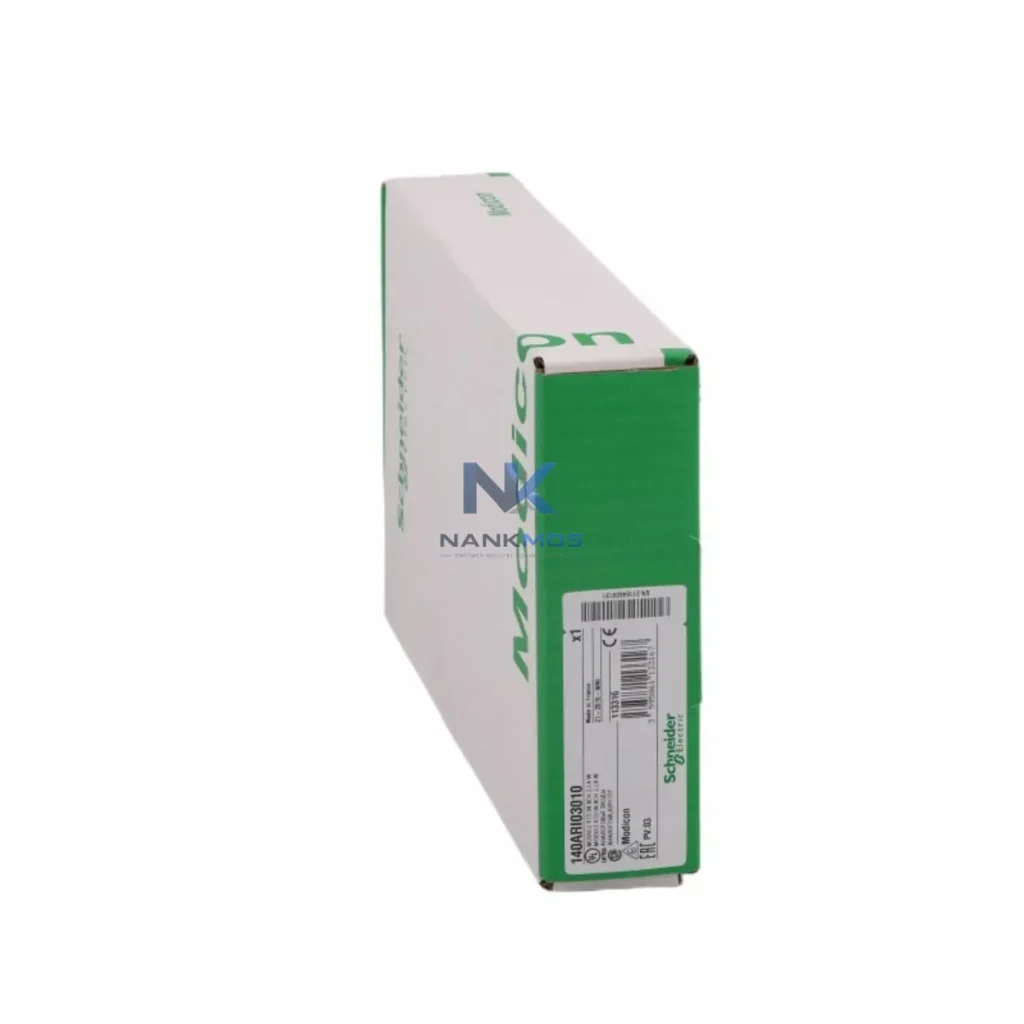

Schneider Electric 140ARI03010 RTD Analog Input Module

Product Details

140ARI03010 Product Description

The Schneider Electric 140ARI03010 is an 8-channel RTD analog input module engineered for the Modicon Quantum automation platform. Designed to operate within a fully integrated control architecture, this module delivers precision temperature signal acquisition across demanding industrial environments — from continuous process plants to discrete manufacturing lines. Its role within the Quantum backplane ecosystem ensures deterministic data throughput to the CPU, supporting real-time closed-loop control, predictive maintenance diagnostics, and layered redundancy strategies. Backed by a 12-Month Warranty and validated for Contextual Integration across multi-vendor control cabinets, the 140ARI03010 is a durable, field-proven component for engineers who require long-term signal stability and system-wide consistency.

Within a complete Quantum automation architecture, the 140ARI03010 occupies the I/O layer, interfacing directly with field-mounted RTD sensors (Pt100, Pt1000, Ni100, Cu10) and transmitting linearized engineering-unit values to the Quantum CPU — such as the 140CPU65160 or 140CPU67160 — via the local backplane bus. This tight integration eliminates the need for external signal conditioners in most installations, reducing panel footprint and wiring complexity while improving signal integrity. The module's 16-bit resolution and configurable input ranges make it suitable for both cryogenic and high-temperature process monitoring, ensuring measurement accuracy across the full operating envelope.

System architects deploying the 140ARI03010 benefit from its native compatibility with the Quantum hot-standby redundancy architecture. When paired with a 140CHS11000 hot-standby module and a redundant CPU pair, the RTD input data is mirrored across both controllers in real time, ensuring zero-scan-loss failover for critical temperature loops. This capability is essential in applications such as power generation, petrochemical distillation, and pharmaceutical batch processing, where temperature excursions during a controller switchover could trigger safety shutdowns or product loss.

From a communications perspective, the 140ARI03010 integrates seamlessly into Quantum racks equipped with Modbus Plus or Ethernet TCP/IP network adapters — including the 140NOE77101 Ethernet communication module — enabling remote I/O diagnostics, live channel-level status monitoring, and integration with SCADA systems via Unity Pro or EcoStruxure Control Expert software. Engineers can configure channel enable/disable, filter time constants, and open-wire detection parameters directly from the programming environment, reducing commissioning time and enabling rapid fault isolation during plant startup.

The 140ARI03010 achieves its full value when deployed as part of a cohesive Quantum automation platform rather than as a standalone component. In a typical Quantum control cabinet, the module shares a 140XBP01600 or 140XBP01000 backplane with the primary CPU (140CPU65160 or 140CPU67160), a 140CPS11420 power supply module, and a combination of discrete and analog I/O modules. The power supply provides stable 5 VDC and 24 VDC rails to all rack-mounted modules, ensuring that the RTD input channels maintain their measurement accuracy even under transient load conditions caused by adjacent output modules switching high-current field devices.

For distributed architectures, the 140ARI03010 can be installed in remote I/O drops connected to the main Quantum rack via a 140CRP93200 RIO head adapter and coaxial remote I/O cable, or via a 140NOA61100 Ethernet remote I/O adapter for fiber-optic or copper Ethernet topologies. This flexibility allows temperature measurement points to be located up to several kilometers from the main control room without signal degradation, a critical requirement in large-scale process plants, pipeline monitoring stations, and offshore platforms.

At the HMI layer, temperature data acquired by the 140ARI03010 is surfaced through Magelis HMIGTO or HMISCU operator panels connected via Modbus TCP, providing operators with real-time trend displays, alarm management, and historical logging. Integration with the 140NOE77101 Ethernet module enables simultaneous data access by multiple SCADA clients, historian servers, and engineering workstations running EcoStruxure Control Expert, supporting concurrent monitoring and configuration without impacting scan cycle performance.

Signal isolation and protection are addressed through the module's built-in channel-level isolation, which prevents ground loops between field sensors and the control system backplane. For installations requiring additional surge protection — such as outdoor RTD sensors on transmission towers or tank farms — external signal isolators or barriers from the Schneider Electric Preventa or Phoenix Contact MACX series can be inserted between the field wiring and the 140ARI03010 terminals, maintaining system integrity under lightning or induced voltage events. Relay output modules such as the 140DAO84010 can be coordinated with the RTD input data to implement direct temperature-based interlock logic within the Quantum CPU, eliminating the latency of external relay panels.

The 140ARI03010 serves as a precision temperature acquisition node across a broad spectrum of industrial verticals. In power generation facilities — including thermal, nuclear, and combined-cycle plants — the module monitors stator winding temperatures, bearing temperatures, and cooling water inlet/outlet differentials, feeding data to the Quantum CPU for turbine protection and load optimization algorithms. Its 16-bit resolution ensures that small temperature gradients indicative of incipient bearing wear or insulation degradation are captured before they escalate to forced outages.

In petrochemical and refinery applications, the 140ARI03010 is deployed in distillation column temperature profiling, reactor jacket monitoring, and heat exchanger performance tracking. The module's open-wire detection feature generates a diagnostic fault code in the Quantum CPU the moment a sensor lead breaks, enabling maintenance teams to dispatch field technicians before the loss of a measurement point affects process yield or safety margins. This proactive diagnostic capability directly reduces unplanned downtime and supports compliance with IEC 61511 functional safety requirements for process plants.

Water and wastewater treatment facilities use the 140ARI03010 to monitor digester temperatures in anaerobic treatment processes, where maintaining precise temperature bands is critical to microbial activity and biogas yield. The module's configurable filter time constants allow operators to suppress electrical noise from variable-frequency drives controlling aeration blowers, ensuring clean temperature readings without masking genuine process excursions. Mining and mineral processing operations deploy the module in conveyor belt motor temperature monitoring, crusher bearing surveillance, and flotation cell temperature control, where the harsh electromagnetic environment demands the module's robust backplane isolation and CE-certified EMC performance.

In packaging and food processing lines, the 140ARI03010 integrates with Quantum CPUs managing heat-seal jaw temperature control, pasteurization tunnel profiling, and clean-in-place (CIP) cycle temperature verification. Its compatibility with the Quantum hot-standby architecture ensures that temperature control loops remain active during controller switchover events, preventing seal quality defects or CIP cycle interruptions that would require costly product rework or line sanitization repeats.

Q1: Is the 140ARI03010 compatible with both local and remote Quantum I/O racks, and does it support hot-standby redundancy configurations? Yes. The 140ARI03010 is fully compatible with Quantum local racks (140XBP series backplanes) and remote I/O drops managed by 140CRP93200 or 140NOA61100 adapters. In hot-standby configurations using the 140CHS11000 module and a redundant CPU pair (e.g., two 140CPU65160 units), the RTD input data is synchronized across both controllers on every scan, ensuring seamless failover with no loss of temperature measurement continuity. Configuration is performed once in EcoStruxure Control Expert and applies identically to both primary and standby CPUs.

Q2: What commissioning steps are required to verify 140ARI03010 channel accuracy after installation, and how are open-wire faults diagnosed? After rack installation and wiring, channel verification is performed in EcoStruxure Control Expert by enabling each channel individually, selecting the correct RTD type and temperature range, and comparing the module's reported value against a calibrated reference thermometer placed at the sensor location. Open-wire detection is enabled per channel in the module configuration dialog; when a sensor lead breaks, the affected channel reports a value at the configured fault value (typically the upper range limit) and sets a diagnostic bit in the module's status word, which can be mapped to an alarm tag in the SCADA system. No external test equipment is required for initial commissioning beyond a calibrated reference thermometer and a standard Modbus diagnostic tool.

Q3: What does the 12-Month Warranty cover for the 140ARI03010, and what is the typical lead time for replacement units? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the module's rated surge immunity, or physical impact. Replacement units are maintained in inventory and are typically available for same-week shipment. Each unit undergoes functional testing prior to dispatch, including channel-level RTD simulation across the full input range, backplane communication verification, and visual inspection. Customers requiring expedited replacement for critical production environments are encouraged to contact the sales team directly to confirm real-time stock availability.
