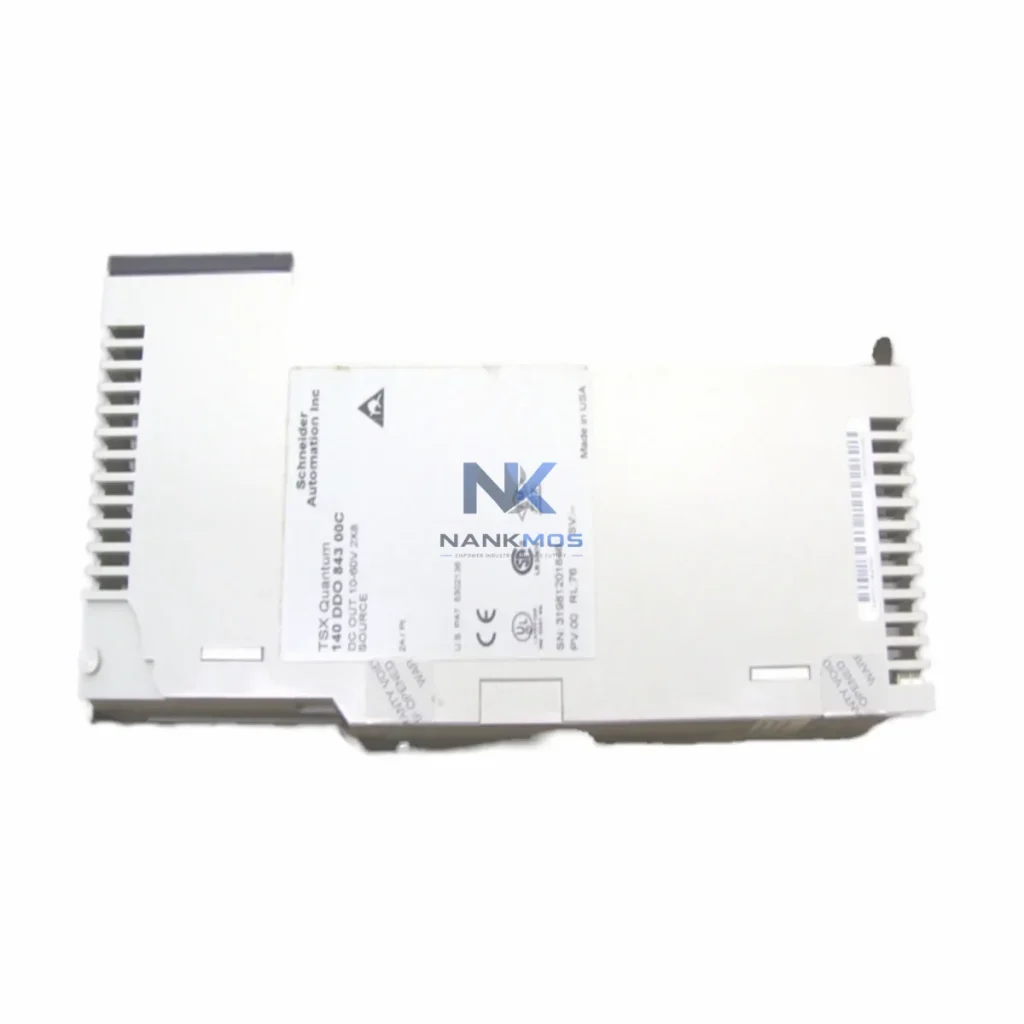

Schneider Electric 140DDO84300 Discrete Output Module

Product Details

140DDO84300 Product Description

The Schneider Electric 140DDO84300 is a high-density discrete output module engineered for deployment within the Modicon Quantum automation platform — one of the most widely adopted control architectures in heavy industry, process manufacturing, and critical infrastructure. Its role within the control hierarchy is not limited to signal switching; it functions as a precision output interface that bridges the CPU decision layer with field-level actuators, solenoids, motor starters, and relay coils across demanding industrial environments.

In a fully integrated Quantum architecture, the 140DDO84300 operates in close coordination with the Modicon Quantum CPU modules — such as the 140CPU65150 or 140CPU67160 — which execute the control logic and issue output commands via the Quantum backplane bus. The backplane itself, typically a 140XBP01600 or 140XBP00600 chassis, provides the physical and electrical foundation that links the CPU, power supply, I/O modules, and communication processors into a unified control node. The 140DDO84300 slots directly into this chassis, receiving output commands from the CPU and driving field devices with optically isolated 24 VDC signals.

On the input side, the 140DDO84300 works in tandem with discrete input modules such as the 140DDI35300 or 140DDI84300, which capture field signals from sensors, limit switches, and pushbuttons. Together, these I/O modules form the sensing and actuation layer of the control loop, ensuring that the CPU receives accurate process feedback and delivers precise output commands in real time. For analog process variables — temperature, pressure, flow — the 140ACI03000 analog input module or 140ACO13000 analog output module extends the platform's signal handling capability beyond discrete switching.

Communication integrity across the Quantum platform is maintained through dedicated communication processors. The 140NOE77101 Ethernet TCP/IP network option module enables SCADA integration, remote diagnostics, and peer-to-peer data exchange over standard industrial Ethernet infrastructure. For legacy Modbus Plus networks, the 140NOM21100 provides seamless protocol bridging, ensuring that the 140DDO84300's output states are visible and controllable from supervisory systems without protocol conversion overhead. In distributed architectures, the 140CRP93100 RIO head module extends the Quantum I/O bus to remote drops, allowing the 140DDO84300 to be deployed at field junction points far from the main control cabinet while maintaining deterministic scan-cycle synchronization with the master CPU.

Power supply integrity is a foundational requirement for reliable discrete output operation. The 140CPS11420 or 140CPS21400 Quantum power supply modules deliver regulated 24 VDC and 5 VDC bus power to the backplane, ensuring that the 140DDO84300's output drivers maintain stable switching characteristics even under full-load conditions. In redundant power configurations, dual power supply modules with automatic switchover eliminate single points of failure at the power layer, directly supporting the output module's continuous availability in 24/7 process environments.

For HMI integration, the 140DDO84300's output states are typically surfaced through Magelis HMI panels or SCADA workstations running Vijeo Citect or Wonderware, providing operators with real-time visibility into actuator states, output group diagnostics, and fault annunciation. This contextual integration between the output module and the HMI layer reduces mean time to diagnose (MTTD) and accelerates corrective action during process upsets.

The 140DDO84300 is deployed across a broad spectrum of industrial sectors where high-channel-count discrete output capability is essential for coordinated machine and process control.

In automotive and discrete manufacturing, the module drives conveyor motor starters, pneumatic valve solenoids, and assembly line interlocks across multi-station production cells. Its 84-channel capacity reduces the number of output modules required per rack, simplifying cabinet layout and minimizing backplane slot consumption in space-constrained control panels.

In power generation and electrical substation applications, the 140DDO84300 controls circuit breaker trip/close coils, protection relay outputs, and alarm annunciator panels. The optical isolation between the logic bus and field outputs is critical in these environments, where transient voltages and ground potential differences can corrupt signal integrity in non-isolated output architectures.

In oil, gas, and petrochemical facilities, the module is integrated into emergency shutdown (ESD) and safety instrumented system (SIS) architectures, where it drives shutdown valves, deluge system solenoids, and flare ignition outputs under the supervision of a Quantum safety CPU. Pre-shipment functional testing of each 140DDO84300 unit ensures that output channel integrity is verified before installation in safety-critical loops.

In water and wastewater treatment plants, the module controls pump motor starters, valve actuators, and chemical dosing system outputs across distributed pump stations. Its compatibility with the Quantum RIO architecture allows a single master CPU to coordinate output modules deployed across geographically dispersed field sites over fiber-optic RIO cable.

In mining and metals processing, the 140DDO84300 manages crusher motor controls, conveyor belt drives, and ore handling system interlocks in environments characterized by high vibration, dust ingress, and wide ambient temperature variation — conditions that the Quantum platform's industrial-grade construction is specifically designed to withstand.

Q1: Is the 140DDO84300 compatible with all Modicon Quantum backplane configurations, and can it be mixed with other I/O module types in the same rack? Yes. The 140DDO84300 is fully compatible with all standard Modicon Quantum backplanes in the 140XBP series, including 4-slot, 6-slot, 10-slot, and 16-slot configurations. It can be freely mixed with discrete input modules (140DDI series), analog I/O modules (140ACI/ACO series), and communication processors (140NOE/NOM series) within the same rack, subject to the power budget of the installed 140CPS power supply module. Slot assignment is flexible and managed through the Unity Pro or Concept programming environment during hardware configuration.

Q2: What redundancy options are available for the 140DDO84300 in high-availability control architectures? The Modicon Quantum platform supports Hot Standby CPU redundancy using the 140CPU67160S or 140CPU65160S Hot Standby processors, which maintain synchronized output states between primary and standby CPUs. In the event of a primary CPU failure, the standby CPU assumes control within one scan cycle, and the 140DDO84300 output states are maintained without interruption. For power supply redundancy, dual 140CPS modules with automatic switchover can be configured in the same rack. Output module redundancy at the I/O level is achieved through RIO remote drop architecture, where critical output functions are distributed across multiple remote drops to eliminate single-rack failure as a system-level risk.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted for the 140DDO84300? Every 140DDO84300 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Pre-shipment testing includes functional verification of all 84 output channels under rated load conditions, optical isolation integrity testing, backplane connector inspection, and firmware version confirmation where applicable. Units that do not pass all test criteria are quarantined and not shipped. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
