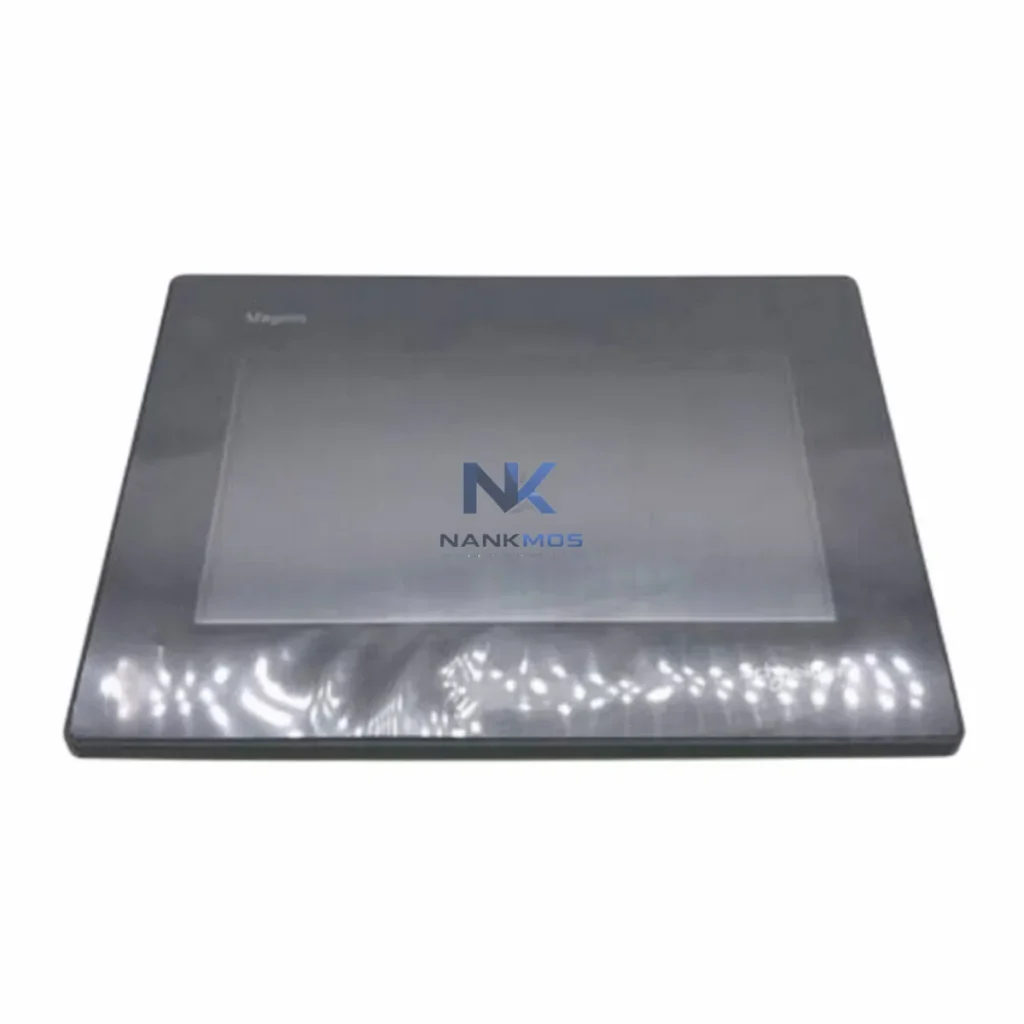

Schneider Electric SCHNEIDER HMIGXU3512 Electric Touchscreen

Product Details

SCHNEIDER HMIGXU3512 Electric Touchscreen Product Description

The Schneider Electric HMIGXU3512 Magelis GXU is a high-performance industrial HMI panel engineered to deliver precise energy control, real-time load visibility, and seamless operator interaction across smart production lines. Designed for demanding manufacturing environments, this touchscreen HMI integrates directly with energy management architectures to reduce unnecessary power consumption, stabilize equipment cycle times, and maximize overall equipment effectiveness (OEE). With its robust processing capability and broad communication protocol support, the HMIGXU3512 serves as the central visualization and control node in energy-aware automation systems.

In modern energy-optimized production environments, the HMIGXU3512 functions as the operator interface layer within a tightly integrated control architecture. When paired with a Schneider Modicon M340 or M580 PLC, the HMI panel provides live feedback on energy consumption per production zone, enabling operators to identify and respond to load anomalies in real time. The panel communicates seamlessly with Altivar ATV312 and ATV630 variable frequency drives, displaying motor speed, torque demand, and energy draw — allowing line supervisors to fine-tune drive parameters without interrupting production flow.

For servo-driven axes, the HMIGXU3512 interfaces with Lexium 32 servo drives, presenting position feedback, cycle completion status, and fault diagnostics on a single screen. This eliminates the need for separate diagnostic terminals and reduces the energy overhead associated with redundant monitoring hardware. The panel also integrates with Schneider PM5000 series power monitoring modules, pulling real-time kWh, kVAR, and power factor data directly into operator dashboards — a critical capability for facilities targeting ISO 50001 energy management compliance.

On the I/O side, the HMIGXU3512 connects to Modicon TM3 and TM2 I/O expansion modules, enabling the HMI to reflect discrete sensor states, analog process values, and digital actuator feedback without additional gateway hardware. For facilities running distributed SCADA architectures, the panel's Ethernet port supports direct integration with Wonderware, Ignition, or Schneider EcoStruxure Plant SCADA platforms, enabling energy data aggregation across multiple production cells. Communication with Advantys STB island bus modules and Modbus-connected energy meters further extends the panel's role as a unified energy and process visualization node.

The HMIGXU3512 contributes directly to factory energy reduction strategies by providing operators with the visibility and control authority needed to act on inefficiencies before they compound. In motor-intensive applications — conveyor systems, pump stations, compressor banks, and packaging lines — the HMI displays real-time drive loading and flags underloaded or overloaded conditions that indicate energy waste or mechanical stress. By surfacing this data at the operator level, facilities can implement demand-side load management without relying solely on centralized energy management systems.

Thermal load reduction is another key benefit. By enabling precise speed and torque control through its interface with Altivar drives, the HMIGXU3512 helps eliminate the heat generated by motors running at fixed speeds under variable load conditions. Reduced thermal output lowers cooling requirements in control panels and production floors, contributing to secondary energy savings that are often overlooked in standard energy audits.

Production line cycle time stability is directly supported through the HMI's alarm and event management capabilities. When a drive fault, sensor dropout, or communication timeout occurs, the HMIGXU3512 delivers immediate visual and audible alerts, enabling rapid operator response that minimizes unplanned downtime. Shorter recovery times translate directly into higher equipment utilization rates and more consistent energy consumption profiles — both critical metrics for facilities operating under energy intensity targets.

For predictive maintenance programs, the panel's data logging capability records process trends, fault histories, and energy consumption patterns over time. This historical data supports condition-based maintenance scheduling, reducing the energy and material costs associated with reactive maintenance events. All units are pre-tested prior to shipment and covered by a 12-month warranty, ensuring that replacement panels integrate into existing systems without commissioning delays that could disrupt production energy baselines.

Q1: How does the HMIGXU3512 contribute to measurable energy savings on a production line?The HMIGXU3512 provides real-time visualization of energy KPIs — including motor load, drive efficiency, and power factor — directly at the operator station. By making energy data immediately actionable, it enables operators to reduce idle running, optimize drive setpoints, and respond to load anomalies before they result in wasted energy. When integrated with PM5000 power monitoring modules and Altivar drives, facilities typically achieve measurable reductions in peak demand and overall kWh consumption per production cycle.

Q2: Is the HMIGXU3512 compatible with existing Schneider PLC and drive systems?Yes. The HMIGXU3512 is fully compatible with the Modicon M340, M580, and Momentum PLC families via Modbus RTU and Modbus TCP/IP. It also supports direct communication with Altivar ATV312, ATV320, and ATV630 variable frequency drives, as well as Lexium 32 servo drives. For mixed-protocol environments, the panel's multi-port communication architecture supports simultaneous connections to multiple device types without requiring additional protocol converters.

Q3: What is the recommended replacement or upgrade path for aging HMI panels in energy management applications?The HMIGXU3512 is a direct form-factor replacement for earlier Magelis XBT and GTO series panels in applications requiring Modbus or EtherNet/IP connectivity. For facilities upgrading from legacy fixed-function operator terminals, the GXU series offers significantly expanded data logging, alarm management, and energy visualization capabilities. Migration projects should include a communication mapping review to ensure existing PLC variable addresses are correctly mapped to the new HMI project file.

Q4: What testing and warranty coverage is provided with each unit?Every HMIGXU3512 unit is functionally tested prior to shipment to verify display operation, communication port integrity, and power supply performance. Each unit is covered by a 12-month warranty from the date of delivery, covering manufacturing defects and component failures under normal operating conditions. In-stock units are available for immediate dispatch to support urgent project timelines and minimize production downtime during panel replacement or system commissioning.
