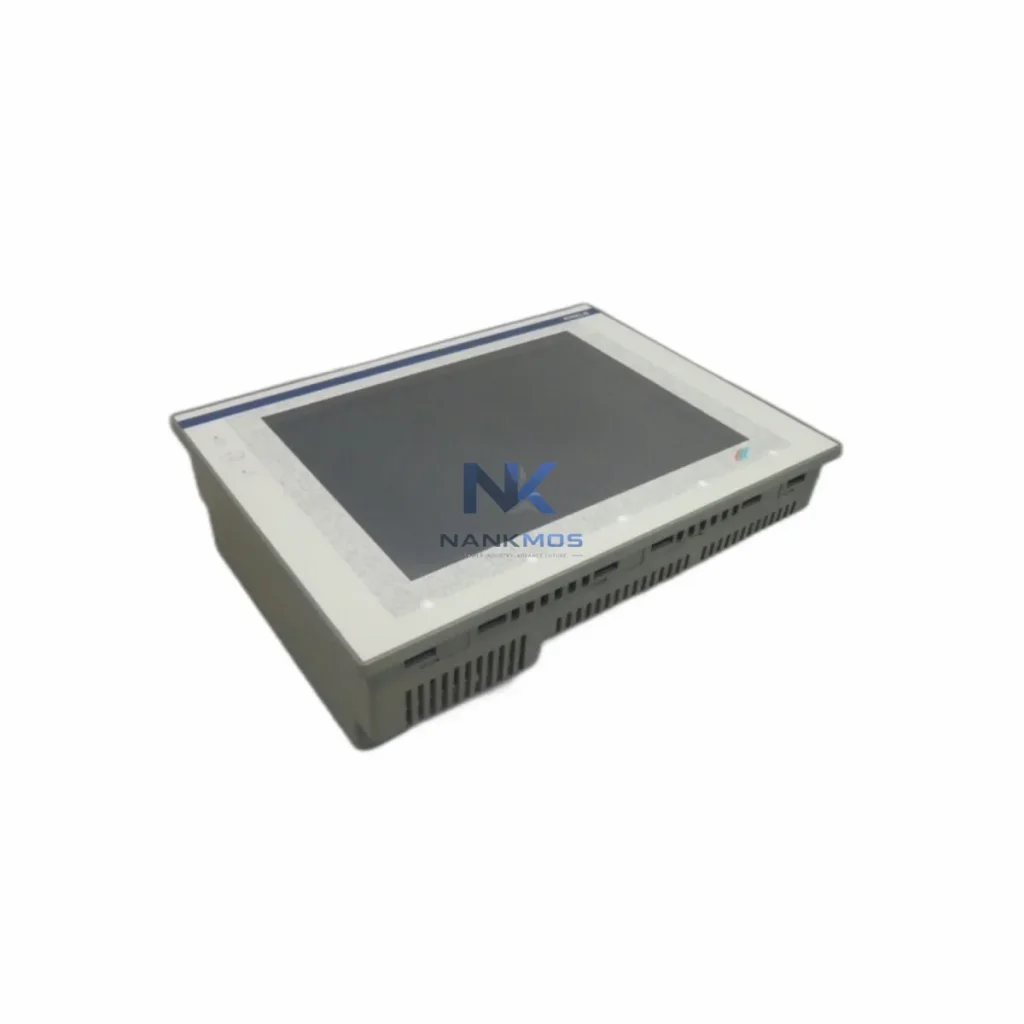

Schneider Electric XBTFC044610 HMI Touch Panel

Product Details

XBTFC044610 Product Description

The Schneider Electric XBTFC044610 is a Magelis XBTFC series HMI touch panel engineered for seamless integration within layered industrial control architectures. Designed to serve as the primary operator interface at the HMI layer, this panel bridges the gap between field-level I/O, PLC control logic, and supervisory SCADA systems — delivering real-time visualization, alarm management, and process diagnostics in a single ruggedized unit. With native communication compatibility across Modbus TCP/IP, CANopen, and Uni-Telway protocols, the XBTFC044610 is purpose-built for Schneider Electric's Modicon automation ecosystem and broader multi-vendor control environments.

Backed by a 12-Month Warranty and pre-shipment functional testing, the XBTFC044610 is available for immediate dispatch from verified inventory. Each unit undergoes contextual integration verification to confirm communication readiness, display calibration, and protocol handshake stability before shipment.

The XBTFC044610 achieves its full operational value when deployed as part of a cohesive Schneider Electric automation platform. At the control layer, it interfaces directly with Modicon M340 CPUs (e.g., BMX P34 2020) and Modicon Premium PLCs via Uni-Telway or Modbus RTU, enabling bidirectional data exchange for setpoint management, mode selection, and real-time status feedback. The panel's CANopen port allows direct connection to distributed I/O nodes such as the TM5 CANopen I/O modules, reducing wiring complexity and enabling deterministic I/O scanning across the control cabinet.

At the power layer, the XBTFC044610 operates on 24 VDC supplied by Schneider Electric Phaseo power supplies (e.g., ABL8REM24030), which provide regulated, noise-filtered DC power essential for stable HMI display and communication performance. Pairing with a BMX CPS 2000 rack power supply ensures the Modicon M340 backplane and associated I/O modules maintain synchronized power delivery across the control rack.

For communication layer integration, the XBTFC044610 connects upstream to SCADA systems or Ethernet-based supervisory networks via a BMX NOE 0100 Ethernet communication module installed in the Modicon M340 rack. This architecture supports OPC-UA and Modbus TCP/IP data exchange, enabling the HMI panel to reflect live PLC register values while simultaneously forwarding alarm states to the SCADA historian. In redundant architectures, a secondary BMX CRA 312 10 remote I/O adapter ensures continued I/O availability even during primary CPU failover events.

At the I/O layer, digital and analog signals from field instruments — pressure transmitters, flow meters, temperature sensors — are conditioned through BMX AMI 0410 analog input modules before being processed by the PLC and visualized on the XBTFC044610 display. Signal isolation is maintained through TWDLMDA20DRT-compatible terminal blocks and signal isolators, preventing ground loop interference from corrupting HMI display accuracy.

In HMI-to-drive integration scenarios, the XBTFC044610 provides operator-level speed reference and fault acknowledgment for Altivar ATV312 or ATV630 variable frequency drives connected via CANopen or Modbus RTU. This eliminates the need for dedicated drive keypads on the panel door, centralizing operator interaction at the HMI and reducing cabinet complexity. For motor protection, TeSys D contactors and LRD thermal overload relays in the power distribution section complete the protection layer, with fault status bits mapped directly to HMI alarm pages.

Manufacturing & Assembly Lines: The XBTFC044610 serves as the primary operator station on automated assembly lines, displaying cycle counts, reject rates, and conveyor speed in real time. Its IP65-rated front panel withstands coolant splash and dust ingress common in machining environments, while Vijeo Designer-based screens provide shift supervisors with production KPI dashboards without requiring SCADA access.

Water & Wastewater Treatment: In water treatment facilities, the panel interfaces with Modicon M340 PLCs managing pump sequencing, chemical dosing, and level control. Operators use the touch interface to adjust PID setpoints for flow control valves and monitor tank levels across multiple process stages. The CANopen communication port enables direct integration with distributed pump drive systems, reducing fieldbus wiring runs across large treatment plant footprints.

Power Generation & Utilities: Substation automation and auxiliary control panels in power generation facilities deploy the XBTFC044610 for local operator control of switchgear, transformer cooling fans, and battery charger systems. The panel's Uni-Telway compatibility ensures seamless integration with legacy Schneider Electric Premium PLC installations common in utility infrastructure built over the past two decades.

Oil, Gas & Petrochemical: In hazardous-area-adjacent control rooms, the XBTFC044610 mounted in purged or pressurized enclosures provides operators with real-time process visualization for compressor control, separator level management, and emergency shutdown (ESD) status monitoring. Its robust operating temperature range supports installation in outdoor equipment shelters subject to wide ambient temperature swings.

Packaging & Material Handling: High-speed packaging lines use the XBTFC044610 to display machine state, product count, and fault diagnostics. Integration with Altivar drives via CANopen allows operators to adjust conveyor speeds and indexing parameters directly from the HMI without entering the PLC programming environment, reducing changeover time and improving line efficiency.

Q1: Is the XBTFC044610 compatible with Modicon M340 and Premium PLC platforms for direct communication? Yes. The XBTFC044610 supports Uni-Telway and Modbus RTU protocols natively, enabling direct serial communication with Modicon M340 (BMX P34 series) and Modicon Premium (TSX P57 series) CPUs. For Ethernet-based architectures, a Modbus TCP/IP gateway or the BMX NOE 0100 Ethernet module in the M340 rack provides transparent protocol bridging. Vijeo Designer configuration software allows engineers to map PLC data registers directly to HMI display objects, alarm triggers, and recipe parameters without intermediate middleware.

Q2: What are the installation and commissioning requirements for integrating the XBTFC044610 into an existing control cabinet? The XBTFC044610 requires a standard panel cut-out per Schneider Electric dimensional specifications, a stable 24 VDC supply (Phaseo ABL8 series recommended), and a serial or CANopen cable run to the PLC or I/O network. Pre-shipment testing at NANKMOS verifies communication port functionality and display calibration. On-site commissioning involves loading the Vijeo Designer application file, configuring the communication driver to match the PLC protocol settings, and verifying alarm page functionality. Typical commissioning time for a pre-configured application is under two hours for experienced automation engineers.

Q3: What warranty and long-term supply support does NANKMOS provide for the XBTFC044610? Every XBTFC044610 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including display verification, communication port handshake confirmation, and power supply stability checks — ensuring Contextual Integration readiness upon arrival. For long-term maintenance planning, NANKMOS maintains verified inventory of XBTFC series panels and compatible Magelis accessories, supporting both immediate replacement needs and planned lifecycle refresh programs for installed automation systems.
