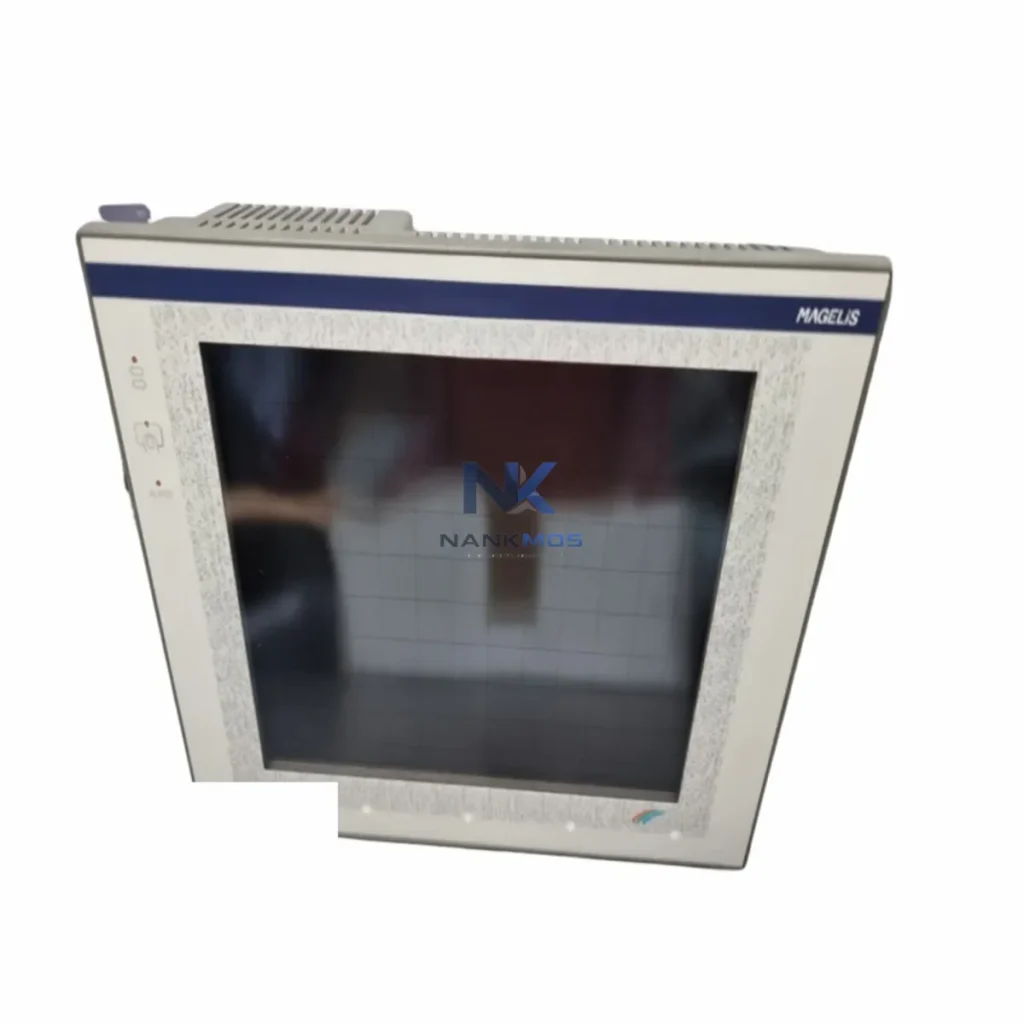

Schneider Electric XBTF034510 HMI Panel

Product Details

XBTF034510 Product Description

The Schneider XBTF034510 is engineered as a dedicated HMI layer component within the Magelis XBTF series, designed to deliver seamless operator interaction across multi-tier industrial control architectures. Its role extends far beyond a simple display terminal — it functions as the critical visualization and command interface that bridges the operator layer with the underlying control, I/O, and communication infrastructure of a complete automation system.

At the control layer, the XBTF034510 integrates directly with Schneider Electric Modicon M340 and Modicon Premium PLCs, enabling real-time process visualization, alarm management, and parameter adjustment without interrupting machine cycles. When paired with the TSX P57 CPU modules of the Modicon Premium platform, the HMI provides operators with structured access to process variables, setpoints, and diagnostic registers — reducing reliance on engineering workstations during routine operations.

For communication architecture, the XBTF034510 supports Modbus RTU and Uni-Telway serial protocols via its RS-232C and RS-485 ports, making it fully compatible with Schneider's legacy and current-generation control networks. In distributed control environments, it can be deployed alongside TSXETG100 Ethernet gateways or TSXSCA62 communication adapters to bridge serial field devices with higher-level Ethernet-based supervisory systems, ensuring consistent data flow across the communication layer without requiring protocol conversion at the PLC level.

Within the I/O layer, the XBTF034510 complements discrete and analog I/O modules such as the TSXDEY16D2 digital input module and TSXAEY414 analog input module by providing operators with direct visibility into field signal states, channel diagnostics, and threshold alerts. This integration reduces fault isolation time significantly, as operators can correlate HMI alarm events with specific I/O channel readings in real time.

Power architecture compatibility is equally important in panel design. The XBTF034510 operates on a 24 VDC supply, aligning with standard Schneider ABL8 series power supply units commonly deployed in the same control cabinet. This voltage consistency eliminates the need for additional DC-DC converters, simplifying panel wiring, reducing heat load, and improving overall power distribution reliability across the cabinet.

In redundancy-capable architectures, the XBTF034510 can serve as the primary operator interface in systems where Modicon Quantum Hot Standby configurations manage critical process control. While the HMI itself operates in a single-node configuration, its ability to monitor redundancy status registers and display switchover events makes it a valuable diagnostic tool during failover scenarios, supporting maintenance teams in verifying system integrity without requiring SCADA-level access.

For modular expansion environments, the XBTF034510 pairs effectively with Advantys STB distributed I/O islands and TeSys motor management modules, providing localized HMI access at machine-level control panels while the central PLC manages system-wide coordination. This distributed HMI deployment model reduces network traffic on the supervisory layer and improves response time for operator commands at the machine level.

Engineering commissioning workflows benefit from the XBTF034510's compatibility with Vijeo Designer configuration software, which supports offline simulation, tag import from Unity Pro projects, and structured alarm page design. This integration with the broader Schneider software ecosystem — including EcoStruxure Machine Expert for newer platforms — ensures that HMI projects can be developed, validated, and deployed within a unified engineering environment, reducing commissioning time and minimizing configuration errors during site acceptance testing.

Long-term maintenance efficiency is supported by the XBTF034510's robust IP65 front panel protection, which resists dust ingress and water jets in demanding industrial environments including food processing lines, chemical dosing stations, and packaging machinery. Combined with a 12-Month Warranty and pre-shipment functional verification, each unit is confirmed operational before dispatch, reducing the risk of installation delays caused by DOA (dead-on-arrival) hardware.

The Schneider XBTF034510 is deployed across a broad range of industrial sectors where reliable operator interaction with control systems is essential to process continuity and safety.

In manufacturing and discrete automation, the XBTF034510 serves as the machine-level HMI on assembly lines, CNC machining centers, and robotic welding cells. Operators use it to monitor cycle counts, adjust feed rates, and acknowledge fault conditions without interrupting production sequences. Its compact panel-mount form factor makes it suitable for integration into standard 19-inch control enclosures alongside Modicon M340 PLCs and TeSys D motor starters.

In water and wastewater treatment, the XBTF034510 provides local operator control at pump stations, chemical dosing skids, and filtration units. Its Modbus RTU communication capability allows direct connection to flow meters, level transmitters, and variable frequency drives, enabling operators to monitor process parameters and adjust setpoints without requiring remote SCADA access. This local control capability is particularly valuable in remote pump stations where network connectivity may be intermittent.

In power distribution and energy management, the XBTF034510 is deployed at motor control centers and switchgear panels to provide operators with real-time visibility into breaker status, motor running hours, and protection relay trip events. Integration with Schneider Sepam protection relays via Modbus RTU allows the HMI to display relay diagnostic data, enabling maintenance teams to identify protection events and initiate corrective actions without requiring relay-specific software tools.

In petrochemical and process industries, the XBTF034510 supports local operator stations at heat exchangers, compressor skids, and reactor control panels. Its IP65 front panel protection ensures reliable operation in environments with elevated humidity, airborne particulates, and occasional chemical splash. The HMI's alarm management capabilities allow operators to acknowledge and log process deviations in real time, supporting compliance with process safety management requirements.

In packaging and material handling, the XBTF034510 is integrated into conveyor control panels, palletizing systems, and filling line HMI stations. Its serial communication ports support direct connection to barcode readers, label printers, and weighing systems, enabling operators to manage production recipes, batch counts, and quality checkpoints from a single interface without requiring additional industrial PCs.

Q1: Is the Schneider XBTF034510 compatible with Modicon M340 and Modicon Premium PLCs for direct serial communication? Yes. The XBTF034510 supports Modbus RTU and Uni-Telway protocols via its RS-232C and RS-485 serial ports, enabling direct communication with Modicon M340 BMX P34 CPU modules and Modicon Premium TSX P57 processors. Configuration is performed through Vijeo Designer, which supports tag import from Unity Pro and PL7 Pro projects, ensuring consistent variable mapping between the PLC program and the HMI application. No additional communication gateway is required for direct serial connections within the same control cabinet.

Q2: What are the installation and environmental requirements for deploying the XBTF034510 in demanding industrial environments? The XBTF034510 requires a panel cut-out installation with a 24 VDC power supply within the 18–30 VDC operating range. Its IP65 front panel rating provides protection against dust ingress and water jets, making it suitable for food processing, chemical, and outdoor-rated enclosure applications. Operating temperature range is 0 °C to +50 °C, and the unit should be installed away from high-frequency inverter drives or large contactors to minimize electromagnetic interference on serial communication lines. Proper cable shielding and grounding of the RS-485 network are recommended for installations exceeding 10 meters of serial cable length.

Q3: What warranty and supply assurance does NANKMOS provide for the Schneider XBTF034510? Every Schneider XBTF034510 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm display operation, communication port integrity, and power supply performance before dispatch. NANKMOS maintains verified stock of Magelis XBTF series HMI panels to support urgent project timelines and MRO (maintenance, repair, and operations) replacement requirements. For volume orders, lead time and availability can be confirmed directly via [email protected] or +86 18359268345.
