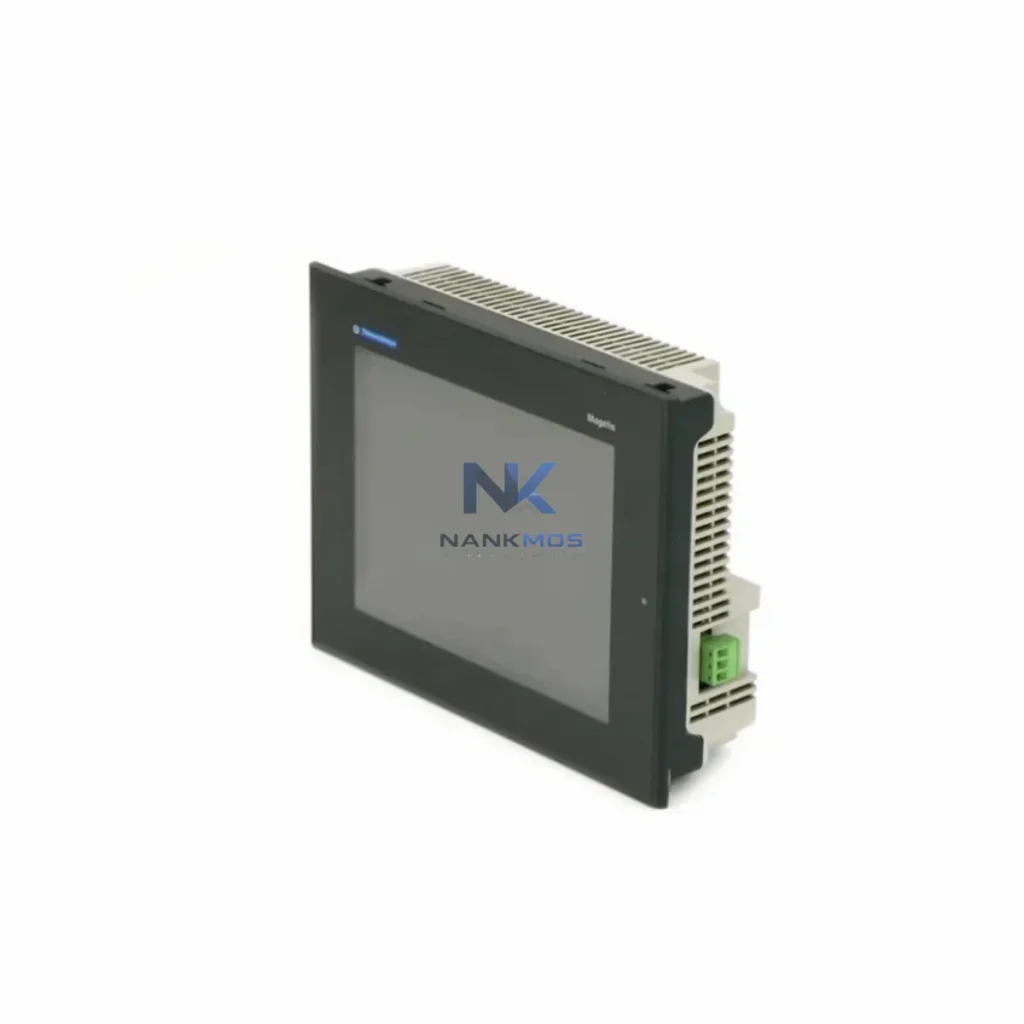

Schneider Electric XBTORT7340 HMI Touchscreen Panel

Product Details

XBTORT7340 Product Description

The Schneider Electric XBTORT7340 is engineered to serve as the primary operator interface within a fully integrated Magelis-based control architecture. Its role extends far beyond simple visualization — it functions as the contextual bridge between the operator and the underlying control layers, enabling real-time process monitoring, alarm management, recipe handling, and diagnostic feedback across the entire automation platform.

In a typical Schneider Electric control cabinet deployment, the XBTORT7340 operates in close coordination with the Modicon M340 or Modicon M580 PAC/PLC platforms via Ethernet TCP/IP or Modbus RTU, ensuring low-latency data exchange between the HMI layer and the control layer. The panel's dual-port Ethernet capability supports seamless integration into ring or star network topologies, maintaining communication stability even under high-traffic industrial network conditions.

At the power layer, the XBTORT7340 is typically paired with Schneider Electric Phaseo ABL8 series 24 VDC power supplies, which deliver regulated, filtered DC power to both the HMI panel and associated I/O modules. This ensures stable operation across fluctuating grid conditions common in heavy industrial environments. For I/O expansion, the system architecture commonly incorporates Modicon STB distributed I/O modules or TM3 expansion modules, which feed real-time field signals into the Modicon controller and subsequently surface process values on the XBTORT7340 display.

Communication architecture is further strengthened through the use of Schneider Electric ConneXium managed Ethernet switches or TCSESM series industrial switches, which provide VLAN segmentation, port mirroring, and redundant ring (RSTP) capabilities — all critical for maintaining HMI-to-controller communication integrity in large-scale plant networks. Where fieldbus integration is required, CANopen gateway modules or EtherNet/IP scanner cards installed in the Modicon backplane extend the XBTORT7340's visibility into distributed drive and sensor networks.

For drive-level integration, the XBTORT7340 can display and control parameters from Schneider Electric Altivar ATV320 or Altivar Process ATV600 variable frequency drives via Modbus TCP or EtherNet/IP, enabling operators to monitor motor speed, torque, fault codes, and energy consumption directly from the HMI screen without requiring a separate drive keypad. This Contextual Integration capability dramatically reduces commissioning time and simplifies long-term maintenance workflows.

In redundant control architectures, the XBTORT7340 supports hot-standby switchover visibility when paired with Modicon M580 Hot Standby CPU configurations, displaying active/standby status and switchover events in real time. Terminal block wiring to the HMI's serial ports is typically managed through Schneider Electric NSYTRV series terminal blocks, ensuring clean, labeled, and maintainable signal routing within the control cabinet.

The XBTORT7340 is deployed across a broad spectrum of industrial sectors where reliable operator interface and system-level visibility are non-negotiable requirements.

In manufacturing and assembly lines, the panel provides real-time production count, cycle time monitoring, and fault alarm visualization, enabling operators to respond immediately to line stoppages and minimize unplanned downtime. Its IP65-rated front panel withstands wash-down environments common in food and beverage processing facilities.

In power distribution and electrical substation applications, the XBTORT7340 interfaces with protection relays and energy meters via Modbus RTU, displaying bus voltage, current, power factor, and breaker status on a single operator screen. This centralized visibility supports faster fault isolation and reduces the need for manual panel inspections.

In water and wastewater treatment plants, the HMI panel manages pump sequencing, flow rate visualization, chemical dosing control, and alarm logging. Its embedded Linux OS supports long-term continuous operation without scheduled reboots, making it well-suited for 24/7 process environments.

In oil, gas, and petrochemical facilities, the XBTORT7340 is integrated into safety-instrumented system (SIS) monitoring panels, providing operators with process variable trending, safety loop status, and inhibit management displays. Its robust operating temperature range supports installation in non-air-conditioned field enclosures.

In mining and metallurgical operations, the panel is mounted in conveyor control stations, crusher monitoring panels, and smelting process control rooms, where its high-brightness display and touchscreen interface remain legible and responsive under harsh ambient lighting and vibration conditions.

In packaging and material handling lines, the XBTORT7340 supports recipe management, batch tracking, and multi-language operator guidance, reducing changeover time and operator training requirements across multilingual production teams.

Q1: Is the XBTORT7340 compatible with Modicon M340 and M580 PLC platforms, and what communication protocols are supported for system integration? Yes. The XBTORT7340 natively supports Modbus TCP/IP and EtherNet/IP, making it fully compatible with Modicon M340, M580, and Premium PAC platforms. Configuration is performed using Vijeo Designer software, which provides a unified engineering environment for HMI screen design, tag mapping, alarm configuration, and communication setup. Serial Modbus RTU is also supported for legacy controller integration via the RS-232/RS-485 port.

Q2: What are the installation and commissioning requirements for deploying the XBTORT7340 in an existing control cabinet architecture? The XBTORT7340 requires a standard panel cut-out (dimensions per Schneider Electric installation guide) and is secured with rear mounting clips. Power input is 24 VDC from a regulated supply such as the Phaseo ABL8 series. Ethernet connection to the controller network is established via the RJ45 port. Commissioning involves loading the Vijeo Designer project file, configuring IP addressing, and verifying tag communication with the target PLC. Typical commissioning time for a pre-configured project is under two hours.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the XBTORT7340? All XBTORT7340 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures. Each unit undergoes pre-shipment functional testing to verify display, touchscreen, communication ports, and power input performance. NANKMOS maintains stock inventory of the XBTORT7340 to support urgent project requirements and MRO (maintenance, repair, and operations) procurement. For volume orders, lead time and availability can be confirmed directly with our technical sales team.
