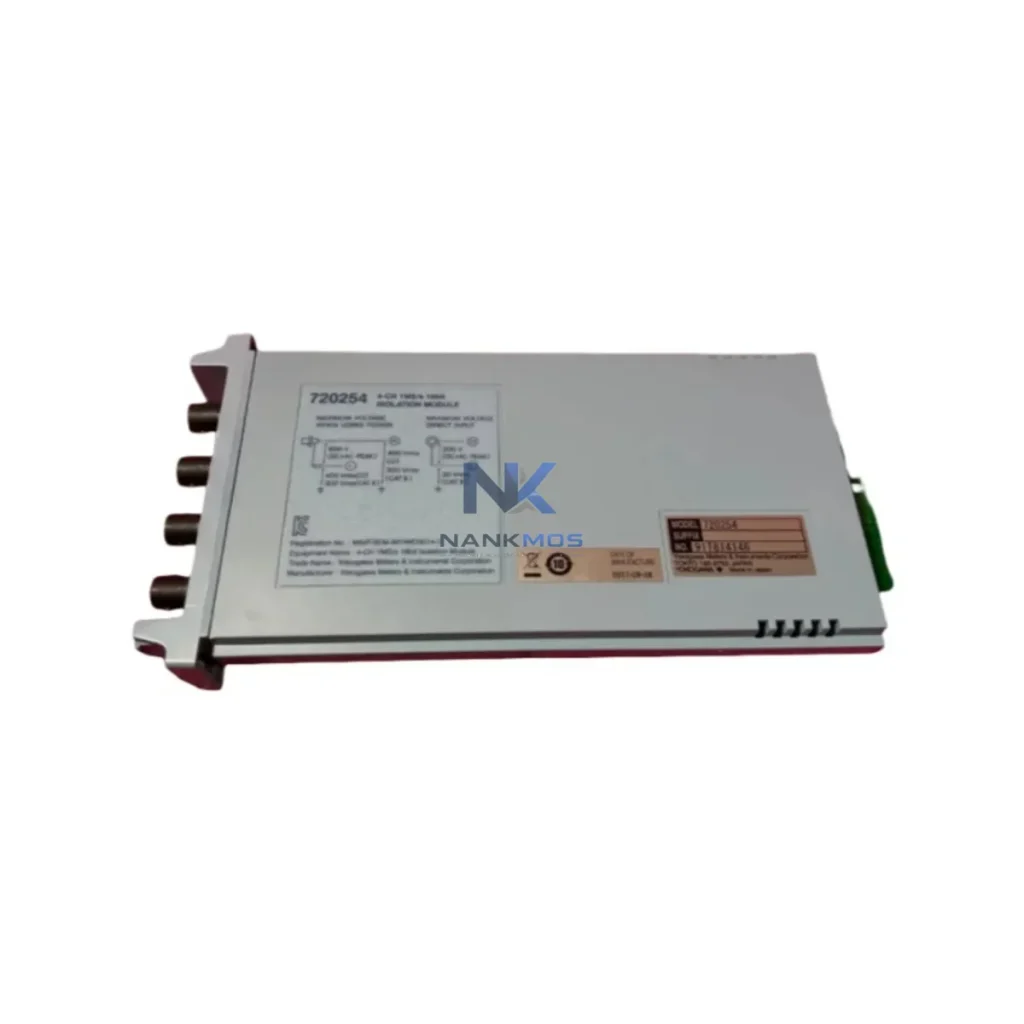

Yokogawa 720254 Communication Module

Product Details

720254 Product Description

The Yokogawa 720254 is a system-matched communication module engineered for seamless integration within the STARDOM FCN (Field Control Node) distributed control architecture. Designed to operate as a core communication layer component, the 720254 enables deterministic data exchange between field I/O nodes, supervisory controllers, and plant-wide SCADA or DCS networks. Its role within the FCN rack system is not merely signal transmission — it is the structural backbone that ensures cross-layer coherence, protocol consistency, and long-term maintainability across complex industrial automation platforms.

In modern industrial control environments — spanning power generation, petrochemical processing, water treatment, oil and gas, mining, and marine propulsion — communication integrity between control layers is as critical as the control logic itself. The 720254 addresses this requirement by providing stable, high-throughput communication pathways that support both real-time control loops and supervisory data acquisition. Its architecture-ready design allows engineers to deploy it within new FCN installations or as a validated replacement in existing STARDOM-based systems without requiring platform reconfiguration.

The 720254 communication module achieves its full operational value when deployed within a complete STARDOM FCN automation platform. At the control layer, it interfaces directly with the FCN CPU module — such as the Yokogawa FCN-100 or FCN-500 processor units — to relay real-time process data and control commands across the backplane. The module's communication pathways are synchronized with the FCN's deterministic scan cycle, ensuring that I/O data from analog input modules (e.g., Yokogawa AAI143, AAI543) and digital I/O modules (e.g., ADV151, ADV551) is transmitted without latency-induced distortion.

At the power layer, the 720254 operates in conjunction with the FCN power supply module (e.g., Yokogawa PW481 or PW482) to maintain stable voltage rails across the communication bus. In redundant architectures, dual power supply configurations ensure that communication continuity is preserved even during single-point power failures — a critical requirement in petrochemical and power generation applications where unplanned downtime carries significant operational and safety consequences.

For supervisory integration, the 720254 connects the FCN field control layer to FAST/TOOLS SCADA software or third-party OPC-UA and Modbus/TCP-compatible HMI platforms. This enables plant operators to monitor real-time process variables, acknowledge alarms, and execute supervisory commands from centralized control rooms. The module's Ethernet-based communication backbone also supports integration with industrial switches (e.g., managed Layer 2 switches with PROFINET or EtherNet/IP support) to extend network reach across large plant topologies.

In I/O expansion scenarios, the 720254 supports communication with remote I/O nodes connected via the FCN's field network, including Yokogawa's STARDOM FCJ (Field Control Junction) units deployed at distributed measurement points. This layered I/O architecture allows engineers to scale the control system incrementally — adding new measurement loops or control zones — without disrupting existing communication channels or requiring firmware updates to the central CPU.

Signal isolation and conditioning modules, such as Yokogawa's MTL or equivalent DIN-rail signal isolators, are commonly deployed upstream of the FCN I/O modules to protect the communication layer from ground loops, surge transients, and EMI interference common in heavy industrial environments. The 720254's robust backplane interface is designed to maintain signal integrity even in electrically noisy panel environments, reducing diagnostic overhead and improving mean time between failures (MTBF) for the overall control system.

Power Generation: In gas turbine and steam turbine control systems, the 720254 serves as the communication bridge between turbine protection logic (implemented in the FCN CPU) and plant-level DCS or SCADA platforms. Its deterministic communication cycle supports fast-response interlocking and alarm annunciation, ensuring that turbine trip signals are transmitted within the required safety response time.

Petrochemical and Oil & Gas: Refinery and upstream processing facilities rely on the STARDOM FCN architecture for continuous process monitoring and regulatory control. The 720254 enables seamless data exchange between field transmitters, control valves, and the supervisory FAST/TOOLS platform, supporting advanced process control (APC) strategies and real-time optimization loops.

Water Treatment and Municipal Infrastructure: In water treatment plants and pumping stations, the 720254 supports remote monitoring of distributed FCN nodes via Ethernet-based SCADA networks. Its low-maintenance design and 12-Month Warranty make it a reliable choice for municipal operators who require long service intervals and predictable spare parts availability.

Mining and Metallurgy: Mineral processing and smelting operations deploy the STARDOM FCN system for conveyor control, crusher monitoring, and furnace temperature regulation. The 720254's industrial-grade communication reliability supports continuous operation in high-vibration, high-temperature environments typical of mining control rooms.

Marine Propulsion and Offshore: Offshore platforms and vessel automation systems use the FCN architecture for engine room monitoring and ballast control. The 720254's compact rack-mount form factor and robust communication design meet the space and reliability constraints of marine control panel installations.

Q1: Is the Yokogawa 720254 compatible with both new FCN installations and legacy STARDOM system upgrades? Yes. The 720254 is designed as a system-matched component within the STARDOM FCN rack architecture, making it suitable for both greenfield deployments and validated replacement in existing FCN-based control systems. Its backplane interface conforms to the FCN module standard, ensuring plug-compatible installation without requiring changes to the CPU configuration or I/O mapping. Engineers performing system upgrades should verify the FCN firmware revision to confirm module compatibility prior to installation.

Q2: What communication protocols and supervisory platforms does the 720254 support for contextual integration? The 720254 supports contextual integration with Yokogawa's FAST/TOOLS SCADA platform via Ethernet-based communication, and is compatible with OPC-UA and Modbus/TCP supervisory interfaces for third-party HMI and DCS integration. In multi-vendor architectures, the module's standard Ethernet backplane connection allows it to interface with industrial managed switches and gateway devices that bridge STARDOM FCN data to plant-wide historian or MES systems. Contextual integration validation should be performed during commissioning using the FCN engineering tool suite.

Q3: What warranty and supply assurance does NANKMOS provide for the Yokogawa 720254? All Yokogawa 720254 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication integrity and backplane interface compliance before dispatch. In-stock inventory is maintained to support urgent replacement requirements and planned maintenance schedules. For volume procurement, long-term supply agreements and lead time commitments are available upon request. Contact [email protected] or +86 18359268345 for availability and pricing.
